Raoyang Hongyuan Machinery CO.Ltd
Business Type:Manufacturer
Main Products: fire extinguisher filling machinehose crimping machinefire extinguisher service station machinedry powder refilling machine carbon dioxide filling equipementfire fighting equipmentpipe locking machinehydraulic pressure testing machinehydrostatic testing pressure pumpfire extinguisher producing machine
view on mobile
automatic dry powder filling machine,fire extinguisher filling machine
Security, Fire & Safety Alarm & Fire Fighting
MOQ:1 Set(s)
Payment Method : L/C T/T Western Union Paypal Money Gram Others
Keywords:dry powder filling machine fire extinguisher machine fire extinguisher dry powder filler abc powder filling machine fire fighting machine fire fighting auto dry powder filler auto powder filling equipment auto powder filling machine
| Product Category: | Security, Fire & Safety > Alarm & Fire Fighting | Trademark: | hongyuan machinery |
| Product Package: | non_fumigated plywood case | Specifications: | 122X61X139CM |
| Place of Origin: | CHINA | Port: | TIANJIN,NINGBO,QINGDAO,ANY PORT OF CHINA |
GFM8-2 powder filler is a new product developed and designed by our factory in combination with the characteristic of actual filling with reference to the advantages of its counterparts at home and abroad. Powder is rapidly absorbed into the cylinder to be filled by vacuum jet current. It is equipped with JY700 weight display of high precision . The filling is automatic and quantitative. The residual dust on the filter is cleared by use of the negative pressure produced by vacuum. As it integrates electronics, electrical device and machinery into one entity, labor intensity is lowered and work environment improved. It is characterized by small volume, light weight, lower energy consumption, easy movement, simple operation and longer service life. So it is specially suitable for powder filling of fire extinguisher and also ideal for other powder filling sector.
I. Main Technical Parameters
Volume: Length ×Width ×Height (1130mm×520mm×1350mm)
Weight: 200kg
Voltage: AC 380V 220V 50HZ
Power: 1.5Kw/0.55kw
Filling precision: 1kg≤+0.02
Filling speed: 6-12kg/min
| Contact Name: | Mrs Alice hou | Contact Email: | hy****e@hyjx-china.com |
| Contact Job Title: | Manager | Contact Mob: | 188***893 |
| Contact Tel: | 0086-18731835598 | Contact Fax: | 0086-318-7321606 |
| Address: | Hongyuan Industrial Park, Gongye Road, Xincheng District, Raoyang Hebei China. | Website: | http://www.hyfirefilling.com |

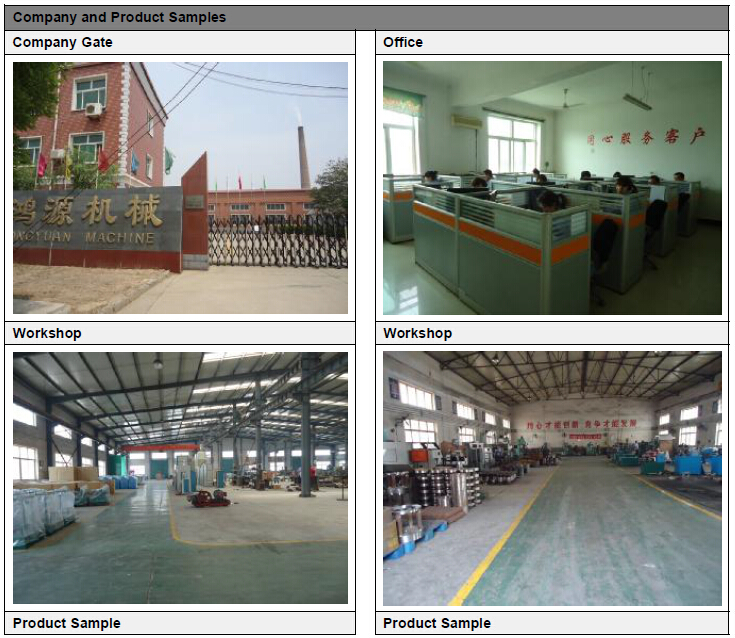

Raoyang Hongyuan Machinery Co., Ltd., founded in 1978, is a national “high-tech enterprise” in China. The company has modern standard workshops of more than 20000 square meters and the total assets of more than 100 million RMB. The company has powerful technical resources, strong research, and development capability, and has undertaken many national and provincial scientific research projects. The company is a technology-intensive enterprise with the integrity of R&D, design, production, and technical service. At present, the company holds 16 valid patents. Three kinds of products have passed Science and Technology Result Identification, reaching an international level. Two kinds of products are identified as: “National Key New Products”. One kind of product is rated as the “Best Invention and Creation Award”. And one kind of product is rated as: “Quality Products of Hebei Province”.
Our main products include Hydraulic Test Pump Series, Fire-Fighting Equipment Series, and Hose Crimping Machine Series. Hydraulic Test Pump Series covers the following products: CNC Test Pump, Hydraulic Test Pump equipped with Digital Recorder, Ultra high-pressure electric test pump, high flow electric test pump and Manual pressure testing pump, etc. Fire-Fighting Equipment Series mainly consist of Dry powder filling machine, Carbon dioxide filling machine, Nitrogen filling machine, and relevant extinguisher manufacturing, maintenance, and service equipment.
Science and technology are highly stressed in HYM. We have close technological cooperation with prestigious colleges and universities in China and hire highly-qualified professors as our technical consultant. In recent years, research and development of new products have been broken through and take the leading position in the field. Model GFM8-2 Extinguisher Dry Powder Filling Machine fills up the blank of domestic technology and won the national utility-type patents. As a pioneer of dry powder filling technology in China, Automatic High-precision Extinguisher Filling Product Line has been awarded Invention Patent, utility model patent which enjoy high reputation in the world market.
Our main products have passed CE and ISO9001, the certificate of international quality management system examination and best-selling products for the major national market, exported to Europe, America, Southeast Asia, the Middle East, and other countries and regions.
