Product Introduction

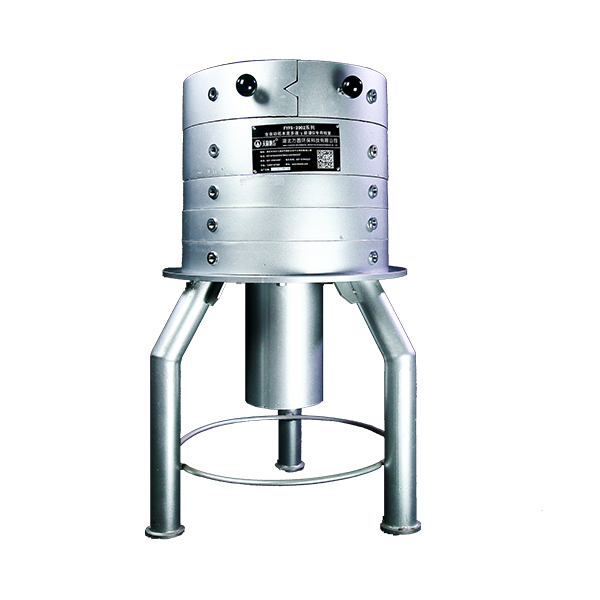

FYFS-2002 series automatic low background multi-channel gamma spectrometer is a new generation of low background γ radiation detection equipment independently developed by Hubei Fangyuan Environmental Protection Science & Technology Co., Ltd.

Functional Features

1. Lead chamber:

＊ Five layer lead chamber with new structure, detector crystal thickening protection (lead equivalent thickness 160mm) (patented technology)

＊ Background ＜180cpm (3cps)

＊ Lead equivalent thickness: 100mm,  inner diameter:220mm,  outer diameter: 440mm

2. Multichannel analyzer:

＊ Fast pulse shaping and filtering technology (patent technology)

＊ 1024 / 2048 / 4096 channels optional on software

＊ USB / serial port optional

＊ Ultra low power consumption, host power < 20

3. Analysis software:

＊ The software system v1.0 (software copyright) of full-automatic low background multichannel gamma spectrometer analysis for square and circle.

＊ Automatic spectrum collection, automatic peak seeking function, mouse operation, easy to use

＊ According to the GB6566-2010, the radionuclide content and internal and external exposure index are calculated automatically

＊ Sampling method: fixed time sampling and fixed number sampling

＊ Fixed time sampling: optional measurement time 0-200000 s

＊ The measurement duration can be changed during the measurement process

＊ Under the condition of unknown sample activity, enough spectral lines can be obtained by setting the total capture count

＊ Types of analytical nuclides: RA, th, K, RN. (other nuclides such as u, CS, CO can be added according to user requirements)

＊ The power-off spectral line is automatically saved, and the instrument can automatically save the current measured spectral line in case of power failure and other emergencies during the measurement process

＊ Breakpoint continued acquisition: for the spectrum lines that have not been collected, the

software can be transferred into the current spectrum line to continue the acquisition

＊ Sampling completion alarm: after the current acquisition, there will be an audible alarm prompt

＊ Continuous sampling and single sampling: you can switch between continuous sampling and single sampling. The number of spectral lines for continuous sampling can be set according to needs

＊ Information detection before printing: before printing the report, check the spectral line information, or modify and fill in the spectral line information (the measurement result cannot be changed)

＊ Print preview: preview the print interface before printing

＊Advanced functions: support spectral filter length modification, correction coefficient modification, and hybrid calculation.

＊ Support login user name and password modification, support spectral channel address conversion

＊ Support double-click the spectral line file to open the software and call in the current spectral line

＊ The general calculation results are saved automatically to ensure the uniqueness and traceability of the results

Technical parameters

Measurable energy range: 20KeV -1OMeV（recommended 20KeV -3MeV)

Energy resolution: 7.0% (Cs-137)

Energy Linearity: ≤ 土1%

Stability: 24h peak drift<1%

When the sum of specific activity of Ra, Th and K in the sample is greater than 37Bq / kg, the total uncertainty of measurement expansion of this instrument is not greater than 10% (k= 2)

Instrument configuration

1. Host: multichannel analyzer

2. Lead chamber: a new five layer split lead chamber

3. Detector: one Φ 75 high sensitivity ray detector

4. Software: FYFS-2002K system operation software 1 set (with one sheet CD)

5. Active carbon radon measurement system (active carbon + sample box + analysis software)

6. One standard source of radium, thorium and potassium (with calibration certificate)

7. 10 radioactive standard sample boxes

8. 1 set of instrument connecting wire

9. 1 instrument verification certificate

10. 1 user manual

11. One photocopy of the license for manufacturing measuring instruments (CMC)

12. Brand computer 1 set (optional)

13. 1 brand printer (optional)

Application

Full Automatic Low Background Multichannel γ Spectrometer can quantitatively analyze the γ radioactivity in building materials and their products, and the radon content in air and soil. This spectrometer is inorganic non-metallic materials such as marble, granite, glass, ceramics, cement, brick and tile, sandstone and concrete Necessary equipment for radioactive detection of soil and products. It is widely used in quality inspection, construction engineering, building materials, geology and mining, environmental protection, disease control, inspection and quarantine, scientific research institutions, colleges and universities, factories and mining enterprises and other fields and units.
