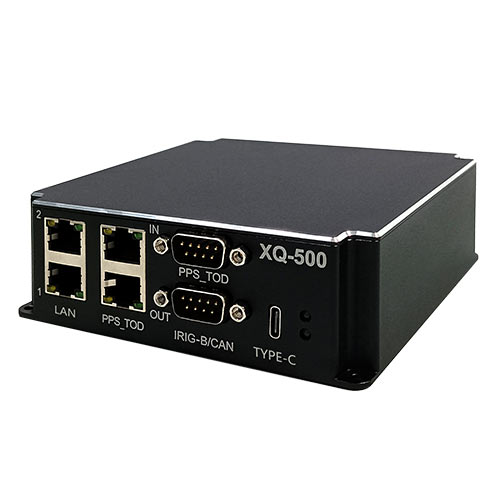

Multifunctional time synchronization box XQ-500
Electronics and Communications communication device
MOQ:1 Piece(s)
Payment Method : L/C T/T Paypal
Keywords:time synchronization ptp time server ntp time sever
| Product Category: | Electronics and Communications > communication device | Trademark: | |
| Product Package: | BOX | Specifications: | |
| Place of Origin: | wuhan， China | Port: | Shanghai |
Introduction
The XQ-500 provides high-performance client processing capabilities and hardware architecture design based on hardware timestamps to achieve high scalability and maximize network availability. It combines the high-precision function of IEEE 1588-2008 Grandmaster and NTP function,and 10MHz/1PPS/IRIG-B/PPS_ TOD etc.The compactness of the equipment is suitable for autonomous vehicle, base station controllers and other racks in narrow spaces.
The XQ-500 supports the user's flexible software parameter configuration. Through the WEB operation, you can select One step/Two step, E2E/P2P, L3/L2, Unicast/Muiltcast settings, which ensures that compatible interconnection can still be achieved in the application environment of multi client vendors.
Main features:
○ Message processing based on hardware timestamp
○ Support WEB configuration of all parameters
○ Support GPS、GLONASS、GALILEO、BeiDou satellite input
○ Automatic switching to select preferred reference source
○ NTP timing accuracy is better than 100us
○ PTP timing accuracy is better than 100ns
Main advantages:
○ Support BC, OC, TC
○ Support Autosar CAN time synchronization
○ Support multiple PPS trigger signals
○ Support SyncE(Synchronous Ethernet)
○ Support simultaneous operation of PTP and NTP clients in the network
○ Support RTC automatic cut-out time keeping

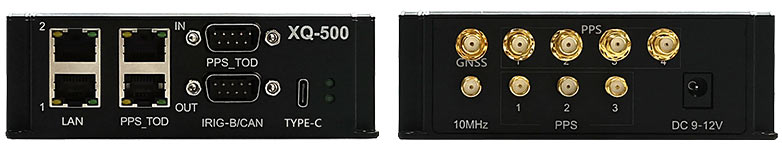

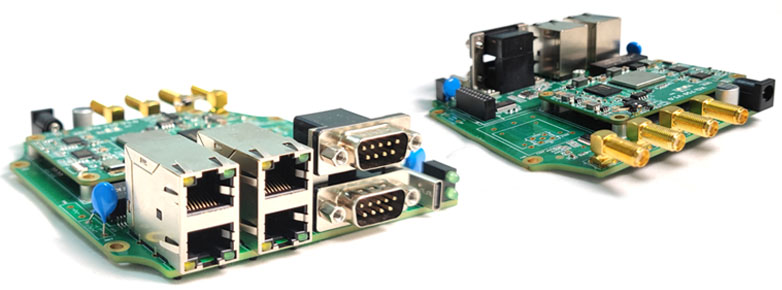

| Multifunctional time synchronization box - physical interface specification | |
| GNSS Input Options | ○ GPS、GLONASS、GALILEO、BeiDou |
| Network system interface | ○ 2 × ETH (100/1000 BASET) PTP/NTP Time Synchronization output interface, RJ45 interface ○ 1 × RS232 Debugging Interface, 115200 Baud , TYPE-C interface, System Debugging Configuration |
| IRIG-B interface | ○ 1 × IRIG-B DC input, RS485 TTL, DB9 interface ○ 1 × IRIG-B DC output, RS485 TTL, DB9 interface |
| PPS_ TOD interface | ○ 1 × PPS_ TOD input/output, RS485 TTL(9600 Baud can set), RJ45 interface ○ 1 × PPS_ TOD input/output, RS232 TTL(9600 Baud can set), DB9 interface ○ 1 × TOD input/output, TTL (9600 Baud can set), DB9 interface CAN interface |
| CAN interface | ○ 2 × CAN interface, DB9 interface |
| PPS interface | ○ 3 × PPS output, TTL, SMA interface ○ 4 × Pulse output, TTL, 1Hz, 10Hz, 100Hz etc pulse output can set, SMA interface |
| Frequency interface | ○ 1 × 10MHz output, TTL, SMA interface |
| Environmental requirements | ○ Ambient Temperature: OCXO - 30 ℃ -+70 ℃ cold start temperature - 20 ℃ above ○ Storage Temperature: - 40 ℃ -+85 ℃ ○ Humidity: 5% - 95% non-condensing |

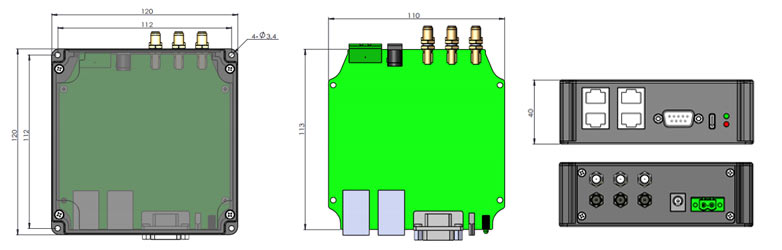

| Physical specifications | ○ Size: 120×120×40mm ○ Weight: 0.5Kg |
| OCXO Model Selection | ||||
| Specifications | OCXO LQ | OCXO MQ | OCXO HQ | OCXO DHQ |
| Nominal Frequency | 10.000MHz/CMOS | 10.000MHz/CMOS | 10.000MHz/CMOS | 10.000MHz/CMOS |
| Accuracy of PPS | ≤100ns | ≤100ns | ≤50ns | ≤50ns |
| Initial Frequency Accuracy | ≤±0.2ppm | ≤±0.1ppm | ≤±0.1ppm | ≤±0.1ppm |
| Temperature Stability | ＜±10ppb | ＜±10ppb | ＜±10ppb | ＜±10ppb |
| GPS-Synchronous Accuracy | ±1×10-11 | ±5×10-12 | ±2×10-12 | ±1×10-12 |
| Aging | ≤±0.5ppb/Day | ≤±0.5ppb/Day（0.3ppb） | ≤±0.5ppb/Day（0.3ppb） | ≤±0.5ppb/Day（0.3ppb） |
| Short-term Frequency Stability | 2E-11/1s(≤0.02ppb) | 8E-12/1s | 5E-12/1s | 2E-12/1s |
| Phase Noise | -80dBc/1Hz | -95dBc/1Hz | -95dBc/1Hz | -105dBc/1Hz |
| Warm up time with accuracy | ≤±10ppb | ≤±10ppb | ≤±10ppb | ≤±10ppb |
| Accuracy of Time Free run 1 Day | ±18.28us | ±12.5us | ±7.6us | ±4.5us |
| Accuracy of Time Free run 1 Year Power | ±5.78s / Start-up:3.5W | ±3.6s / Start-up:4.2W | ±1.56s / Start-up:4.2W | ±388ms / Start-up:4.2W |
| Stable Power | 1.2W | 1.5W | 1.5W | 1.5W |
| Product Model | OC5SC36AW-10.00MHz | TO-100-118M58HT-10M | TO-100 | TO-100 |
Main applications:
○ Desktop time service application
○ Transportation, finance, big data, digital TV/radio network
○ Autopilot master, slave clock
