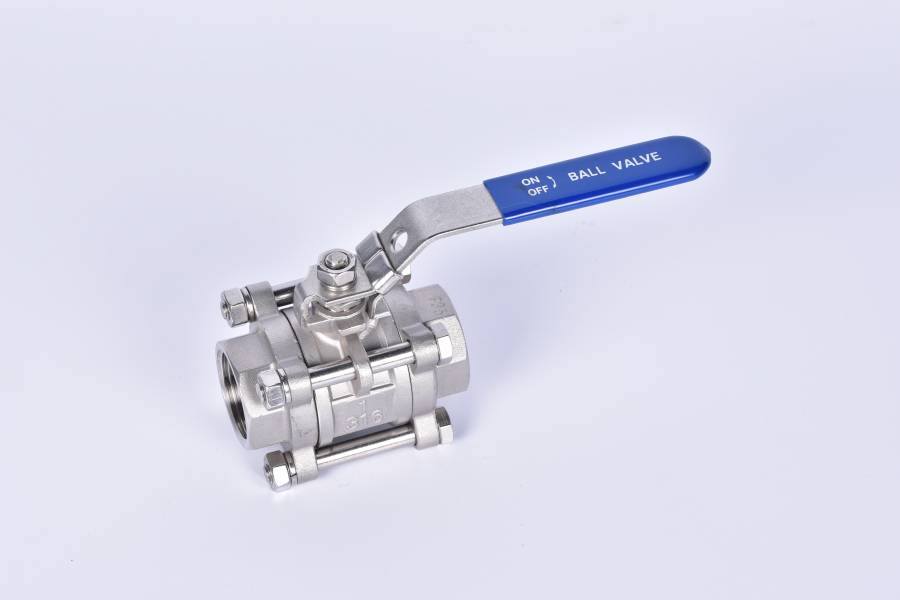

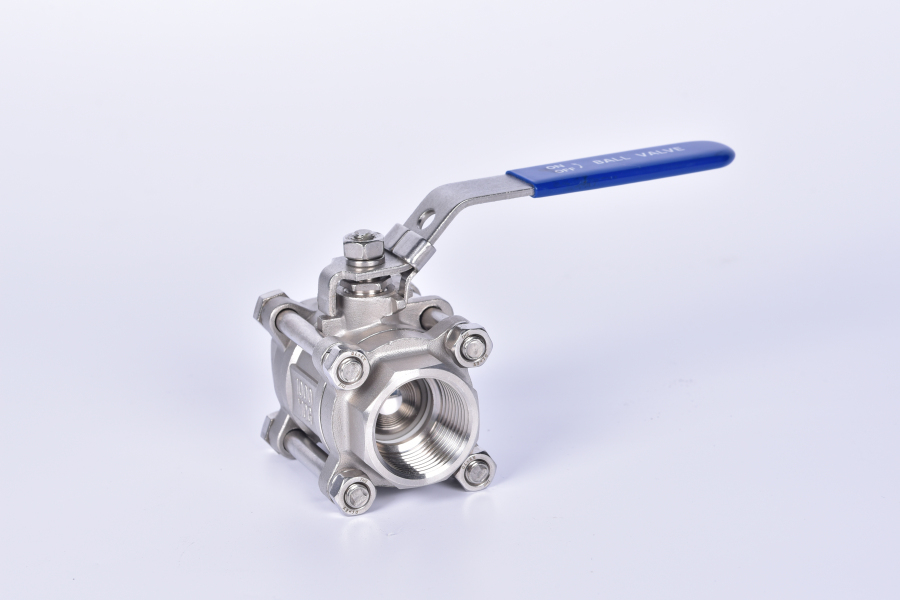

3-PC STAINLESS STEEL BALL VALVE 1000PSI

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 10.80 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union

Keywords:Ball Valves stainless steel ball valves NPT

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark: Customized
Product Package: carton / pallet Specifications: 1/4 inch to 8 inch
Place of Origin: China Port: qingddao

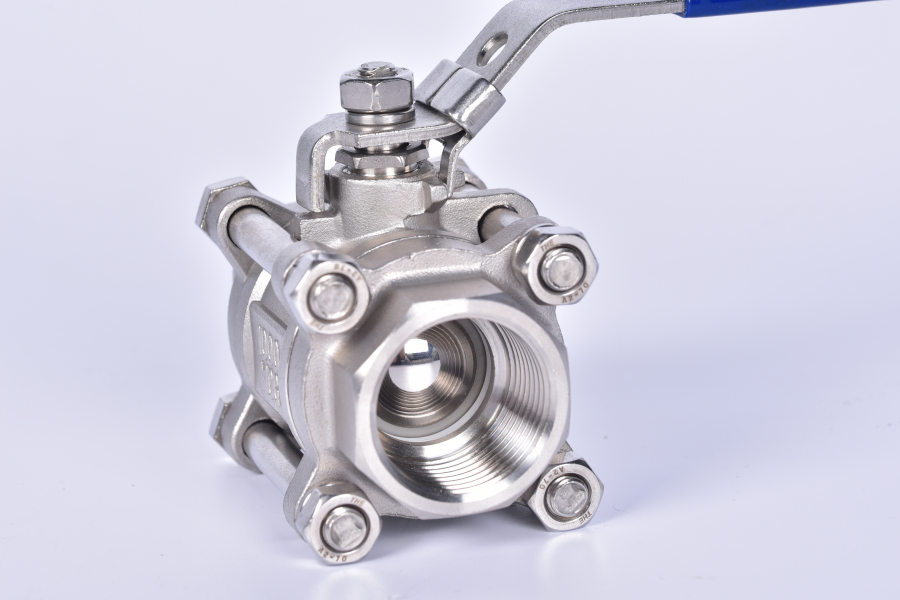

Three picec stainless steel ball valve (full bore)

investment castings for body and cap

internal entry blow-out proof stem

pressure rating : 1000 psi

thread end : BS ISO ASME DIN

Material: CF8 CF8M CF3M WCB

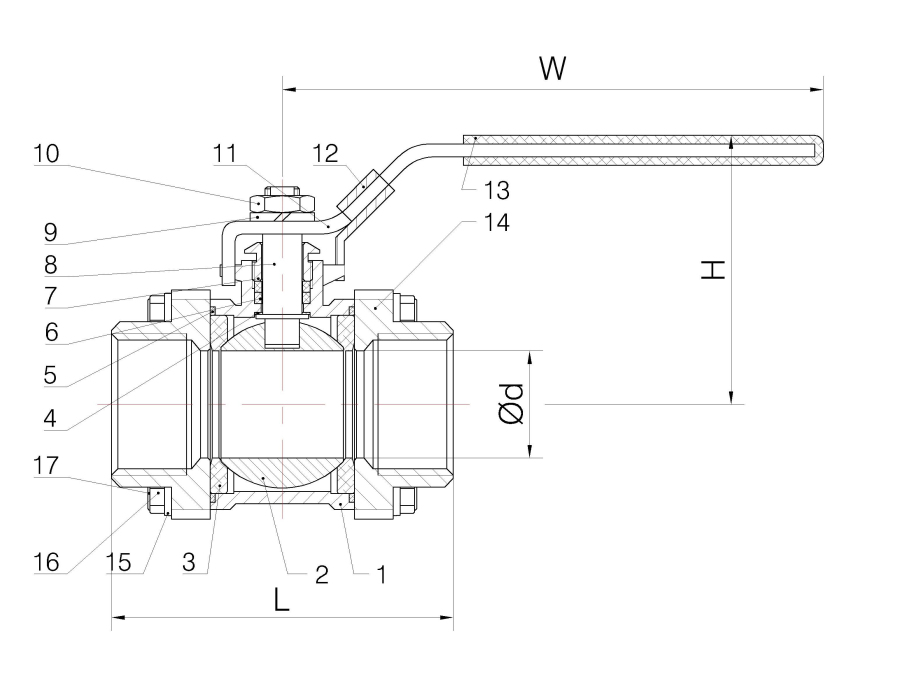

ITEMPARTMATERIALQTY
1BODYA216-WCBA351-CF8A351-CF8M1
2BALL3043043161
3SEATPTFE/RPTFE2
4THRUST WASHERPTFE1
5GASKETPTFE2
6PACKINGPTFE1
7GLAND NUT3041
8STEM3043043161
9SPRING WASHER3041
10NUT3041
11HANDLE3041
12LOCK3041
13HANDLE COVERPLASTIC1
14CAPA216-WCBA351-CF8A351-CF8M2
15SPRING WASHER3043043044(6)
16NUT3044(6)
17BOLT3043043044(6)

DIMENSIONS

SIZEΦdLHWN.MKGS
DN61/4"12.55143.510350.29
DN103/8"12.55144.510350.29
DN151/2"15635010360.43
DN203/4"207159127100.61
DN251"258061127120.80
DN321-1/4"329479154171.43
DN401-1/2"3810383154301.73
DN502"5012694195482.72
DN652-1/2"65158135244585.44
DN803"76179144244967.64
DN1004"9421314928512415.78


Contact Name: Miss Alice Fu Contact Email: ra****5@163.com
Contact Job Title: Manager Contact Mob: 133***189
Contact Tel: Contact Fax:
Address: Website: www.rayvalve.com

YANTAI RAY-VALVE METAL PRODUCT CO.,LTD ,is established in 2003, located in YANTAI city, near Qingdao and Tianjin ,Shanghai Sea Port. Our Main products are stainless steel ball valve, globe valve, check valve, gate valve, filter, fitting, quick joints with female thread, male thread, welded end, and flanged end. And we also have valves with electric actuator and pneumatic actuator. Products conform to the standard of GB, ANSI, JIS, DIN, BS . Our products are widely used in the field of medicine, foodstuff, metallurgy, petroleum, chemistry industry, electron, machinery, architecture, water supply system, and are exported over the world, like The USA, Spain, Japan, Australia, and Canada, Totally more than 30 countries and regions. We have our lost-wax investment casting foundry, can research, design and supply all kinds of precision castings according to Customer’s requirements.   We have gotten the certificate of TUV SUD ISO9001:2008, Germany CE, and Australia WATERMARK and have imports & exports rights. Customer satisfaction is always our seeking goal. We “RAY-VALVE” are always looking forwards to your cooperation.
