Shock Test chamber of Two Zone

Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 2,000.00 / Piece(s)

MOQ:100 Piece(s)

Payment Method :

Keywords:test chameber Shock Test chamber  Two Zone Test

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > General Industrial Equipment Trademark:
Product Package: Specifications:
Place of Origin: Port: Shenzhen

Basic Info.

Model NO.
ET4200S2
Type
High and Low Temperature Testing Machine
Display
Digital
Control
PLC
Weight
0-100Kg
Power Source
AC380V
Body Materials
SUS#304 Stainless Steel Plate
Inner Materials
SUS#316 Stainless Steel Plate
Compressor
Original Germany Bitzer Brand
Delivery Detail
25 Working Days After Getting The Payment
Trademark
Envsin
Specification
ISO9001/ ISO14001
Origin
Guangdong, China
HS Code
90321000

Product Description

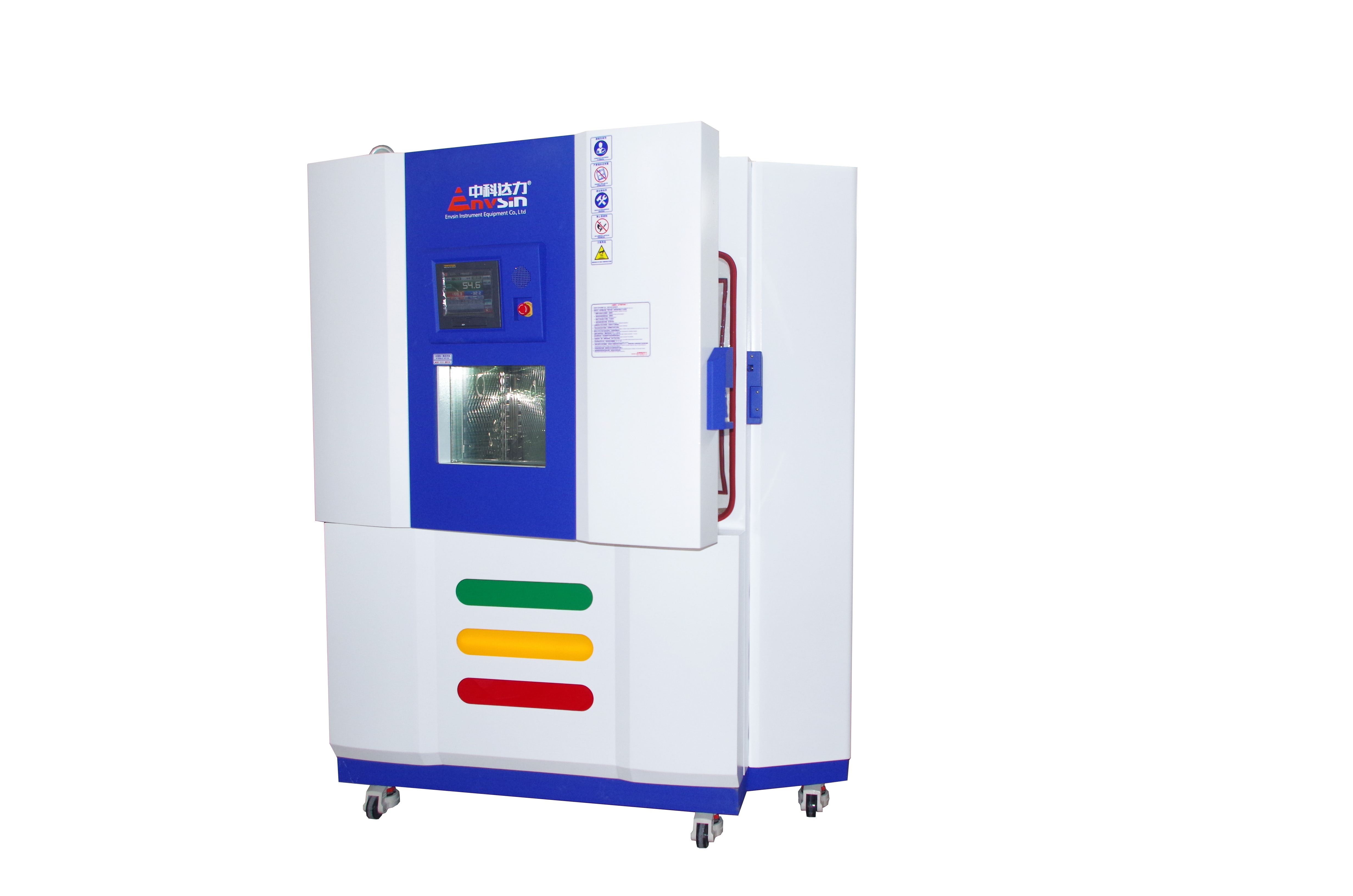

Shock Test chamber of Two Zone

1.Shock Test chamber Introduction

Shock Test chamber of Two Zone is applied for testing the material structure or composite material in an instant by the extremely high temperature and very low temperature continuous environment. This product can test product (such as metals, plastics, rubber, electronic  and so on) quality reliability.

2.Shock Test chamber Specification

ModelET450S2ET4100S2ET4200S2
Test Area Volume(L)50100200
Test Zone222
H.T. Chamber Temp. Range(oC)+50/+200+50/+200+50/+200
L.T. Chamber Temp. Range(oC)-80/+70-80/+70-80/+70
Temperature Fluctuation(oC)±0.3-±1.0±0.3-±1.0±0.3-±1.0
Temperature Uniformity(oC)±0.5-±2.0±0.5-±2.0±0.5-±2.0
Recovery Time (min)Less than 1min(Air Outlet)Less than 1min(Air Outlet)Less than 1min(Air Outlet)
Test Area Dimension(W×D×Hmm)400x400x310500x500x400600x550x600

Exterior Dimension(W×D×Hmm)
 		900x2300x21601000x2400x22501200x2500x2200

2-Cased Type(oC)		-40/+150-40/+150-40/+150

Max. Load(KG)		153050
Cooling MethodsAir-CooledWater-Cooled (Compliant with IEC 60068-3-5)

Power		AC380V±10%,50HZ,3/N/PE
Compliant with International Standards:2-Cased Type
GB/T2423.22
MIL STD 202F,method 107G
IEC 60 068-2-14,Test Na
BS 2011
DIN 40046,Test Na
JESD22-A101-A


3.Shock Test chamber Features

(1). Modular fabrication technique.
(2). Long defrosting cycles: 700H above.
(3). Visible observation window for real-time monitoring.
(4). Intelligent 32 bit measuring and control system with colorful screen.
(5). Interface USB and Ethernet.
(6). Programmable power outlet with 4-CH. ON/OFF output control, to ensure safety.
Independent thermal protector and sensors keep test specimen off over
temperature, breezeless and smog.
(7). Network video monitoring is synchronized with test data.
(8). APP mobility management.
(9). Environmental servo refrigerant flow control for energy saving
and quick heat-up/cool-down rate.

4. Our Client
Envsin Instrument Equipment Co., Ltd is a Shenzhen-based testing equipment provider with strong capability in research, development and after-sales service.we are honored to be the preferential vendor to many famous entities such as Foxconn, ABB, CISCO and GREE GROUP, please see below:

4.If you are interested in our products or services, or would like to learn more details, do not hesitate to contact us.


Contact Name: Miss. Hui Li Contact Email: sa****s@imufogsins.com
Contact Job Title: CEO & Director Contact Mob: 158***562
Contact Tel: Contact Fax:
Address: Xinhewan field, Xiaodian District, Taiyuan City, Shanxi Province Website: www.envsin.com

Envsin is a leading environment test chamber manufacturer. Envsin Instrument Equipment Co., Ltd founded in 1997 and focus on the high-end environmental test chamber for about 20 years. As high-end environment test solution provider now mainly engaged in the international market : Mainly for national defence , the automobile enterprises , provide high -quality and high standards environmental test chambers and environmental reliability test plan for large projects.
