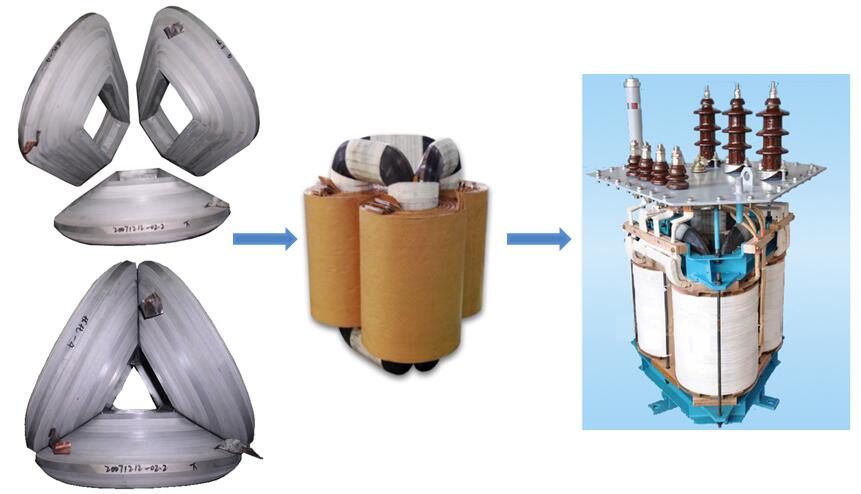

3D Wound Core &power-Saving Distribution Transformer

Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 5,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords: Distribution Transformer Transformer power-Saving   3D Wound Core

Add to Favorites

Product Category: Electrical & Power Energy > Electrical Switches & Supplies Trademark: DFE
Product Package: Specifications:
Place of Origin: China Port: Qingdao
SC13-RL-100~2500/10 Cast Resin Epoxy Filled Dry Type   Distribution Transformer Specification(High quality)
Capacity(kVA)10012516020025031540050063063080010001250160020002500
Voltage combination(KV)HV6      6.3       10     10.5     11
LV0.4
Tapping range of HV(%)±5           ±2×2.5
Connection   Symbol
Dyn11                   Yyn0
Short Circuit Impedance%46
No-Load   LossW32037543049557570578593010701040121514151670196024402880
Load   LossW1570185021302530276034703990488058805960696081309690117301445017170
No-load Current%0.30.30.30.30.20.20.20.20.150.150.150.150.150.10.10.1
Boundary Dimension(mm)L7557707908308859701030104013051305135013801415163516511731
B65067013051310133713191463148815041504158416471747191020492061
H1170119012101240127512541340137514201420148315261630176019002015
Mounting Dimension(mm)A300300300300400400400400400400450500500550550550
C820820820820820820820820820820107010701070107010701070
D19191919191919191919191919191919
SC13-RL-100~2500/10 Cast Resin Epoxy Filled Dry Type   Distribution Transformer Specification(High quality)
Shell products

wightkg83093010401150133014601670185020702070247028503320393046605580
Boundary Dimension(mm)L1250125012501350135014501450155015501550165016501800180020502050
B1550155015501600160017001700175017501750185018502050205022002200
H1350135013501400140015001500155015501550170017001950195021502150
h120120120120120120120120120120120120140140140140
Mounting Dimension(mm)A720720720720720790790790790790790790900900900900
C1450145014501500150016001600165016501650175017501950195021002100
