Mechanical CPR device
Medical & Health & Beauty Medical Devices
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:cpr device cpr machine emergency device
| Product Category: | Medical & Health & Beauty > Medical Devices | Trademark: | |
| Product Package: | 5-ply corrugated hard paper carton | Specifications: | |
| Place of Origin: | Port: | Qingdao |

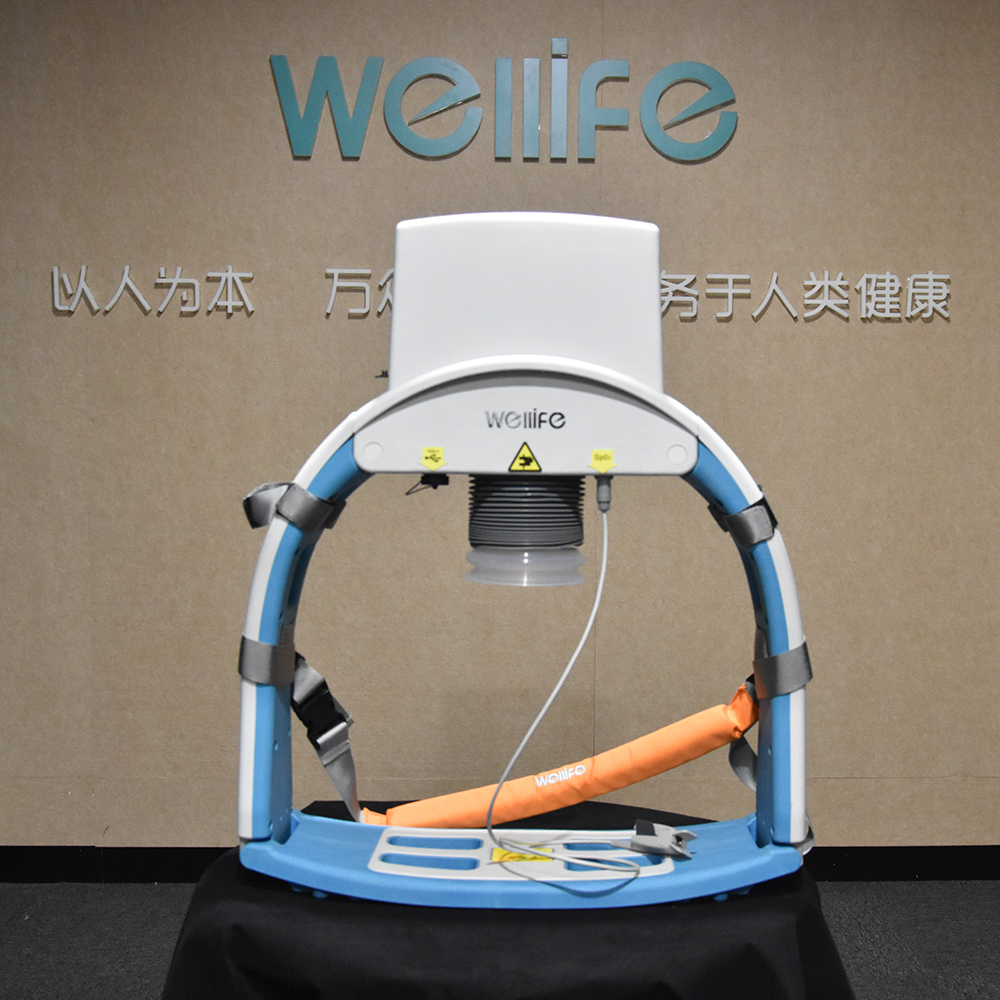

CPR device PIH-03
The Wellife portable cardiac resuscitation Device is developed by Yantai Wanli Medical Equipment Co., Ltd in 2011 which is powered by an rechargeable lithium battery, with continuous compression mode and 30:2 compression mode. This device is a portable tool designed to overcome problems identified with manual chest compressions. The Wellife device assists rescuers by delivering effective, consistent and continuous chest compressions, as recommended in the American Heart Association guidelines and the European Resuscitation Council guidelines.
The device is powered by rechargeable battery or by external power supply;
· Automatic locate the compression position;
· with negative suction cup to ensure the chest to recoil;
· with USB,Bluetooth and 4G data output ;
· the compression depth,frequency and mode is adjustable;
· Only one person is needed to monitor the device running during the rescue process.
Specification of PIH-03
1. Product Specifications
Name | portable cardiopulmonary resuscitation machine |
Model | PIH-03 |
Safety Class | Class II |
Input | 100-240VAC, 50/60Hz, |
Output | 24VDC |
Battery Capacity | 4500mAh |
Battery Working Time | 2.5hrs/battery |
Height | 65cm |
Width | 54cm |
Net Weight | 8.5Kg |
Gross Weight | 9.5Kg |
Package Size | 67cm×56cm×22cm |
2. Product Features
· One-button start, which can rescue patients as quickly as possible;
· It can be powered by a rechargeable battery, which can be used in places where there is no power source; it can also be used in places such as hospital or ambulance with external power through a charger to connect the battery to directly supply power to the device.
· Automatically determine the patient's chest height, and quickly conduct the compression that meets the patient's physical condition well.
· With three compression modes of continuous, 15:2 and 30:2, it can meet a variety of rescue needs.
· The device starts compression gradually at the begining of compression, which protects patients from accidental injuries to the greatest extent;
· With data output function, it is convenient to save the output of recorded data;
· With red reference point, positioning can be completed quickly and accurately.
· Small size, light weight, easy to carry, low operating noise;
· The operation process is simple and fast, which can maximize the prime time for rescue;
· Only one person is required to supervise during the resuscitation process, saving first aid resources.
Function | working parameters |
Compression Frequency | 100-120times/min,adjustable |
Compression Depth | 3.0-6.0cm，adjustable |
Compression Mode | 15:2/30:2/continuous |
Compression Pad | Run down automatically |
Suction Cup | Make sure the chest full recoil |
Compression Positioning | Red point help address compression position |
3. Indications
This device can be used in a wide variety of situations and settings; on the scene, during patient movement, during transport in road and air ambulances, in hospitals. Patients Eligible for Device
Sternum height | 17.6 to 29cm |
Chest width | 50cm |
4. Structure
PIH-03 is composed of main device, electrical control part, carrying board, charger,battery and head strap.
| Contact Name: | Mr Ming Qu | Contact Email: | we****y@163.com |
| Contact Job Title: | Manager | Contact Mob: | 156***073 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Founded in 2002, Yantai Wanli Medical Equipment Co., Ltd. is one of the wholly-owned subsidiary company of Wellife Group, with a registered capital of 22 million yuan. It is located in Yantai High-tech Zone and covers an area of 50,000 square meters. We are mainly engaged in the research and development, production and sales of medical device ClassII,ClassIII. The company's main development direction is medical biomaterials and mechanical medical devices, and its sales network has covered 30 provinces in China, and sold to international markets such as Europe, South East Asia,Middle East etc. At present the sale products include Automated CPR device,Mechanical CPR machine,Degrade Adhesion Barrier(gel and membrane).
