Excavator Hydraulic Tilting Quick Hitch Coupler

Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 3,200.00 / Set(s)

MOQ:2 Set(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:tilting quick coupler tilt quick hitch Hydraulic Tilting Coupler

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Engineering & Construction Machinery Trademark: YTCT/CTHB
Product Package: Wooden box Specifications:
Place of Origin: China Port: Qingdao

YTCT TILTLING HYDRAULIC QUICK COUPLER

Why should you need a quick coupler? Mainly used in the need to frequently replace the front end of the excavator working device in the work plan. Ten seconds to complete the switch. Time saving, labor saving, simple and convenient.
PRODUCT SPECIFICATIONS
Category/Model
YTCT-00
YTCT -01
YTCT -02
YTCT -04
YTCT-06
YTCT-08
Tilt Degree
180°
180°
180°
180°
140°
140°
Drive Torque
930 NM
2870 NM
4400 NM
4400 NM
10623 NM
18600 NM
Tilt Displacement
0.627 L/MN
0.627 L/MN
1.016 L/MN
1.016 L/MN
2.3 L/MN
3.62 L/MN
Tilt Working Pressure
210 bar
210 bar
210 bar
210 bar
210 bar
210 bar
Tilt Necessary Flow
2-4 Lpm
5-16 Lpm
5-16 Lpm
5-16 Lpm
19-58 Lpm
35-105 Lpm
Working Pressure
25-300 bar
25-300 bar
25-300 bar
25-300 bar
25-300 bar
25-300 bar
Necessary Flow
15-25 Lpm
15-25 Lpm
15-25 Lpm
15-25 Lpm
15-25 Lpm
15-25 Lpm
Excavator
0.8-1.5 Ton
2-3.5 Ton
4-6 Ton
7-9 Ton
10-16 Ton
16-22Ton
Overall Dimension
477*280*567
477*280*567
518*310*585
541*350*608
720*450*784
858*500*911
(L2*W1*H1) mm
Weight
55 Kg
112 Kg
156 Kg
170 Kg
413 Kg
655 Kg
PRODUCT CONFIGURATION
Any color could paint and do for you .OEM IS OK
do your brand or our YTCT local brand all ok .

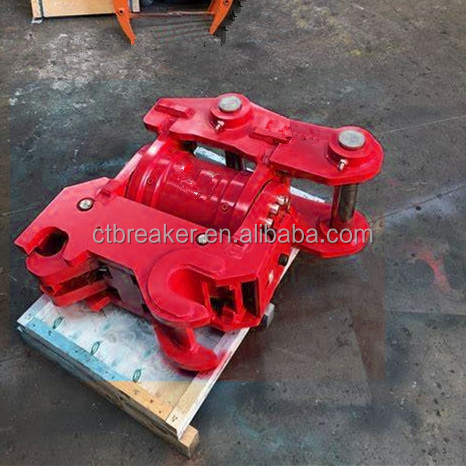

BLUE COLOR
RED COLOR

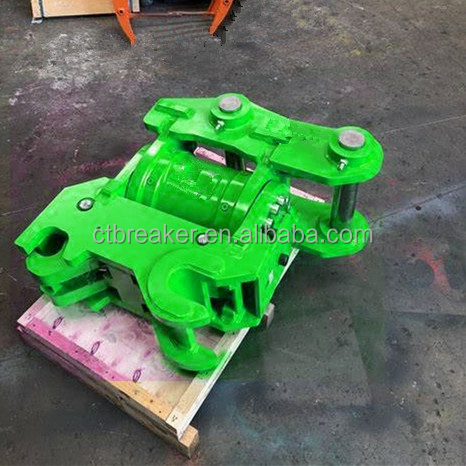

GREEN COLOR

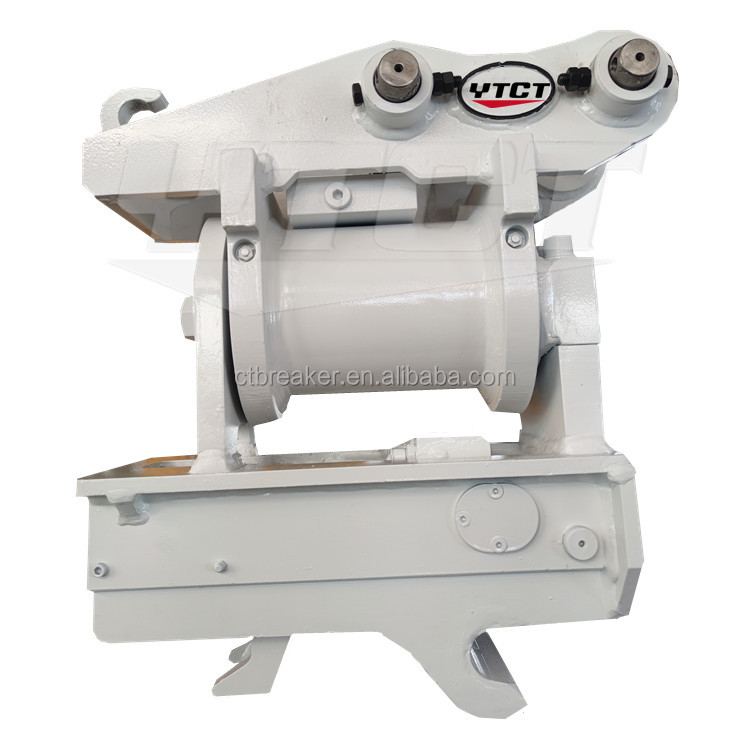

DEEP BLUE COLOR ,WHITE COLOR AND BLACK COLOR .ANY COLOR COULD DO .

Full  hydraulic  operation .

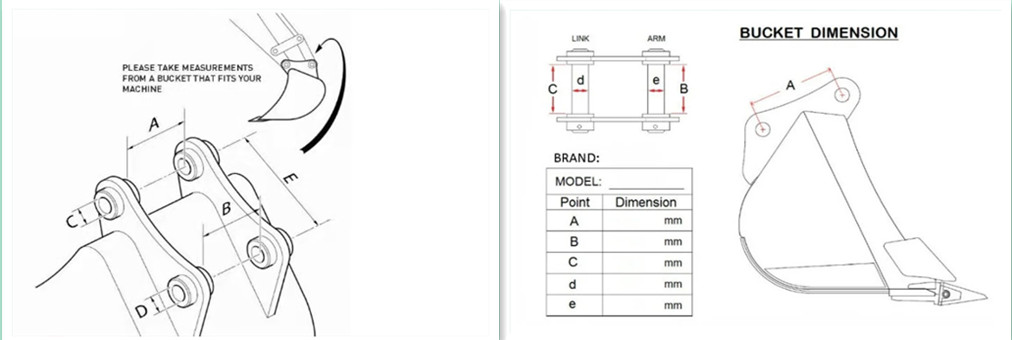

Offer us your excavator data as picture showedOffer us the data A,B,C,D,E
We will produce the hydraulic breaker for you ,so it can install on your carrier

Other Excavator Attachments



Contact Us For More Information




Contact Name: Mr Vincent Li Contact Email: ct****1@163.com
Contact Job Title: CEO & Director Contact Mob: 133***828
Contact Tel: +86-13325156828 Contact Fax: email: cthydraulic2021@163.com
Address: Yantai City, Fushan area, Shuanglong Road, No.70 Website: https://ctmachinepro.com/

2015 marked its founding year, Yantai Chengtai Construction Machinery Co.Ltd, today is an industry leader in manufacturing and developing Hydraulic Breakers – conquering the international market following a successful founding year. Our major here is Soosan & HB Series Hydraulic Breakers for Excavators – weighing from 0.8 to 60 Ton, but we also produce Quick Couples, Post Driver, Plate Compactor， Hydraulic Spare Parts， and many other Excavator Attachments. We have to our name, two fully-fledged factories manufacturing simultaneously – handling mass production with quality and ease.
