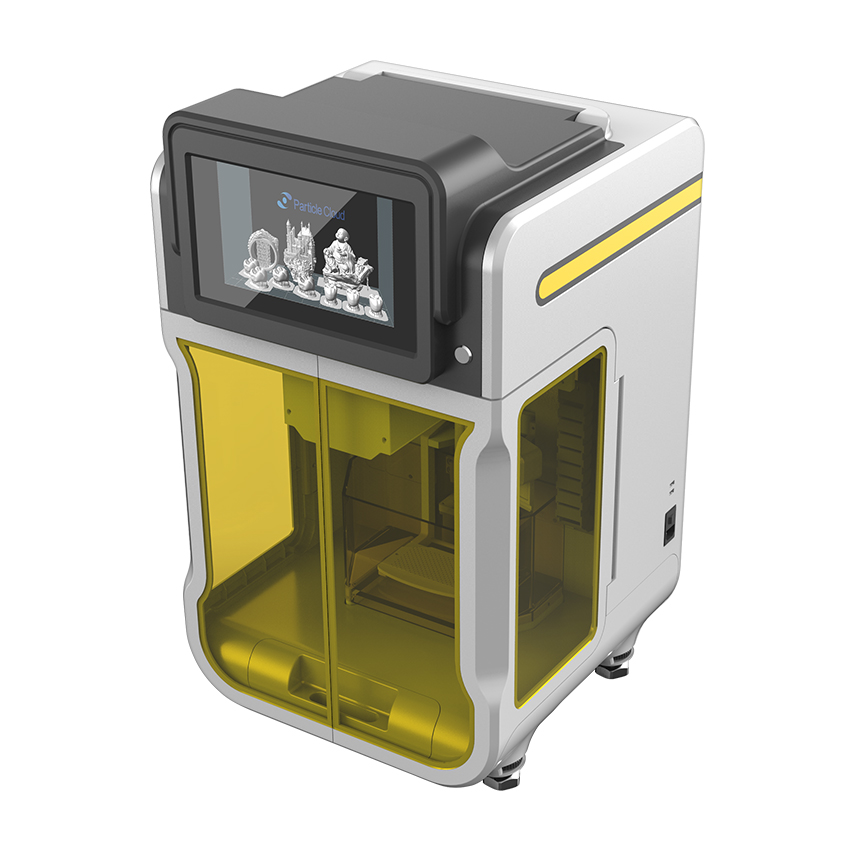

UV curable ceramic 3D printer
Medical & Health & Beauty Medical Devices
MOQ:1 Piece(s)
Payment Method : Others
Keywords:DLP Ceramics Sunken Wide viscosity range Fast forming High success rate
| Product Category: | Medical & Health & Beauty > Medical Devices | Trademark: | Particle cloud |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Decide as the case may be |
Product Description
The Particle cloud UV curable ceramic 3D printer adopts the sinking DLP (digital light processing) projection technology to produce photo polymerization reaction and curing in the projection area of the UV curable ceramic resin. It can form one surface at a time, has fast forming speed, can adapt to a wide range of material viscosity, has high success rate of printing, is easy to remove support, is positioned for production level applications, and is widely used in medical, military, electronic, industrial manufacturing, cultural innovation, archaeology, education and other fields.
Functional features
◆ suitable for high-precision printing of high viscosity ceramic resin slurry, with open parameters
◆ light source upper lighting type, model tray sinking type, automatic scraping function design
◆ different printing models and parameters can be designed and developed for self-developed ceramic materials
◆ meet the printing and forming function of 405nm photosensitive resin and corresponding ceramic resin slurry
◆ the motion mechanism shall have zero position detection function
◆ it has the functions of auxiliary leveling and liquid level detection
◆ 13.3-inch capacitive screen, external USB interface
◆ win10 operating system
◆ the software supports model import in STL and odj file formats
◆ support the setting function of lighting time, printing layer thickness and other parameters
◆ visual parameter configuration interface
◆ display function of 3D model and printing status
Technical parameter
| Model | PCLC9602 | PCLC13401 | PCLC19202 |
| Technology type | Light source upper lighting type, model tray sinking type, scraper type | ||
| Resolving power | 1920×1080 | 1920×1080 | 3840×2160 |
| Pixel size | 50μm | 70μm | 50μm |
| Forming dimension | 96×54×100mm | 134.4×75.6×200mm | 192×108×300mm |
| Light source | Wavelength 405nm, intensity 30000uW/cm2 | ||
| Floor height accuracy | 0.01~0.1mm can be set | ||
| Minimum material consumption for first trough | 350ml | 700ml | 1500ml |
| Overall dimension | 470×563×826mm | 470×563×935mm | 510×620×1130mm |
| Weight | 60kg | 43kg | 67kg |
Supporting UV curable ceramic resin
◆ appearance: white or other colors, viscous liquid
◆ ceramic type: α-Al2O3, 3Y-TZP, ATZ, ZTA, SiO2, HAC, β-TCP, SiC, Si3N4, Composite Bioceramics, etc.
◆ ceramic volume content: ≥ 50%
◆ curing light source wavelength: 405nm
◆ viscosity: 8000~15000cps @ 25℃
◆ sintering temperature: 1300~1600℃

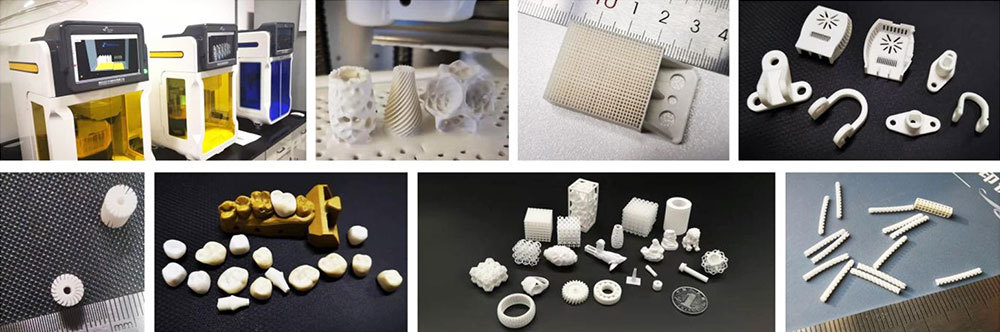

Print test cases
