Biological 3D printer

Medical & Health & Beauty Medical Devices

FOB Price:US$ 69,420.34 / Piece(s)

MOQ:1 Piece(s)

Payment Method : Others

Keywords: Cells Gel Ceramics FFP Normal atmospheric temperature Low temperature Heating Multi nozzle Good biocompatibility Customizable

Inquire


Add to Favorites

Product Category: Medical & Health & Beauty > Medical Devices Trademark: Particle cloud
Product Package: Specifications:
Place of Origin: Port: Decide as the case may be

Product Description

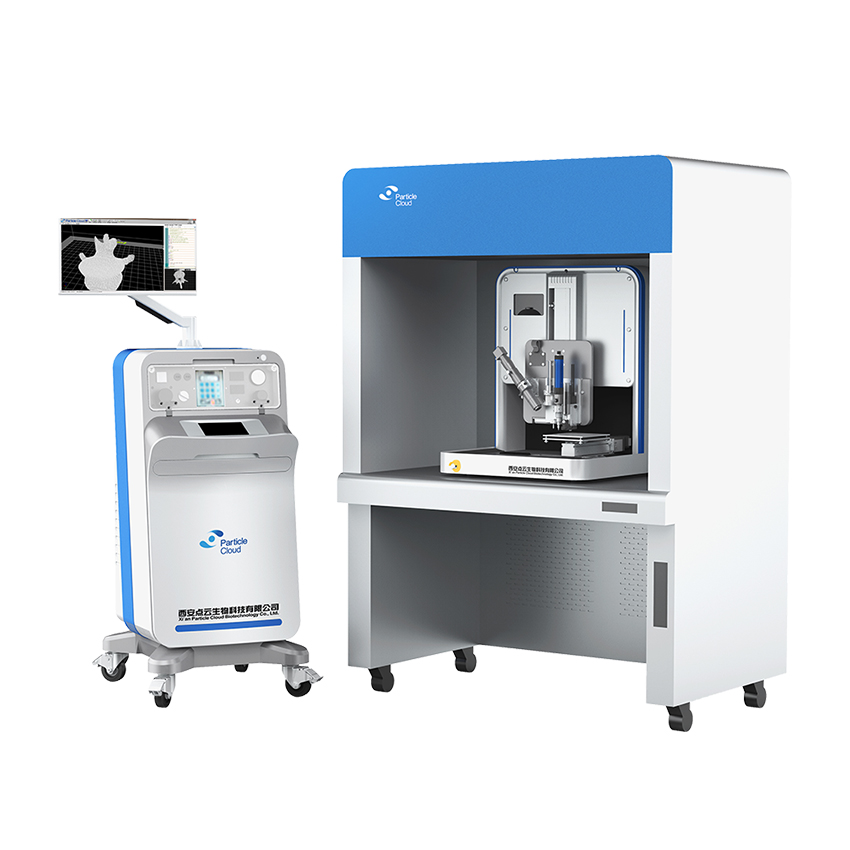

The Particle cloud biological 3D printer (pcbm 15001) adopts the filament free printing (FFP) technology, supports the freely proportioned composite printing paste, accurately controls the three-dimensional molding of a variety of biological materials and active cells, is widely applicable to soft tissue biological structures, bone tissue regeneration, drug controlled release and other materials, and provides new research tools for researchers in the fields of life science, material science, tissue engineering, medical devices and drug development.



Functional features

◆ compatible with high, medium and low viscosity printing nozzles
◆ support the combined printing of ceramic, gel, medicine and other biological materials and cellular active factors
◆ users can freely mix compound printing paste, and the material viscosity can be as high as 400000 centipoise
◆ from low viscosity (such as distilled water) to high viscosity slurry, 0.004ml high-precision quantitative can be achieved
◆ precisely control the printing line width and spacing, and accurately customize the pore structure as required
◆ bionic shape and pore structure software algorithm support
◆ support CT or MRI data conversion input
◆ support sterile operation in printing area
◆ it has the function of high-power photographing of printed copies, and supports the selection of photographing time segment and layered segment
◆ it can provide customized function expansion according to user needs
◆ it has a mobile printing control host with rollers, which can be flexibly pushed, pulled and moved, and is easy to operate





Technical parameter




Number of print nozzles supported

Combined application of 3 types

Print nozzle typeHigh viscosity printing nozzleMedium viscosity printing nozzleCytokine printing nozzleHigh temperature printing nozzle
Nozzle diameter300μm～800μm300μm～800μm20~80μm300μm～800μm
Material viscosity≤4000P20～15000cP≤20cP≤2000P
Printing speed≤0.1mL/s≤0.1mL/s≤5μL/s≤0.1mL/s
Print accuracy0.004mL0.5μL5pL～0.5nL0.01mL
TemperatureNormal atmospheric temperature≤60℃±0.2℃Normal atmospheric temperature≤150℃±0.5℃
Nozzle movement accuracy0.02mm
Print size150×150×140mm
SoftwarePCLab-V26
Data formatSTL、GCODE
Operating systemWIN7/WIN8/WIN10
Software10～50℃
Operating ambient temperatureControl host: 620×700×1170mm
Overall dimensions of main engine (w*d*h) Printer (including ultra clean table): 1060×825×1625mm


Applicable materials

◆ bone tissue regeneration materials: hydroxyapatite, tricalcium phosphate, nacre
◆ soft tissue biological structure materials: gelatin, collagen, agar, fibrin, alginate, chitosan
◆ drug controlled release materials: PCL, PLGA, PLA, sodium starch glycolate
◆ cell materials: liver cells, tumor cells, embryonic stem cells, adipose derived stem cells, bone marrow stem cells


Contact Name: Mrs Bingyao Guo Contact Email: gu****y@dianyunkeji.com
Contact Job Title: Marketing Manager Contact Mob: 137***468
Contact Tel: Contact Fax:
Address: 10301, 3/F, Building 1, East District of Modern Enterprise Center, No. 2 Zhangba Fifth Rd., Xi'an, Shaanxi Province. Website: www.particlecloud.cn

Xi'an Particle Cloud Biotechnology Co., Ltd. is a leading international high-tech enterprise which providing advanced materials, innovative products and intelligent equipment in bioengineering, health care, advanced manufacturing and other fields. Our team has been working on the core technology development of 3D printed renewable artificial bone since 2004.

Particle Cloud provides a all-around research & development, production and technical services of biomaterials. And abundant application experience are accumulated in biodegradable bioceramics, biopolymers and composite materials, particularly the 3D printing technology of biomaterials. Both bio-ink and 3D printing process could be customized. Our company offers printing consumables, printing equipment and a complete set of practical solutions to users from four aspects (materials, software, equipment, applications).

Particle Cloud is committed to the core technology development of 3D printing renewable artificial bone. Join hands in creating a bright future and 3D world of healthy human life.
