ZZM Series Chip sealer
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Chip sealer truck Synchronous chip spreader Asphalt distributor truck Slurry seal machine Asphalt finisher Stone chip spreader Bitumen sprayer Asphalt sprayer Micro surfacing Machine Road maintenance truck
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | CMEC |
| Product Package: | Nude | Specifications: | |
| Place of Origin: | China | Port: | Shanghai |
Specifications:
Model | ZZM5160TFC | ZZM5250TFC | ZZM5310TFC |
Dimension (mm) | 9500x2400x3250 | 10250×2495×3450 | 12000×2500×3750 |
I. Chassis | |||
Chassis model | DONGFENG 4X2 | HOWO 6X4 | HOWO 8X4 |
GVW (kg) | 16000 | 25000 | 31000 |
Engine | Cummins B190 33
| WD615
| |
Power (HP) | 190 | 290 | 336 |
II. Tank and spray | |||
Tank capacity | 3000L | 6000L | 9000L |
Material | Q235 carbon steel coated with stainless steel | ||
Insulate thickness | 50mm Fiberglass | ||
Asphalt spray rate (L/m2) | 0.25-3.0 | ||
Nozzles number | 28 | 34 | 34 |
Spray width(mm) | 3100 | 4000 | 4000 |
III. Hopper and spread | |||
Hooper capacity | 5 m3 | 10 m3 | 14 m3 |
Spread motor | OMR80, USA
| ||
Chipping size | ≤25mm | ||
IV. Hydraulic and transmission system | |||
Power take off | from the engine fly-wheel | ||
Hydraulic pump | A11V060EP2D/R
| ||
Hydraulic motor | L2F63W2P2 | ||
Asphalt pump | QGB450/950
| ||
IV. Control system | |||
PLC | Siemens
| ||
Display | TFT color touch screen | ||
Spray rate control | Proportional valve | Hydraulic variable pump | |
Nozzles control | Each pneumatic cylinder control by solenoid valve | ||
V. Heating system | |||
Generator | EC6500 Honda, Japan
| ||
Heating transfer oil Tube | Transfer the heating in tank, asphalt pump and spray bar | ||
Temperature control | E5AZ Omron, Japan
| ||
Burner | RIELLO G20, Italy
| ||
Introduction:

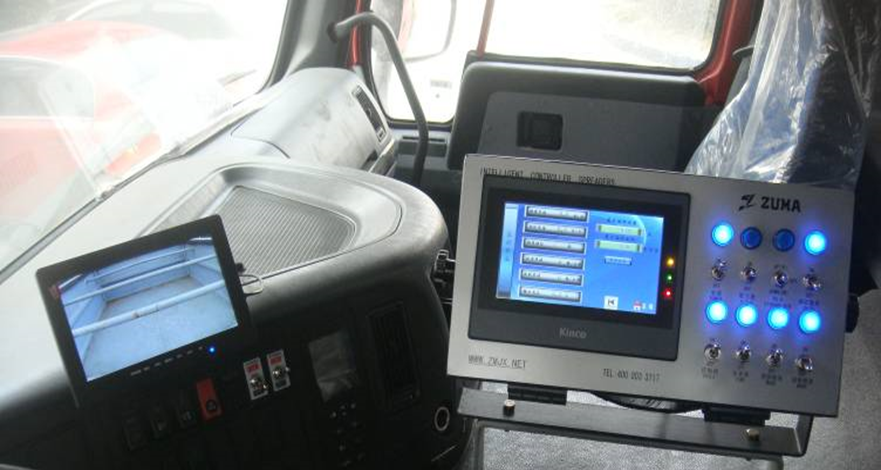

| Front operation platform：(one person can complete all operations in the cab) one key open , can set the spraying amount ; display truck speed, asphalt pump flow, asphalt speed , asphalt temperature, liquid level etc. |

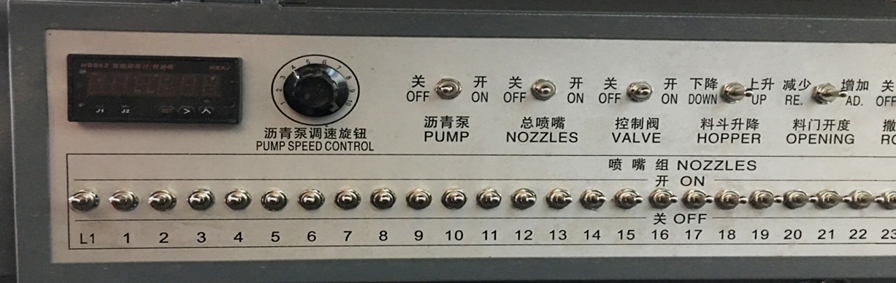

| Rear operating platform：We can use both of control system in the front and rear , the whole process of spraying control can also be completed in the rear；SIEMENS PLC, imported sensors, to ensure the precise control of each nozzle and material door |

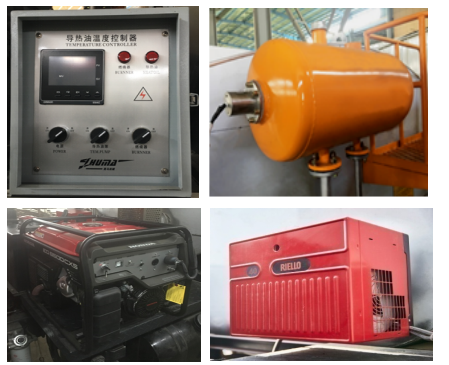

| Independent thermal oil control system : equipped with independent imported Honda generator and Italy Riello burner , the asphalt tank and heat conducting oil can be heated without starting the chassis engine. |
| Spray system:34 fully automatic control nozzles,0m-4m spraying width , One control one , three overlapping spray, with thermal oil system.Stable chipping spreading system：10 individually controlled switch gates , The size of the switch gates are adjustable ; Automatic compensation spreading device for chipping , which make the spreading is more uniform and beautiful. |

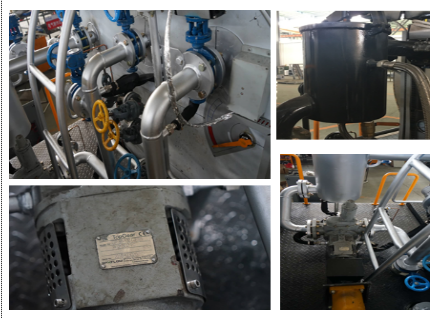

| Top quality high Belgium viscosity asphalt pump（ with thermal oil system ）with dual circulation asphalt pipeline. |

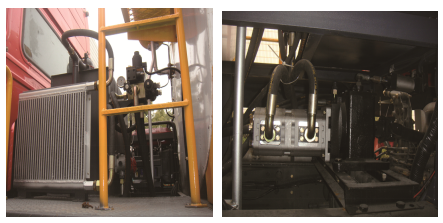

| Engine direct Power Take Off with top quality hydraulic pump and hydraulic oil cool fan. |
