Automatic spacer bending machine
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:spacer bending machine spacer bar bending machine Aluminum spacer bending
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | QINGDAO |

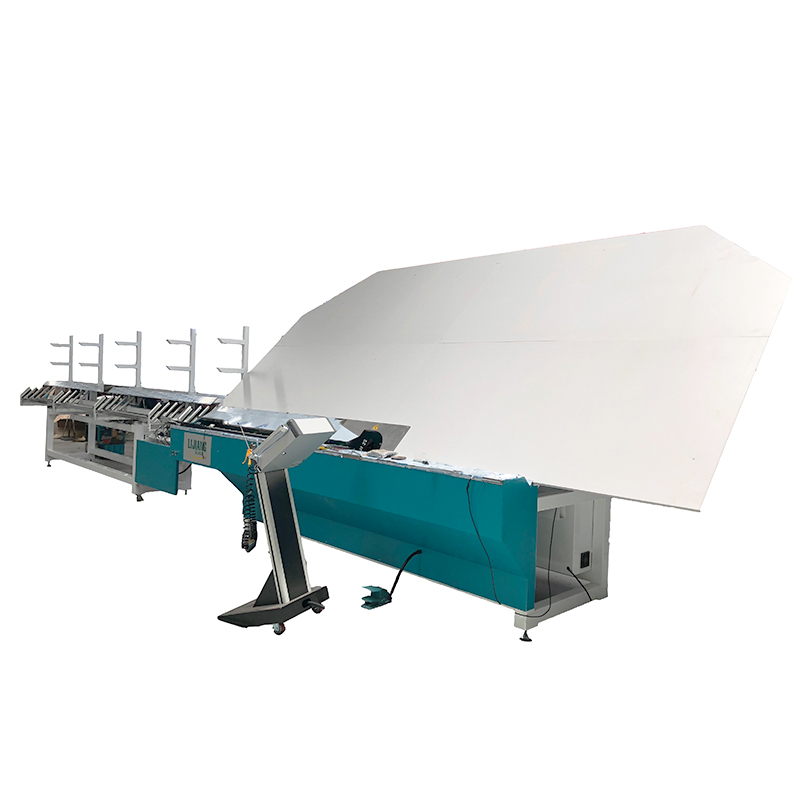

Automatic Spacer Bending Machine LJZW2020
Main feature
? Siemens 1200 PLC control system with fast working speed
? 4 groups of store
? Automatically cut and feed aluminum spacers
? Automatically avoid the pins while bending and cutting
? Bend spacer frames continuously
? Aluminum spacers are available in sizes of 6A-27A
? Different bending tools for different sizes of spacers
? Pause and Reset device for handling equipment failures
? Bend aluminum spacer, smooth stainless steel, warm spacer
? USB input function, read the excel format file directly
Automatic spacer bending machine is used to cut and bend spacer frame for the inner of insulating glass units. The machine is one of the auxiliary equipment for making insulating glass. Automatic spacer bending has many optional functions. Such as printing logo and date, printing label for spacer's datas and so on. Automatic spacer bending machine can bend stainless steel bars, warm-edge spacer bars (plastic spacer bars).
Technical data
Max. bending size | 2000mm*2000mm |
Min. bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1o |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Servo driver | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
Low voltage component | Germany | SIEMENS |
Triplet | Taiwan | AIRTAC |
Cylinder | Taiwan | AIRTAC |
Relay | Japan | OMRON |
Sensor | KOREA | AUTONICS |
Touch screen | Taiwan | WEINVIEW |
Guide | Taiwan | TBI |
Solenoid valve | Taiwan | AIRTAC |
Switch power | Taiwan | TEND |
