Automatic Desiccant Filling Machine
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Desiccant Filling Machine Desiccant Filler Machine Desiccant Filler
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | QINGDAO |

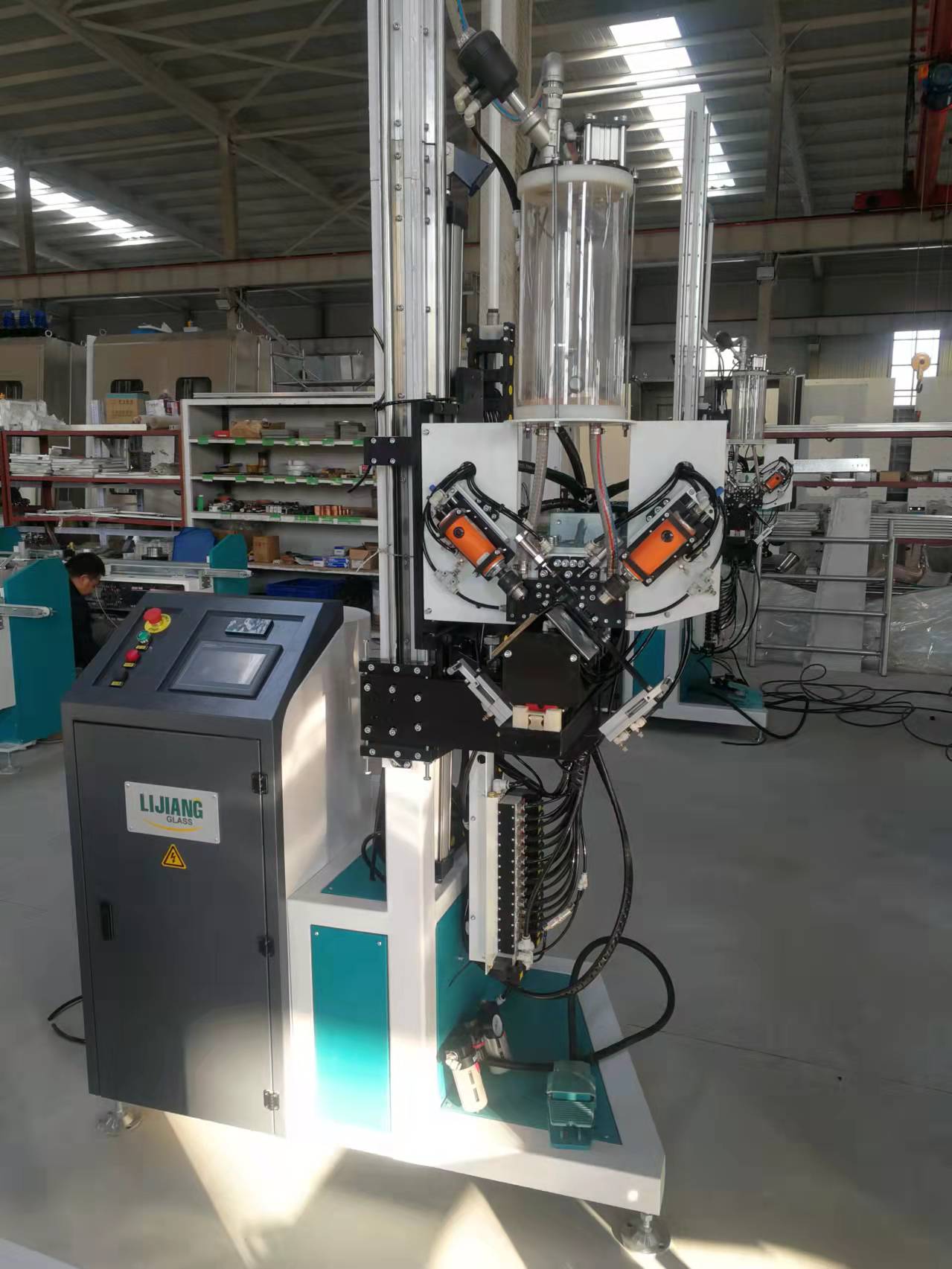

Automatic Desiccant Filling Machine LJGZ 2020
Main feature
? Adopt Siemens PLC control system
? Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
? Touch screen interface, simple and visible
? The machine height can be adjusted according to the size of spacer frame
? Automatically loading and replenish molecular sieve
? Double tubes for unloading to increase filling speed
? Filling time can be adjusted
? Automatically drilling, filling and sealing
? Core parts are imported brands
? Fill large particle molecular sieve
Automatic desiccant filling machine is one of the auxiliary machine for making insulated glass. The old type of desiccant filling machine has one filling head. However, the new desiccant filling machine can fill the spacer frame with two heads, which can two spacer different spacer frame together.
Technical data
Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
Min. frame size | 300mm*250mm |
Aluminum specifications | 6A- 27A |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1KW |
Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
Dimension | 1100mm*1100mm*3600mm |
