Product Introduction

Features:

Chlorine Capacity: 50~800g/h

Triple Protection for Hydrogen gas emission

How it works

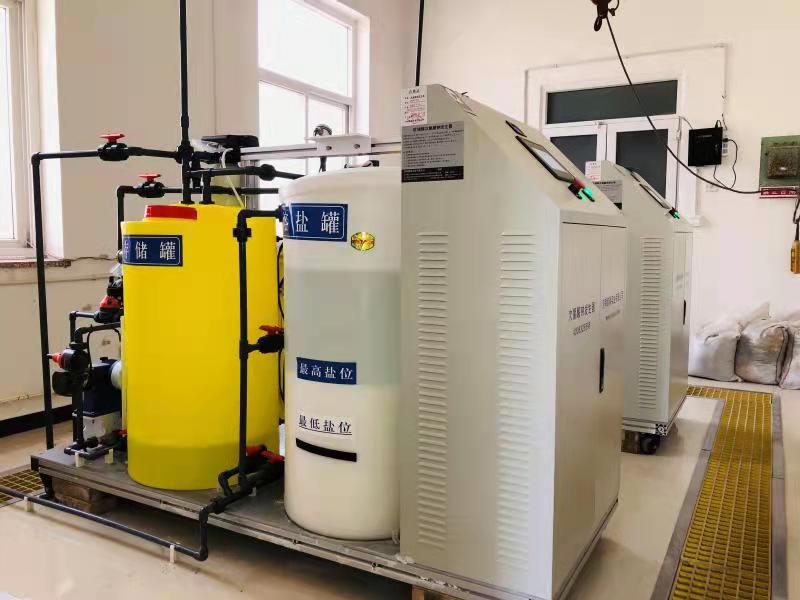

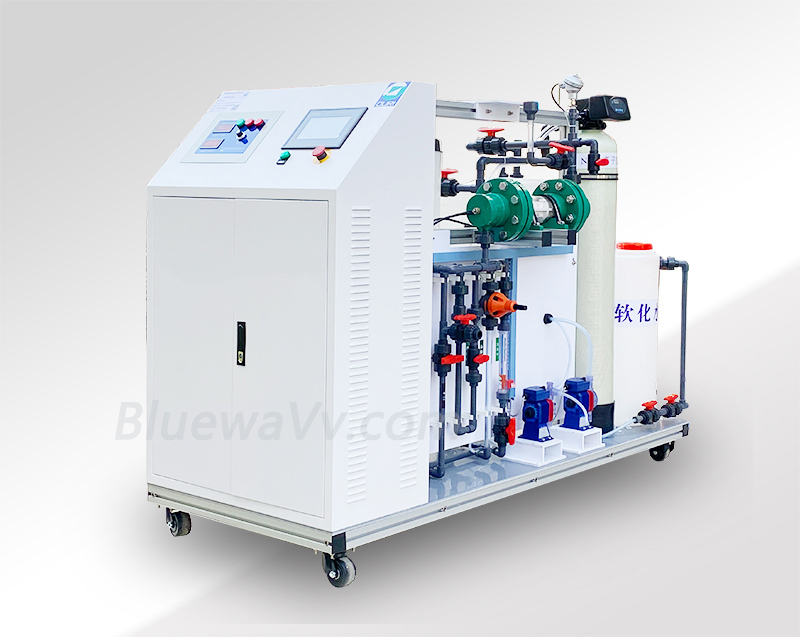

Sodium Hypochlorite Generator is a fully integrated, simple, and skid mounted designed system. The BLUEWAV? technology uses a recirculating method to produce 0.8% strength sodium hypochlorite solution in 556lb(250kg) – 4500lb(2000kg) NaOCl/day by raw material input of Salt Brine.

How it installs

BLUEWAV? Skid-Mounted design target on provide minimal operator attention for a quick Plug-Play running on site.

Install on site:

• Connect to the tap water pipeline;

• Connect the chlorination pipeline;

• Install hydrogen exhaust pipe

• Switch on the power supply;

Features:

• Chlorine Capacity: 50~800g/h
  Water treatment Capacity:1~20MLD
  Salt consumption: 3.5kg/kg Cl2
  Power consumption: 4kw/kg Cl2

• Plug-Play & Minimal Installation Operation

• Full Automatic Running

• Enhanced Electode Protection for Longer Shelflife;

• Triple Protection for Hydrogen gas emission

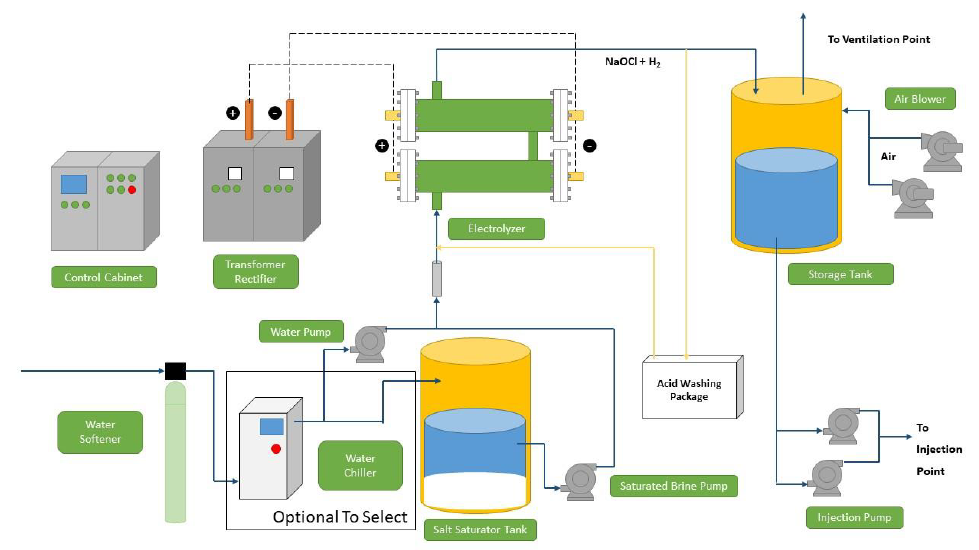

System composition ：

①Influent water passes through a water softener to reduce hardness therefore reducing   the scaling of electrodes and lengthening the cleaning time.

② Salt is dissolved by softened water into saturated brine in the tank.

③ The saturated brine will be diluted into 2.5%-3%, then pass through the electrolytic cell and finally be electrolyzed into 0.8% solution of sodium hypochlorite.

④ The 0.8% hypochlorite solution flows into a storage tank. Hydrogen, the only byproduct of the process, is safely vented to the atmosphere.

⑤ Accuracy liquid dosed and controlled by residual chlorine analyser.
