UV/TOC Characteristics of the equipment

• 185nm or 254nm high-efficiency germicidal lamp tubes are selected. They all use the world’s leading low-voltage and high-strength irradiation technology, with a service life of more than 9000 hours.

• Quartz casing with high transmittance and high purity shall be selected to ensure ultraviolet light transmission above 95%.

• Quartz casing with high transmittance and high purity shall be selected to ensure ultraviolet light transmission above 95%.

• 304SS or 316L pure stainless-steel cavity is selected, and the inner wall of the cavity is specially polished to improve the sterilization effect.

AD Sreise

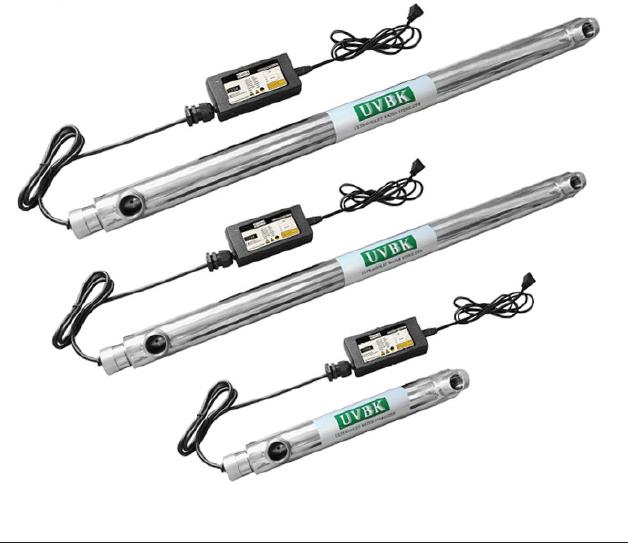

AD series is a low-power ultraviolet water treatment sterilizer, compact, easy to install, low operating cost, suitable for disinfection of domestic water and effective elimination of various microorganisms. Do not affect the taste, color, and smell of water.

BT Series

BT series sterilizes pure water and ultra-pure water used in the production process of pharmaceutical and cosmetic industries. It has compact structure, high irradiation intensity, fast installation, and maintenance, and can be equipped with ultraviolet sensor measurement window and external strength detector.

• Ballast: CE certified (alarm function, overheat protection, instant start)

• Shell material: 304SS stainless steel (sign configuration)

• Global power supply: 100-240V, 50-60Hz

• Lamp tube working status indicator

• Low voltage single head four pin lamp tube

• Time accumulator

• Normal working temperature and pressure: 2-60 ° C

• Maximum working pressure: 100psi

• Ultraviolet radiation dose: 30mj/cm2

Alternatives

• Shell material: 316L stainless steel

• Ultraviolet intensity detector (probe)
