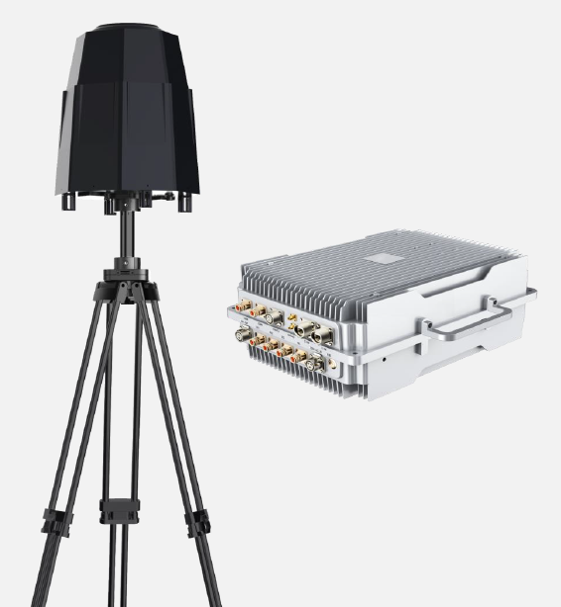

Detection, identification and interference for UAV, fast installation and easy maintenance.

Precisely and fast detect & identify UAV with passive detection technology, detect radio waves emitted by UAV and remote controller，

no impacting to other existing wireless equipment. High effective interference by using signal source synthesis technology based on DDS.

Support multiple stations connection with 4G and other network methods, all bands of detection and interference are customizable.

Detection:

1. Detection frequency band: 2.4G, 5.8G

2. Detection angle: 360 °

3. Detection time: ≤ 9s

4. Detection success rate: ≥ 95%

5. Detection and identification range: ≥ 10.2km

6. Detection angle accuracy: ≥ 15 °

7. Minimum detection height: ≤ 0m

8. Max targets detection: ≥ 24

9. Identification protocol: LightBridge1, LightBridge2, Ocusync, WIFI and WIFI variant protocols, Zigbee, Bluetooth

10. False alarm rate: ≤ 1 by continuously working for 2 hours with clear sky

Interference:

1. Frequency band: 900M, 1.5G, 2.4G, 5.8G

2. Effective range: ≥ 2km (flat and open area without shelter)

3. Output power option: 10dBm (0.01W), 20dBm (0.1W), 30dBm (1W), 37dBm (5W), 40dBm (10W)

Function:

1. Black and White list: Only jamming the UAV which is not in the list

2. Unattended mode: System working automatically for UAV detecting and jamming

3. Brand Identification: More than 12 non DJI controller and more than 24 non DJI UAV can be identified

4. Early warning capability: UAV signal can be detection without takeoff

5. Multiple networking: the system can conduct multiple networking through the ECS, and can observe the online/abnormal status of each device. The device can be remotely controlled through the mobile terminal (mobile phone IPAD), including but not limited to viewing the device system operation interface, receiving alarm information, viewing black and white lists, and enabling defense functions

6. Data record and event log: automatically record the monitoring data for later review and analysis, and keep it as evidence

7. Customizable security zone: Visual security zone can be set base on the map info

8. Multi targets detection: Up to 24 UAVs can be detected with accurate direction and distance showing on the map

9. Maps: Supports online maps, offline maps and satellite maps

10. UAV database updatable: the system has a built-in UAV database, which includes the characteristic data of known mainstream UAVs. Database is updatable for any other new UAVs which has been recorded in system. To setup its own unique electronic fingerprint
