automatic spreader beam/hanging device for precast concrete spun pile mould

 I. Selection Description

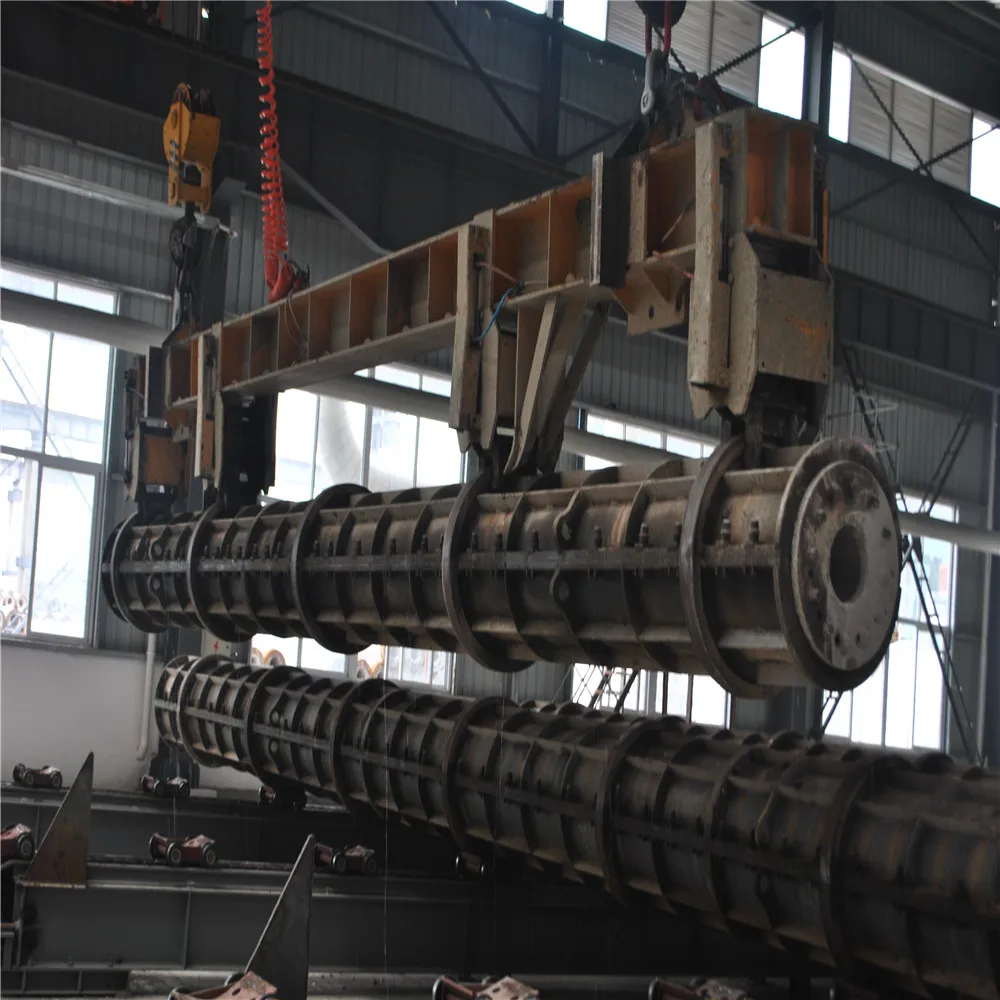

1. This machine is used to hang upper and bottom mold. The largest size of applicable pipe model is ZM600-15 together with the crane for 10t+10t.

2. Three different types of grapnels: a. only for grabbing upper mold; b. for grabbing upper and bottom mold; c. for grabbling upper mold, bottom mold and cage.

3. Control System: Pneumatic part needs to be connected to the air compressor in accordance with pneumatic schematic diagram; electrical part needs to be connected to the control box of the crane according to electrical schematic diagram.

II. Main Structure

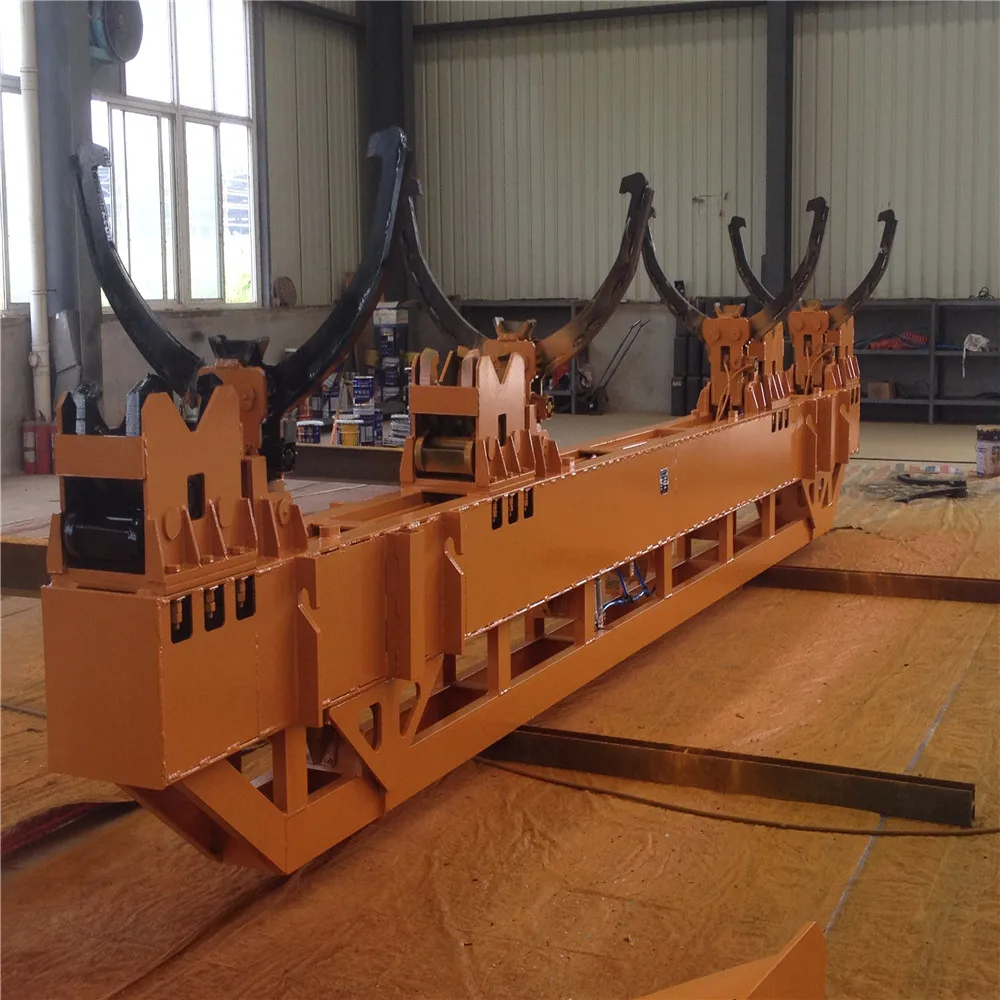

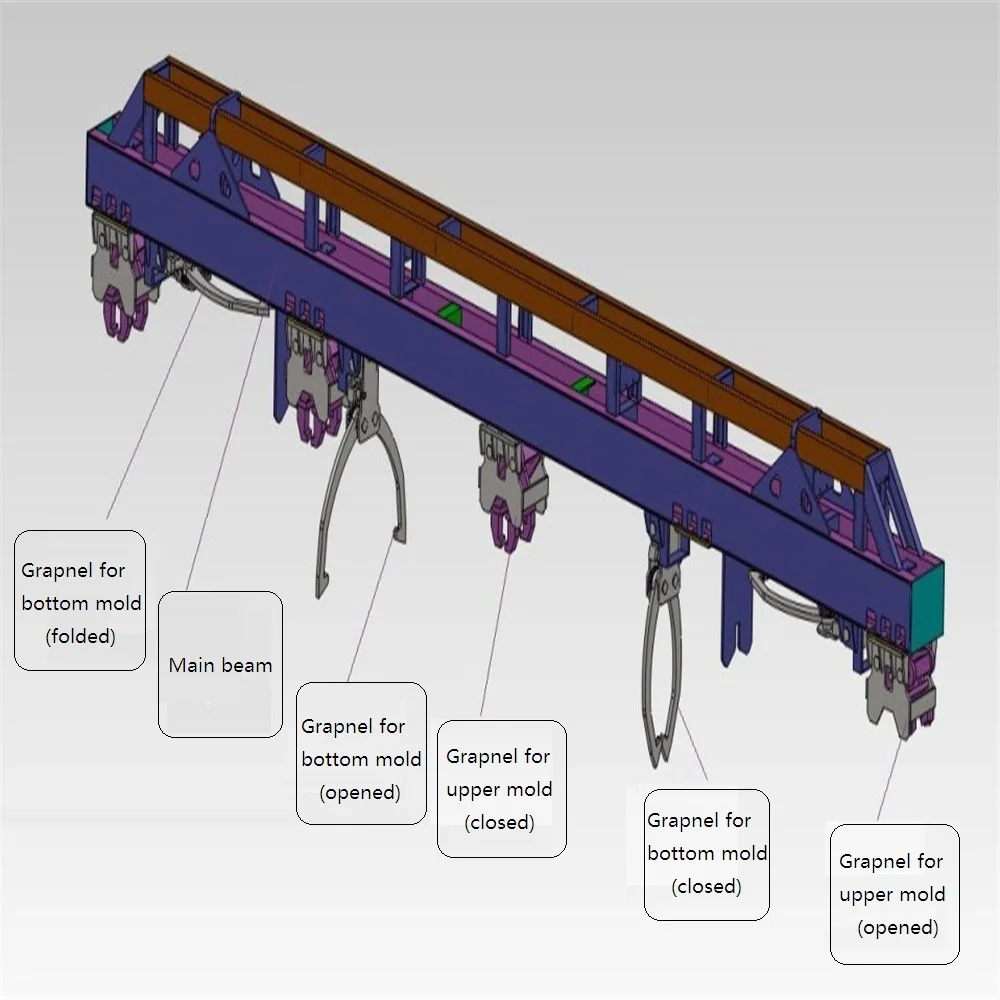

1. Structure and Operating Principles: main beam, four sets of grapnels for upper mold, four sets of grapnels for bottom mold, grapnels for cages and pneumatic system.

2. Pneumatic Part: Selected Air Compressor (0.4m3), two-position five-way reversing valve, throttle valve and air cylinder.
