Business Type: Manufacturer
Main Products:Solar Power SystemSolar LED LightWind Power SystemSolar InverterSolar Panel
ID:200408401
Category: Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling
MOQ:1.00 Set(s)
solar, energy, products 5kw, power, packs ,solar ,system, supply, for home
L/CT/TD/PWesstern Union
Place of Origin:
Brand Name:
Model Number:
Application:
Solar Panel Type:
Battery Type:
Controller Type:
Mounting Type:
Load Power (W):
Output Voltage (V):
Output Frequency:
Work Time (h):
Certificate:
Solar system type:
Solar system voltage:
Good after sale service:
Solar system parts:
Warranty:
Solar panel efficiency:
Solar panel Material:
Battery capacity:
Supply Ability:
1000 Piece/Pieces per Day
Packaging Details
1 pcs one wooden box packing for solar system
solar energy products 2kw 3kw 5kw power packs solar system supply 10kw 15kw 20kw for home
Port
Guangzhou/Foshan
Picture Example:
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 10 | To be negotiated |
Load name | Load’s watt | Qty |
lights | 11W | 8 |
Fan | 80W | 2 |
computer | 150W | 2 |
printer | 250W | 1 |
Fax machine | 150W | 1 |
refrigerator | 120W | 1 |
Washing machine | 300W | 2 |
Microwave | 1000W | 1 |
Electric cooker | 300W | 1 |
Air conditioner(2HP) | 1500W | 1 |
Satellite TV receiver/VCD | 25W | 1 |
Color TV | 100W | 2 |
Water pump | 200W | 1 |
System parameters

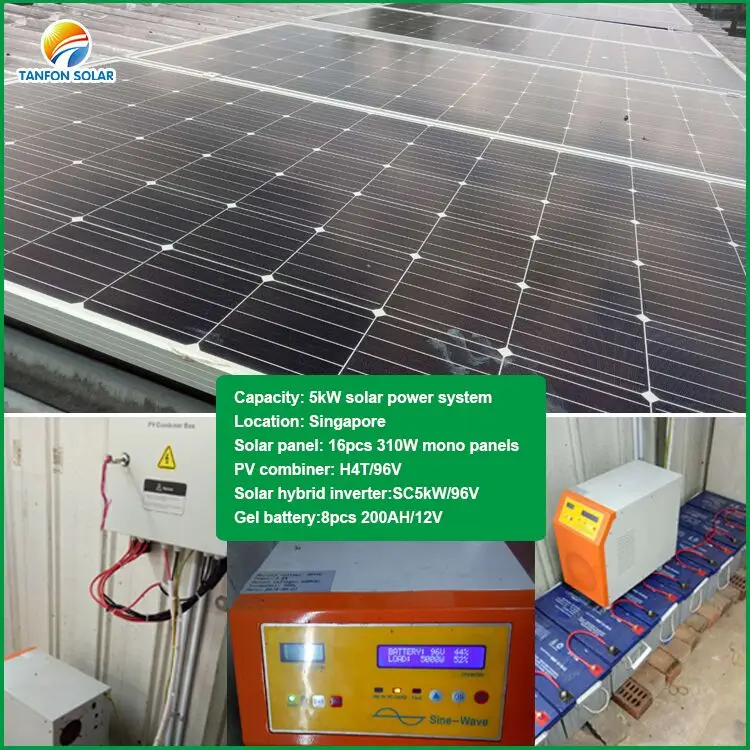

Tanfon 5KW off-grid solar energy system
Solar energy system Item | Model | Quantity |
Solar Panel | FS350W mono solar panel(poly optional) | 16 pcs |
PV Combiner | H4T/96V | 1 piece |
Solar Inverter | 5KW IGBT inverter | 1 piece |
Solar Controller | Charger 96V/60A | 1 piece |
Solar Bettery | Gel 12V/200AH | 8 pcs |
Mounting Structure | On roof or on ground | 1 set |
Cables | Battery cable: 16pcs 16mm2*35CM & 7pcs 16mm2*2M PV cable: 4mm2 *200M | 1 set |
MC4 Connector | Rated Voltage:1000V | 1 set |
> 25 years Warranty
> Highest conversion efficiency of 19%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance
> 2 years warranty
> IGBT module inside
> Pure sine wave output
> Copper transformer
> Bypass function with AC charger
> Output: 220V 50/60HZ
> Full sealed gel battery
> Service life:6-8 years
> 12V 200AH
> free Maintenance
> Slope Roof or Flat roof or Ground (option)
> Including complete fittings
> Wind load:55 m/s,snow load:1.5 kg/m2
> Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
For more information about solar energy system, please send an inquiry or contact us directly.

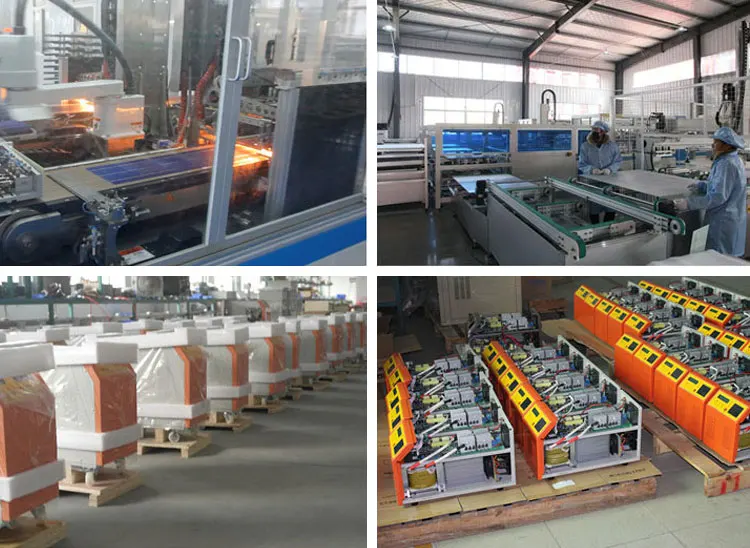

Workshop
