Business Type: Manufacturer
Main Products:Solar Power SystemSolar LED LightWind Power SystemSolar InverterSolar Panel
ID:200408405
Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling
MOQ:300.00 Set(s)
10000W solar, panel, kit ,power ,generator ,10KW ,home, solar ,energy ,systems
L/CT/TD/PWesstern Union
Place of Origin:
Brand Name:
Model Number:
Application:
Solar Panel Type:
Battery Type:
Controller Type:
Mounting Type:
Load Power (W):
Output Voltage (V):
Output Frequency:
Work Time (h):
Certificate:
Type:
Power:
Input voltage:
Device:
Solar panel:
Output voltage:
Battery capacity:
Battery type:
Solar Power (W):
Supply Ability:
1000 Set/Sets per Month accept OEM
Packaging Details
10000W solar panel kit power generator 10KW home solar energy systems
solar panel/controller pack with wodden case.
Inverter pack with plywood case.
Battery pack with wodden case or plywood case.
Port
Guangzhou/Foshan
Lead Time :
| Quantity(Sets) | 1 - 10 | >10 |
| Est. Time(days) | 15 | To be negotiated |
Load name | Load’s watt | Qty |
lights | 11W | 20 |
Fan | 80W | 4 |
Computer(LCD display) | 150W | 2 |
printer | 250W | 1 |
Fax machine | 150W | 1 |
refrigerator(200L) | 120W | 2 |
Washing machine | 300W | 1 |
Microwave | 1500W | 1 |
Electric cooker | 300W | 1 |
Air conditioner(1.5HP) | 1125W | 4 |
Satellite TV receiver/VCD | 25W | 1 |
Color TV(32 inch) | 150W | 2 |
Water pump | 200W | 1 |
System parameters
Tanfon 10KW off-grid solar power system (Can be customized according to customer requirements)
Item | Model | Quantity |
Solar Panel | FS360W mono solar panel(poly optional) | 28 pcs |
PV Combiner | H8T/96V | 1 piece |
Solar Inverter | 10KW IGBT inverter | 1 piece |

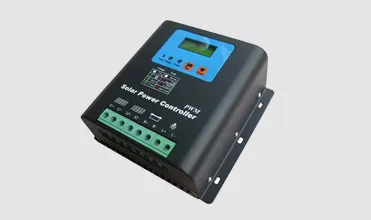

Solar Controller | Charger 96V/100A | 1 piece |
Solar Bettery | Gel 12V/200AH | 16 pcs |
Mounting Structure | On roof or on ground | 1 set |
Cables | Battery cable: 16pcs 16mm2*35CM & 7pcs 16mm2*2M PV cable: 4mm2 *200M | 1 set |
MC4 Connector | Rated Voltage:1000V | 1 set |
> 25 years Warranty
> Highest conversion efficiency of 19%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance
> 2 years warranty

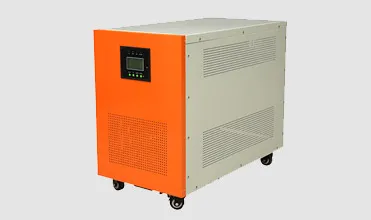

> IGBT module inside
> Pure sine wave output
> Copper transformer
> Bypass function with AC charger
> Output: 220V 50/60HZ
> Full sealed gel battery
> Service life:6-8 years
> 12V 200AH
> free Maintenance
> Slope Roof or Flat roof or Ground (option)
> Including complete fittings
> Wind load:55 m/s,snow load:1.5 kg/m2
> Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
For more information, please send an inquiry or contact us directly.
