Business Type: Manufacturer
Main Products:Blow Molding Machine
ID:200408440
Category: Print,Pack,Plastic
MOQ:1.00 Set(s)
Energy Saving Blow Molding Machine
L/CT/TWesstern Union
Condition:
Application:
Plastic Processed:
Place of Origin:
Brand Name:
Year:
Voltage:
Dimension(L*W*H):
Certification:
Warranty:
After-sales Service Provided:
Max. Product Volume:
Dry Cycle:
Machine Size:
Machine Weight:
Installed capacity:
Screw Diameter:
Screw L/D Ratio:
Plasticizing capacity:
Screw Heating Zone:
Screw Drive Power:
Blow Moulding Type:
Automatic:
Model Number:
Power(W):
Weight:
Supply Ability:
10 Set/Sets per Month Urgent Order Negotiable
Packaging Details
Standard Packaging For Export
Port
Shanghai

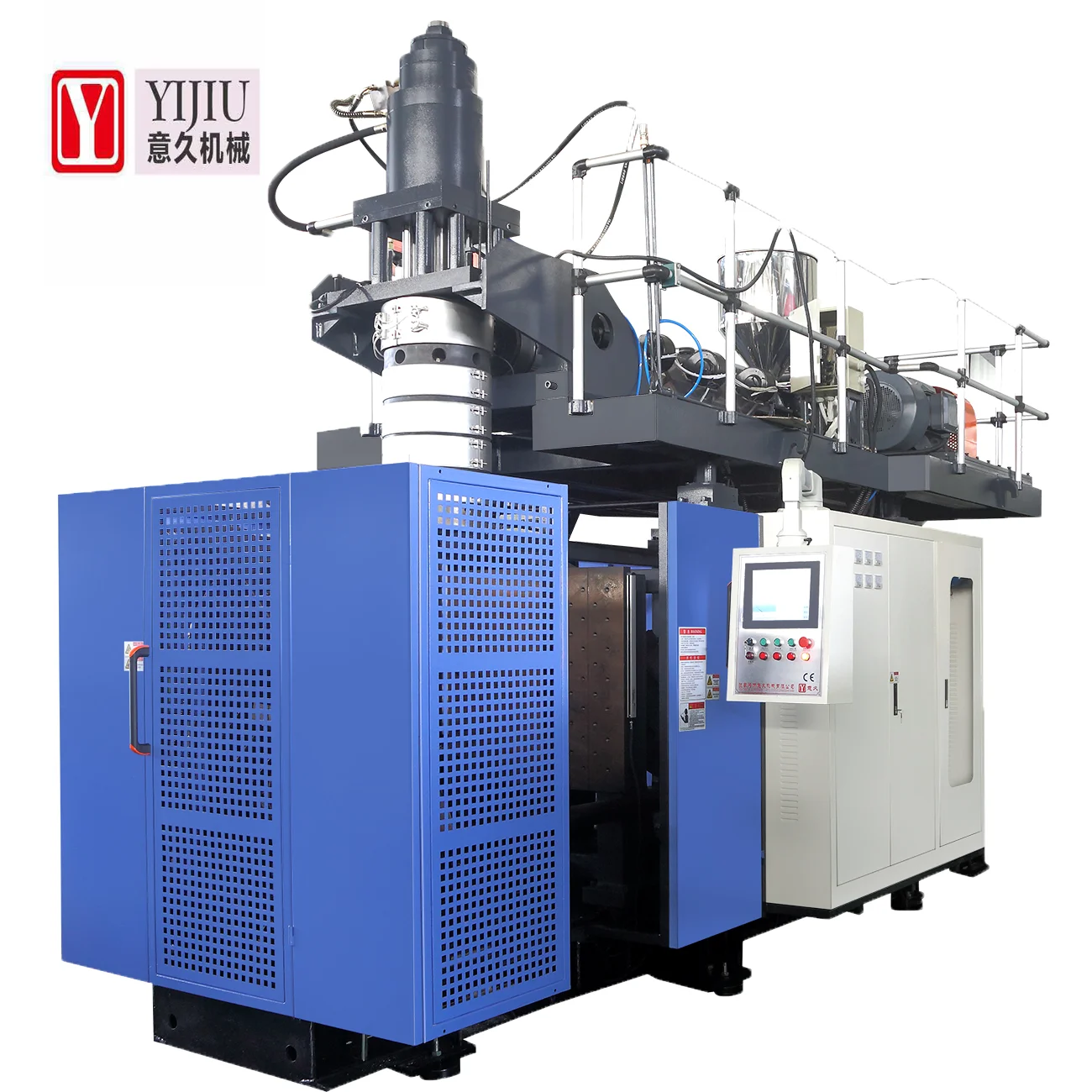

Assessed Manufacturer Made In China EVA PP PE Plastic Ruler Making Machine

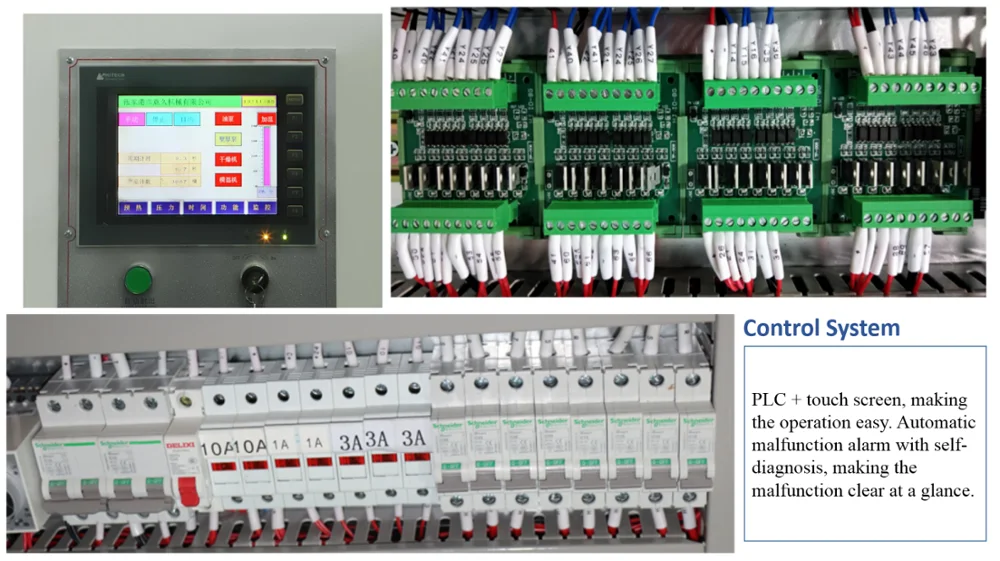

*PLC+touch screen: making the operation easy. Automatic malfunction alarm with self-diagnosis,
making the malfunction clear at a glance.
*Accumulator die head: Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and color quick reload.

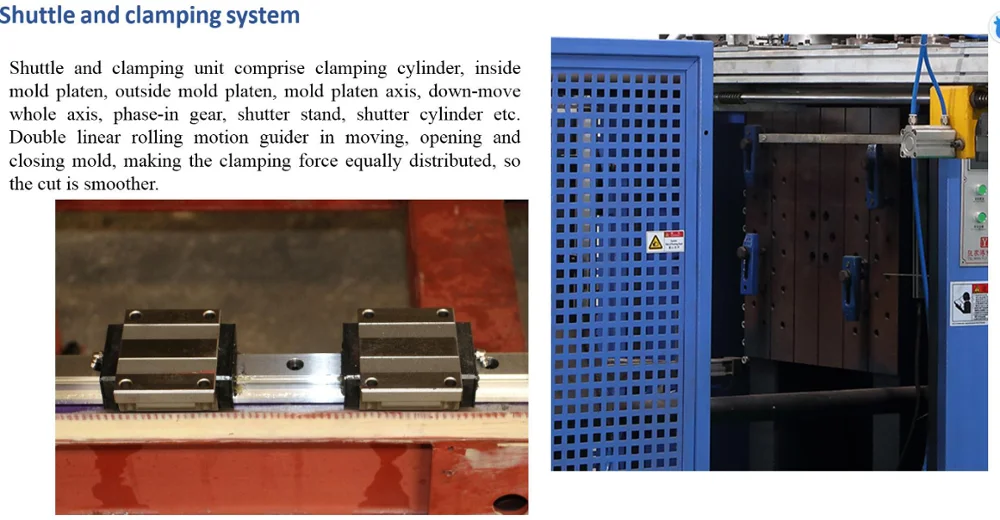

*Unique “liner guide”: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother.
*Energy-saving hydraulic principles: Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20%-40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
*Variety of functions for products: Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support,
Main Parameters | ||
Available material | PE,PP,etc. | |
Max. Product Volume | 30 | (L) |
Dry Cycle | 650 | (pcs/h) |
Machine Size | 4.5*2.4*3.5 | (LxWxH)(m) |
Machine Weight | 11.5 | (Ton) |
Installed capacity | 73 | KW |

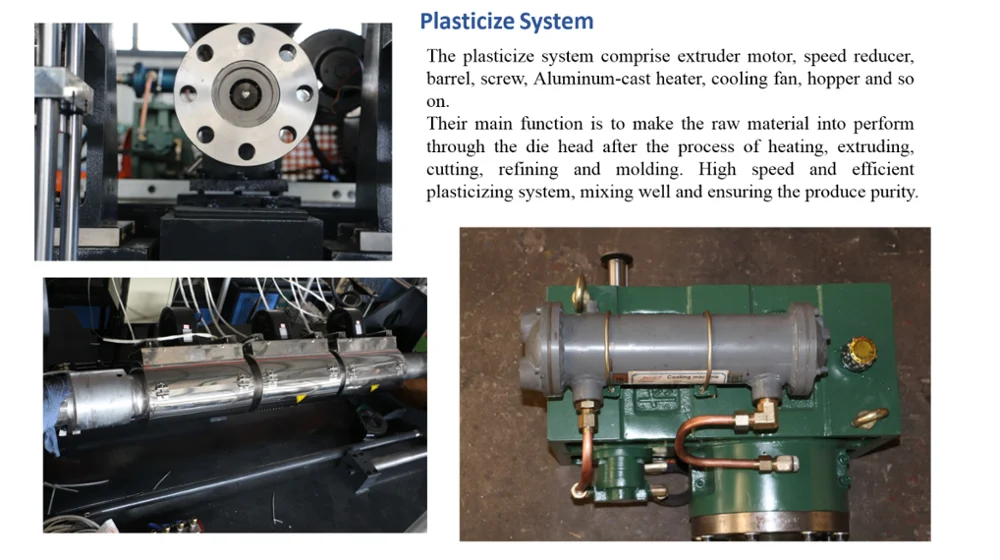

Plasticizing System | ||
Screw Diameter | 80 | (mm) |
Screw L/D Ratio | 25 | L/D |
Plasticizing capacity | 100 | (kg/h) |
Screw Heating Zone | 4 | (Zone) |
Screw Drive Power | 30 | (KW) |
Extrusion Die Head | ||
Type | Storage Die Head | |
NO. of Heating Zone | 4 | (Zone) |
Die Heating Power | 11.9 | (KW) |
Max. Die Diameter | 300 | (mm) |
Opening And Clamping System | ||
Clamping Force | 180 | (KN) |
Mold Stroke | 400~900 | (mm) |
Max. Mold Size | 600X700 | (WxH)(mm) |

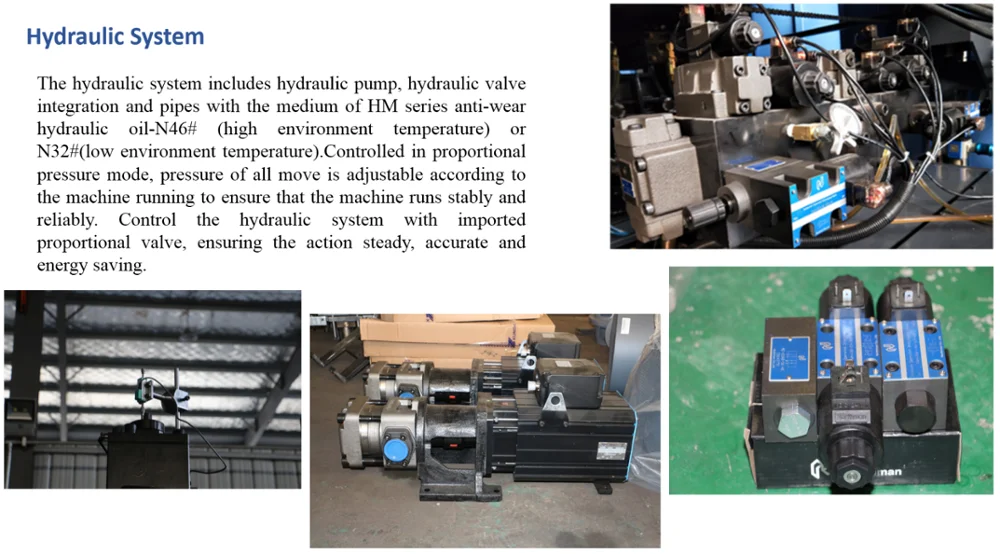

Hydraulic System | ||
Oil Pump Power | 15 | (KW) |
System pressure | 12 | (MPa) |
