Blow molding machine
L/CT/TWesstern Union
Condition:
Application:
Plastic Processed:
Place of Origin:
Brand Name:
Voltage:
Dimension(L*W*H):
Certification:
Clamping Force (kN):
PLC Brand:
Screw L/D Ratio:
Screw diameter (mm):
Output (kg/h):
Automation:
No. of Screw Heating Zone:
Screw Heating Power(kW):
Extruder Motor Power(kW):
Mold Platen Size(Width)(mm):
Mold Platen Size(Height)(mm):
Air Pressure(MPa):
Air Comsumption(m3/min):
Die Head Heating Power(kW):
Accumulator Capacity(L):
Power (kW):
Weight (T):
Key Selling Points:
Warranty:
After-sales Service Provided:
After Warranty Service:
Applicable Industries:
Local Service Location:
Showroom Location:
Weight:
Model Number:
Power(W):
Blow Moulding Type:
Color:
machine:
Product name:
Suitable bottle:
Material:
Supply Ability:
20 Set/Sets per Month
Packaging Details
wooden pallet
Port
shanghai port
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 60 | To be negotiated |

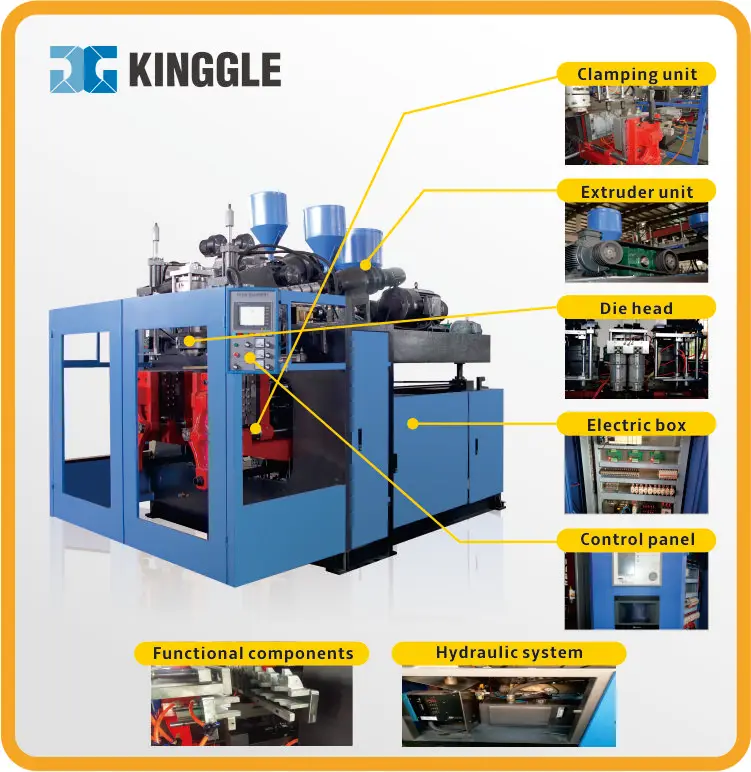

Die head: Special steel and centre feed extrusion die head;
Extruder unit: adopt automatic temperature control unit of import,the screw united by frequency motor,hard tooth surface gear box to achieve stepless speed regulation;
Clampling device: Across the basement type double linear guide and move mould strengthen
rigidity. Template is three bar with center clamping system
Hydraulic system: whole system adopt imported components, proportional control flow, Fast
response, more stable, power consumption without loss;
Electric controlling system: it adopts Japan programmable controller, touch screen,the
characteristic of it has direct manipulation and large information on board.

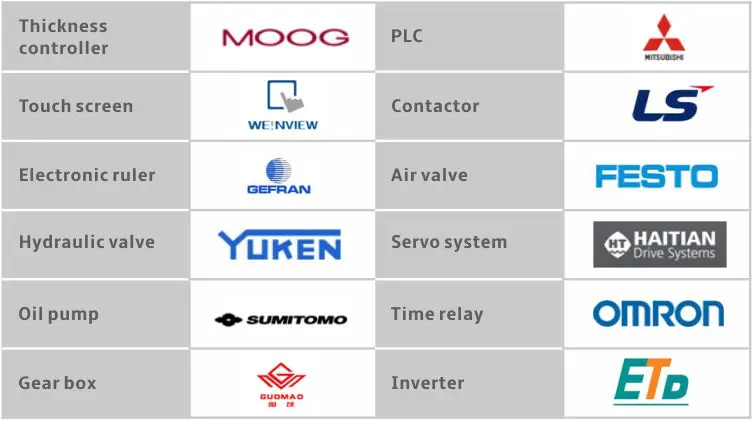

Main component brand
| Specifications | Unit | Double station | ||
| Machiner model | PXB55D | PXB70D | PXB90D | |
| Material | PE,PP,PVC,PA etc. | |||
| Max container capacity | L | 2 | 5 | 12 |
| Number of die head | SET | 1,2,3,4 | ||
| Machine dimension ( L×W×H ) | M | 3.1×2.1×2.5 | 3.4×2.2×2.5 | 4.5×3.5×2.9 |
| Machine Weight | T | 6.3 | 8.2 | 11 |
| Clamping unit | ||||
| Mold platen size ( W×H ) | MM | 300×380 | 338×380 | 550×460 |
| Max mold size ( W×H ) | MM | 300×350 | 338×350 | 550×430 |
| Platen opening storke | MM | 130-370 | 150-500 | 200-600 |
| Power | ||||
| Oil pump driving total power | KW | 5.5 | 11 | 15 |
| Max driving total power | KW | 20.5 | 33 | 52 |
| Average energy consumption | KW | 15-18 | 23-25 | 31-34 |
| Blow pressure | Mpa | 0.6 | 0.6 | 0.6 |
| Extruder unit | ||||
| Screw diameter | MM | 55 | 70 | 90 |
| Screw L/D ratio | L/D | 24:1 | ||
| Melting capacit for HDPE | KG/HR | 62 | 80 | 140 |
| Extruder power | KW | 15 | 22 | 37 |
| Die head | ||||
| Max die-pin diameter | MM | 95 | 135 | 180 |
| Center distance of double die head | MM | 130 | 160 | 250 |
| Center distance of three die head | MM | 110 | 110 | 130 |
| Center distance of four die head | MM | 75 | 85 | 110 |

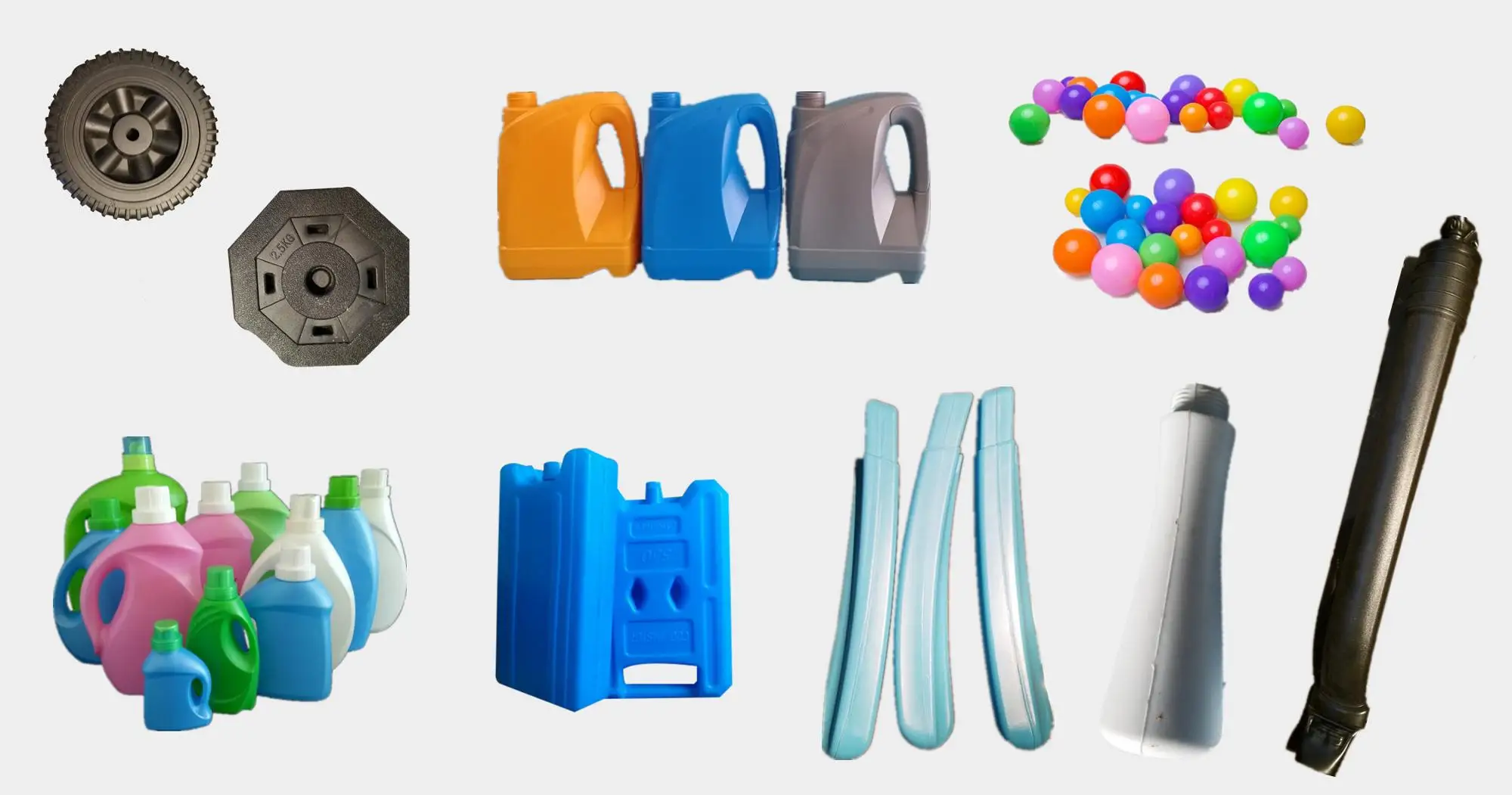

Suit product-PXB70D
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours; |
2. 100% Quality inspection before the shipment; |
3. Can trainning clients operator for free in seller`s factory |
4. Engineer overseas is avilable |
5. Blowing mould and injection mould made orginal |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
8. Introduce our engineer come to customer’s factory working! |
