Business Type: Manufacturer
Main Products:BLOW MOLDING MACHINEWATER TANK BLOW MOULDING MACHINE
ID:200408594
Category: Print,Pack,Plastic Rubber & Plastics Products
MOQ:1.00 Set(s)
Blow Molding Machine
L/CT/T
Condition:
Application:
Plastic Processed:
Place of Origin:
Brand Name:
Voltage:
Dimension(L*W*H):
Certification:
Weight:
After-sales Service Provided:
Model Number:
Warranty:
Power(W):
Blow Moulding Type:
Automatic:
Supply Ability:
50 Set/Sets per Month
Packaging Details
Easy Package
Port
Qingdao
Lead Time :
3months

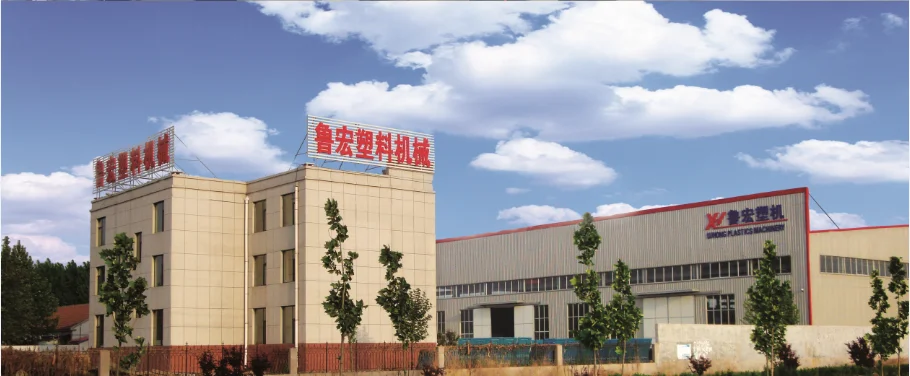

Changyi Luhong Plastic Machine Co., Ltd was founded in 1985,Located in Changyi-Weifang City, China where is 2hours driving from Qingdao Airport. Changyi Luhong Plastic Machine Co., Ltd is the strongest leading manufacturer of blow molding machines in China, which is specialized in manufacturing, designing in super size blow molding machines and blow moulds with capacity from 25L upto 20,000L for 1-5 layers productions including water storage tank, pallets, road barrier, IBC tank, Double Ring Drum and any other special designs of hollow products. We have the best Advanced Techonology and best After-sales service.

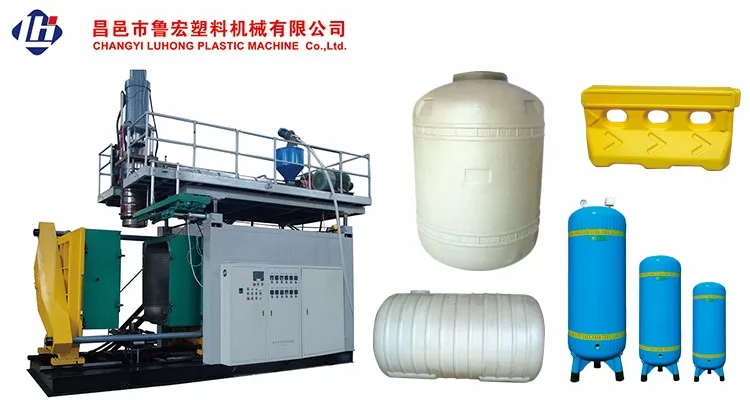

LHZK-1000L 1Layers LUHONG Blow-Molding Machines | |||
Max.Product Volume | 1000L | ||
Number of Working Station | 1 | Oil Pump Motor Power | 37kw |
Parison Mould Structure | Accuniulating diehead | Heating Power of Diehead | 30kw |
Max.Plasticizing Capacity(PE) | 250KGS | Max.Die Pin Diameter | 400mm |
Accumulating Volume | 32KGS | Air Pressure | 0.6Mpa |
Climping Force | 800KN | Air Consumption | 100m3/h |
Max.Space Between Platens | 1000-2200mm | Cooling water Consumption | 0.3mpa |
Platen Size W x H | 1500x1600 // 1600x1700 | Cooling water Pressure | 15 t/h |
Number of Heating Zone | 6 | Overall Dimension LxWxH | 6.5x3.5x6.5m |
Heating Power of Main Barrel | 25kw | Total Weight | 38ton |
Features:
a.The screw adopts IKV design, with high potency melt to make sure the material well mixed.
b. Adopt frequency control of motor system to reduce the power consumption.
c. Adopt Parison thickness controller Moog 100 points, to make thickness even and adjust the tank weight in big span.
d. Fully automatic, easy to operate, two women can operate machine, whole production line need 3 or 4 person only.
e. High output versus Roto molding machine.
f. Save raw material 25% - 35% versus Roto tanks.
g. Perfect impact resistance versus Roto tanks.
h. Multi layers co-extrusion.
i. The mechanical arm can take out the product automatically.
Configuration:
1.Computer system: Mitsubishi PLC, touch-screen, all operations can be done by touch-screen.
2.Plasticizing System: High efficiency BM-type screw, ensure the even plasticizing.
3.Hydraulic System: Dual-ratio pressure control, the hydraulic parts from famous brands, to guarantee the quality.
4.Rate-Control System: Variable frequency design, low noise, wear well.
5.Open-close-moving moulds System: Ball type line rail to realize open-close-move operation separately.
6.Material-in accmulator head: 38CrMOAIA steel, nitriding process, high intensity, high fineness.
7.Shape-base control System: MOOG System, multi-point curve control, high-precise
8.Extruding system: IKV screw design for high efficiency of mixing and elasticizing the quality.

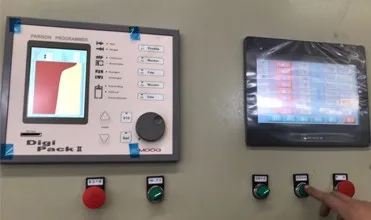

Name: Parison Thickness Control system
Brand: MOOG
Original: USA
Shape-base control System: MOOG System, multi-point curve control, high-precise.

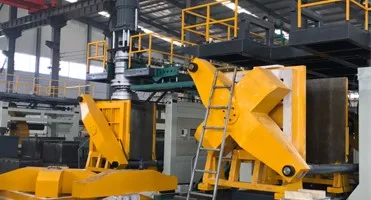

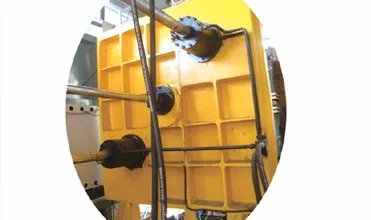

Name: Open-close-moving moulds System
Brand: LUHONG
Original: CHINA
Open-close-moving moulds System: Ball type line rail to realize open-close-move operation separately.

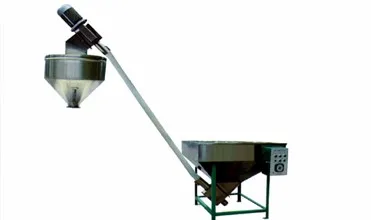

Name: Full-Auto Feeding Machine
Brand: LUHONG
Original: CHINA
Strong quality with best speeds

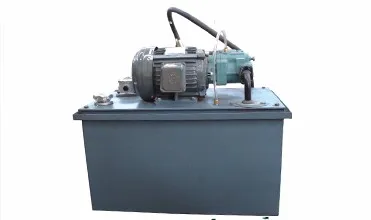

Name: Auxiliary Oil Pump System
Brand:
Original: TAIWAN
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | |
Size | 6.5m (L) * 3.5m (W) * 6.5m(H) |
Weight | 38Ton |
Packaging Details | The normal package is Easy Package (Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. 40HC + 20GP - Can ship |
Packaging | |
Size | 6.5m (L) * 3.5m (W) * 6.5m(H) |
Weight | 38T |
Packaging Details | The normal package is Easy Package (Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. 40HC + 20GP - Can ship |
