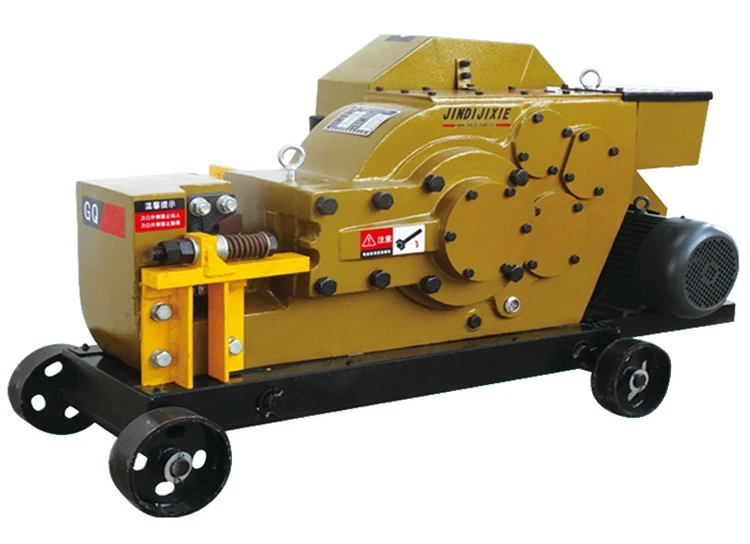

r cutting steel sheet cutting machine
Wesstern Union
Model | GQ40 | GQ50 | GQ60 |
Voltage | 3-380V-50HZ | 3-380V-50HZ | 3-380V-50HZ |
Motor Power | 3.0KW | 4.0KW | 5.5KW |
Motor Speed | 2880r/min | 2880r/min | 2880r/min |
Punching Frequency | 32times/min | 32times/min | 27times/min |
Cutting Nominal Stroke | 34mm | 34mm | 44mm |
Cutting Common Carbon Steel | ≤Φ32mm | ≤Φ40mm | ≤Φ50mm |
Cutting Deformed Bar | 14-28mm | 14-32mm | 16-40mm |
Cutting Max Flat Steel | 70*15mm | 85*16mm | 90*18mm |
Cutting Max Square Steel | 32*32mm | 40*40mm | 50*50mm |
Cutting Max Angle Steel | 50*50mm | 63*63mm | 75*75mm |
Weight(kg) | 430±5 | 530±5 | 800±5 |
Dimension(mm) | 1280*460*720 | 1440*500*740 | 1470*550*875 |
 |
