new generation 48V 1000w mini dump truck for sale

ID:200408767

Category: Construction & Decoration

FOB Price:US$ 1550.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

new generation 48V 1000w mini dump truck for sale

Payment Method:

L/CT/TD/P

Product Category

Construction & Decoration

Trademark

Product Package

Specification

Place of Origin

Port

qingdao

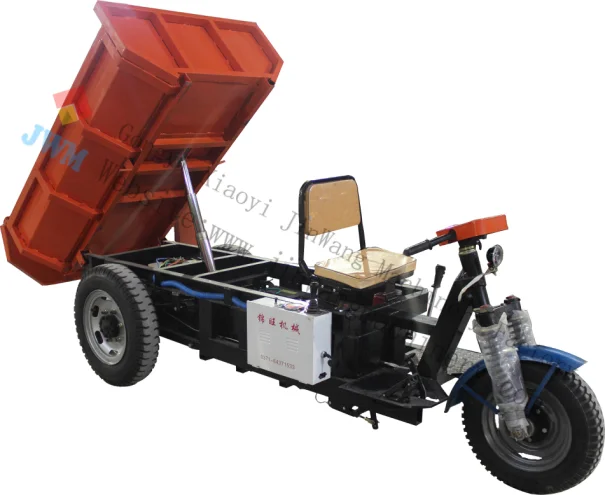

ZY155 Mini Dump Truck for Sale

Mini dump truck for sale is our main product, using electric as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power, long work hours, heavy load and suitable for any road, well received by the customer’s favorite.

Main Technical Parameters		Details
	Type	ZY155	ZY165	ZY180
1	Voltage	48v	60v	72v
2	Current	140Ah	160Ah	185Ah
3	Lifting Motor Power	1000W	1000w	1000w
4	Drive Motor Power	1000W	1500w	2000w
5	Overall Sizes	26009001200mm	320011001200mm	360012001400mm
6	Box Sizes	1500900400mm	17001100500mm	18001200500mm
7	Workbench Height	600mm	700mm	720mm
8	Tire Type(F/R)	400-12/450-14	450-14/500-14	450-14/600-16
9	Net Weight	520kg	850kg	1000kg
10	Loading Capacity	1000kg	1500kg	2000kg
11	Operating Speed	15-25km/h
12	Maximum Gradeability	25 degrees
11	Thickness of Box	3-5mm
14	Charging Duration	First with 12 hours, then normal with 8 hours
15	Workiing Hours	10 to 12 hours with a full charge
16	Insulation Grade	level B

Main Features
1) No pollution, high performance, low loss and energy saving.
2) Easy to operate and maintain without technical training
3) Heavy load, wide applying.
4) It is the ideal transport in mining, flourmill, brickyard, etc.

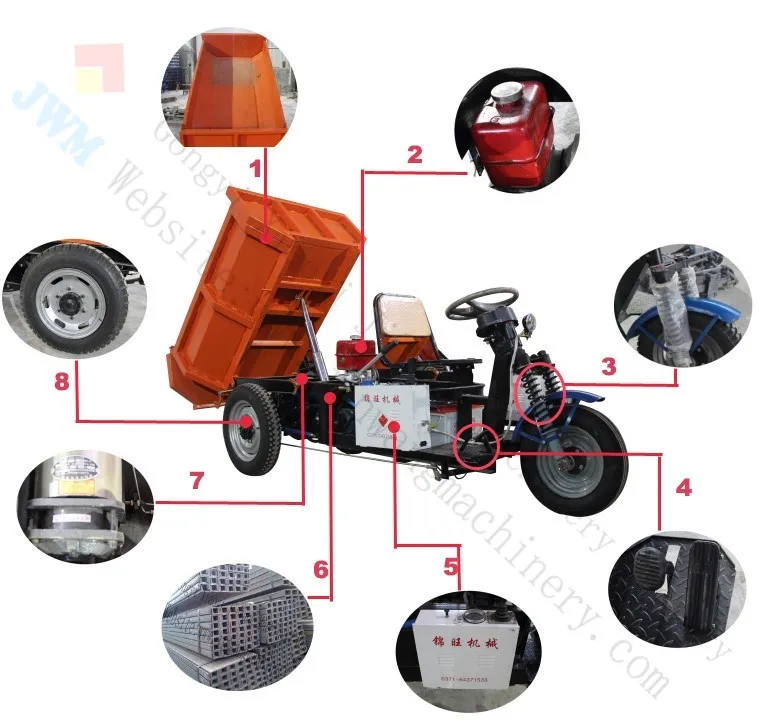

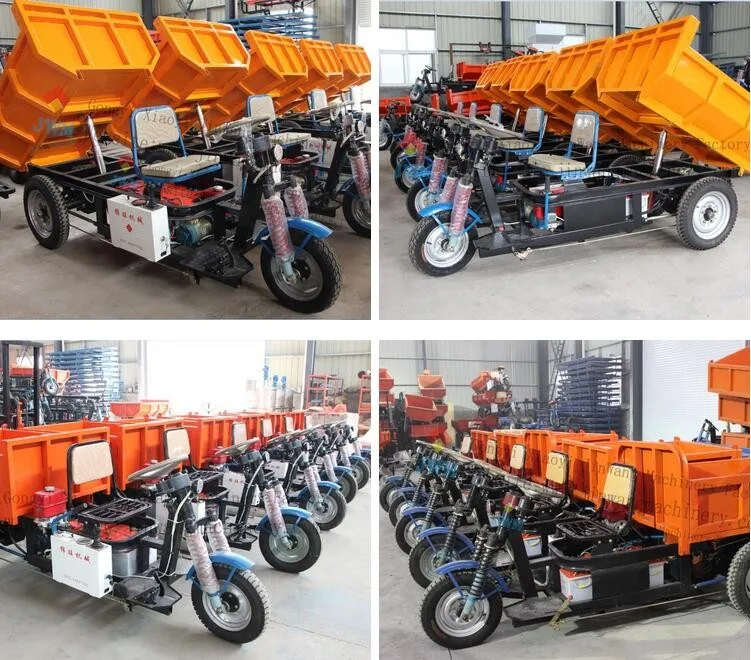

Detailed Images

1.Cargo boxes 2.Oil pump 3.Shock absorption system

4.Braking system (Accelerator pedal: control speed Brake pedal: quick and easy to touch)

5.voltameter 6.Frames (Use 10# international U-steel material)

7.Motor (Lifting Motor :1000w ,Drive Motor:2000w)

8.Tires(Front tire: 400-12 Rear tire: 450-14)

Product Superiority:

1) Working quaickly and efficiently:

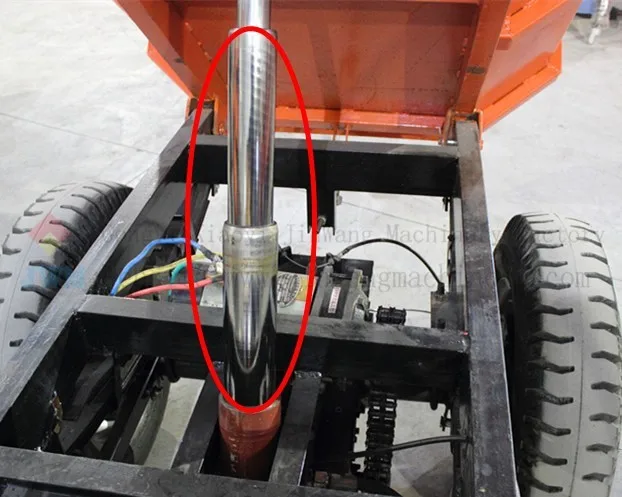

The hydraulic lift system can achieve the fredoom of dumping cargo,so that it can save time ,manpower and material resources.

2).Great load capacity, wide application range:

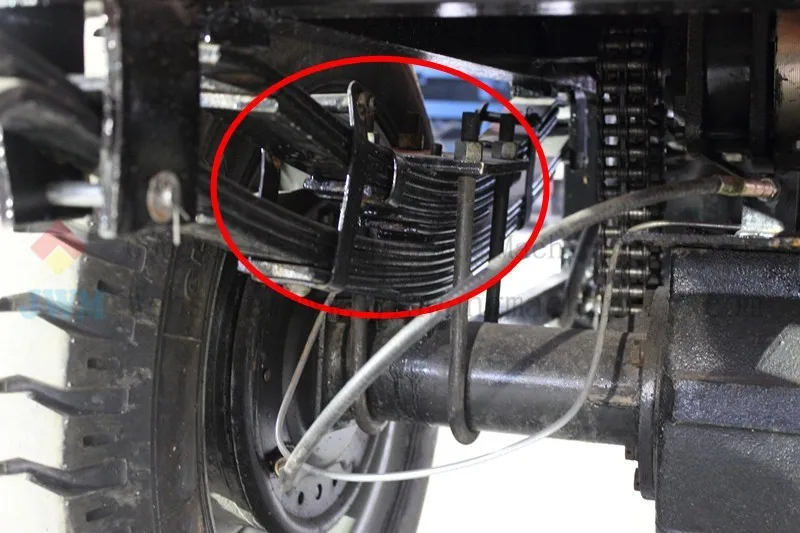

①Because all of them have the steel spring plate, compared with same level of the electric dump truck, ours' maximum load can reach 2 tons.
②They are widely used not only in mine, refractory, flour mill, brick factory, furnace charge factory, flour mill, but also in the farm, garden, forest and so on.

3). No pollution, no noise, energy saving, and low cost:

They use electric as power source, and an electric charge can achieve sustained discharge 10-12 hours. Effectively reduce the cost.

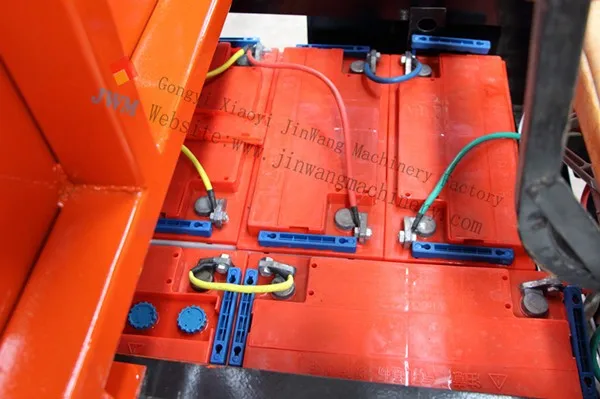

ZY155 1ton electric mini dumper tricycle adopt 4pcs battery,
ZY165 1.5ton electric mini dumper tricycle adopt 5pcs battery,
ZY180 2ton electric mini dumper tricycle adopt 6pcs battery.

4). Charging is very convenient:

You can use the household power 115-volt or 220-volt to charge directly for the vehicle. Charger jack is standard US socket.

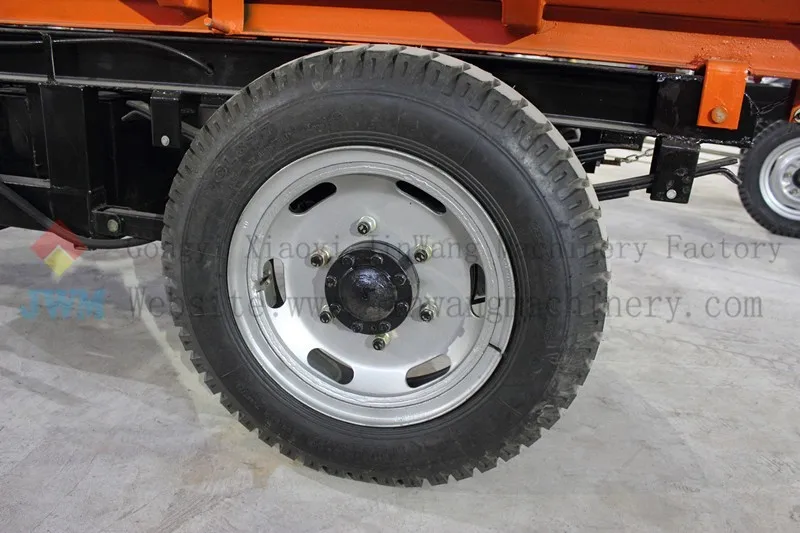

5). Famous brand:

As to tire, our factory adopts the high quality tire of chaoyang brand, which is heavy-duty and durable. So it can apply to any road condition.
It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle.
tire model: ZY155 1ton electric mini dumper tricycle: model of front tire:400-12 model of rear tire:450-14
ZY165 1.5ton electric mini dumper tricycle: model of front tire:450-14 model of rear tire:500-14
ZY180 2ton electric mini dumper tricycle: model of front tire:450-14 model of rear tire:600-16

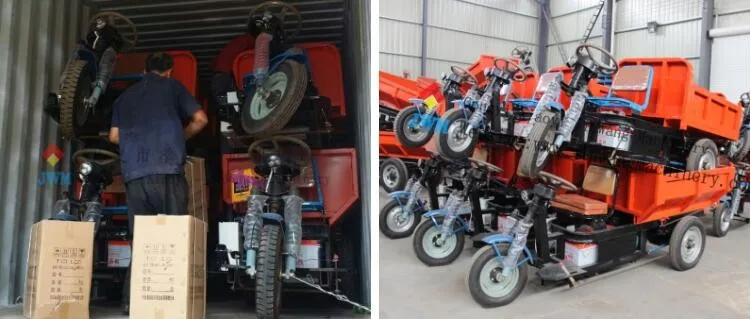

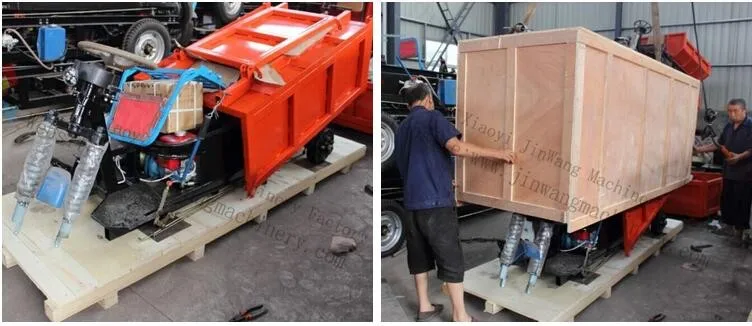

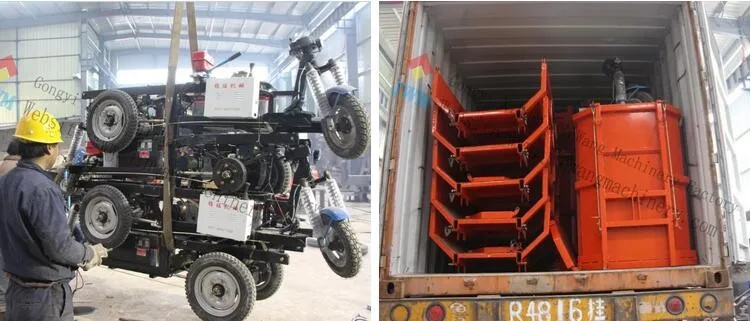

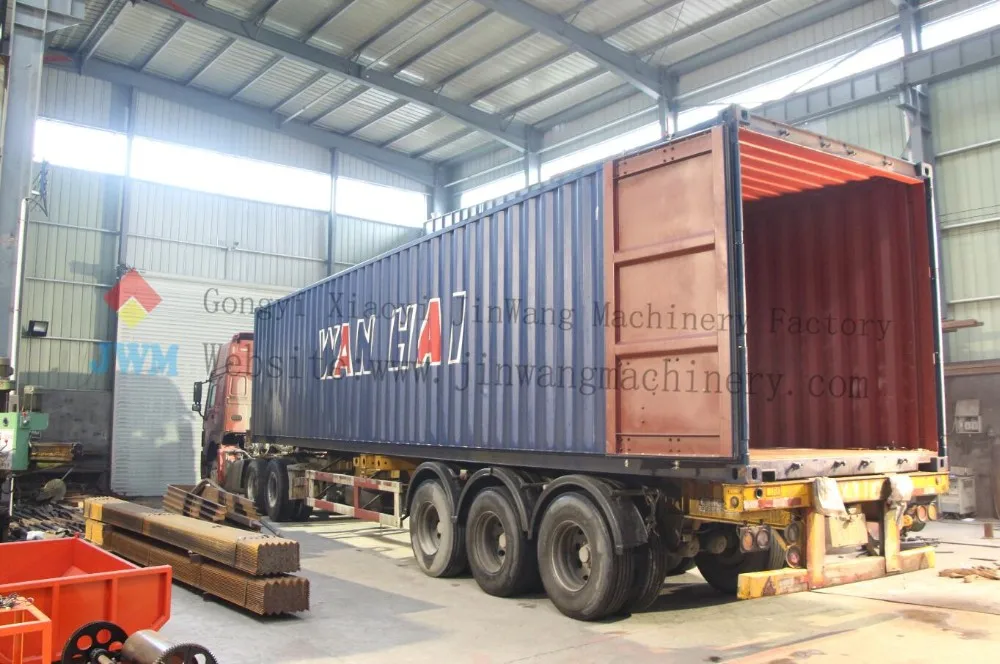

Packing & Delivery

Less than Container Load

Full Container Load

Load without knock down

Load with SKD ( Semi Knock Down )
