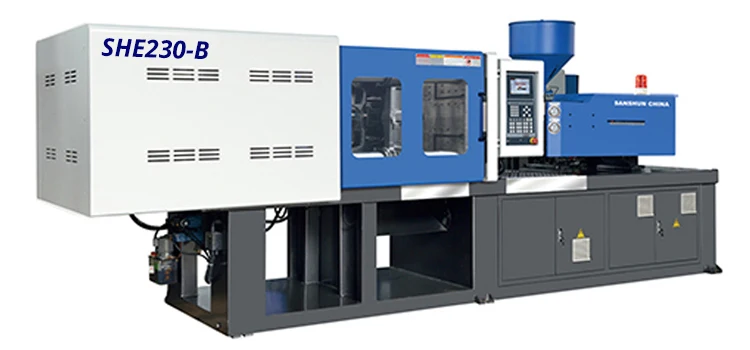

SANSHUN Bakelite Injection Moulding Machinery SHE230-B

ID:2004091028

Category: Print,Pack,Plastic Rubber & Plastics Products

FOB Price:US$ 22000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Injection Moulding Machinery

Payment Method:

L/CT/TD/P

Product Category

Print,Pack,Plastic > Rubber & Plastics Products

Trademark

Product Package

Specification

Place of Origin

Port

Ningbo

Overview

Quick Details

Style:
Horizontal

Condition:
New

Plastic Type:
Thermoplastic

Clamping Force:
2300KN

Type:
Plastic Injection Machine

Place of Origin:
Zhejiang, China

Brand Name:
SANSHUN

Automatic:
Yes

Certification:
CE ISO9001 Patent Certificate

Screw diameter:
45/48mm

Ejector tonnage:
70KN

Ejector number:
9

Ejector stroke:
155mm

Mould Thickness:
200-530 mm

Space between tie-bars:
535X533mm

Heat power:
18.5KW

Max. pump pressure:
16MPa

Machine dimension:
5.8X1.8X2.0m

Machine weight:
6.5t

After-sales Service Provided:
Engineers available to service machinery overseas

Injection Weight:
588g /660g

Injection Rate:
130g/s 148g/s

Opening Stroke:
510mm

Power(W):
18.5KW

Supply Ability

Supply Ability:
30 Set/Sets per Month for Plastic Machine Injection

Packaging & Delivery

Packaging Details
Standard Export Package

Port
Ningbo

Product Description

SANSHUN Machinery is one of the top 10 Chinese injection moulding machinery manufacturer. We are manufacturing different types of injection moulding machines and range starts from 32 Ton to 2000 Ton. During the past 20 years, our machines had been exported to more than 60 countries.
Characteristics

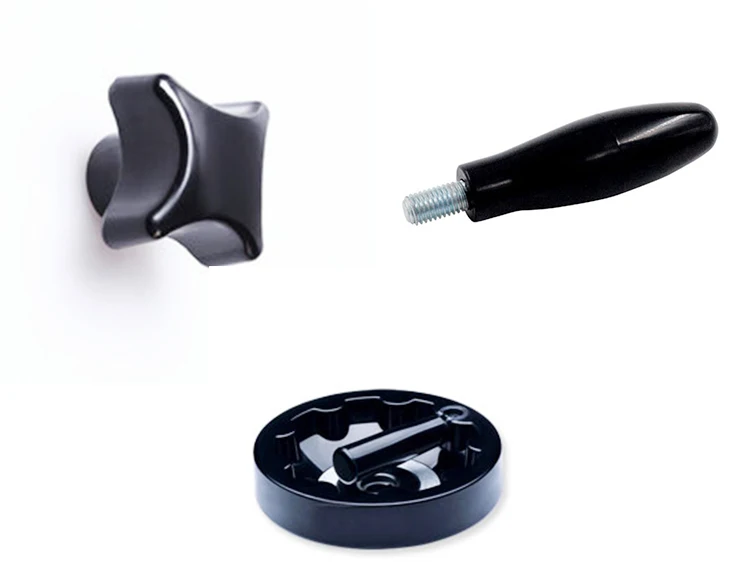

Sanshun Machinery manufacturing special Injection molding machines for Bakelite products. Bakelite has a number of important properties. It can be molded very quickly, decreasing production time. Moldings are smooth, retain their shape and are resistant to heat, scratches, and destructive solvents. It is also resistant to electricity and prized for its low conductivity. It is not flexible. These characteristics made Bakelite particularly suitable as a molding compound. For Bakelite injection molding, the barrel temperature is set to 70-90'C to heat (with screw shear) the raw materials flowing. The screw is only for compressing and delivering the material into the mold, without melting it. Mold is heated to a temperature (180'C, for instance) to cure the raw materials

Screw configuration - The compression ratio of the screw for bakelite is 1:1 whereas for thermoplastics it's about 1:3-1:4.5

Process - Molding of thermoplastics involve melting whereas in the molding of bakelite only the fusing takes place between particles and no melting is involved.
Advantages
Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency

Details

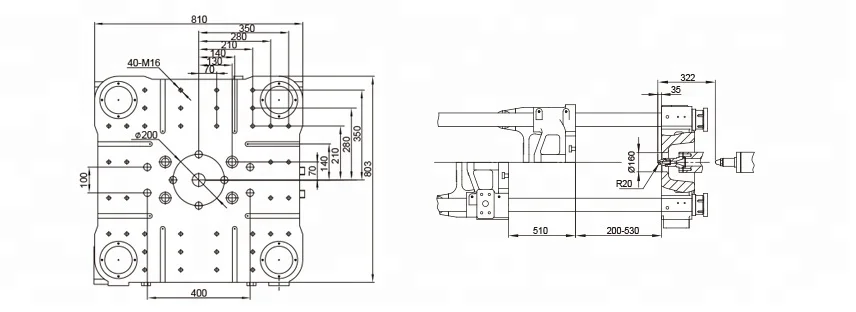

Platen Dimension >>

Technical Parameters >>

MODEL		SHE230B
INJECTION UNIT	UNIT	A	B
Screw diameter	mm	45	48
Shot size(theoretical)	Cm3	490	550
Shot weight	g	588	660
Injection pressure	Mpa	227	200
Injection rate	g/s	130	148
Screw L/D ratio	L/D	16	15
Screw speed	r.p.m	0-180
Nozzle Diameter	Srmm	20
CLAMPING UNIT
Clamp tonnage	KN	2300
Toggle stroke	mm	510
Mould Thickness	mm	200-530
Space between tie-bars	mm	535X533
Ejector stroke	mm	155
Ejector tonnage	KN	70
Ejector number	Piece	9
Hole Diameter	mm	160
OTHERS
Max. pump pressure	MPa	16
Pump motor power	KW	18.5
Machine dimension	m	5.8X1.8X2.0
Machine weight	t	6.9
Oil tank capacity	L	300

+Specially designed screw & barrel for Bakelite, which is made by high strength bi-metallic steel with special treatment, with the characteristic of good corrosion resistance & good abrasion resistance.
+Oil cooling device in the Bakelite screw & barrel ensures the precision of the temperature control.
+According to Bakelite material features, the machine can exhaust while opening the mold.
+It can be converted into thermoplastic injection molding machine after replacing the screw and barrel group.
+Upgraded size of the hydraulic motor improves the injection rate and achieves a better plasticization.
+Specially designed heat resolution plate in the mould platens to meet the Bakelite mold temperature requirements.
+Two sets of mold temperature control interface, controlled by the PLC with high precision.
+Using high-precision linear transducer to achieve high-precision position control. Position setting precision can reach 0.1mm.
+Automatic mold adjustment function can directly input locking pressure and automatically complete mold thickness adjusting by PLC.

Application

Injection Molding Machines widely used in Automotive, Packaging, Electrical, Medical, Household and Appliance sectors. In particular, increasing demand in emerging economies fueled the growth of the injection molding machine market.
