100 Set/Sets per Month China automatic chain link fence machine
Packaging Details
Wooden box
Port
Tianjin Xingang
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 14 | To be negotiated |
fence making machine/ chain link machine/ wire mesh machine
| Maximun wire diameter | 4.0 mm |
| Minimum wire diameter | 1.5mm |
| Maximum Mesh Size | 100mm |
| Volts Power | 220V, 380V, 415V, 440V, etc. (According to your requirement) |
| HZ Power | 50hz, 60hz, etc. (According to your requirement) |
| Mesh Edge | Over lock or twist |

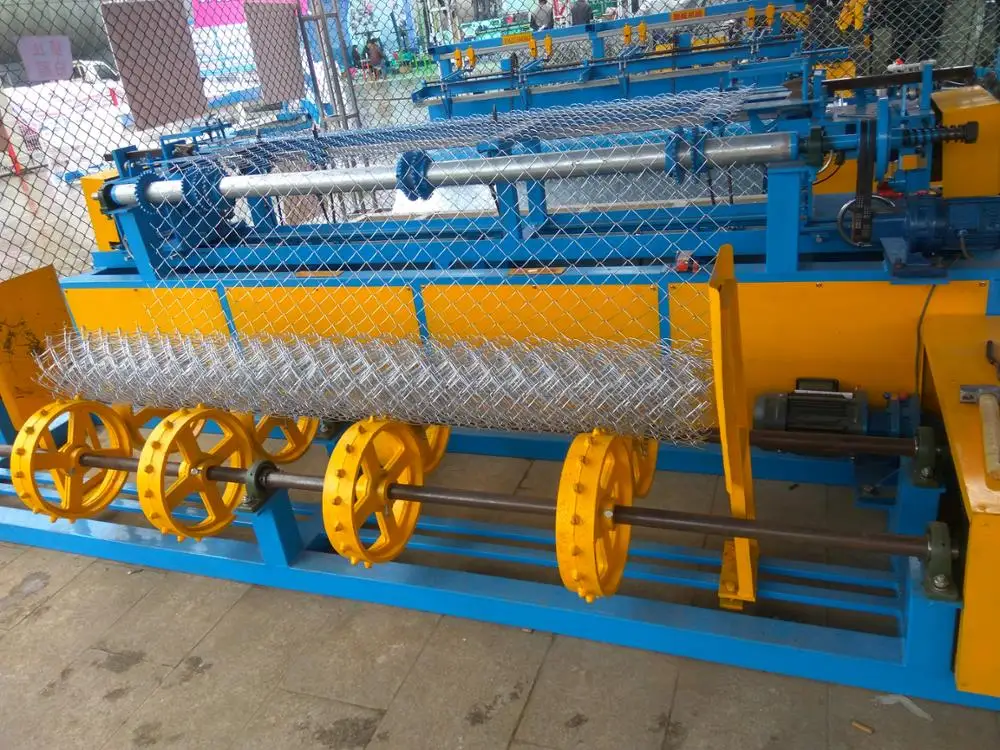

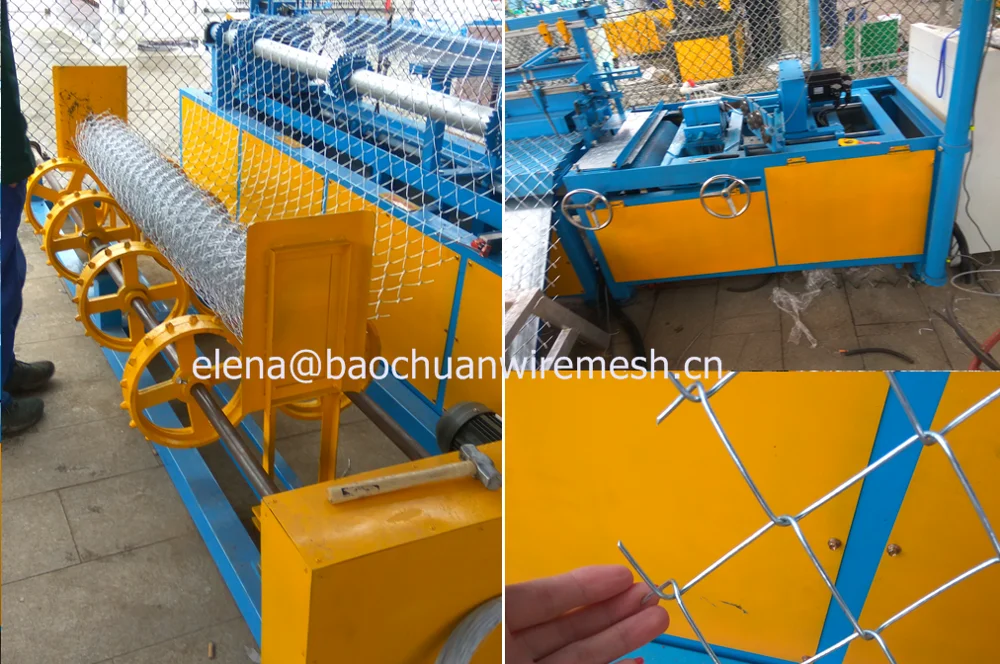

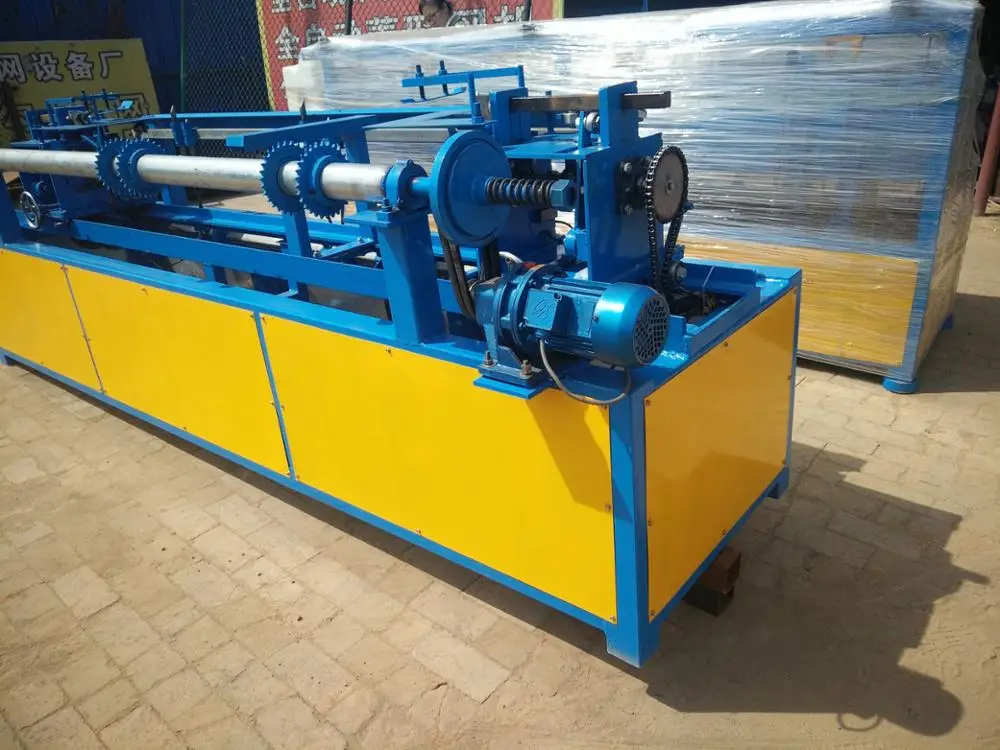

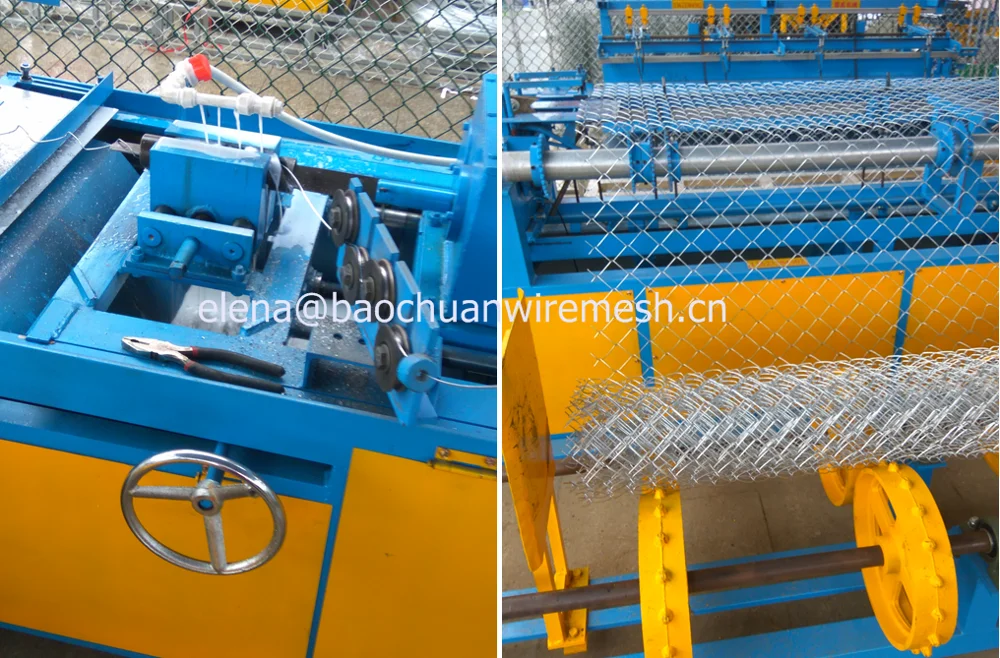

1.Description:
1).Chain link fence making machine is used for manufacturing Chain Link Fence of different sizes,like 30*30mm to 80*80mm.
2). Two wires twist together ,and turn into the finished mesh hole, so the producing speed is high.
3).The mesh is automactically wound to form rolls when the desired length is manufactured.
4).The machine is controlled by PLC automatic controller,and easy and safe to operate,1 person is ok.
5).Auto edging,curved,cutting,high working speed.
6).Warranty 1 year for main frame, the machine include one set dies.
Engineers avaliable to service machinery overseas
2.Electrical Systems :
1). Germany Siemens PLC origin
2). Frequency converter is selected from Japan "YASKAWA Electrical
3). Low-voltage electrical from Germany Schneider
4). Motor is from Taiwan Teco Electric
5). Clutch & Brake is from Taiwan YA CO, .LTD.
3.Features of Chain link fence machine
1. This machine adopts PLC (programmable logic controller). Controlling the wire feeding, chain making and chain link fence weaving.
2. Machine adopts 2 feeding wire methods to weave the mesh, high weaving speed with high quality.
3. Reasonable designing, touch screen controller, complete wire feeding, wire cutting, mesh conveying and edge finished totally automatic.
4.Main components used in the machine such as single-chip computer and hydraulic system are of famous brand and excellent quality.
Full automatic chain fence link making machine,The chain link fence machine use the principle of bionics.It is the integration of machinery, digital control and aero dynamic.Simulating cross the mesh by hand.Automatically overlock and wrap the mesh.The main technical parameters take the lead in the same species.
Good performance:
1.The production efficiency is about twice of the same species.
2.The fault is the lowest in the same species.
3.The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4.The loss of the raw materials of the same species is 5%-7%, while the JL-2000 chain link fence machine is nearly zero.
5.The electrical energy the chain fence link making machine can save is about20%.
6.It is suitable to all kinds of mild steel wires.

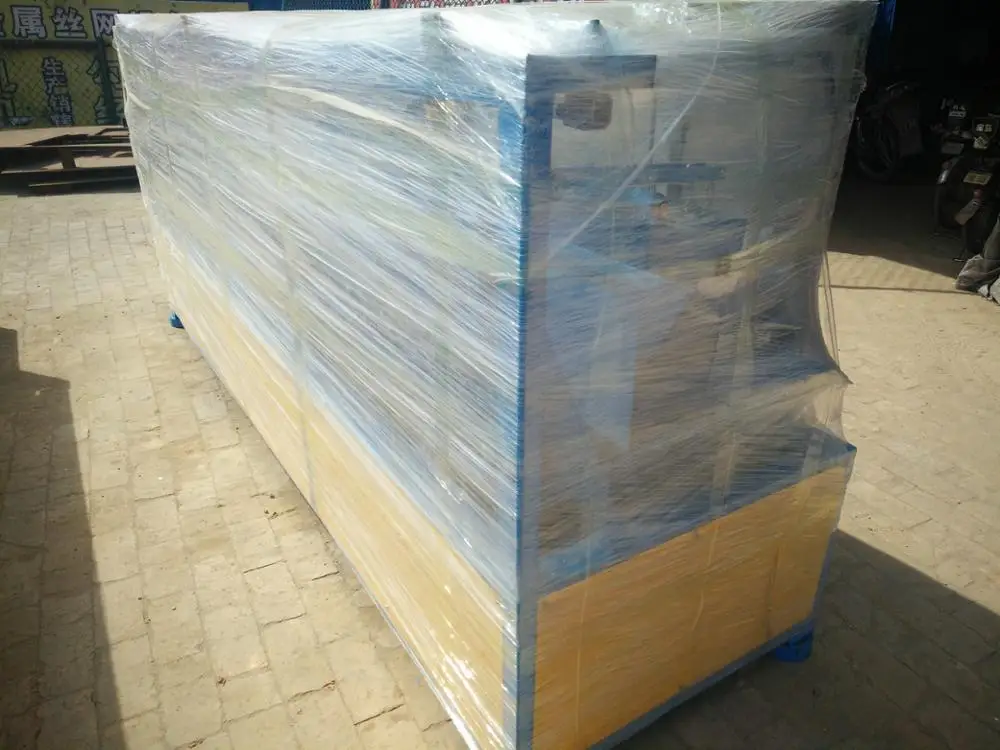

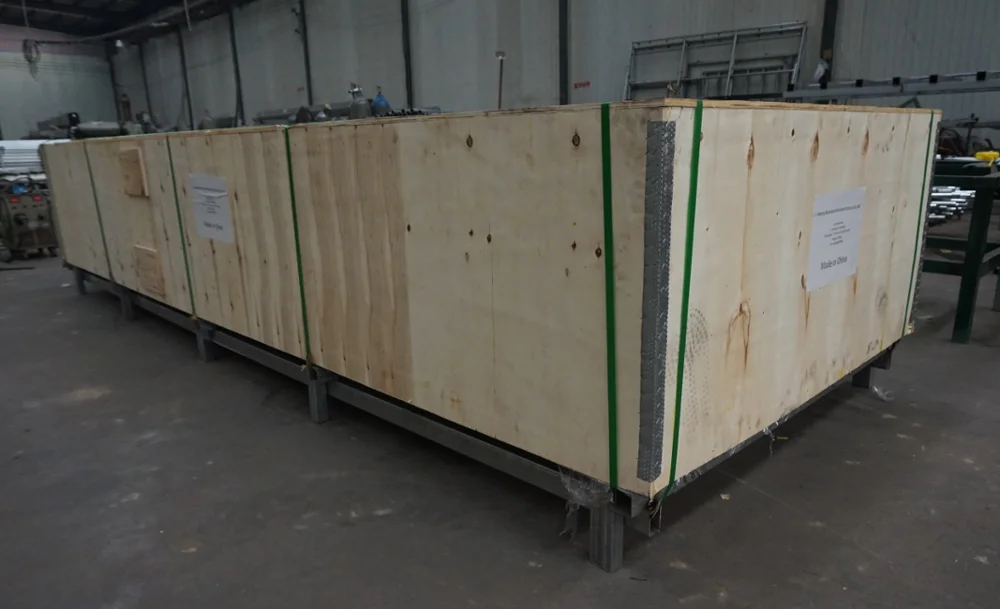

This is our packing pictures, if you need, we will use the wood box
They are our clients:
