Tiny modular steel structure building with concrete cement chassis self design prefab houses homes

ID:2004101539

Construction & Decoration Building Decoration Products

FOB Price:US$ 170.000 / Square Meter(s)

MOQ:120.00 Square Meter(s)

Product Keywords:

steel structure building

Payment Method:

L/CT/TD/POthers

Product Category

Construction & Decoration > Building Decoration Products

Trademark

Product Package

Specification

Place of Origin

Port

shenzhen

Quick Details

Warranty:
NONE

After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training

Project Solution Capability:
graphic design, 3D model design, total solution for projects

Place of Origin:
Guangdong, China

Brand Name:
BX

Model Number:
BX-PFTH

Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet

Product Type:
Steel Structure

Frame:
Light steel structure

Connection:
Bolt connection

Wall panel:

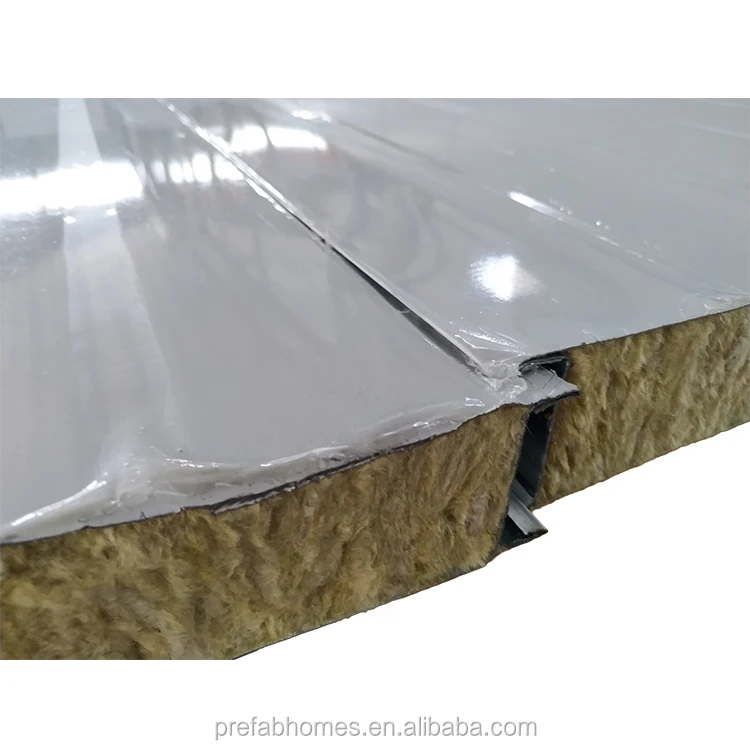

50mm 0.426 EPS sandwich panel( PU, Glass wool, MGO, etc.)

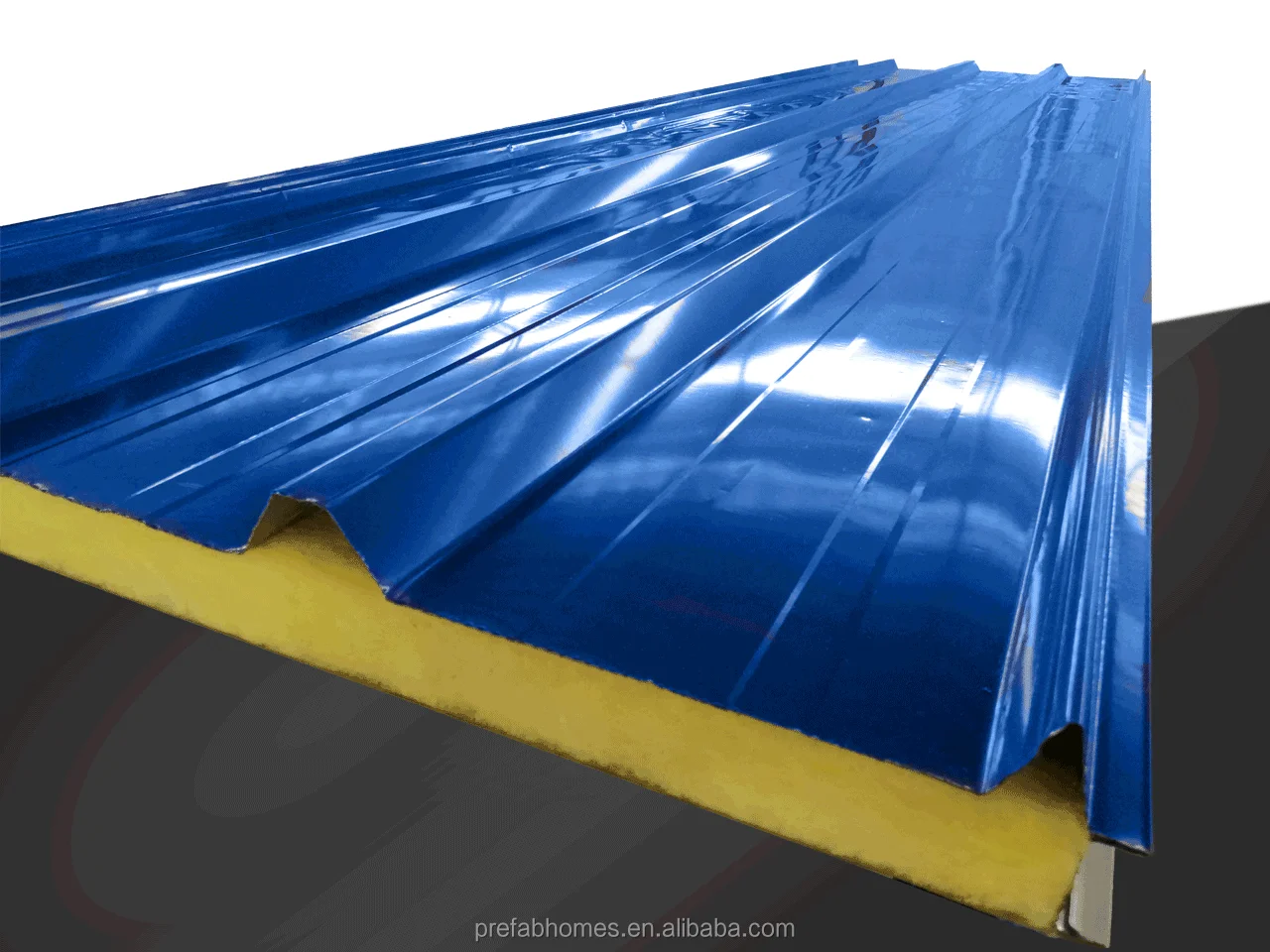

Roof panel:

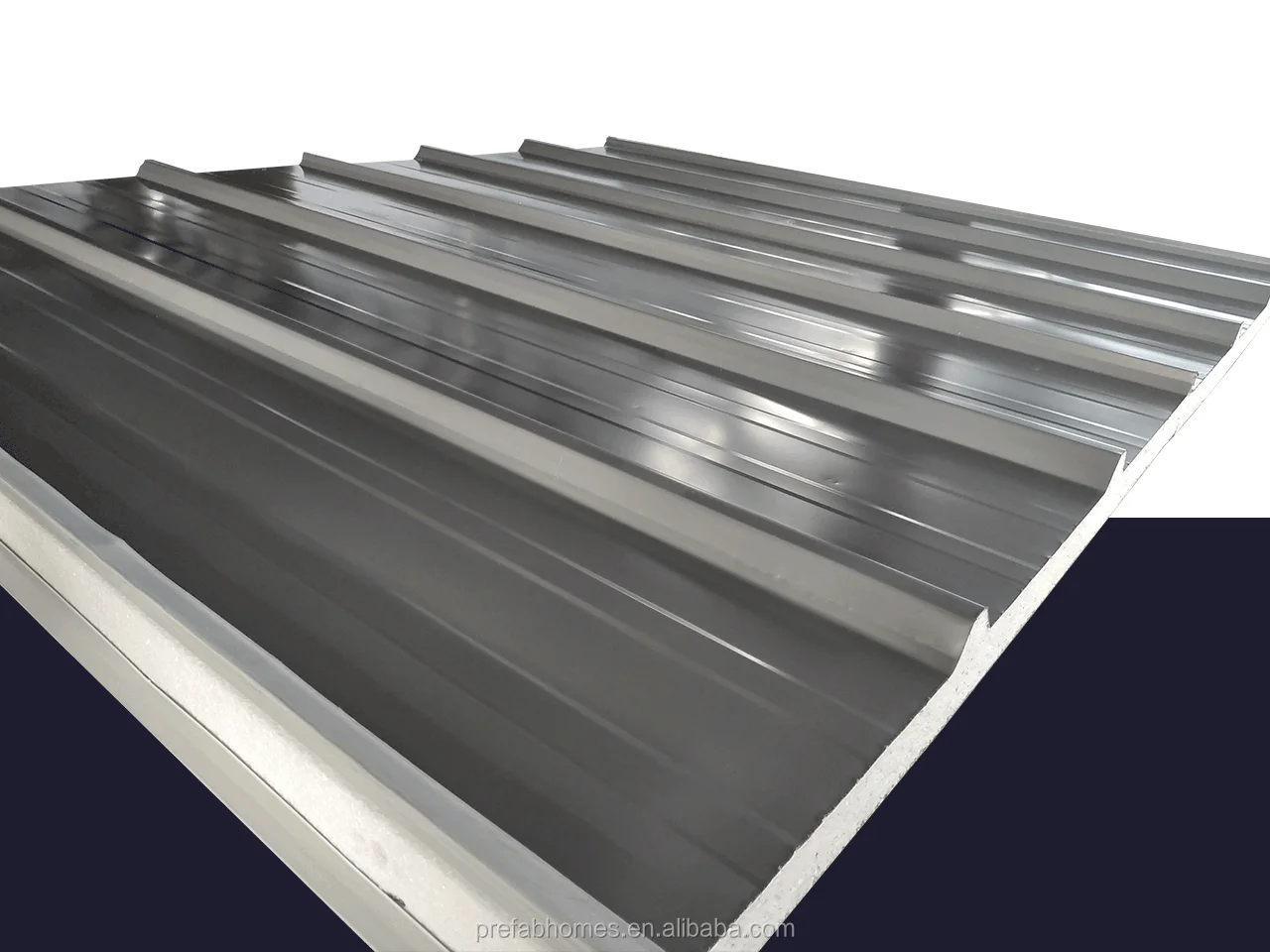

75mm 0.426 EPS sandwich panel( PU, Glass wool, MGO, etc.)

Color:
Blue, White, Red, Green, Yellow, etc.

Size:
12000mm*12000mm

Supply Ability

Supply Ability:
2000 Square Meter/Square Meters per Month

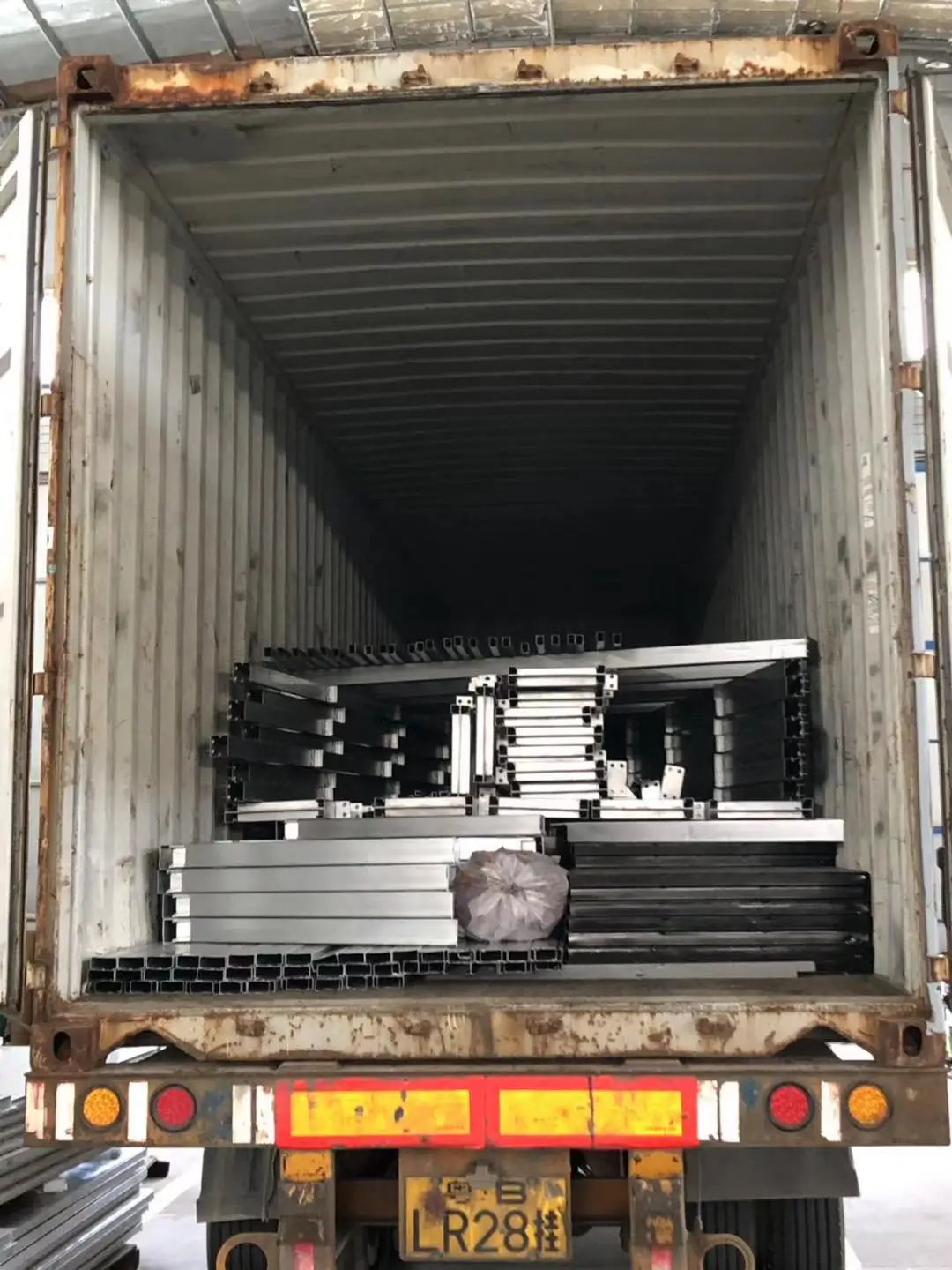

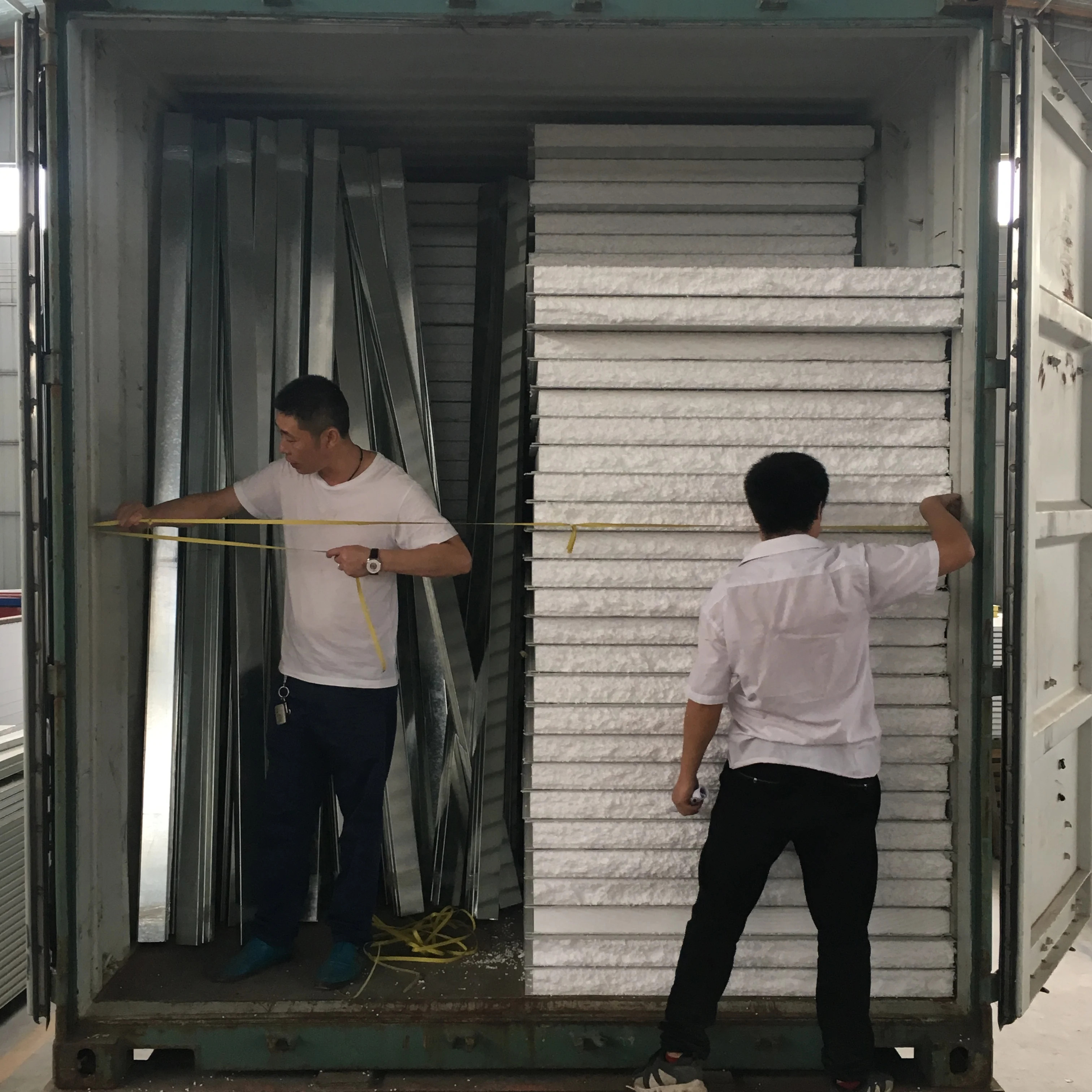

Packaging & Delivery

Packaging Details
Nude package by default

Port
Guangzhou/Foshan/Shenzhen

Picture Example:

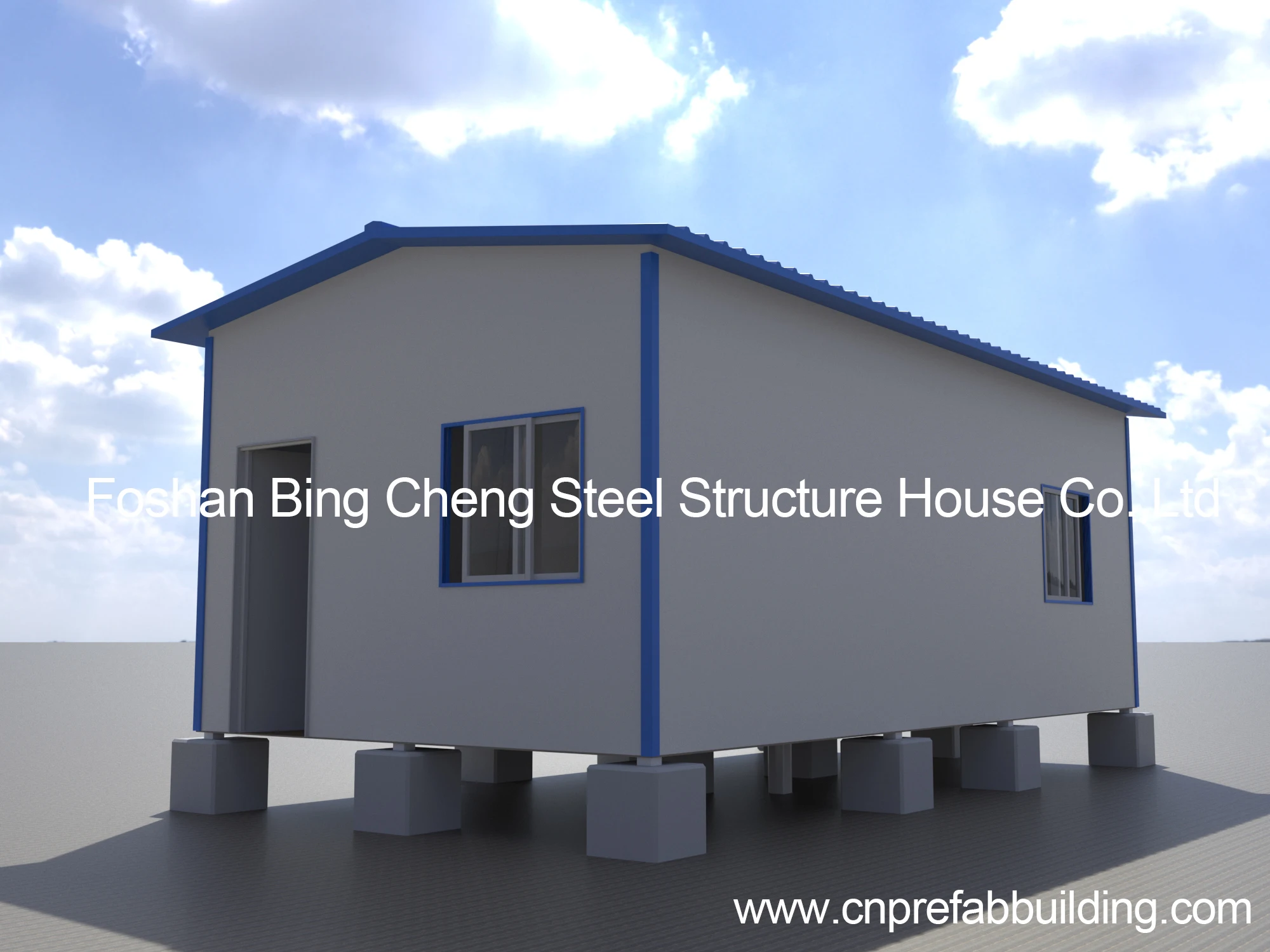

Product Description

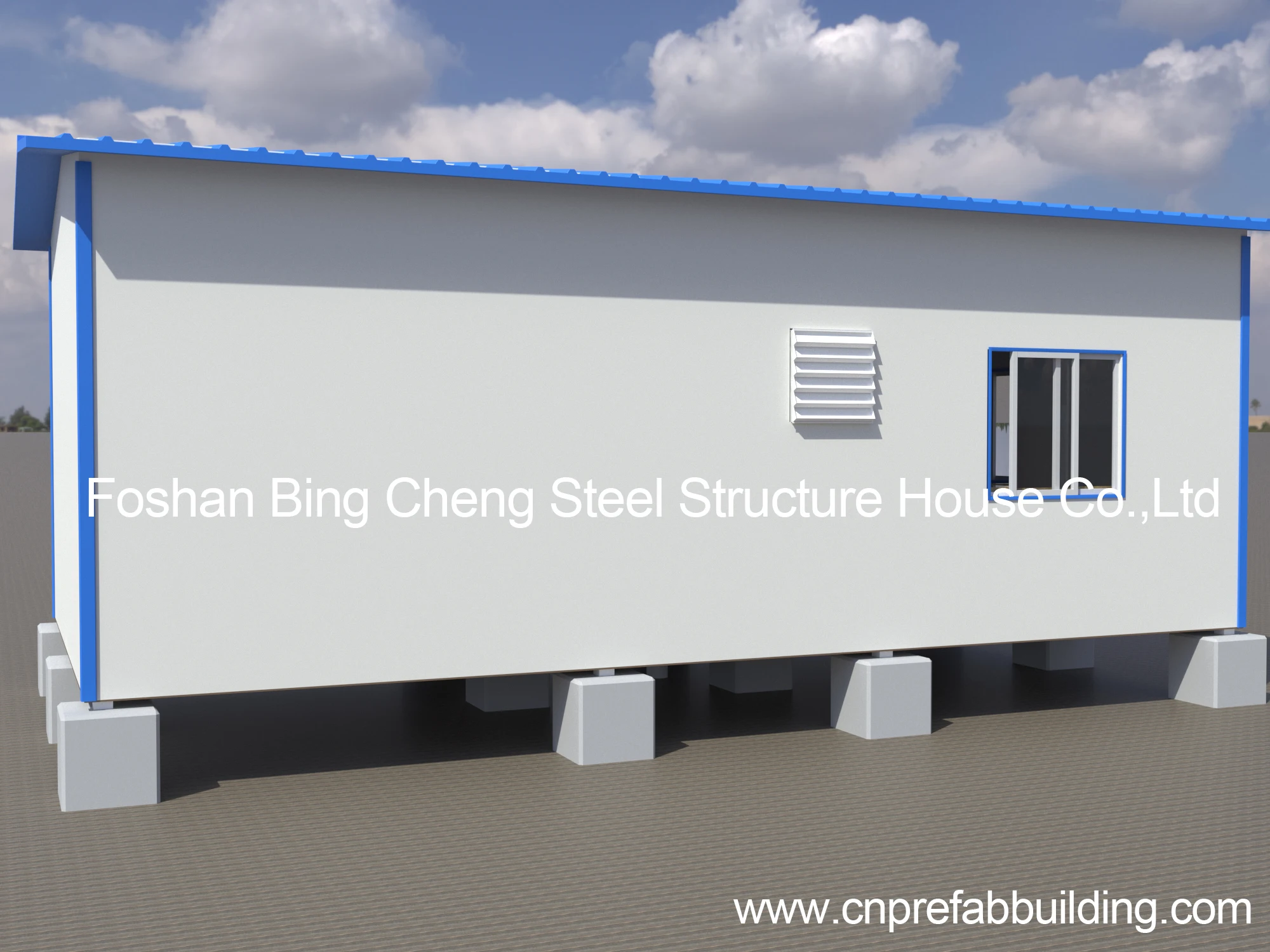

4000*8000*3000(mm)

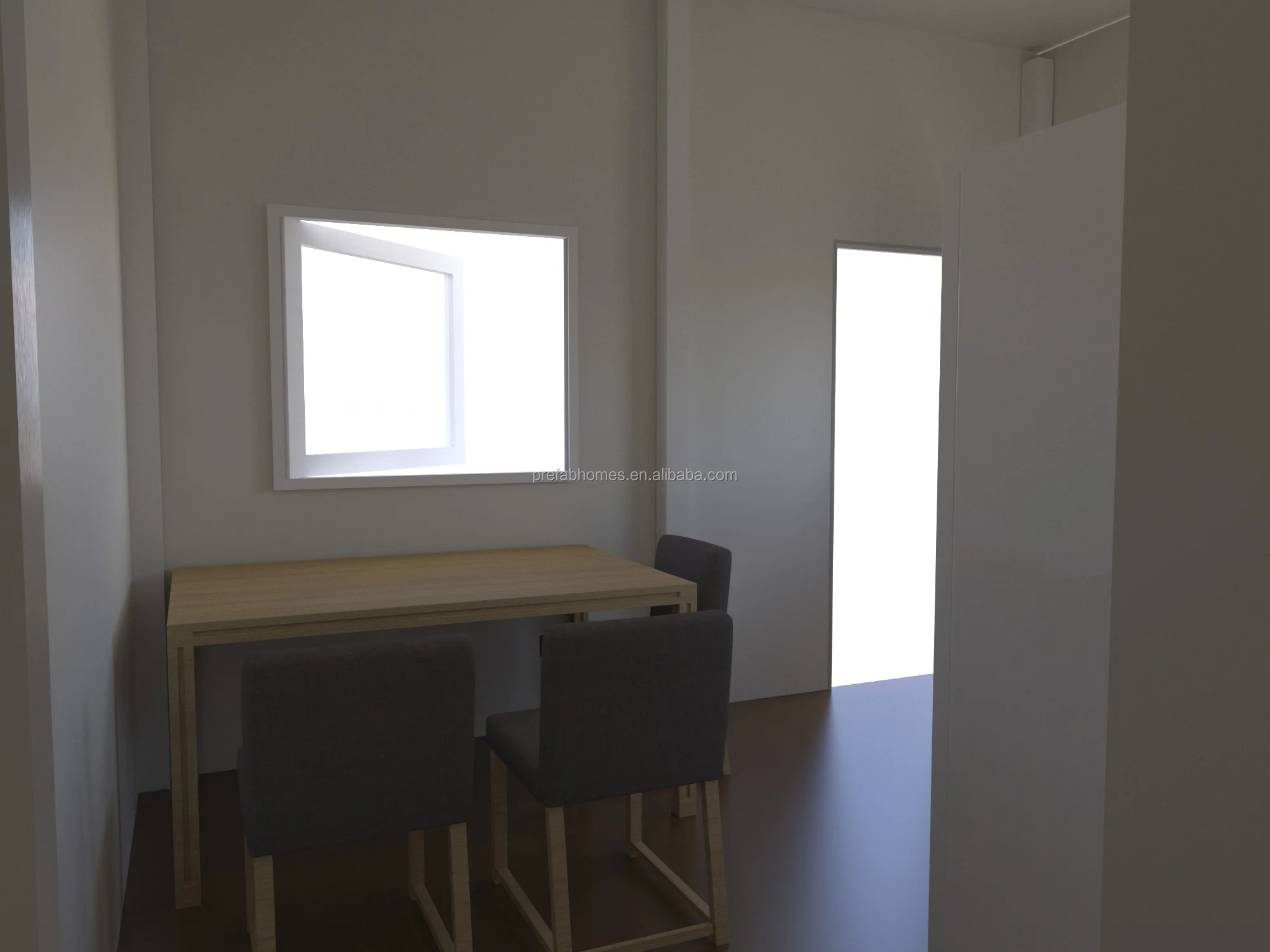

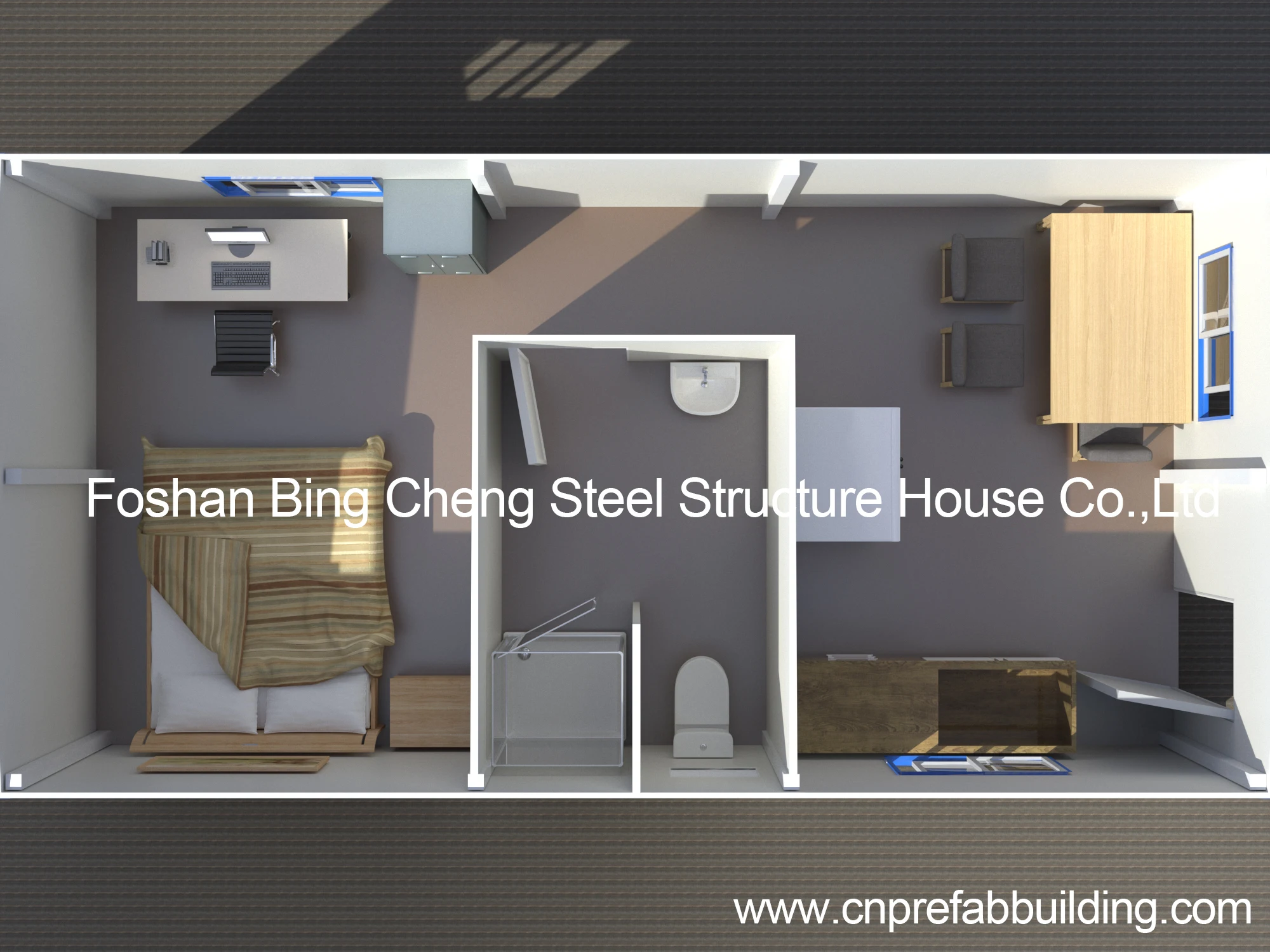

Inside Design

Item Name	Material	Specification	Qty	Unit

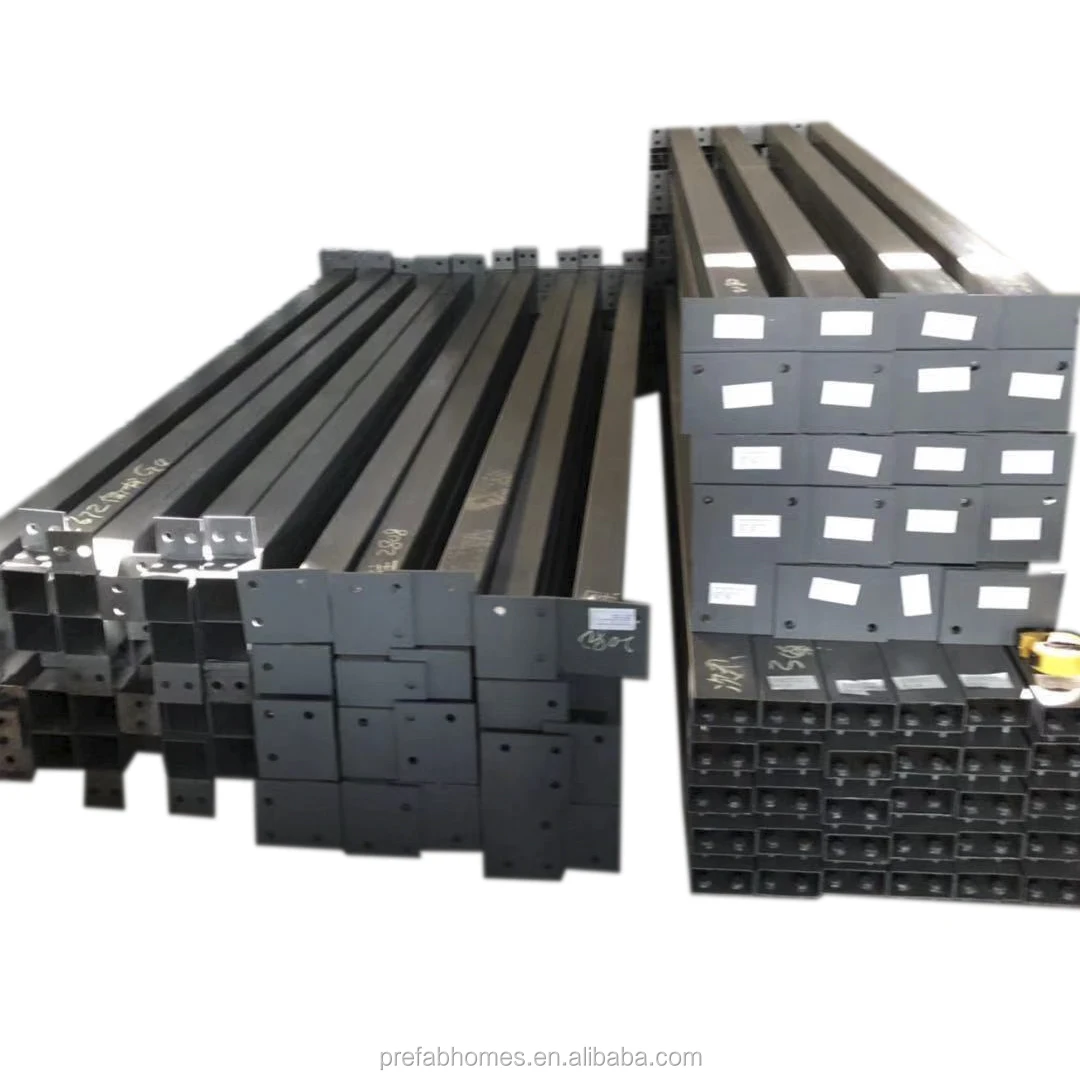

Steel frame	main steel column	100*100 square tube	0.67	T
	roof beam	10050+5030 squrae tube	0.83	T
	roof purlin	C803515*2	0.75	T
	bottom beam	120*80 squaretube	0.45	T
	bottom purlin	C1205020*2	1.49	T
	round beam	1001002 square tube	0.46	T
	CANOPY frame	100*100 square tube	0.01	T
	free supporting	L50*3.0	0.12
	connected plate		0.93	T
	Material loss	5%	0.29	T
	component making		6.00	T
	component paint	coating painting	6.00	T

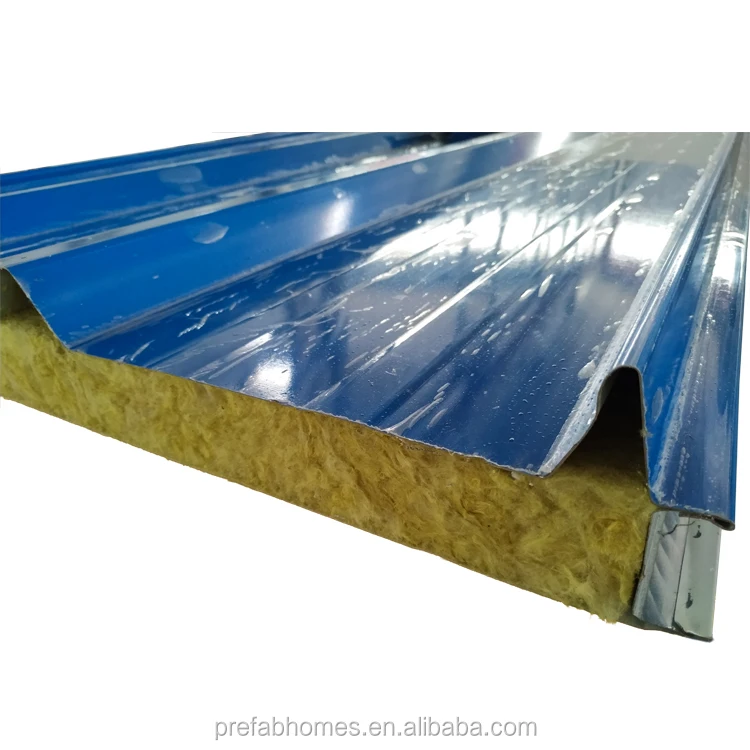

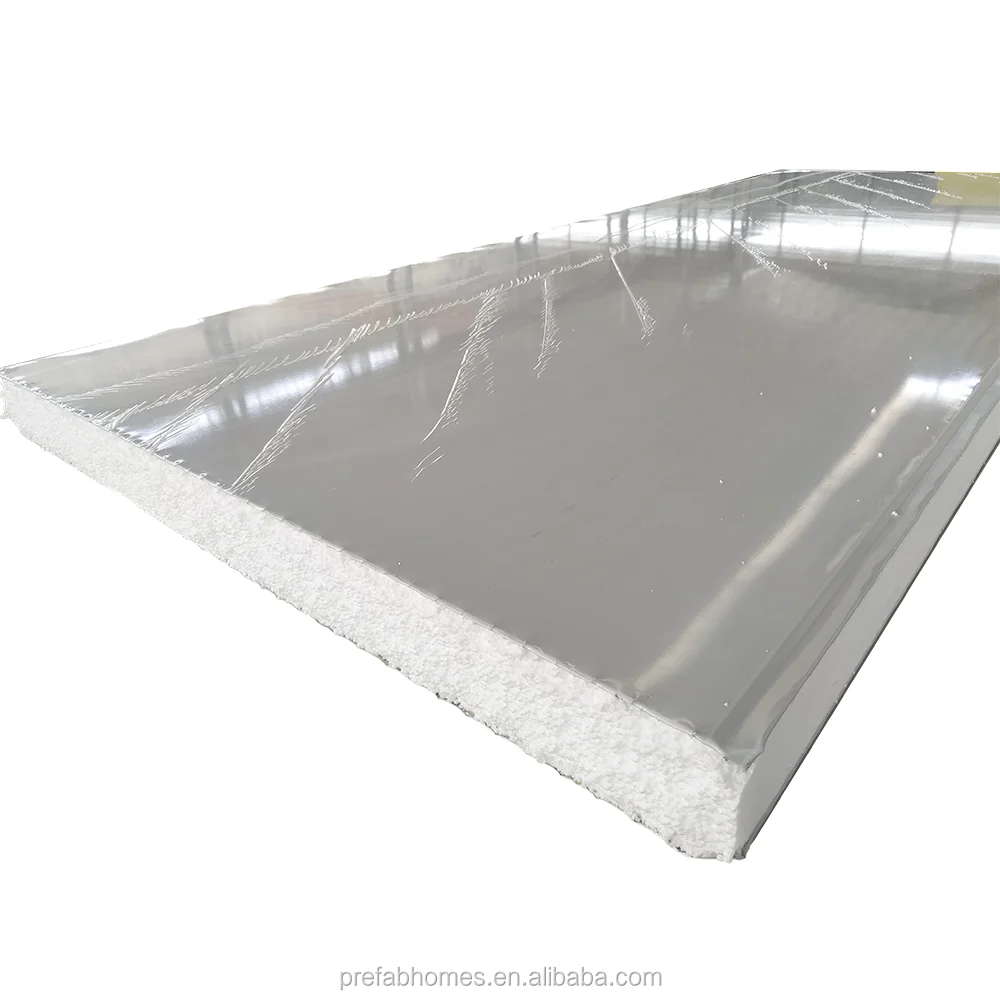

Cladding	roof panel	L105050mm EPS sandwich panel with 0.426mm color steel sheet+12KG EPS	162.77	㎡

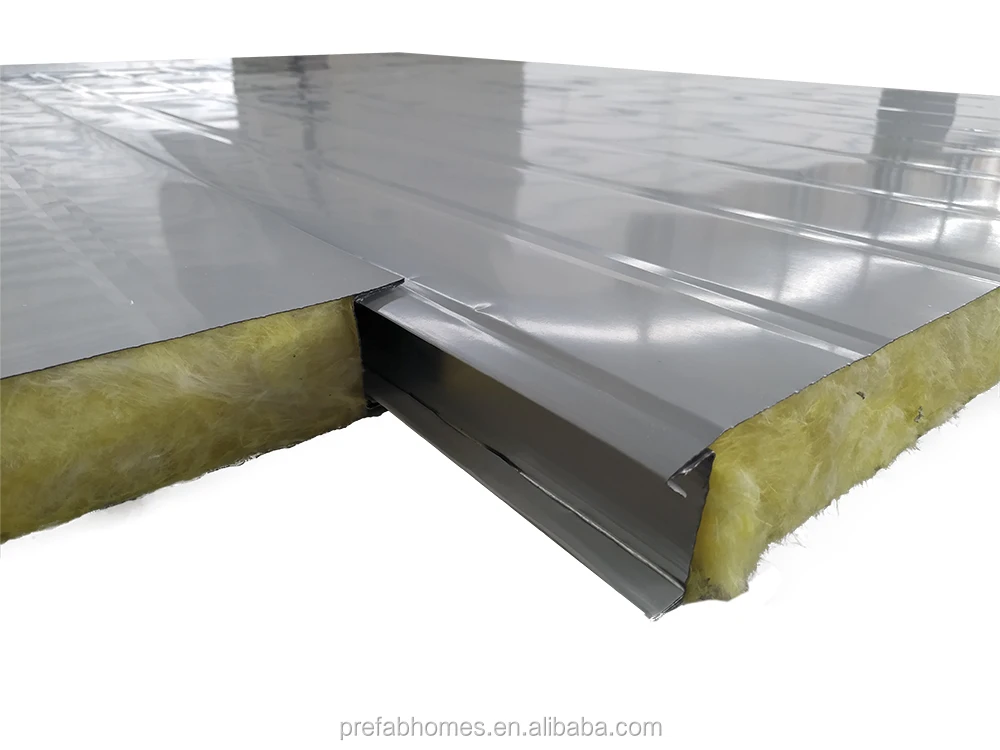

	exterior partition wall panel	L115050mm EPS sandwich panel with 0.426mm color steel sheet+12KG EPS	296.05	㎡
	partition wall panel		95.75	㎡
	materials cutting charge		391.80	㎡
	floor support board	2440122020mm	50	pc

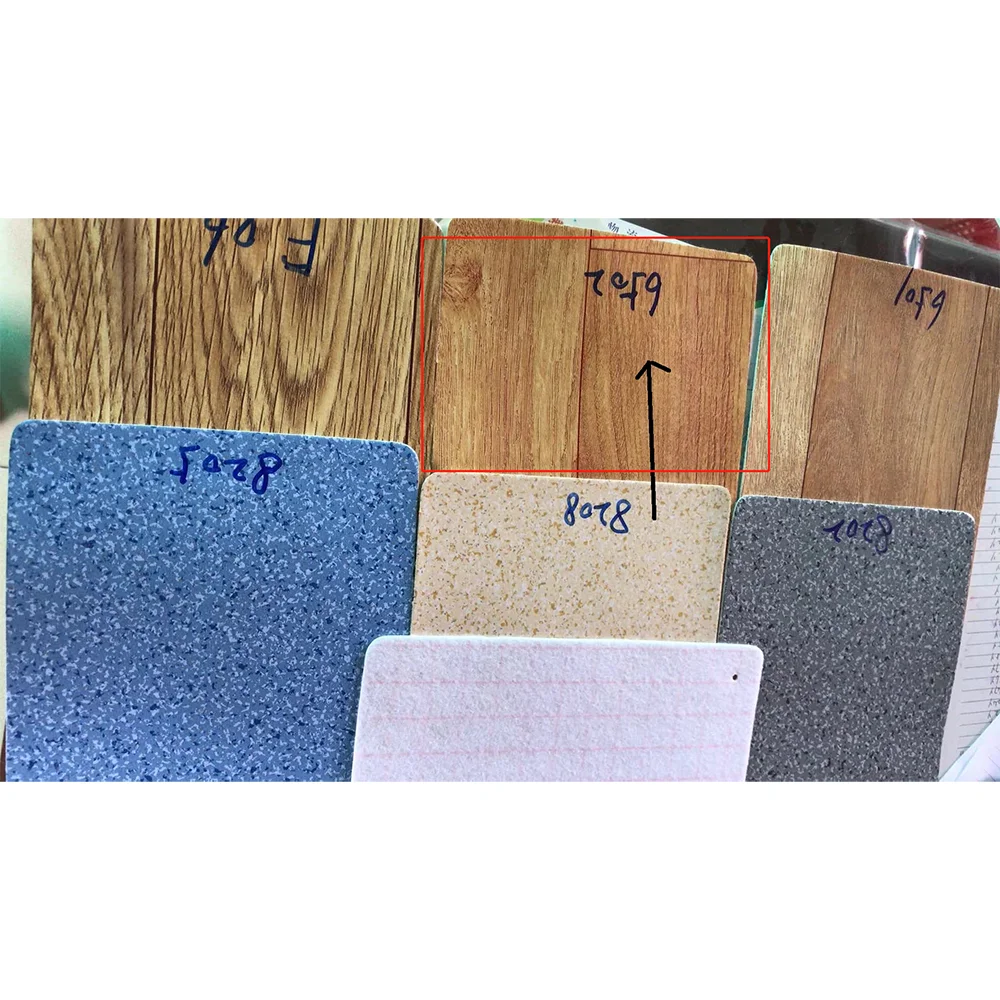

	florring glue	2.0mm	115	㎡
	ceramic	300*300mm	9	㎡
	Terrace floor		39	㎡
	ceiling for the room	600*600 gypsum board ceiling	115	㎡
	ceiling for the toilet & kitchen & terrace	300*300 aluminum ceiling	59	㎡
	aluminum sliding window	1200*950mm,double glazing glass	6	set

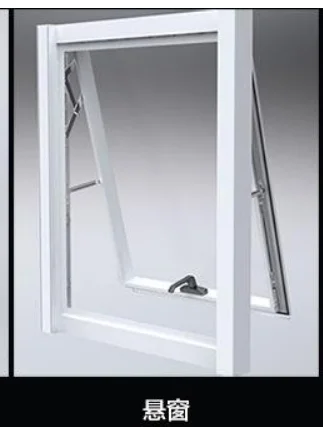

	swing type window for toilet	white aluminum alloy window 0.8m(H)*0.6m(W),swing type,with double glazing glass frosted	3	set
	single open door M1	800*2050 steel door	6	set
	toilet Door M2	aluminum with double glazing glass door 750*2000mm	2	set

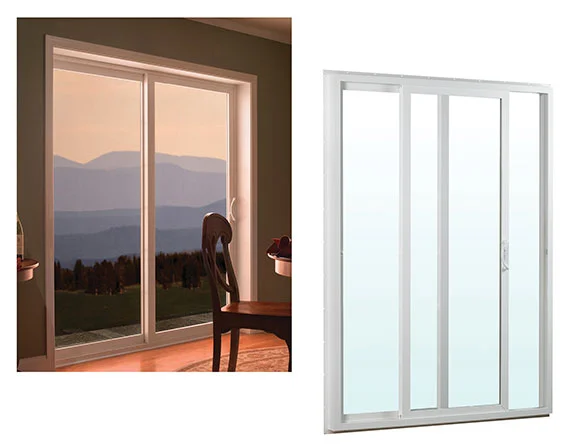

	glass sliding door M3	1600*2000	2	set
	glass sliding door M4	2400*2000	1	set
	chemical screws	M20	150	set
	"2" shape steel for fixed the wall	fixed the wall panels in the bottom	50	m
	colour steel covering	steel sheet bending，include explosion screw, rivet, screw, glue	554.57	㎡
	galvanized groole		226	m
Others	external wall cladding	includes the accessories	296.05	㎡

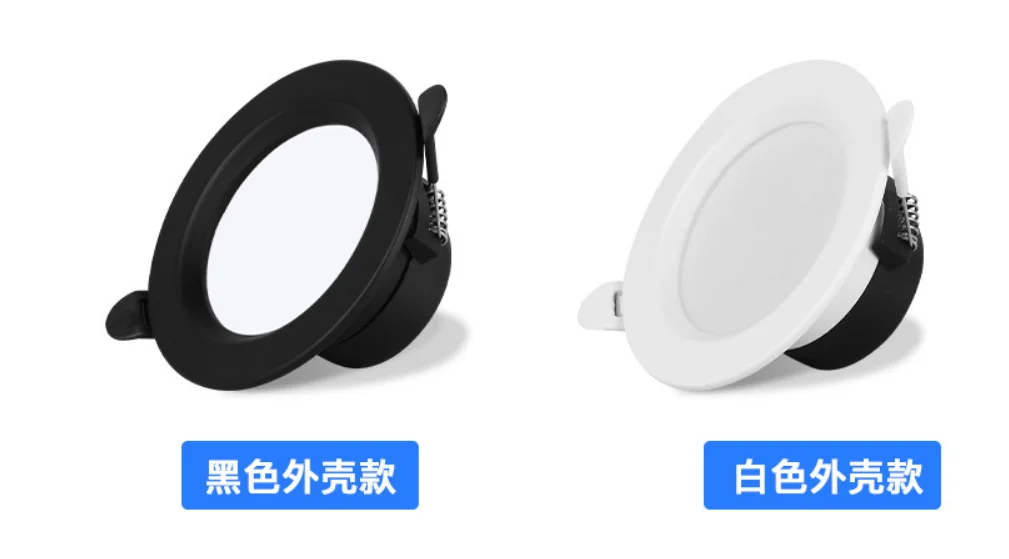

	down light	18W, warm color	8	pc
	sockets		20	pc
	switch back and forth		3	pc

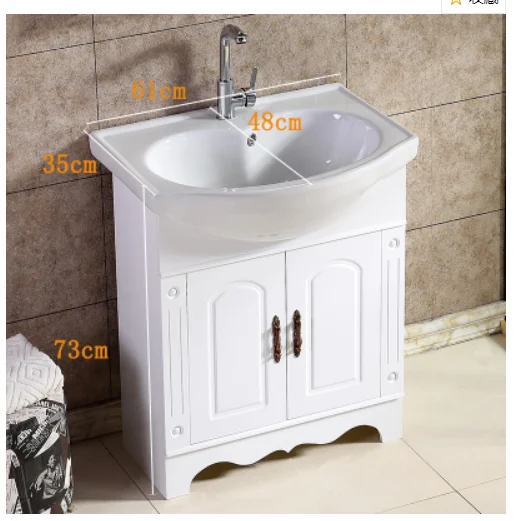

	washing basin with cabinet		2	set

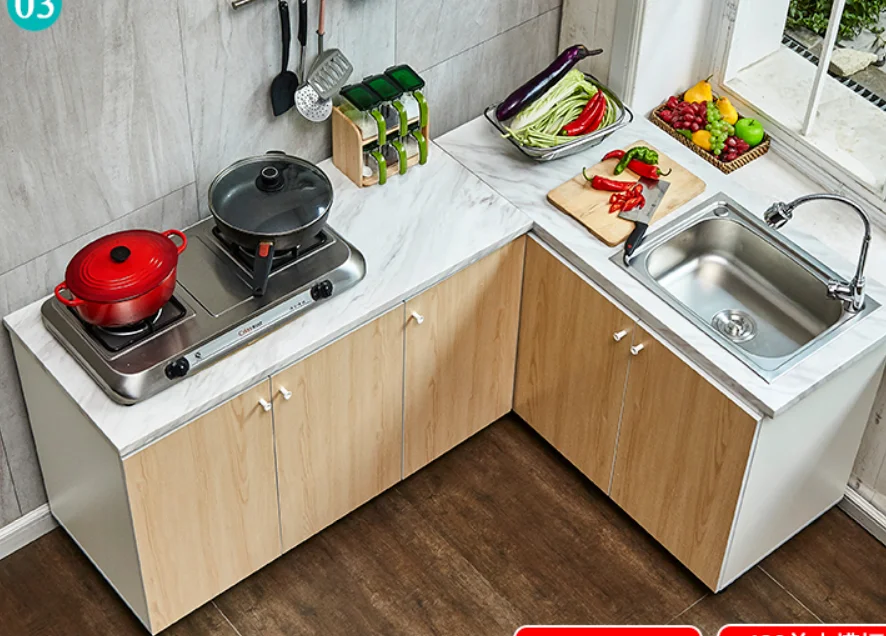

	kitchen cabinet	1200+1200	1	set
	water gutter		24	m
	water pipe		24	m
	pvc skirting for inside room		115	m

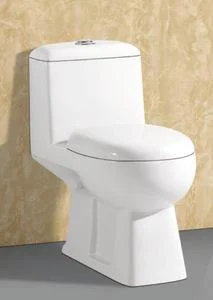

	sitting toilet		1	set
	shower room		1	set
	plumbing pipes	for toilet & kitchen plumbing (inlet & outlet)	1	set
