Concrete emergency resident hospital building made in steel structure material

ID:2004101542

Category: Construction & Decoration Building Decoration Products

FOB Price:US$ 2300.000 / Set(s)

MOQ:4.00 Set(s)

Product Keywords:

hospital building

Payment Method:

L/CT/TD/POthers

Product Category

Construction & Decoration > Building Decoration Products

Trademark

Product Package

Specification

Place of Origin

Port

shenzhen

Quick Details

Warranty:
NONE

After-sale Service:
NONE

Project Solution Capability:
graphic design, 3D model design, total solution for projects

Place of Origin:
Guangdong, China

Brand Name:
BX

Model Number:
BX-F

Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet

Product Type:
Container Houses

Frame:
Light steel structure

Connection:
Bolt connection

Wall panel:
50mm 0.426 EPS sandwich panel( PU, Glass wool, MGO, etc.)

Roof panel:
75mm 0.426 EPS sandwich panel( PU, Glass wool, MGO, etc.)

Color:
Blue, White, Red, Green, Yellow, etc.

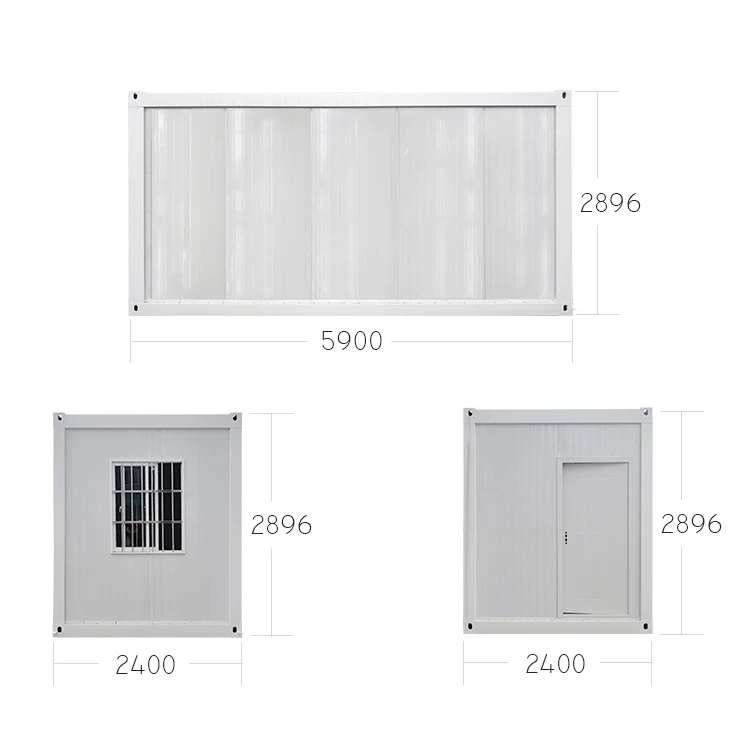

Size:
20ft(5.9mx2.438mx2.74m), 40ft(11.9mx2.438mx2.74m) or customization

Supply Ability

Supply Ability:
50 Set/Sets per Month

Packaging & Delivery

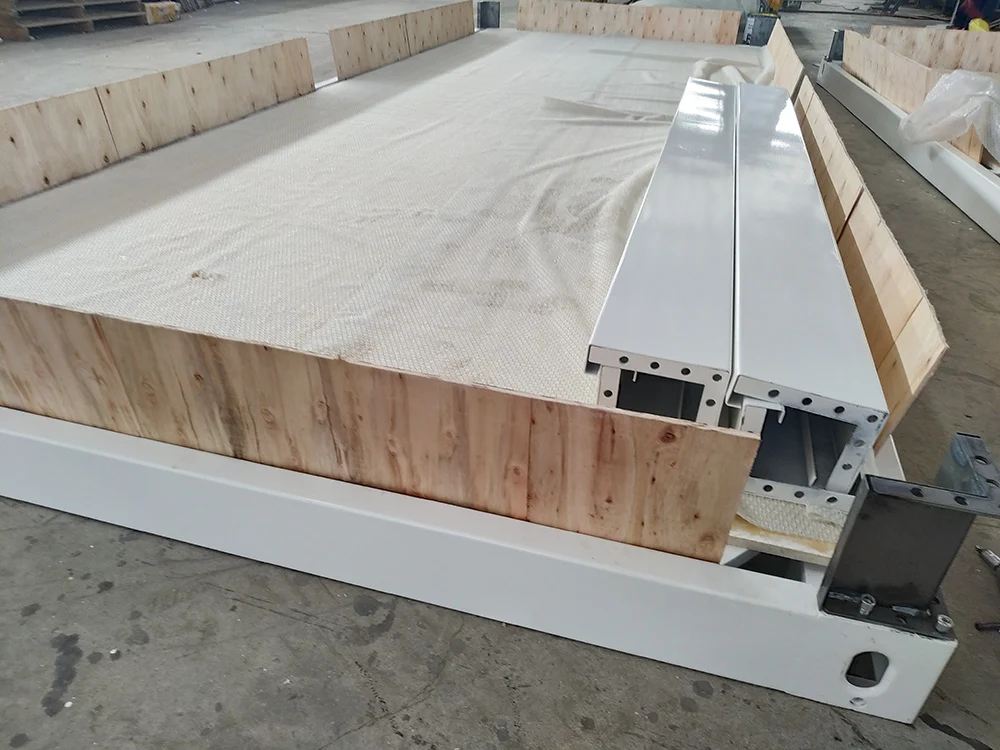

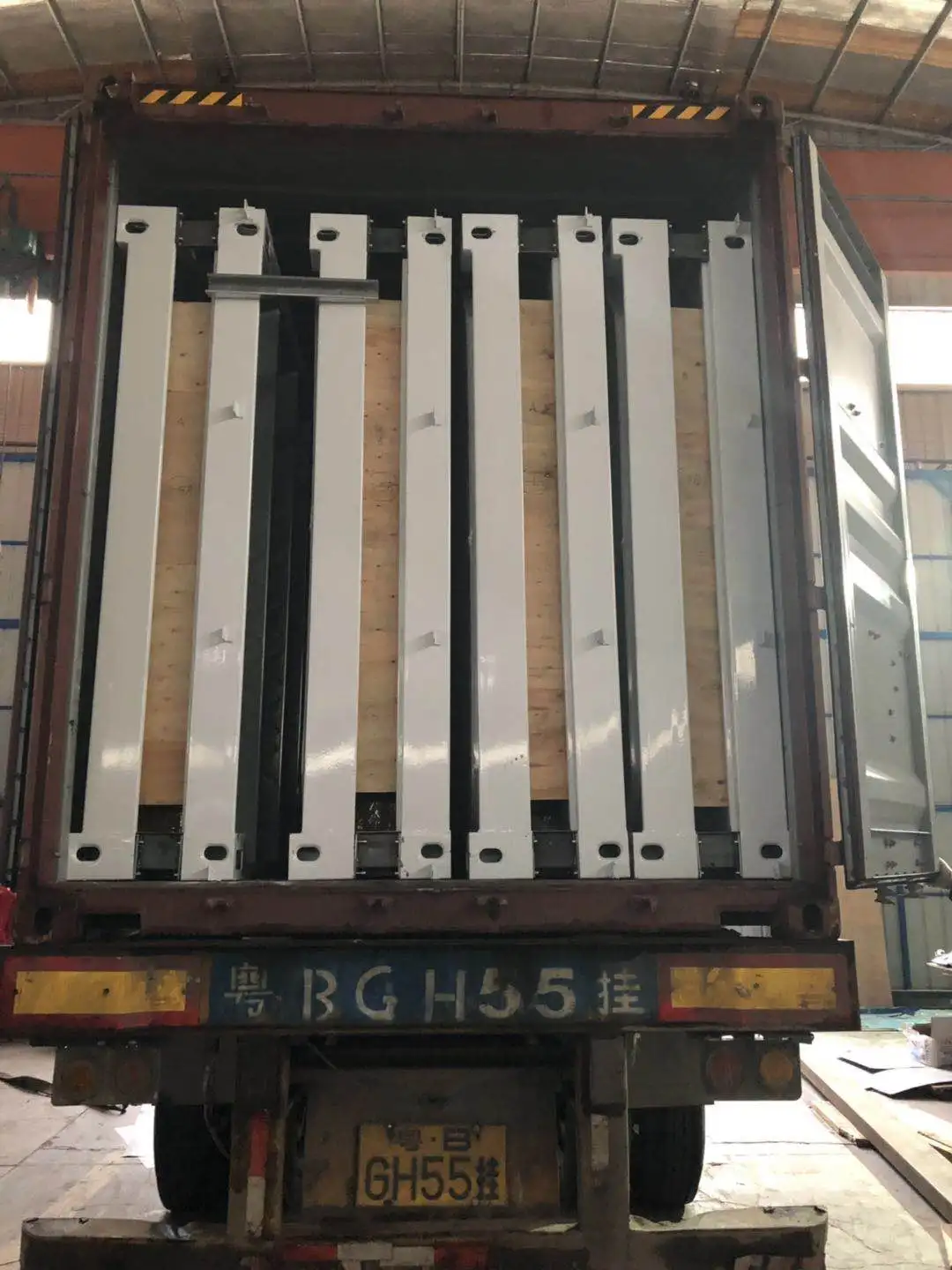

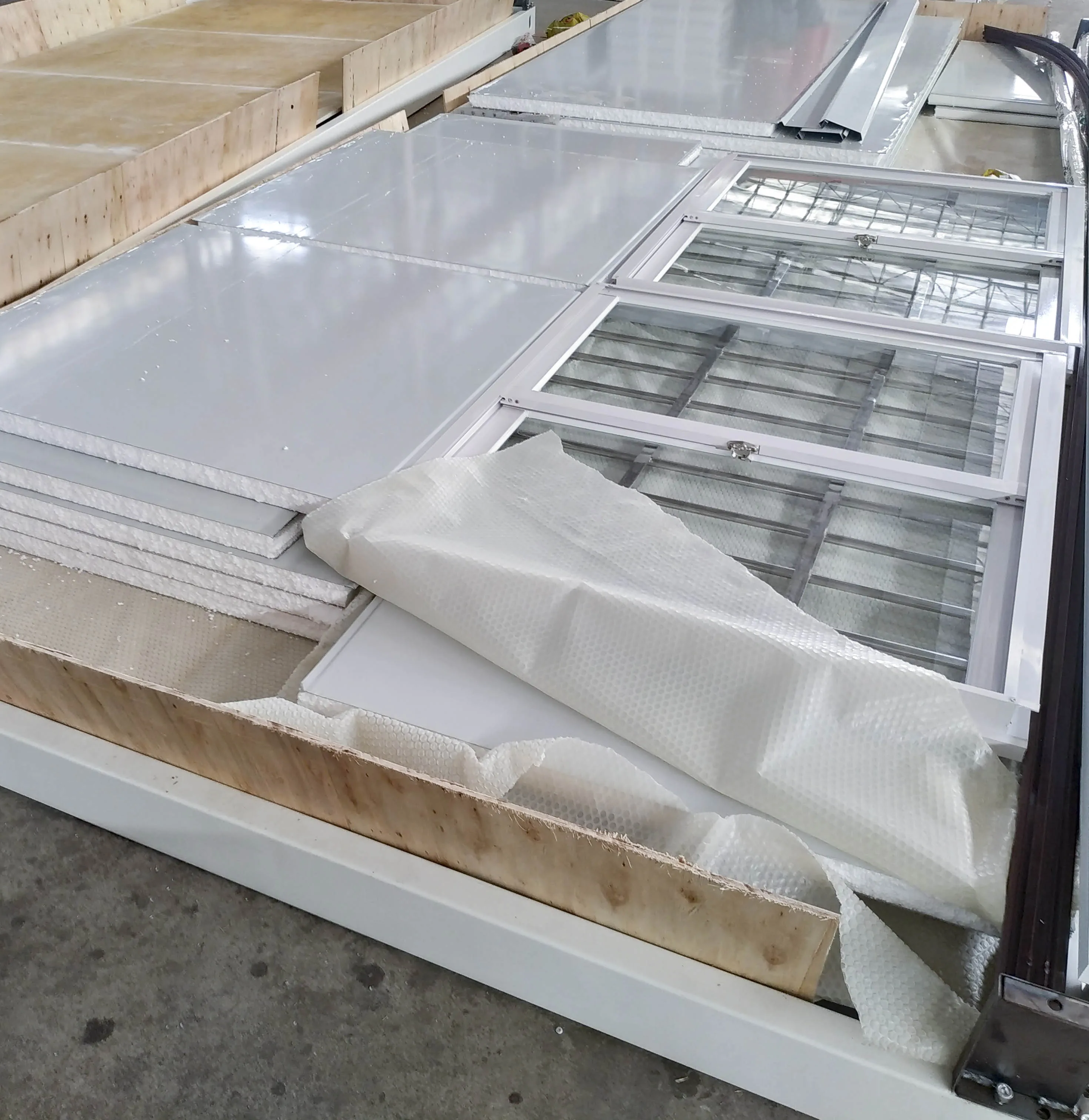

Packaging Details

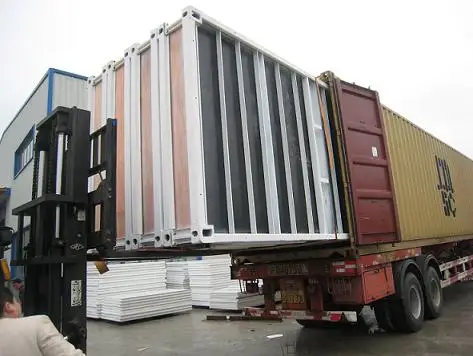

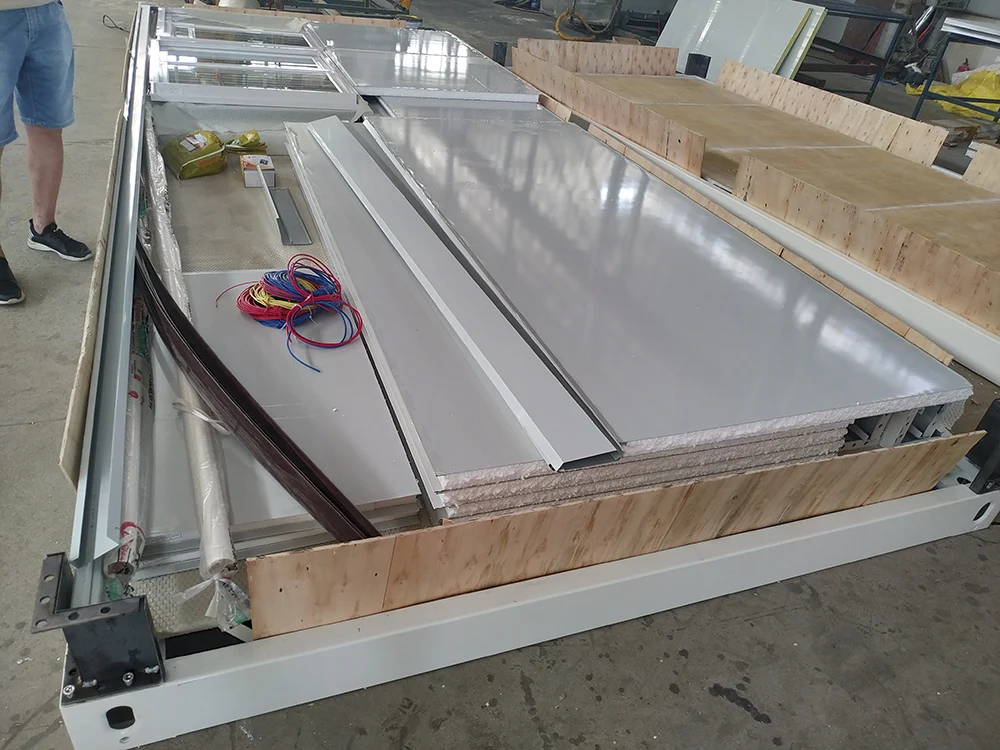

If the container home is standard size, it will be used in sandwich package.
If the container home is customization, it depends on the size.

Port
Guangzhou/Foshan/Shenzhen

Product Description

Equipped with advanced air circulation system,the container composite building designed by drainage system meets the basic conditions of modern medical and epidemic prevention to a great extent.

Item	Component	Spec	Qty	Unit
Roof	Roof beam 1	5535mm, 2.5mm,galvanized≥80g/m2	2	pc
	Roof beam 2	2090mm, 2.5mm,galvanized≥80g/m2	2	pc
	Roof purlin	C shape steel,80x40x40x1.5;Q235B	7	pc

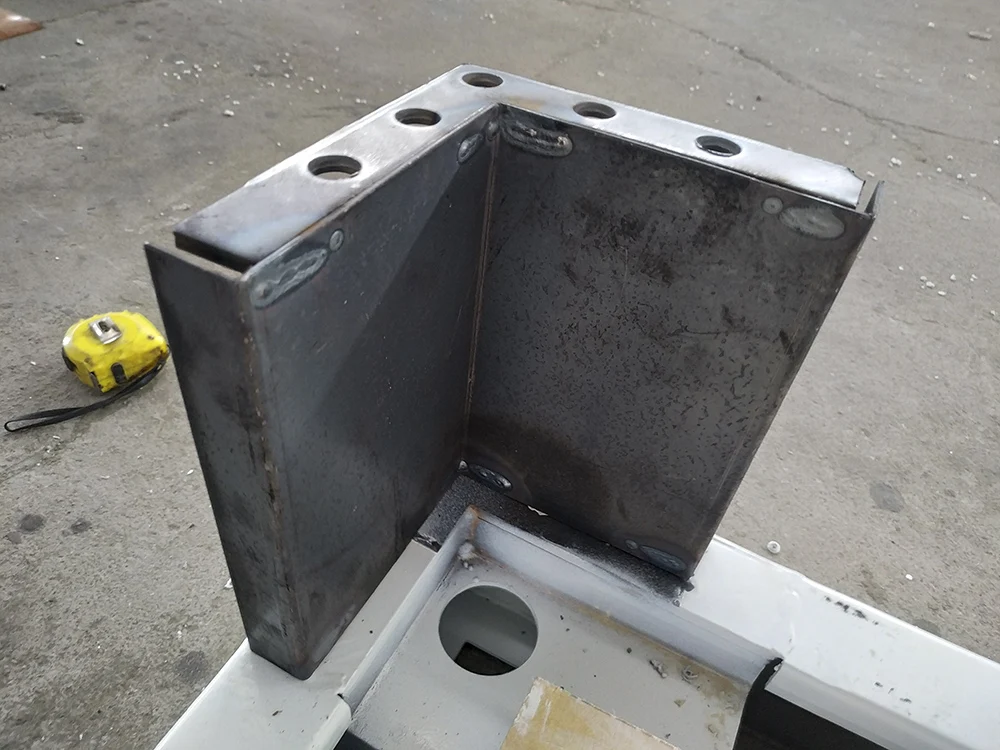

	Roof corner fitting	210×150×200mm,galvanized≥80g/m2	4	pc
	Joints part to cornerfitting	3mm,galvanized	4	pc
	Electric box (if have)	39495105,3mm	1	pc
	Roof external sheet	0.5	1	pc
	Square tube for pulrin rod	20401.0	1	pc
	Roof insulation	100mm Glass wool (14kg), single faced aluminum foil+ Moisture sealer	14	sqm
	Roof internal sheet	210×150×30mm,2535mm,3mm,galvanized≥ 80g/m2	5	pc
Column	Columns	210×150×30mm,2535mm,3mm,galvanized≥80g/m2	4	pc
	Joints for columns tocorner fitting	L shape,10mm,204x144x24	8	pc
	Columns ribbedstiffener	L shape,2mm,180x120x40	8	pc
	Water pipe	d=50mm,UPVC,L=2610mm	4	pc
	Inside hexagonal bolt	M12*40 8.8#, for joints the columns	48	pc
Accessories	Flooring beam 1	5535mm,2.5mm,galvanized≥80g/m2	2	pc
	Flooring beam 2	2090mm,2.5mm,galvanized≥80g/m2	2	pc
	Flooring purlin	C shape steel 120x50(30)x12x2.0;Q235B	9	pc
	Flooring corner fitting	210×150×160mm,galvanized≥80g/m2	4	pc
	Flooring purlin rod	20201.0	1	pc
	Panel fixed gutter 1	L=5530,t=1mm;galvanized	1	pc
	Panel fixed gutter 2	L=2090,t=1mm;galvanized	2	pc
	Cement board for flooring	18mm cement board	5	pc
	Wall & roof corners sealing materials	for rooms inside corner sealing,2600mm,0.5mm color steel sheet, etc	4	pc
Cover	Wall	50mm rock wool sandwich panel with 0.426mm colorsteel sheet	14	pc
	Window	1130*1100mm,6MM glass	3	set
	Door	steel door 920*2040	1	set
ETC	Industrial sockets	32A,with sockets	1	set
ETC	Wiring		1	set
