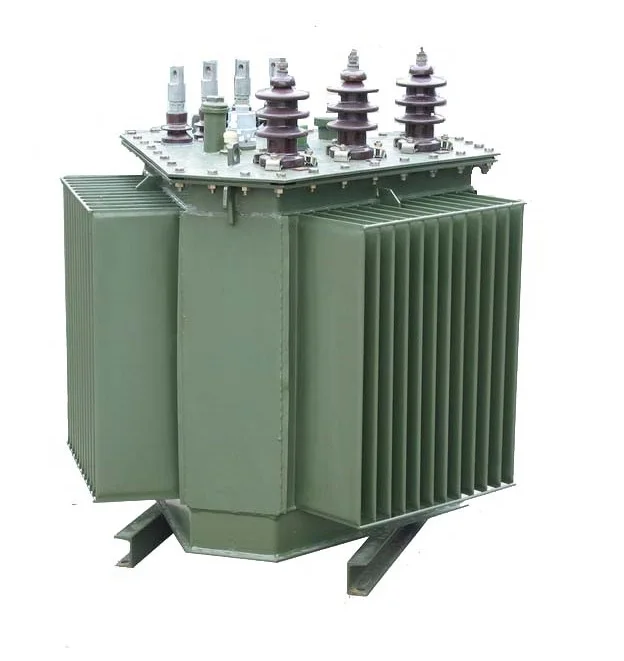

Rated capacity 30kVA~1 600 kVA Three-Phase Three-Dimensional Roll-Core Distribution Transformer
Three-dimensional roll-core distribution transformer is a kind of energy-saving power transformer. It creatively upgrades the laminated magnetic structure and three-phase layout of traditional power transformers, which optimizes the performance of transformers. The three-phase magnetic circuit is completely symmetric, with significant power-saving effect, greatly decreased noise, high heat dissipation performance, strong overload capacity, more compact structure and smaller volume.
Working Conditions:
No. | Conditions | Units | Parameter Values | |
1 | Pollution Grade | IV | ||
2 | Ambient Temperature | Maximum Daily Temperature | ℃ | 40 |
Minimum Daily Temperature | -45 | |||
Maximum Daily Temperature Difference | K | 25 | ||
Average Temperature of the Hottest Month | ℃ | 30 | ||
Maximum Annual Average Temperature | 20 | |||
3 | Humidity | Average Daily Relative Humidity | % | ≤95 |
Average Monthly Relative Humidity | ≤90 | |||
4 | Altitude | m | 1000 | |
5 | Solar Radiation Intensity | W/cm2 | 0.1 | |
6 | Maximum Icing Thickness | mm | 10 | |
7 | Maximum average wind speed: keeping in good conditions for 10min at 10m from the ground level | m/s | 35 | |
8 | Earthquake Resistance | Horizontal Ground Acceleration | m/s2 | 2 |
Safety Coefficient of 3 Since Resonance Cycles | ≥1.67 | |||
9 | Installation Site | Outdoor | ||
Note 1: Working conditions in high altitude regions (above 1000m) must be adjusted in conformity with Q/GDW 13001-2014 (High Altitude External Insulation Configuration Technical Specification). | ||||
Product Parameters:
Table 1 30kVA ~ 1600 kVA, Three-Phase Duplex Windings, No-Load Voltage Regulation, Distribution Transformer
Rated Capacity (KV.A) | Voltage Combination & Tapping Range | Connection Symbol | No-Load Loss (kW) | On-Load Loss (kW) | No-Load Current (%) | Short-Circuit Impedance (%) | Acoustic Power Level dB(A) | ||
High Voltage (kV) | High Voltage Tapping Range (%) | Low Voltage (kV) | |||||||
30 | 6 6.3 10 10.5 11 | ±5 | 0.4 | Dyn11 Yzn11 Yyn0 | 80 | 630/660 | 0.30 | 4.0 | 48 |
50 | 100 | 910/870 | 0.24 | ||||||
63 | 110 | 1 090/1 040 | 0.23 | ||||||
80 | 130 | 1 310/1 250 | 0.22 | 49 | |||||
100 | 150 | 1 580/1 500 | 0.21 | ||||||
125 | 170 | 1 890/1 800 | 0.20 | 50 | |||||
160 | 200 | 2 310/2 200 | 0.19 | ||||||
200 | 240 | 2 730/2 600 | 0.18 | 52 | |||||
250 | 290 | 3 200/3 050 | 0.17 | ||||||
315 | 340 | 3 830/3 650 | 0.16 | 54 | |||||
400 | 410 | 4 520/4 300 | 0.16 | ||||||
500 | 480 | 5 410/5 150 | 0.16 | 56 | |||||
630 | Dyn11 Yyn0 | 570 | 6 200 | 0.15 | 4.5 | ||||
800 | 700 | 7 500 | 0.15 | 58 | |||||
1 000 | 830 | 10 300 | 0.14 | ||||||
1 250 | 970 | 12 000 | 0.13 | 60 | |||||
1 600 | 1 170 | 14 500 | 0.12 | ||||||
Note 1: If the rated capacity is 500kV.A or below, the data of “On-Load Loss” on the left of slash (/) is suitable for Dyn11 or Yzn11, on the right for Yyn0. Note 2: Transformers with ±2×2.5% of high voltage tapping range can also be supplied upon demands. Note 3: Transformers with 0.69kV of low voltage can also be supplied upon demands. Note 4: Other loss values can also be used upon demands. | |||||||||

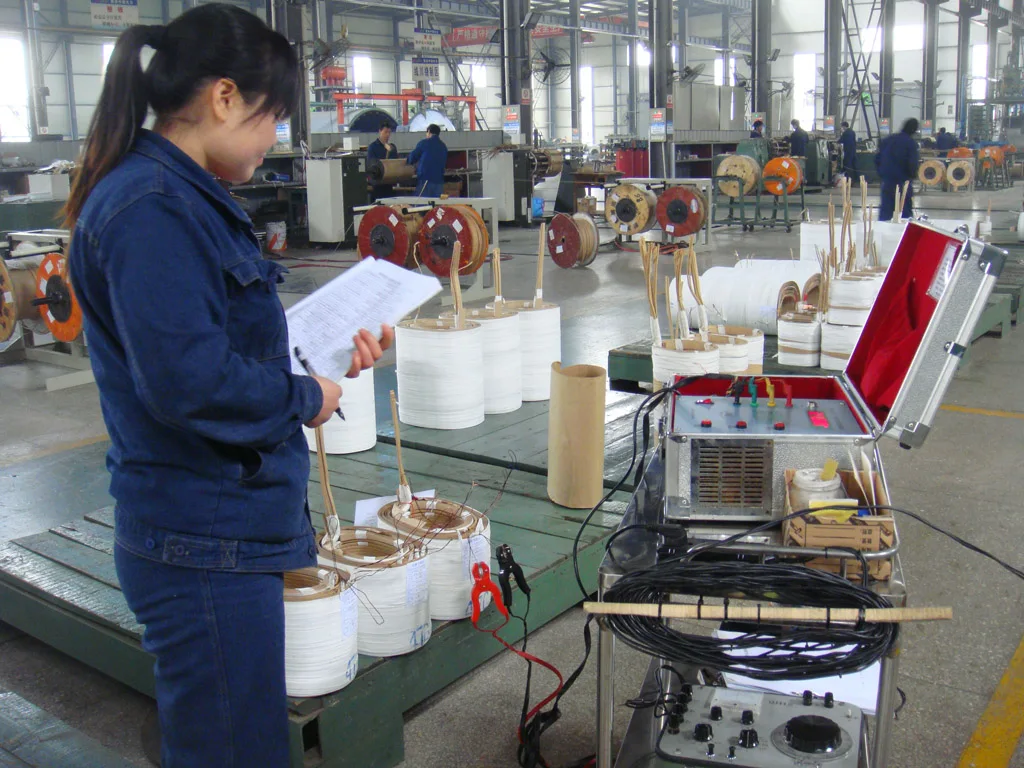

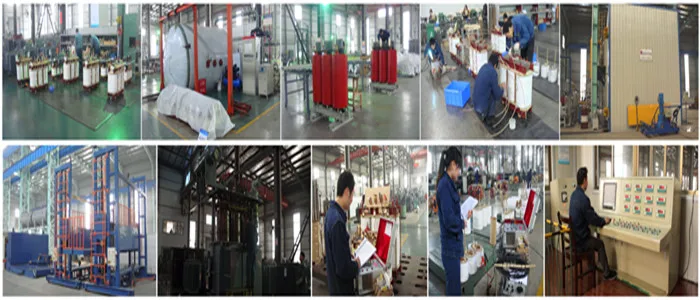

The production process
