BLUESUN grid tie inverter 10kw 20kw 30kw 40kw 50kw 10kva 20kva 30kva 40kva 50kva solar inverter

ID:2004141891

Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling

FOB Price:US$ 990.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

BLUESUN, grid, tie, inverter, 10kw ,20kw ,30kw, 40kw ,50kw, 10kva, 20kva ,30kva ,40kva, 50kva ,solar ,inverter

Payment Method:

L/CT/TD/PWesstern Union

Product Category

Metallurgy,Chemicals & Energy > Solar Energy,Environment & Recycling

Trademark

Product Package

Specification

Place of Origin

Port

Shanghai/Shengzhen

Overview

Quick Details

Place of Origin:
Guangdong, China

Brand Name:
BLUESUN

Model Number:
BSM10-60K-B

Input Voltage:
200-1000V DC

Output Voltage:
230/400V AC or 277/480V AC

Output Current:
16-64.5A

Output Frequency:
50Hz/60Hz

Output Type:
TRIPLE

Size:
600*860*294mm

Type:
DC/AC Inverters

Inverter Efficiency:
98.4%

Certificate:
TUV

Warranty:
5 Years

Weight:
68Kg

Topology:
Transformerless

Noise Emission:
<50dB(A)

Protection Level:
IP65

Cooling Concepet:
Smart Cooling

Self-Consumption:
<1W

Operating Temperature:
25℃~+60℃

Product name:
Solar Inverter

Application:
On-grid Solar System

Communications:
RS485/WiFi/GPRS(Optional)

Protections:
Short Circui

Product Certification

CE Certified.
Valid from 2019-05-27 until 2049-12-31

TUV Certified.

Supply Ability

Supply Ability:
10000 Set/Sets per Week

Packaging & Delivery

Packaging Details
in carton and pallet,standard international package

Port
Shanghai/Shengzhen

Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated

Customs Data

Product Activity (past 1 year)
Data supplied by Alibaba.com

$58,000+10

Main Markets

VN69.9%
BG20.8%
US3.7%
AM1.3%
CH1.1%

Video Description

00:00

02:00

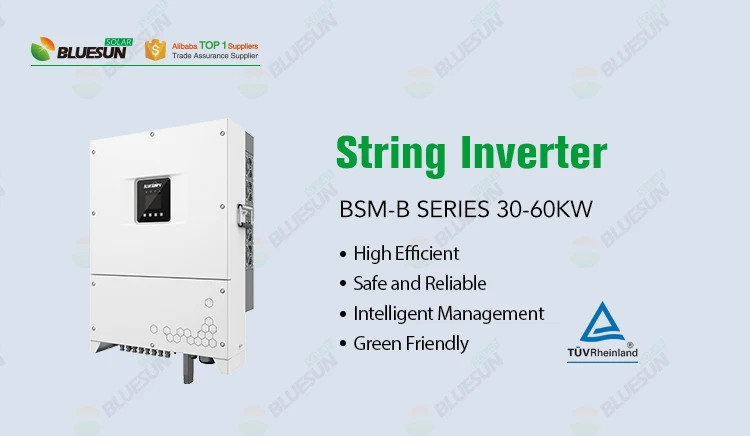

Smart On Grid Inverter

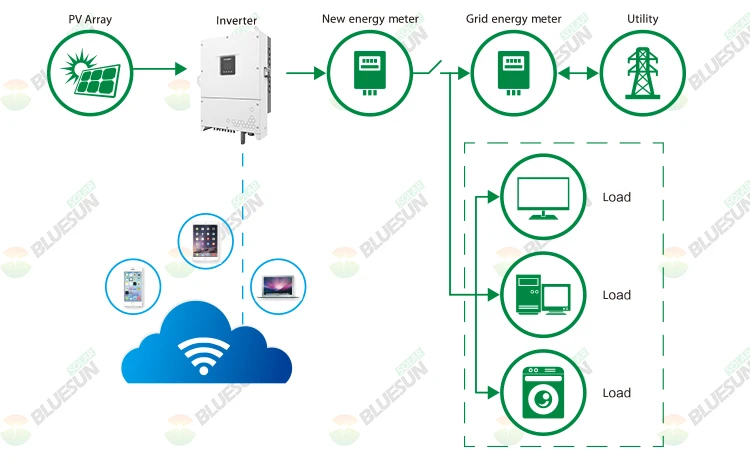

Commercial Rooftops Solution

For commercial centers, large shopping malls, industrial campuses, and other buildings and places with concentrated electricity usage, since the price of commercial use electricity is usually high, PV power stations can be valuable. Recommended outdoor products: series BSM20K-B2, BSM30K-B2, BSM50K-B

Technical Specifications

Items	BSM30K-B	BSM40K-B	BSM50K-B	BSM60K-B
DC Input
Max. PV Input Voltage	1100Vdc
Rated PV voltage	600Vdc	600Vdc	600Vdc	600Vdc
Max. PV input current	60A(6x10A)	90A(9x10 A)	120A(12x10A)	120A(12x10A)
No. of MPPTs	2	3	4	4
No.of PV strings per MPPT	3/3	3/3/3	3/3/3/3	3/3/3/3
MPPT voltage range	300Vdc~1000Vdc
Starting voltage	250Vdc
AC Output
Rated AC output power	30kW	40kW	50kW	60kW
Max. output power	30kVA	44kVA	55kVA	66kVA
Rated AC output voltage	380/400/415Vac
Rated output current	45.6A	60.8A	75.9A	91.2A
Max. output current	47.6 A	63.5 A	79.4 A	95.3 A
Rated grid frequency	50Hz/60Hz
Grid frequency range	45~55Hz/55~65Hz
Power factor	>0.99 (full load)
Adjustable power factor	0.8 (leading)-0.8 (lagging)
THDi	<3% (rated power)
Efficiency
Max. efficiency	98.50%	98.80%	98.80%	98.80%
European efficiency	98.30%	98.30%	98.40%	98.45%
General
Dimensions (W×H×D)	600×860×294mm
Weight	68kg
IP grade	IP65
Noise level	<65dB
Self-consumption at night	<1W
Cooling type	Intelligent forced air cooling
Altitude	4000m (>3000m derating)
Operating temperature	-25oC~+60oC(>45oC derating)
Relative humidity	0~95% (Non-condensation)
Display	LCD+LED
Communication	RS485/WiFi/GPRS(Optional)
AC terminal	OT Terminal
Installation method	Wall-mounted
Standard	EN62109-1, EN62109-2, NB/T32004, AS4777.2,EN 61000-6-2, EN 61000-6-4, DIN VDE0126, UTE C15-712-1, VFR2014, ERDF-NOI-RES_13E, IEC61727, IEC62116

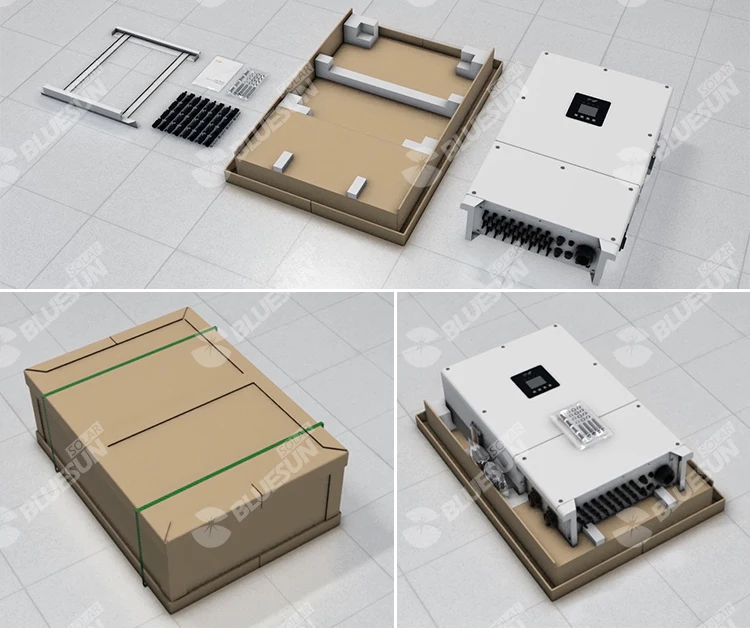

Packing & Delivery

By sea	Delivery from Shanghai or Ningbo seaport
By air	Departure from Shanghai Pudong Airport
By express	By TNT/DHL
