Business Type: Manufacturer
Main Products:Biscuit machineFood machinery
ID:2004141934
Category: Machinery & Fabrication Services
MOQ:1.00 Piece(s)
Biscuit machine
T/T
Condition:
Applicable Industries:
After Warranty Service:
Local Service Location:
Showroom Location:
Brand Name:
Place of Origin:
Voltage:
Power(W):
Dimension(L*W*H):
Weight:
Certification:
Warranty:
After-sales Service Provided:
Application fields:
Machinery Function:
Raw material:
Output product name:
Key Selling Points:
Materials::
Automatic::
Quality certificate::
Driven Type::
Packaging Material::
Usage::
Packaging Type::
Automatic Grade::
Cover::
Supply Ability:
12 Set/Sets per Year
Packaging Details
new products small biscuit production line packing by standard export packing wooden case.
Port
SHUNDE PORT, GUANGDONG, CHINA
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 90 | To be negotiated |
Our company already specializes in industry for more than 25 years. With rich expericence and expertise, we can make the suitable solution for you, according to your requirements and your real situations.

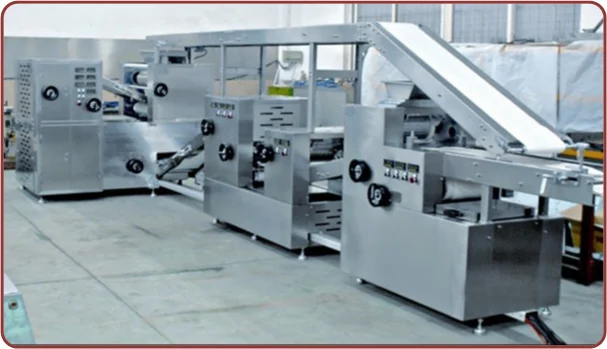

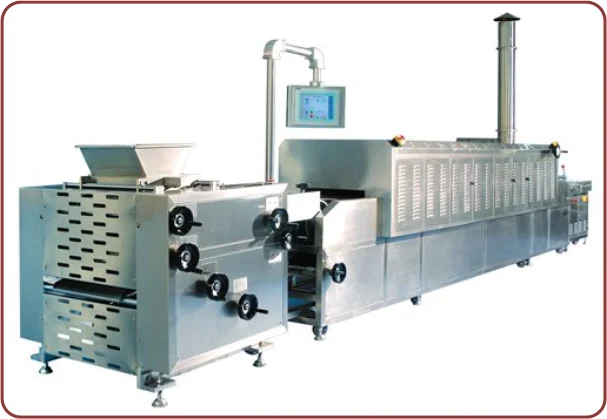

small biscuit Line:
HJ 400 Type soft biscuit production line is the small biscuit machine to meet low capacity require customer.
It can be customize to make the biscuit from 50kg/h to 200kg/h. We can also provide higher capacity production line,according to your requirements and factory size. The max. capacity we can provide is 2000kg/h, the oven length we made so far is 80m.
small biscuit line TECHNICAL DETAIL:
1. Rotary Moulder (1SET)
| Name | dimension | power | speed | dimension of feed roll |
| parameters | 2000x1200x1400(mm) | 2.25KW | 0-10m/min | Φ240x340(mm) |
2 .Oven driver and belt tension(1set)
| name | dimension | power | speed | roller |
| parameters | 2000x1200x1400(MM) | 3.75KW | 0-10m/min | Φ195x440(mm) |
3. Oven (1set)
| name | dimension | power | power consumption | speed | heating way | tempurature |
| parameters | (3500)x1600x1450(mm) | 25KW | 15KW | 0-10m/min | electric | 200-280℃ |
4 .Cooling(1set)
| name | dimension | power | speed |
| parameter | (1000)x700x980(mm) | 1.1kw | 0-10m/min |
