Electromagnetic flowmeter water flowmeter magnetic flow meter Sewage flowmeterflowmeterflowmetersflow transmitter
L/CT/TD/P
| Product | Electromagnetic flowmeter |
| Model | SUP-LDG |
| Diameter Nominal | DN15~DN1000 |
Nominal Pressure | DN15 - DN50, PN<4.0MPa |
| DN65 - DN150, PN<1.6MPa | |
| DN200 – DN600, PN<1.0MPa | |
| DN700 – DN2000, PN<0.6MPa | |
| Accuracy | ±0.5%，±2mm/s(flowrate<1m/s) |
| Repetitiveness | 0.2% |
| Liner material | PFA, F46, Neoprene, PTFE, FEP |
| Electrode material | Stainless steel SUS316, Hastelloy C, Titanium, |
| Tantalum, Platinum-iridium | |
| Medium Temperature | Integral type: -10℃~80℃ |
| Split type: -25℃~180℃ | |
| Ambient Temperature | -10℃~55℃ |
| Power supply | 100-240VAC，50/60Hz / 22VDC—26VDC |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |
| Structure type | Tegral type, split type |
| Ingress protection | IP65, IP68(optional) |
| Product Standard | JB/T 9248-2015 |
Introduction

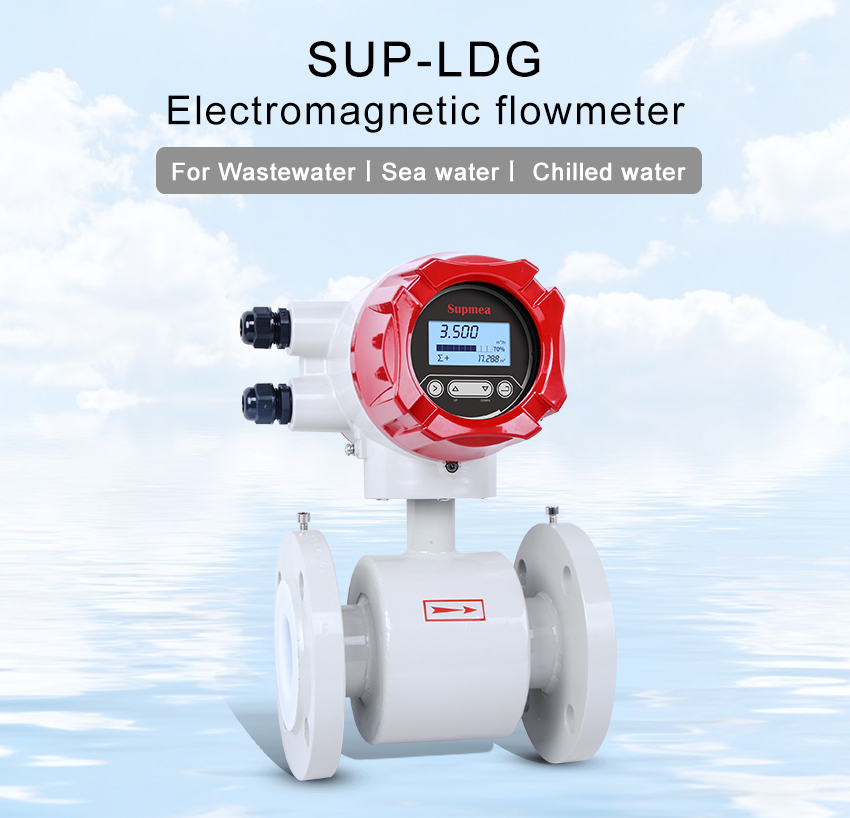

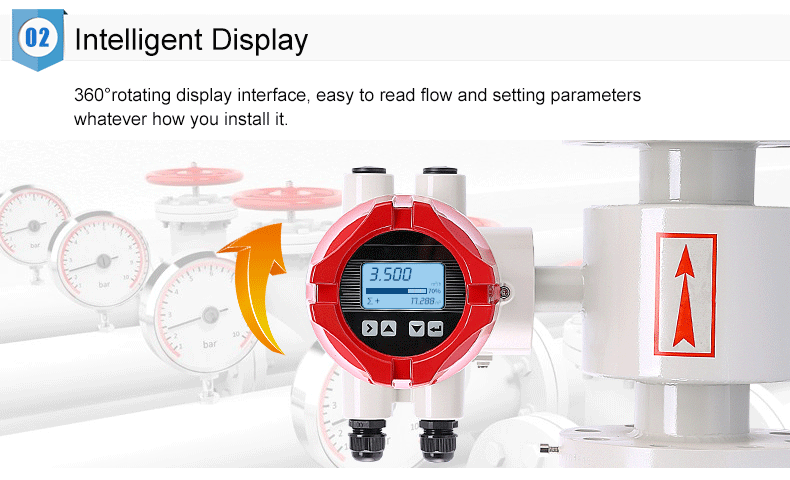

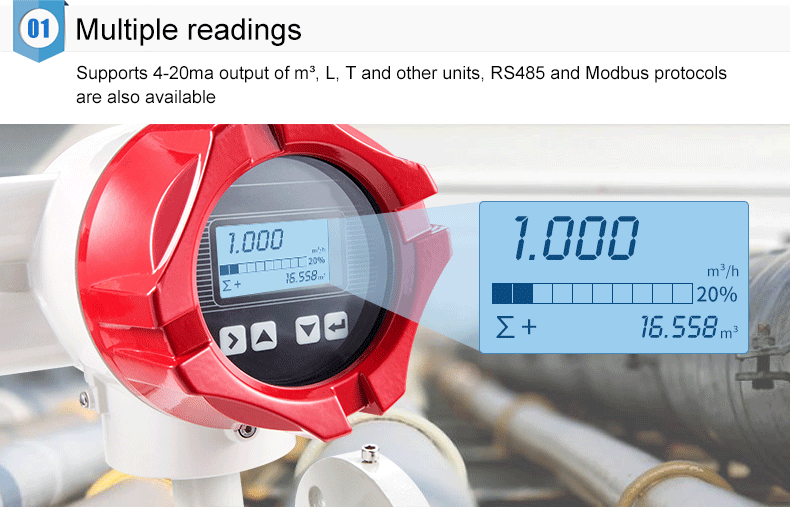

SUP-LDG electromagnetic flowmeter is applicable for all conductive liquids. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer. Can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.
Contact us for more offer : info@supmea.com / 0086-15867127446

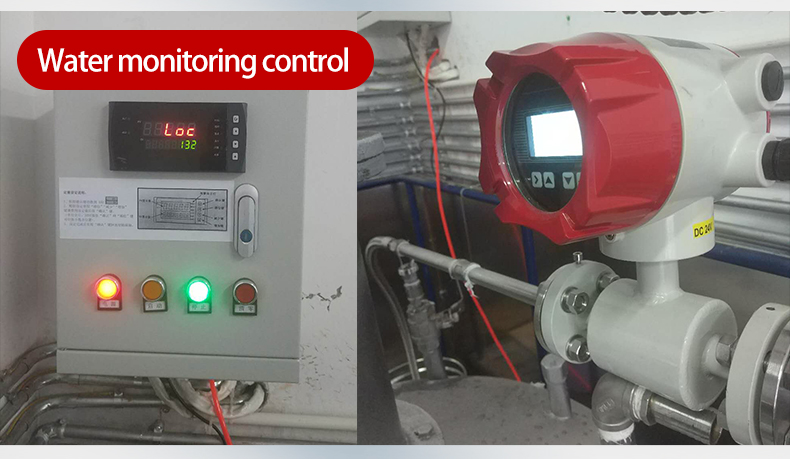

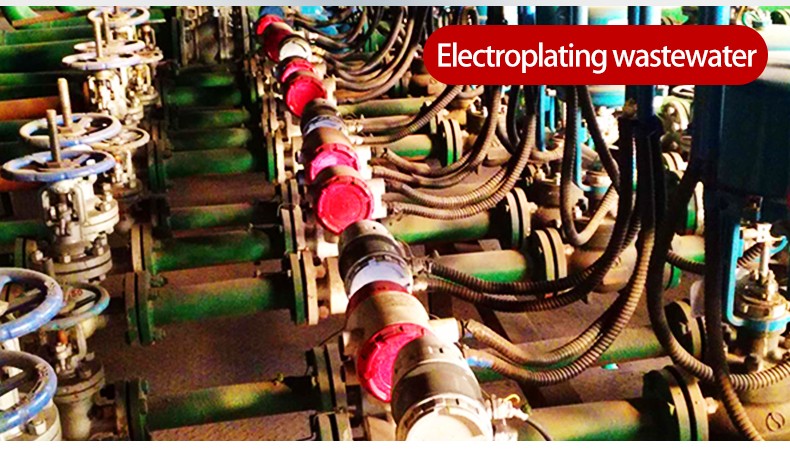

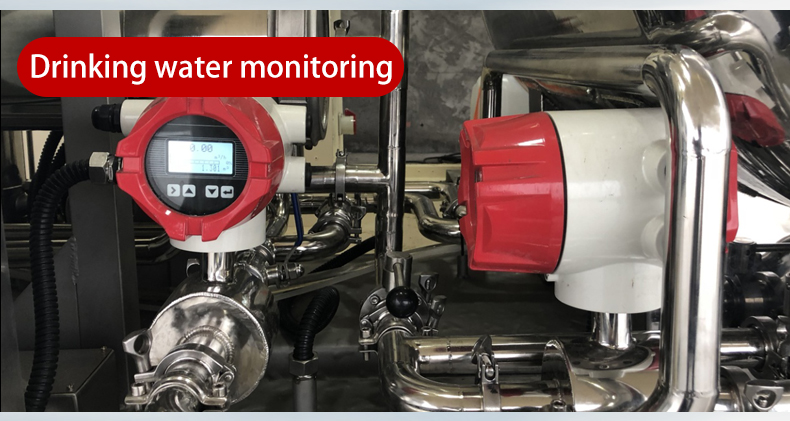

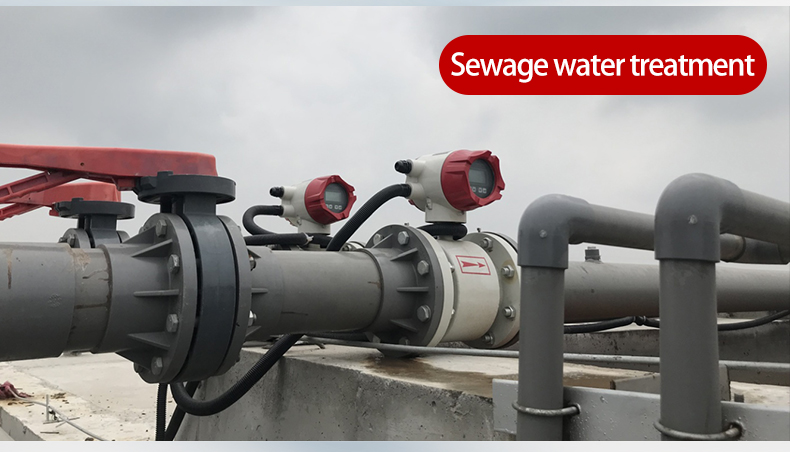

Application
