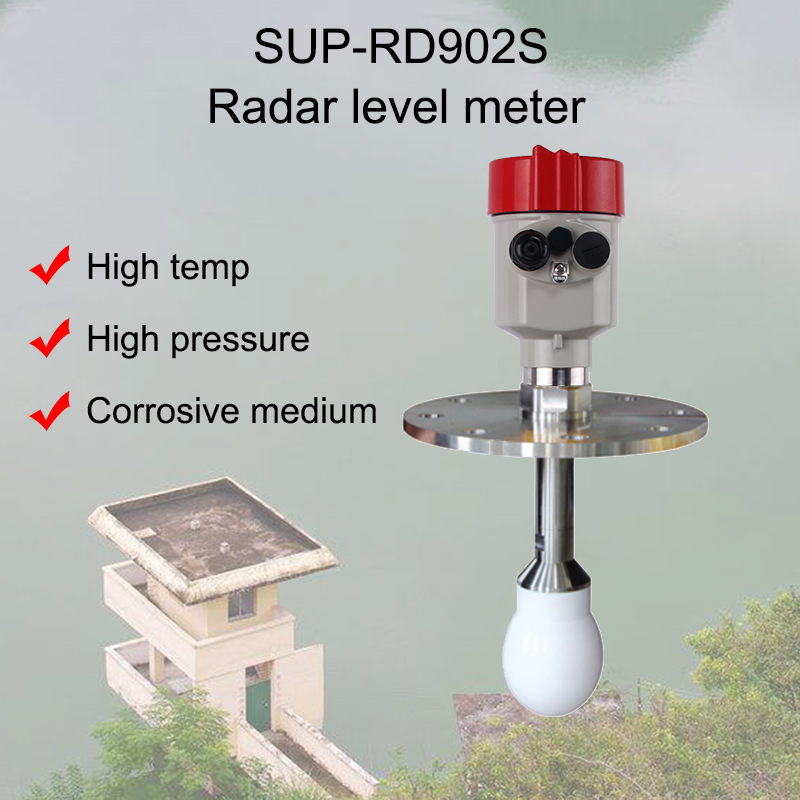

Non-contact radar level meter radar level meter
L/CT/TD/P
| Product | Radar level meter |
| Model | SUP-RD902S |
| Measure range | 0-30 meters |
| Application | High temperature, high pressure and corrosive medium |
| Process Connection | Thread, Flange |
| Medium Temperature | -40℃~130℃(Standard type), -40℃~250℃(High temp type) |
| Process Pressure | -0.1~4.0MPa |
| Accuracy | ±3mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA |
| RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire |
Introduction
SUP-RD902S Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Installation guide
 |  |  |
Be installed in the diameter of the 1/4 or 1/6. Note: The minimum distance from the tank wall should be 200mm. Note: ① datum ②The container center or axis of symmetry | The top conical tank level, can be installed at the top of the tank is intermediate, can guarantee the measurement to the conical bottom | A feed antenna to the vertical alignment surface. If the surface is rough, stack angle must be used to adjust the angle of cardan flange of the antenna to the alignment surface. (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.) |
