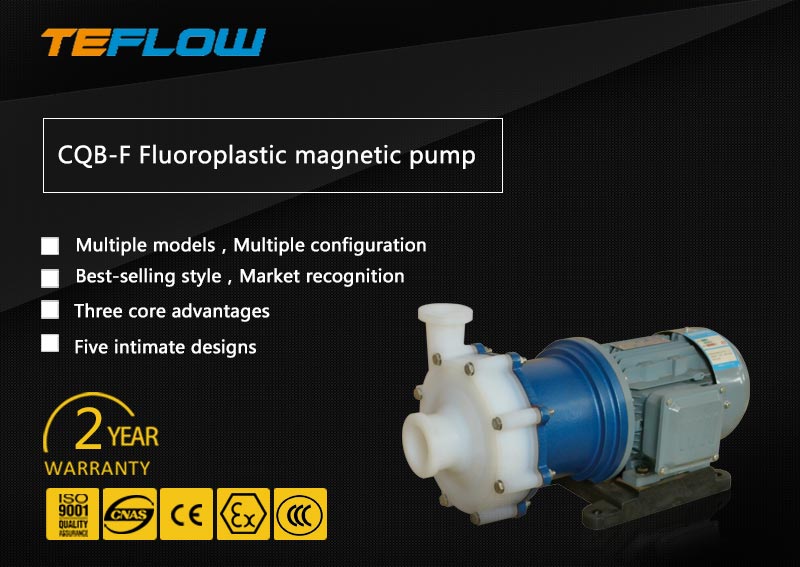

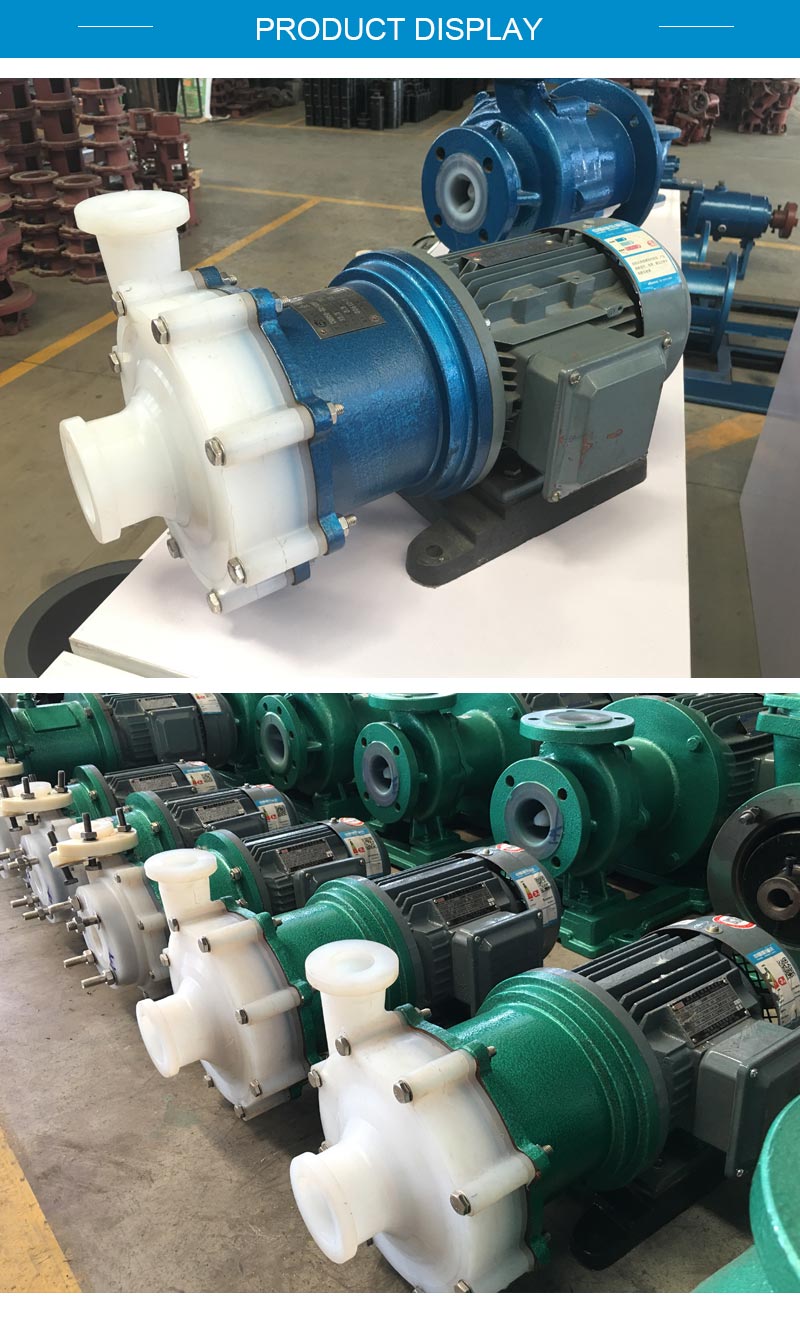

High temperature resistant plastic magnetic pump special pump for transporting acid and alkali liquid

Flow range:12.5m3/H-100m3/H(208L/min-1600L/min)

Head range:32M-36M

Motor power:4KW-18.5KW

Tenperature range:-25℃-150℃

Voltage:220V-380V-440V

Brand Name:TEFLOW PUMP

-Introduction:  The sealing feature of CQB-F fluoroplastic magnetic drive pump cancels the shaft seal and uses magnetic coupling to drive indirectly, which completely eliminates the trouble of dripping and leakage and never pollutes the use site. The pump has the advantages of compact structure, beautiful appearance, small size, low noise, reliable operation, maintenance and convenience.

-Product uses:  Chlor-alkali, pickling, petroleum, electric power, agricultural irrigation, medicine, electroplating, paper, food and other industries.

-Medium:  Strong acid, strong alkali, ethanol, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, tetraoxyethane, sea water, salt water, etc.

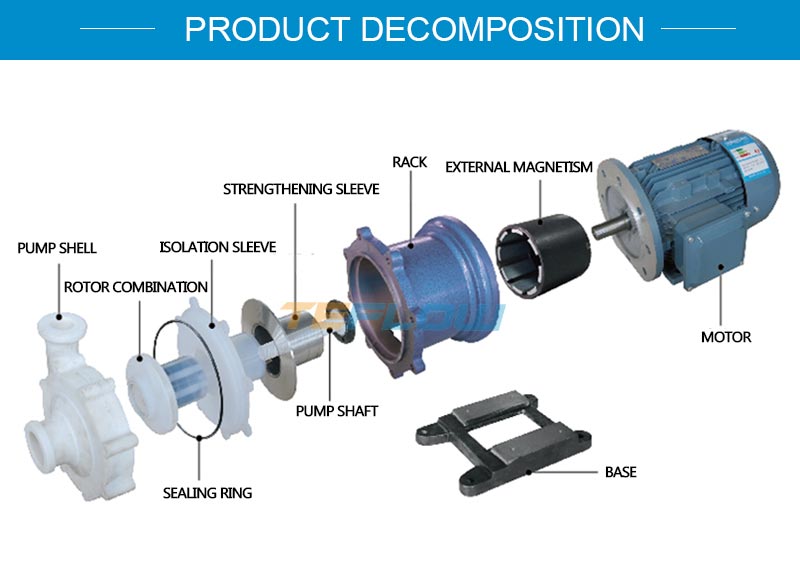

Structure diagram

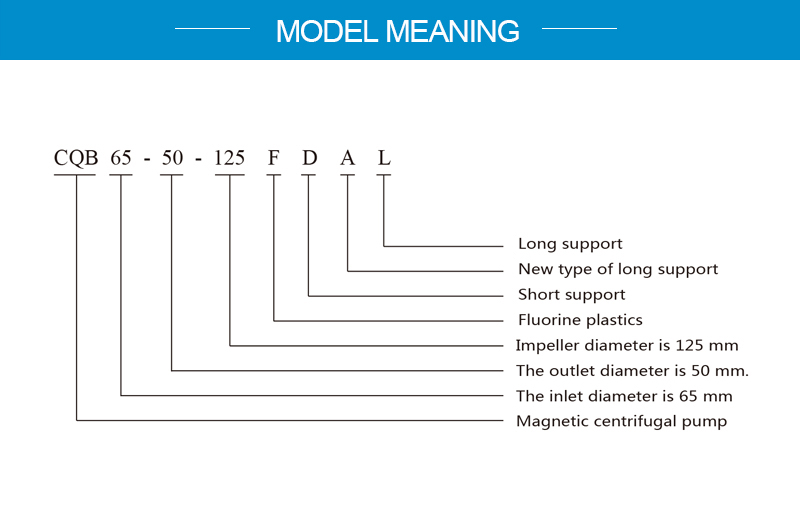

Model meaning

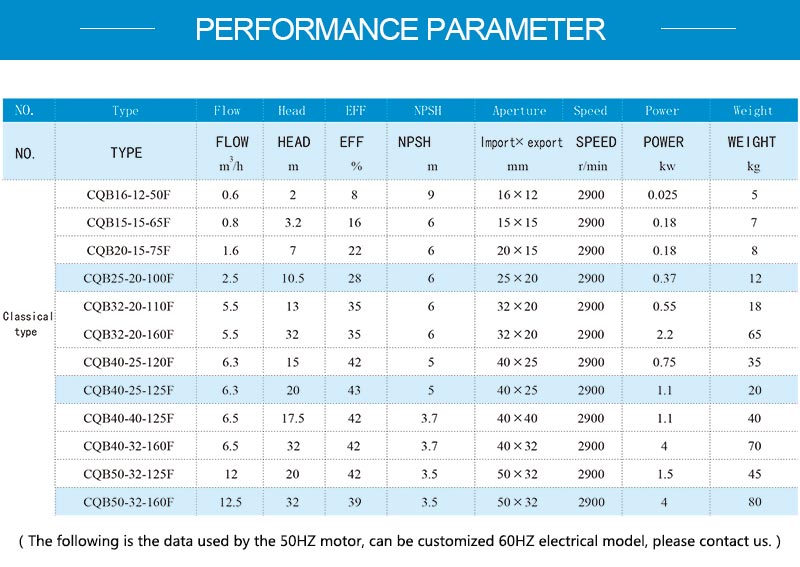

Performance parameter
