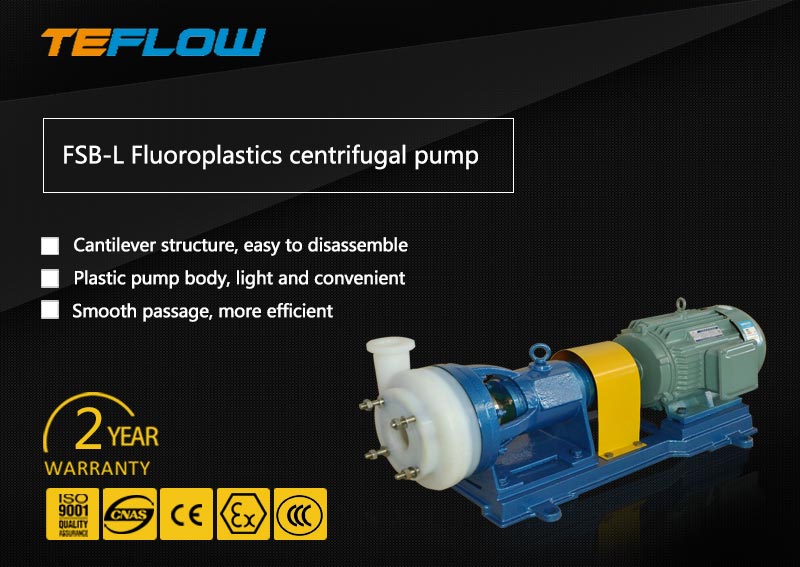

FSB acid and alkali resistant centrifugal chemical transfer pump

Flow range:3.6m3/H-100m3/H(60L/min-1600L/min)

Head range:25M-50M

Motor power:1.5KW-15KW

Tenperature range:-25℃-150℃

Voltage:220V-380V-440V

Brand Name:TEFLOW PUMP

-Introduction: FSB and FSB-D centrifugal pump, the overflowing parts are all made of fluoroplastic alloy, full plastic pump body, cantilever structure. The utility model has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise, high mechanical strength, non-aging, non-toxic decomposition, convenient maintenance, smooth flow channel, high efficiency, energy saving and so on.

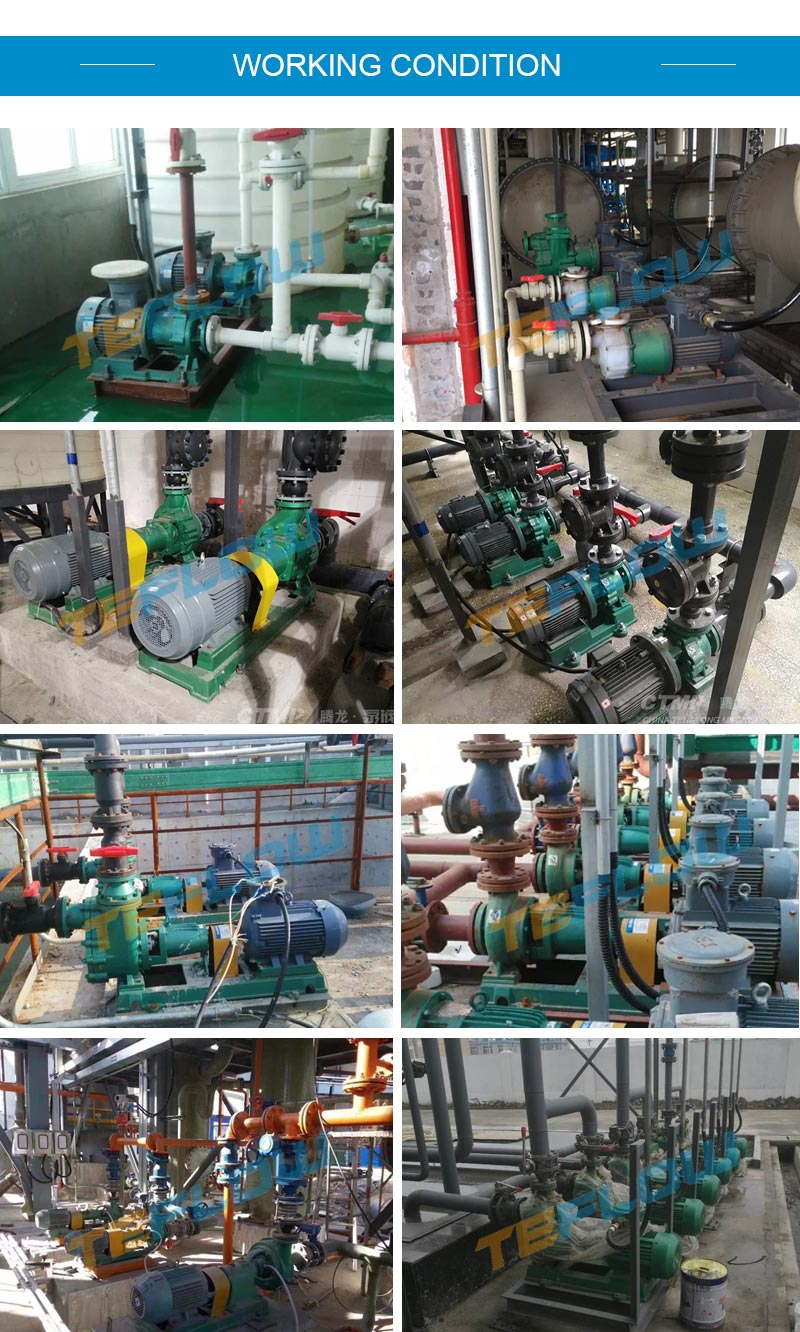

-Product uses: Widely used in chemical, chlor-alkali, chlorobenzene, acid, alkali, smelting, rare earth, pesticides, dyes, medicine, paper, electroplating, electrolysis, pickling, foil and other industries.

-Medium: Strong corrosive media with harsh conditions, such as sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant, organic solvent, reducing agent and so on.

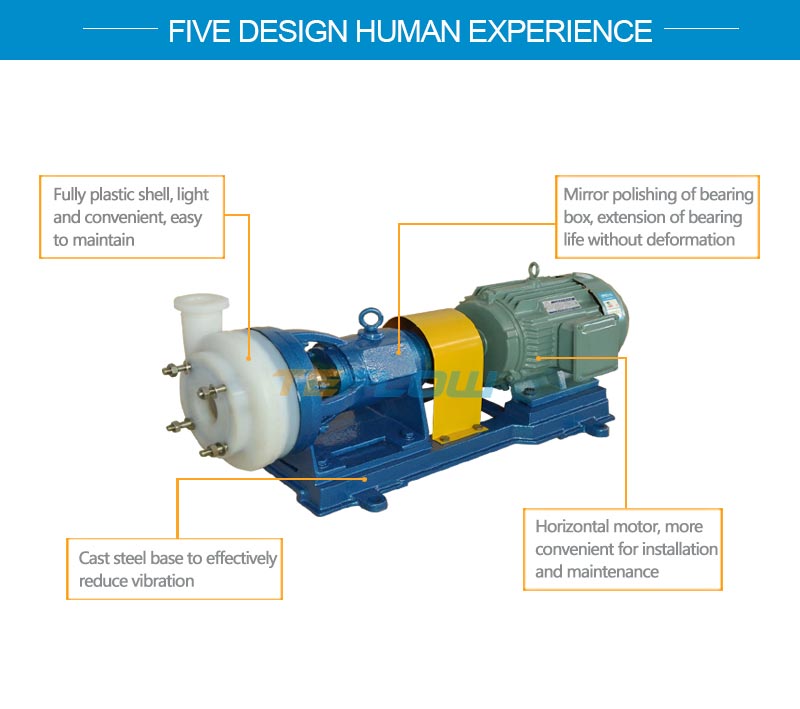

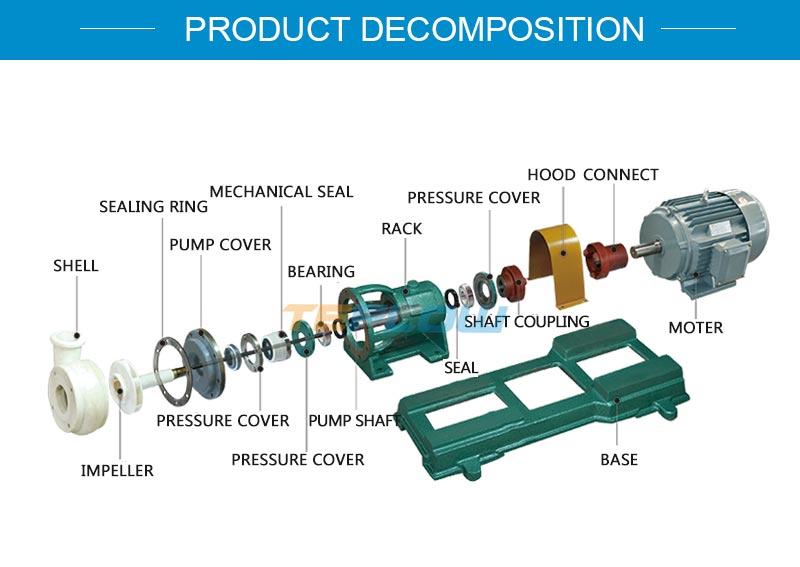

Structure diagram

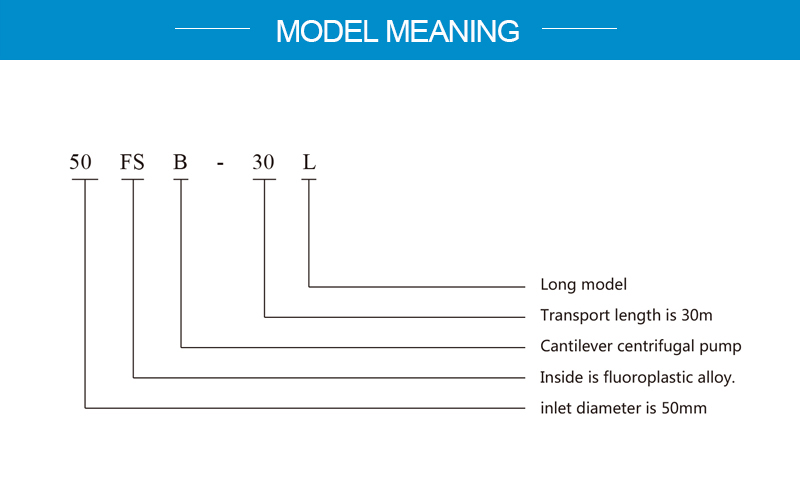

Model meaning

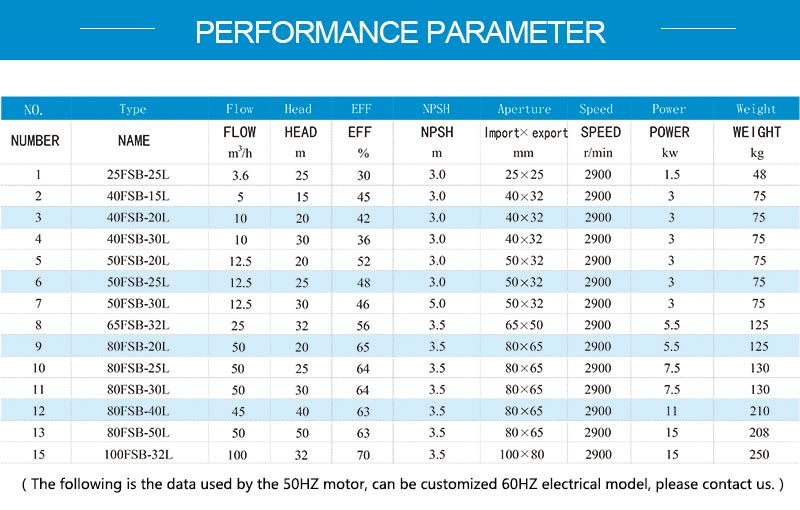

Performance parameter
