Solar pump inverter 220V 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW IP65- Product Details

Solar pump inverter 220V 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW IP65

ID:2005123852

Electrical & Power Energy Solar Power System

EXW Price:US$ 380.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Solar pump inverter Solar pump controllersolar pump drivesolar VFDsolar pump systemsolar pumpssolar water pump inverterHober solar pump inverter IP65 solar pump invertersolar pump ivnerter 220V

Payment Method:

L/CT/TWesstern UnionPaypalMoney Gram

Product Category

Electrical & Power Energy > Solar Power System

Trademark

HOBER or OEM

Product Package

55*35*28CM

Specification

220V IP65 Hybrid solar pump inverter

Place of Origin

CHINA

Port

SHENZHEN or GUANGZHOU

Solar pump system.jpg

The Solar Comes, The Water Comes

Solar Water Pump Systems Manufactured by Hober, Whether your need is to create a lower unit cost of water pumped, reduce operational costs, or achieve lowest project risk, HSPH provides the righ solution

Solar Pump Inverter Description

Hober Solar Pump Inverter Designed to Solar Pumping System

HSPH is the latest generation of solar water pump inverter, It covers a wide power range from 0.75kW to 100kW with a wide range of pumps for submersible, surface applications.

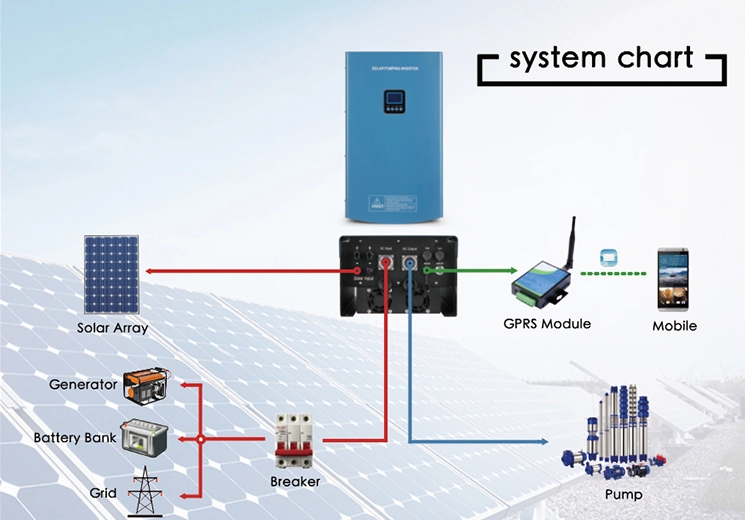

HSPH can be designed into an advanced solar pumping system, it can provide a ture hybrid pumping system which automatically can blend grid power and generator power with the core solar power supply,

The system use the power of the sun to move water, so replacing the need for grid power or diesel. Whether your need is to reduce the cost of water pumped, create low operational costs, or achieve the lowest project risk, HSPH provides the right solution for you.

Solar Pump Inverter Parameters

Inverter Model		HSPH1500L	HSPH2200L	HSPH3700L	HSPH5500L	HSPH7500L
Solar Panel DC Input	Max Voc Voltage	450V			500V
	Min Vmp Voltage	200V
	Recommend Vmp Voltage	≥300V (Only Solar), ≥340 V (Hybrid Power)
	Max MPPT Efficiency	99%
	Max Input Current	12 A	15 A	26 A	31 A	40 A
	Number Of Strings	1	1	2	2	2
	Over load Power	3000W	3800W	6300W	9300W	12KW

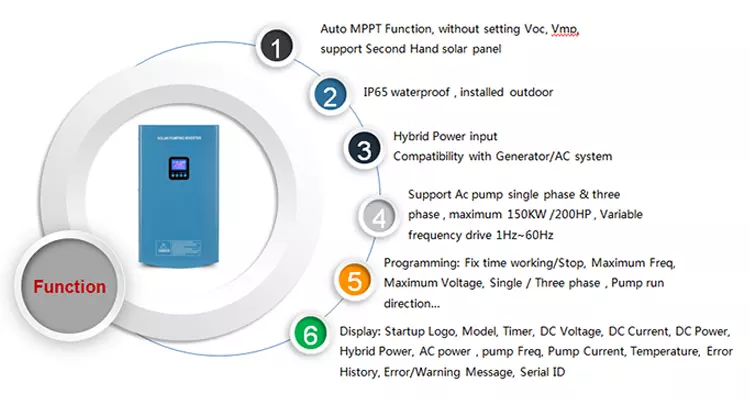

	Note	Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming
Hybrid AC/Generator Input	Voltage	1 Phase 220/240V			3 Phase 220/240V
	Max Input Current	14 A	18 A	29 A	25 A	32 A
	Hybrid Mode	Automatic .AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery
AC Output (For Pump, Rerator, Fan Parameters)	Max Adapted AC Pump Horse Power	2 HP	3 HP	5 HP	7.5 HP	10 HP
	Max Adapted AC Pump Power	1500W	2200W	3700W	5500W	7500W
	Drive Mode	Single Phase(1 phase) and 3 Phase (Compatible) Variable Frequency Drive
	Max Output voltage	220/240V
	Max Output frequency	50 ~ 60 Hz (support program range 15 to 60Hz)
	Max Output Current	15 A	21 A	28.5 A	32 A	45 A
	Note	Need to Remove the capacitor while the pump is 1 phase
Max Efficiency		97%
Water Level Sensor(Borehole / Tank)		Yes
GPRS SMS Monitor&Controller		YES(Optional)
Support Remote Monitoring & Control System (SPMCS)		YES(Optional)
Display		LCD display
Waterproof		IP65
Noise		< 50dB
Cooling Method		Force Cooling by Fan (IP68)
Operating Enviornment	Operating Environment Temperature	-10 to 60℃, Above 60℃ need to derate load
	Max Humidity	95%RH
	Using Altitude	< 3000m, Above 3000m need to derate load
	Others	Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc
Package	Size	550350285 MM
	Weight	14KG	14KG	15KG	18KG	18KG
