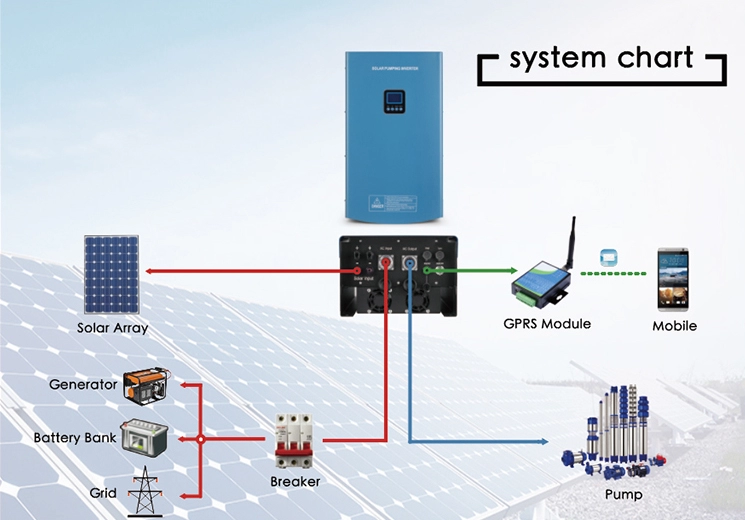

Solar pumping system consists of solar panels, solar pump inverter, AC pump and water storage device. Solar pump inverter converts the DC power produced by solar panel into AC power to drive the pump work, a microprocessor inside inverter continuously monitors available energy levels and adjust pump frequency for achieving max use of solar energy. Meanwhile, AC input module can be added in, which allow PV, state grid, DG, multi-sources work as complementary or by-pass, to achieve system working 24 hours per day.
The solar pumping system fulfills concept of low carbon,energy conservation, environmental protectionto improve the living standard in water-deficient area.

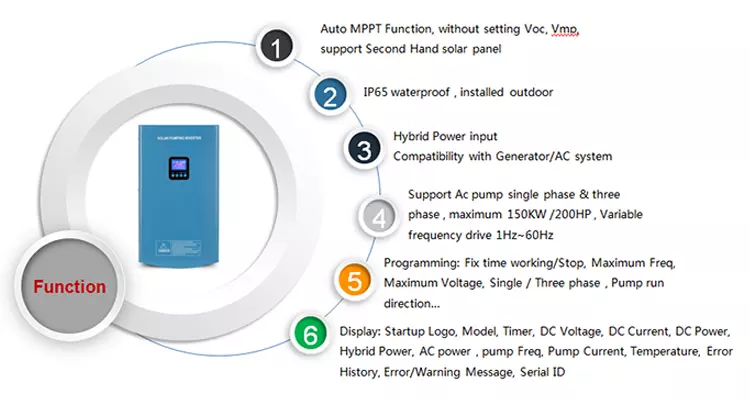

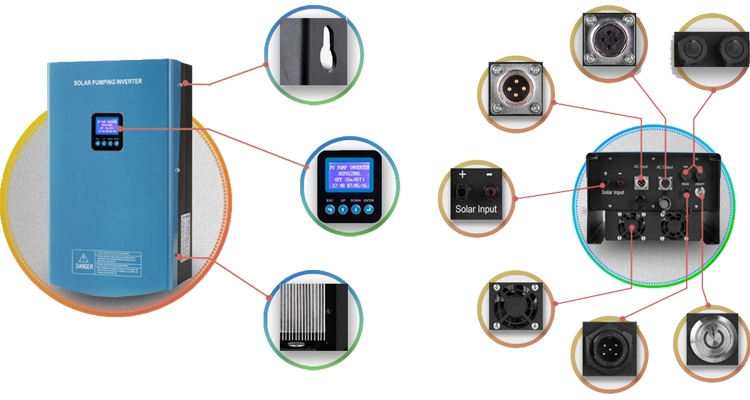

Solar Pump Inverter Description
Solar Pump Inverter Parameters
| Inverter Model | HSPH2200H | HSPH3700H | HSPH5500H | HSPH7500H | HSPH9200H | |
| Solar Panel DC Input | Max Voc Voltage | 900V | ||||
| Min Vmp Voltage | 400V | |||||
| Recommend Vmp Voltage | ≥500V (Only Solar), ≥560 V (Hybrid Power) | |||||
| Max MPPT Efficiency | 99% | |||||
| Max Input Current | 8 A | 14 A | 20A | 26A | 33A | |
| Number Of Strings | 1 | 2 | 2 | 2 | 2 | |
| Over load Power | 3960W | 6600W | 9900W | 12.8KW | 16.5KW | |
| Note | Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming | |||||
| Hybrid AC/Generator Input | Voltage | 3 Phase 380/400/440V | ||||
| Max Input Current | 7 A | 11 A | 16 A | 20 A | 26A | |
| Hybrid Mode | Automatic.AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery | |||||
| AC Output (For Pump, Rerator, Fan Parameters) | Max Adapted AC Pump Horse Power | 3 HP | 5 HP | 7.5 HP | 10 HP | 13HP |
| Max Adapted AC Pump Power | 2200W | 3700W | 5500W | 7500W | 9200W | |
| Drive Mode | 3Phase Variable Frequency Drive | |||||
| Max Output voltage | 380/400/440V | |||||
| Max Output frequency | 50 ~ 60 Hz (support program range 15 to 60Hz) | |||||
| Max Output Current | 10.5 A | 15 A | 21 A | 28.5 A | 31.5 A | |
| Max Efficiency | 97% | |||||
| Water Level Sensor(Borehole / Tank) | Yes | |||||
| GPRS SMS Monitor&Controller | YES(Optional) | |||||
| Support Remote Monitoring & Control System (SPMCS) | YES(Optional) | |||||
| Display | LCD display | |||||
| Waterproof | IP65 | |||||
| Noise | < 50dB | |||||
| Cooling Method | Force Cooling by Fan (IP68) | |||||
| Operating Enviornment | Operating Environment Temperature | -10 to 60℃, Above 60℃ need to derate load | ||||
| Max Humidity | 95%RH | |||||
| Using Altitude | < 3000m, Above 3000m need to derate load | |||||
| Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc | |||||
| Package | Size | 550*350*285 MM | ||||
| Weight | 14KG | 14KG | 14KG | 14KG | 15KG | |
