Solar pump inverter 220V 0.75KW 1.1KW 1.5KW with lower operating voltage

ID:2005123896

Electrical & Power Energy Solar Power System

FOB Price:US$ 300.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Solar pump inverter Solar pump controllersolar pump drivesolar VFDsolar pump systemSolar Energy SystemsSolar Controllerssolar farmsolar water pumpsolar pumps

Payment Method:

L/CT/TWesstern UnionPaypalMoney Gram

Product Category

Electrical & Power Energy > Solar Power System

Trademark

HOBER or OEM

Product Package

55*35*28CM

Specification

220V IP65 solar pump inverter

Place of Origin

CHINA

Port

SHENZHEN or GUANGZHOU

Solar pump system.jpg

The Solar Comes, The Water Comes

Solar Water Pump Systems Manufactured by Hober, Whether your need is to create a lower unit cost of water pumped, reduce operational costs, or achieve lowest project risk, HSPH provides the righ solution

Solar Pump Inverter Description

Hober Solar Pump Inverter Designed to Solar Pumping System

HSPH is the latest generation of solar water pump inverter, It covers a wide power range from 0.75kW to 100kW with a wide range of pumps for submersible, surface applications.

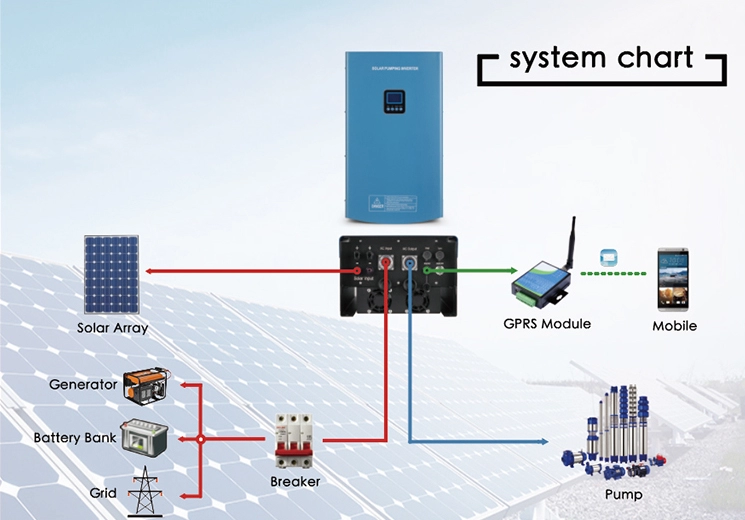

HSPH can be designed into an advanced solar pumping system, it can provide a ture hybrid pumping system which automatically can blend grid power and generator power with the core solar power supply,

The system use the power of the sun to move water, so replacing the need for grid power or diesel. Whether your need is to reduce the cost of water pumped, create low operational costs, or achieve the lowest project risk, HSPH provides the right solution for you.

Solar Pump Inverter Parameters

Inverter Model		HSPH750LB	HSPH1100LB	HSPH1500LB
Solar Panel DC Input	Max Voc Voltage	450V
	Min Vmp Voltage	80V	140V
	Recommend Vmp Voltage	≥100V	≥180V
	Max MPPT Efficiency	99%
	Max Input Current	20 A	15 A	16.5 A
	Number Of Strings	1	1	1
	Inside Booster	Y(Support)
	Over load Power	2000W	2400W	3000W
	Note	Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming
AC/Generator Input	Voltage	220/240V 1-Phase
	Max Input Current	10 A	13 A	14 A
	Hybrid Mode	N
AC Output (For Pump, Rerator, Fan Parameters)	Max Adapted AC Pump Horse Power	1 HP	1.5 HP	2 HP
	Max Adapted AC Pump Power	750W	1100W	1500W
	Drive Mode	Single Phase(1 phase) and 3Phase (compatibility) Variable Frequency Drive
	Max Output voltage	220 / 240V
	Max Output frequency	50 ~ 60 Hz (support program range from 15 to 60Hz)
	Max Output Current	10 A	13.5 A	15 A
	Note	Need to Remove the capacitor while the pump is 1phase
Max Efficiency		97%
Water Level Sensor(Borehole / Tank)		Yes
GPRS SMS Monitor&Controller		N	YES(Optional)
Support Remote Monitoring & Control System (SPMCS)		N	YES(Optional)
Display		LCD display
Waterproof		IP65
Noise		< 50dB
Cooling Method		Force Cooling by Fan (IP68)
Operating Enviornment	Operating Environment Temperature	-10 to 60℃, Above 60℃ need to derate load
	Max Humidity	95%RH
	Using Altitude	< 3000m, Above 3000m need to derate load
	Others	Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc
Package	Size	500300240MM	550350285MM
	Weight	10KG	14KG	14KG
