Business Type: Manufacturer
Main Products:Roll die cutting machineFood paper box machinePaper straw machineAutomatic cartoning machineFlexo printing machinePaper cup machine
ID:2005133939
Manufacturing & Processing Machinery Machinery Accessories & Services
MOQ:1.00 Set(s)

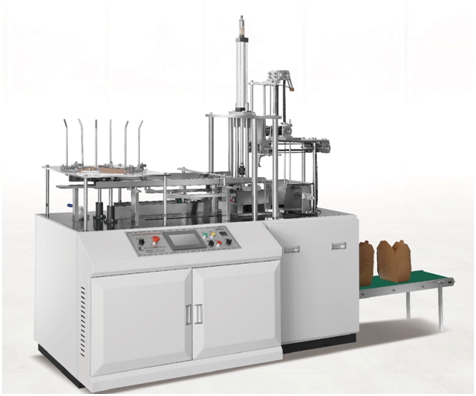

PE kraft paper box machinePE paper box machinecarton making machine paper box machintake away box mahcine
T/T
Price Term: TT . 30% deposit, balance 70% before delivery.
Warranty: 1 year.
After sale service:
1. Spare parts guarantee for one year from the date of installation.
2. Send the technician for installation & training. Buyer bears the cost (round tickets ,accommodation, and allowance of 80USD per day).
Technical Parameters:
Type | ZX-RB |
Production capacity | 30-45times/min(Actual production according to product size) |
Maximum size: | 480 x480mm |
E-power voltage | 380V 50HZ (can be changed) |
Suitable Material: | 200-400g/m2 PE (PE Coated paper) |
Total Power: | 3KW |
Total Weight: | 0.7T |
Overall Dimension: | 1550 x 1350 x 1800 mm |
Working Air Source: | Air pressure 0.4-0.5Mpa (Need to buy compressor) |

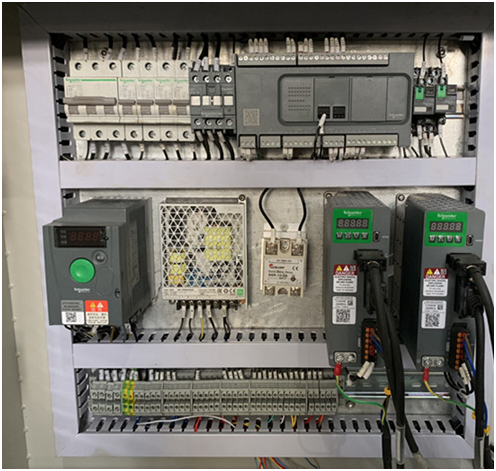

Configuration:
Motor | Main motor | Schneider |
Electrical parts | PLC | Schneider |
Frequency converter | Schneider | |
Photoelectric switch | Schneider | |
AC contactor | Schneider | |
Breaker | Schneider | |
Start switch | Schneider | |
Temperature table | Yatai | |
Pneumatic
| Main cylinder | Taiwan Yadeke |
Other pneumatic originals | Made in China | |
Bearing | Haerbin | |
Servo |
Motor |
Schneider（two） |
