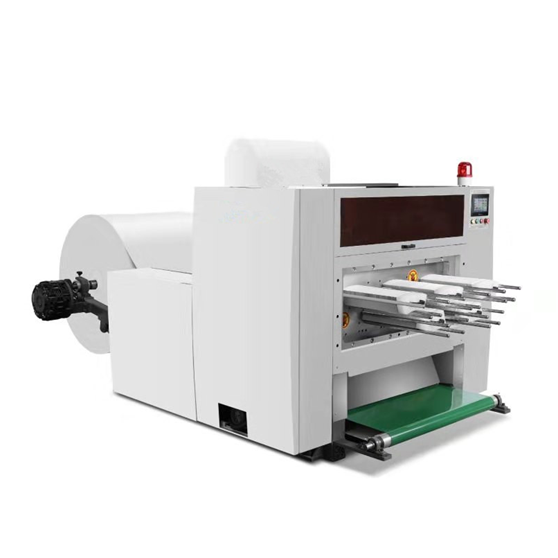

punching machine roll paper punching machine
T/T
Remarks:
1) Price Term:ningbo port，China
2) Payment term: TT (30% deposit, the balance70% before delivery) or L/C.
3) Delivery time: 45 working days after receiving the deposit
4) After sale service:
1. Spare parts guarantee for one year from the date of installation.
2．Send the technician for installation & training. Buyer bears the cost (round tickets, accommodation, and allowance of 100USD per day).
Technical Specification
Model | ZXC-850 x450 |
Max cutting width | 850 |
Cutting precision | ±0.20mm |
Paper gram weight | 150-350g/㎡ |
Production capacity | 260-350times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m3/min |
Total power | 10kw |
Weight | 3.5T |
Max roller diameter | 1500mm |
Dimension | 3500x1700x1800mm |

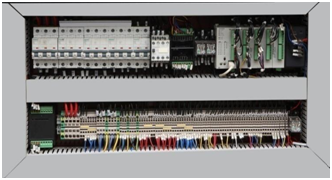

Electric Configuration
PLC | DVP40EH00T3 | Taiwan Delta |
Servo Motor | SGMGV-30V-DA61 | Schneider Germany |
Touch screen | TK6070IQ | Taiwan Weinview |
Frequency converter | ATV320D15N4B | Schneider Germany |
Switch | Schneider,Delta | |
Main motor | CH3700-3-S-G1 | China |
