UHB-ZK anticorrosion horizontal conveying Desulfurization pump

Cantilever mortar pump acid and alkali resistant mud pump

Flow range:10m3/H-400m3/H(166L/min-6600L/min)

Head range:20M-32M

Motor power:3KW-75KW

Tenperature range:-25℃-150℃

Voltage:220V-380V-440V

Brand Name:TEFLOW PUMP

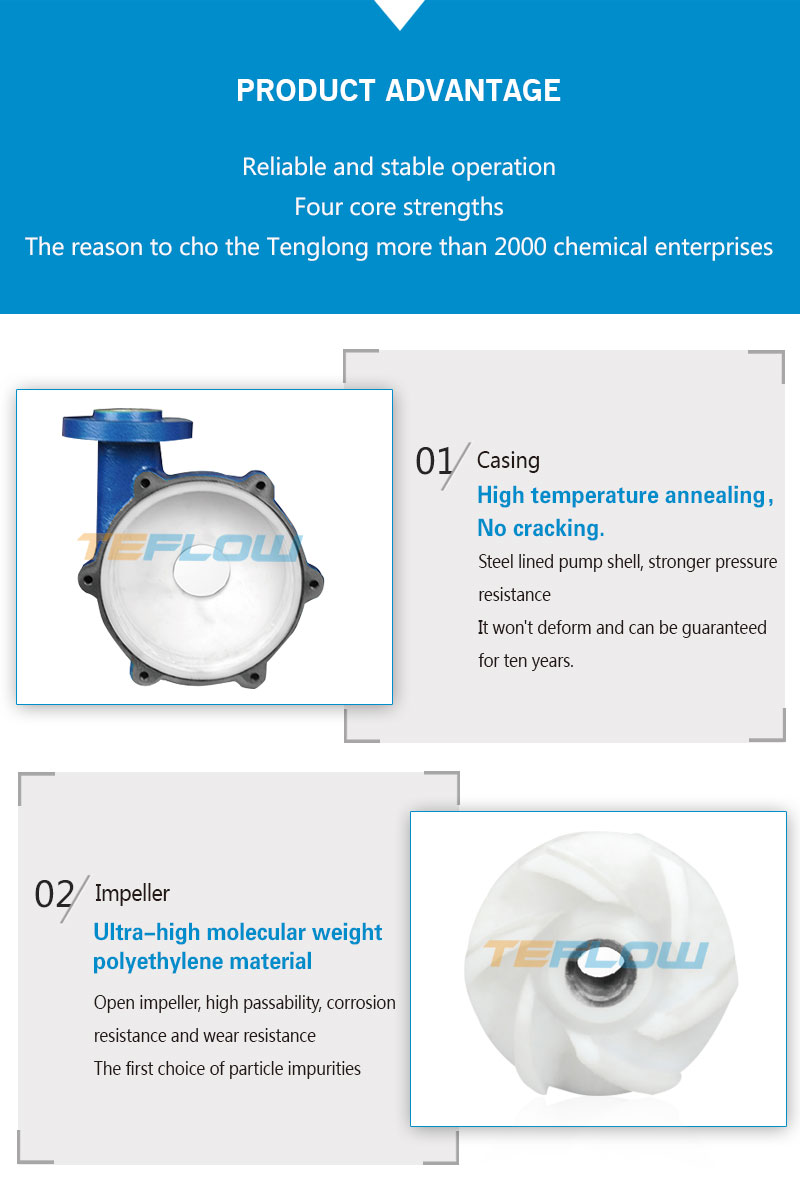

-Introduction:  UHB-ZK corrosion-resistant and wear-resistant mortar pump series products are specially designed for conveying media with certain corrosiveness and containing fine particles or crystals, which are manufactured by steel lining ultra-high molecular weight polyethylene molding process, with excellent corrosion resistance and excellent wear resistance, the impeller is semi-open, enhancing the passability in the flow channel, so that the particles and impurities in the medium quickly pass through the pump cavity without blocking. Can be equipped with fluorine rubber negative pressure sealing ring, plus cooling water device, can also be equipped with mechanical seal.

-Product uses:  Pickling process, acid and alkali production, spray painting process, electrolyte transportation in non-ferrous metal smelting, chlorine water transportation in ion membrane project, wastewater treatment, electroplating, pesticide industry.

-Medium:   Acid-base pump, formic acid pump, nitric acid pump

-Description:  Corrosion-resistant and wear-resistant mortar pump, desulphurization circulating pump, particle-resistant mortar sewage pump

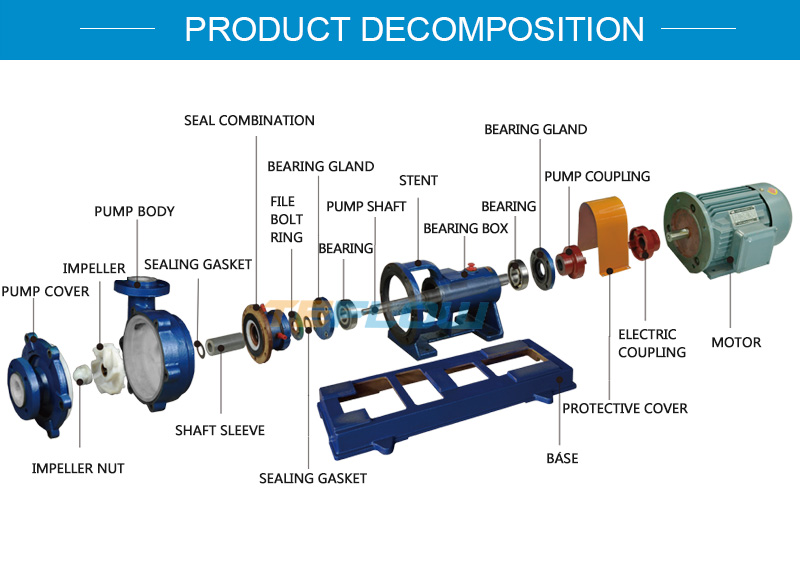

Structure diagram

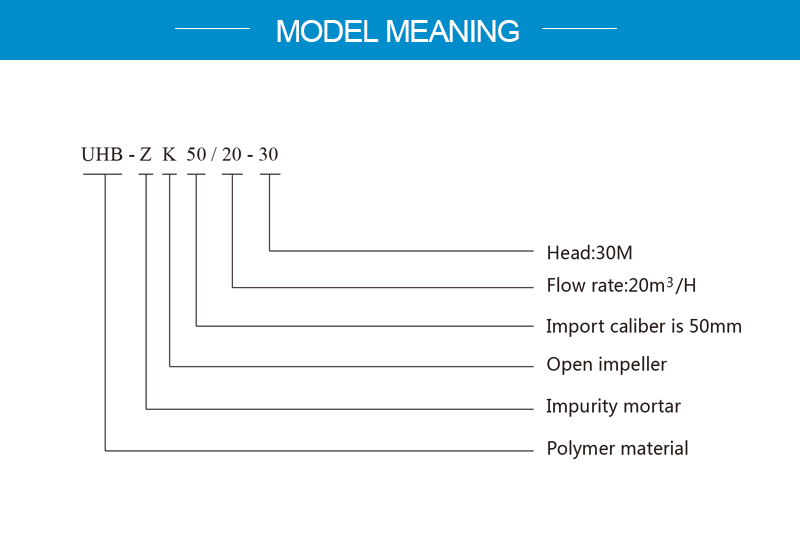

Model meaning
