Ex Junction BoxSS304，SS316
L/CT/TWesstern UnionPaypalOthers

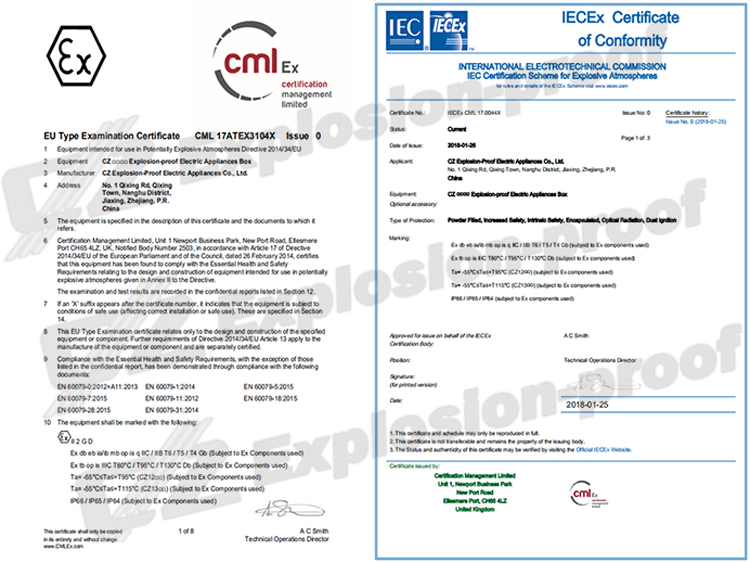

| Certification | Ex mark |
| IECEx | Ex db eb ia/ib mb op is q IIC / IIB T6/T5/T4 Gb ; Ex tb op is IIIC T80°C/T95°C/T130°C Db |
| ATEX | Ex db eb ia/ib mb op is q IIC / IIB T6/T5/T4 Gb ; Ex tb op is IIIC T80°C/T95°C/T130°C Db |
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+40°C/+55°C | |
| Degree of protection | IP66 | |
| Material of enclosure | 304(On the surface of wire drawing processing) 316L(On the surface of wire drawing processing) Carbon steel(Surface spraying plastic powder) | |
| Rated voltage/current | Max 380V, Max 16A | |
| Component terminal | 2*2.5 mm2 | |
| PE terminals | 4 mm2 | |
Descriptions:

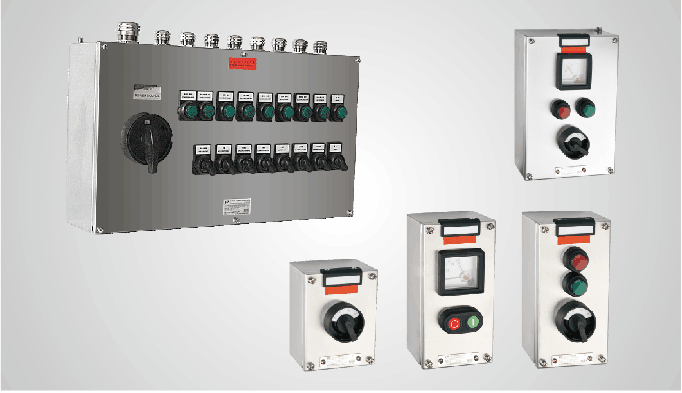

The enclosure of explosion-proof stainless steel box is made of 304 or 316L ,can be used in hazardous industrial areas. It has characters of high anti-corrosion ,waterproof and dust proof .Therefore they satisty the requirements in chemical,petroleum and sea industries.
This series have 8 kinds standard enclosure, Built-in board front mounting rail type component ,According to the components quantity choose different speclfications enclosure. For easy choice, there are 4 kinds of products to be standard products. Except wall type mounting ,also can choice vertical foot plate for vertical mounting. Can also be customized according to user requirements design.

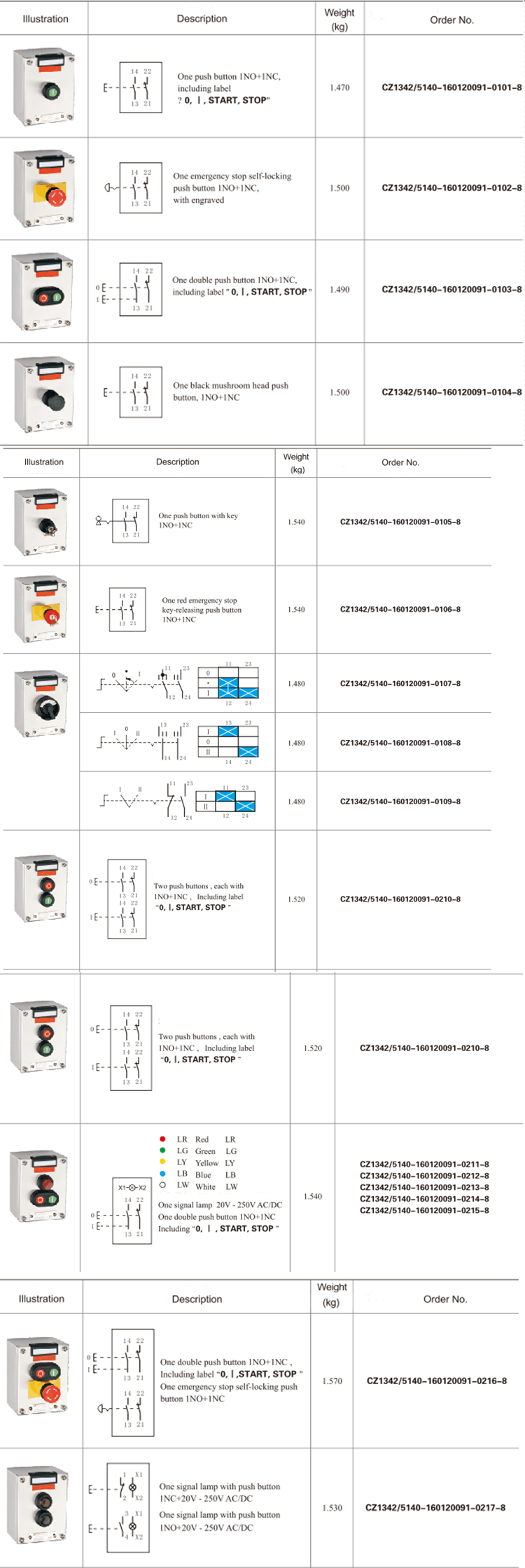

Order specifications:

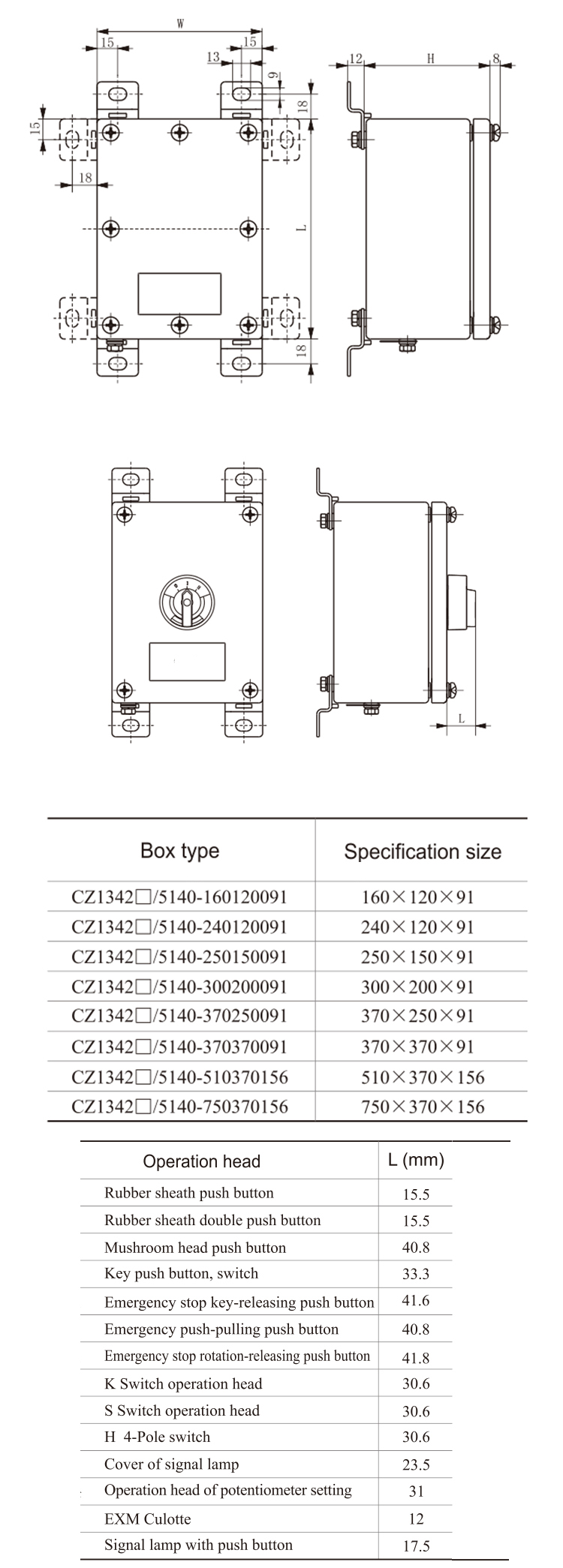

Outline dimensions:
Cable entry:
2 x M25, Cable outside diameter: 8~ 17mm
1 XM32, Cable outside diameter: 12 ~ 21mm
Mounting way: Wall type, Vertical mounted
Other series of CZ1342
Q1. Can I have a sample order for emergency stop button testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than .
Q3. Do you have any MOQ limit for emergency stop button order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Q5. How to proceed an emergency stop button order?
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
