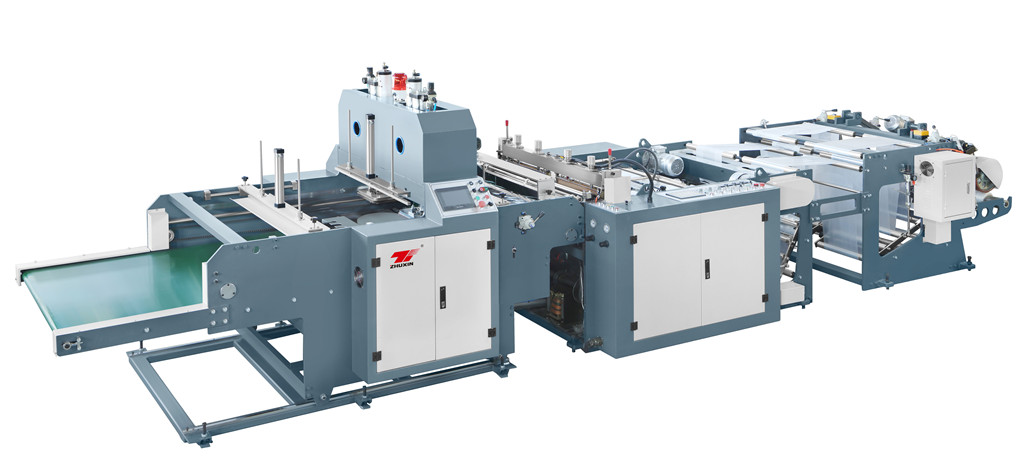

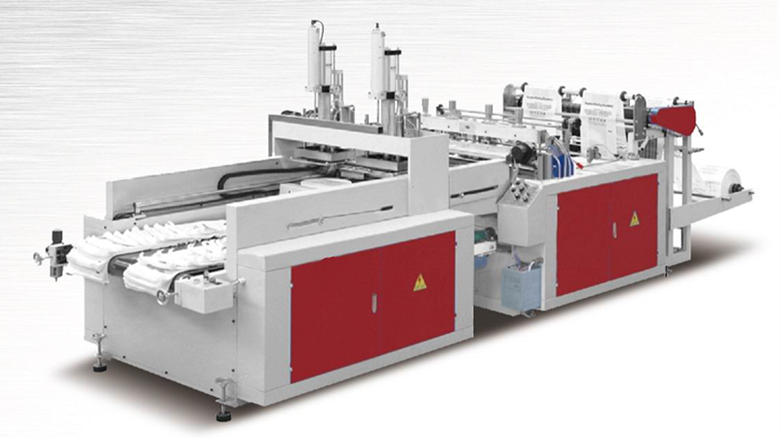

TWO LINE  HIGH SPEED TWO LINES AUTOMATIC T-SHIRT BAG MAKING MACHINE with EPC

Model：           CY-430x2-A

Bag width         200-400mm

Bag length         250mm-580mm

Material           LDPE HDPE

Thickness          0.015-0.050mm

Max speed of bag making 280X2pcs/min

Outline dimension    8500X1800X2000mm

Weight               4000kg

traction motor    1.1KW x2 ：

Servo motor           4.4KW  YASKAWA  2PCS

Cutter motor           3.7kw

Waster motor           120W    made in china

Convey motor           200W  made in china

Clamping motor         1.5KW   made in china

Transformer:      15000VA    3000VA

Motion controller        TAIWAN

Temper control system    Omron

Mean Inverter           3.7KW

 transmission             synchronous belt

MOTOR：         90W

INVERTER：         90W

LOADING INVERTER   1.5kw  DELTA 2SETS

Photocell SICK

PLC         TAIWAN

Feeding motor       0.75KWx2  made in china

Main rubber roller        Ф80x460

Feeding roller            Ф80x460

Width of conveyor belt     1100mm

Heating power             8KW

Solenoid valve             Air  TAC

Total power               15KW

Pressure cylinder         5T  made in china

main servo motor： 2kw China brand

cylinder CHINA

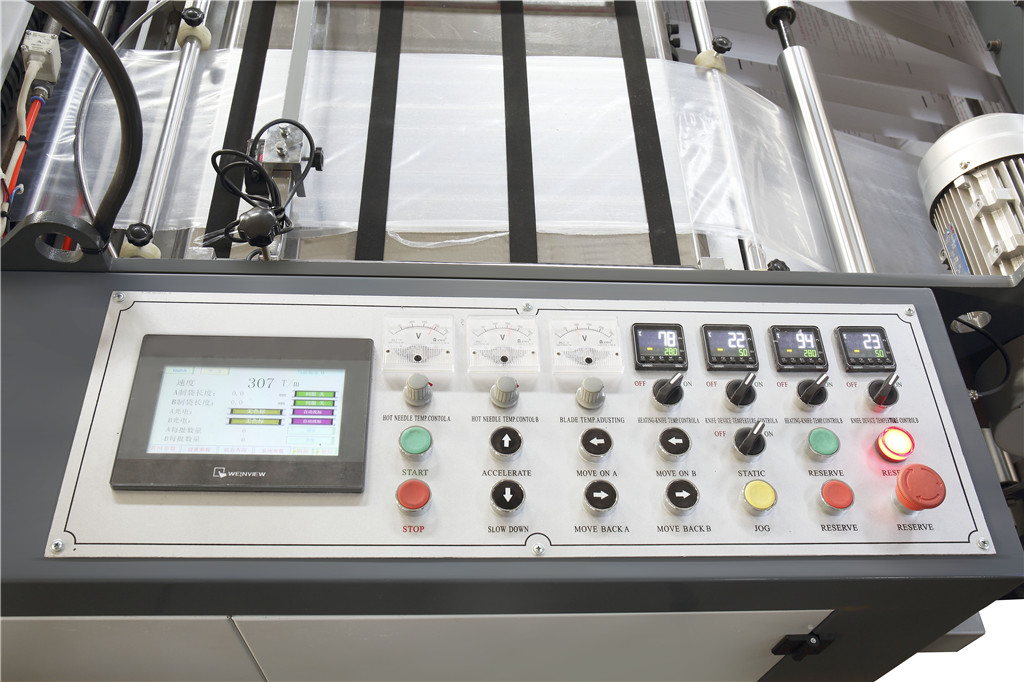

Taiwan touch screen: VIEVIEW TAIWAN

low voltage apparatus:shneider

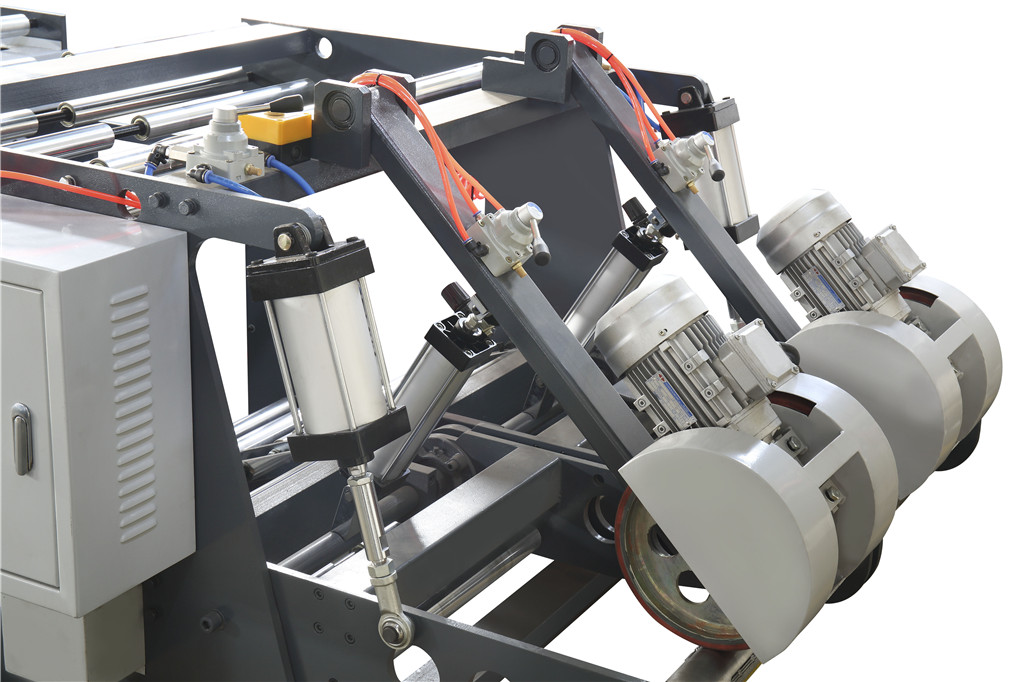

the machine with auto-loading,air shaft unwinding with automatic punch

CY-450*2 2LINE MIDDLE SPEED T-SHIRT BAG MAKING MACHINE

MAIN CONFIGURATION AND PARTS

Max.Width of Sealing & Cutting:400m*2 LINE

Max Length of Sealing & Cutting:650mm*2LINE

Speed 140-200pcs/min*2LINE

Thickness 0.015-0.035mm

Total power 10kw

Air pressure 5kg/cbm

Machine size 6.5*1.6*1.8m

Weight 2000kg

DELTA INVERTER,

SERVO MOTOR

SCHNEIDER ELECTRICAL PART

OMRON TEMP CONTROLLER

SPARE PARTS

Various parts 1 setToolbox 1set
