PLASTIC HANDEL BAG MAKING MACHINE 4 FUCNTION IN ONE MACHINE

ID:2005154151

Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 25000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

soft loop handle bag machinePatch bag making machinePoly draw bag making machineDie cut bag making machinemulti function bag machine

Payment Method:

L/CT/TWesstern Union

Product Category

Manufacturing & Processing Machinery > Packaging & Printing Machine

Trademark

zhuxin

Product Package

seaworthy packing

Specification

9*2*1.8m

Place of Origin

wenzhou,china

Port

NINGBO,CHINA

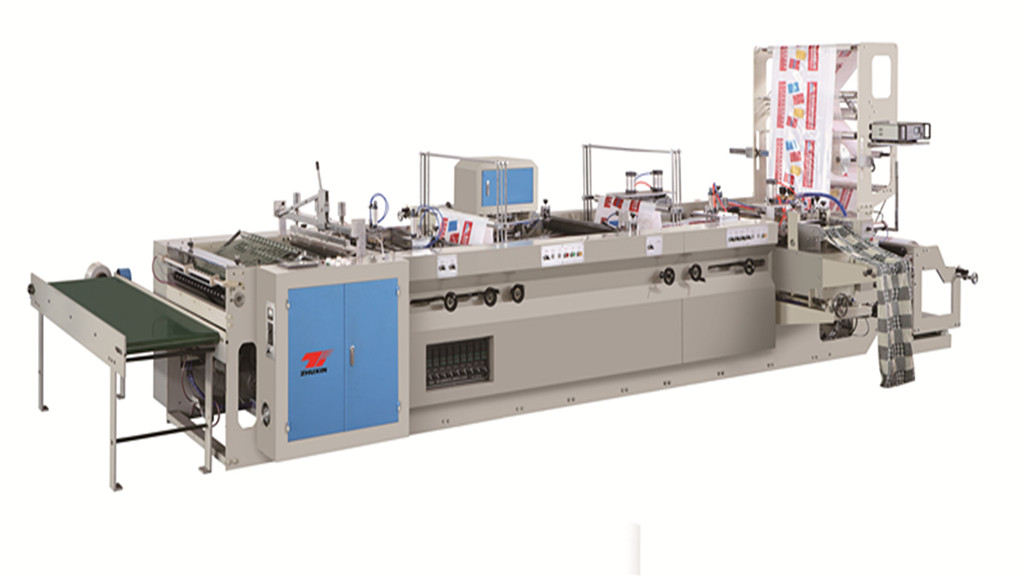

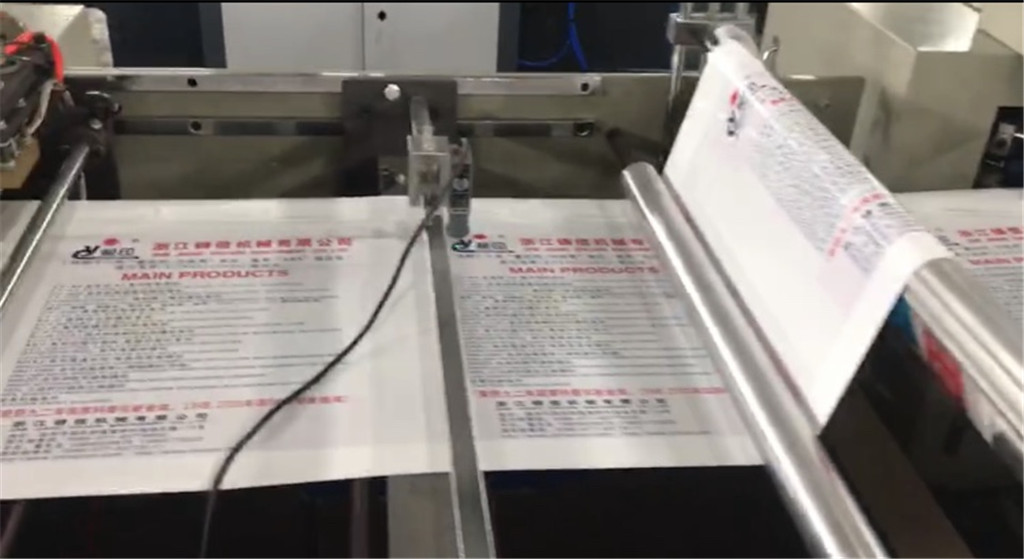

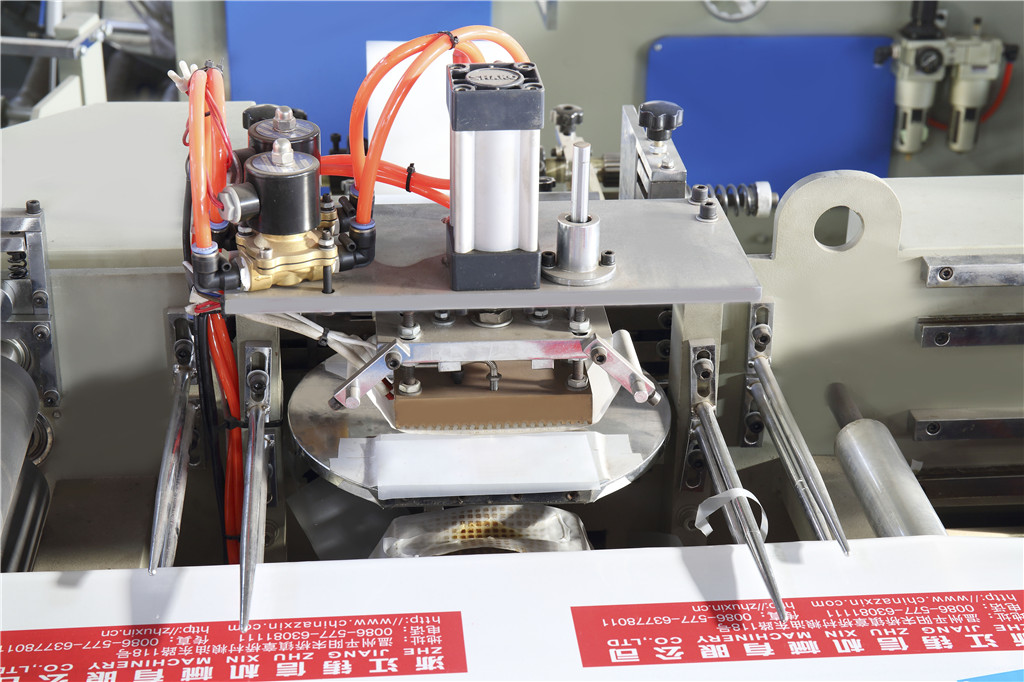

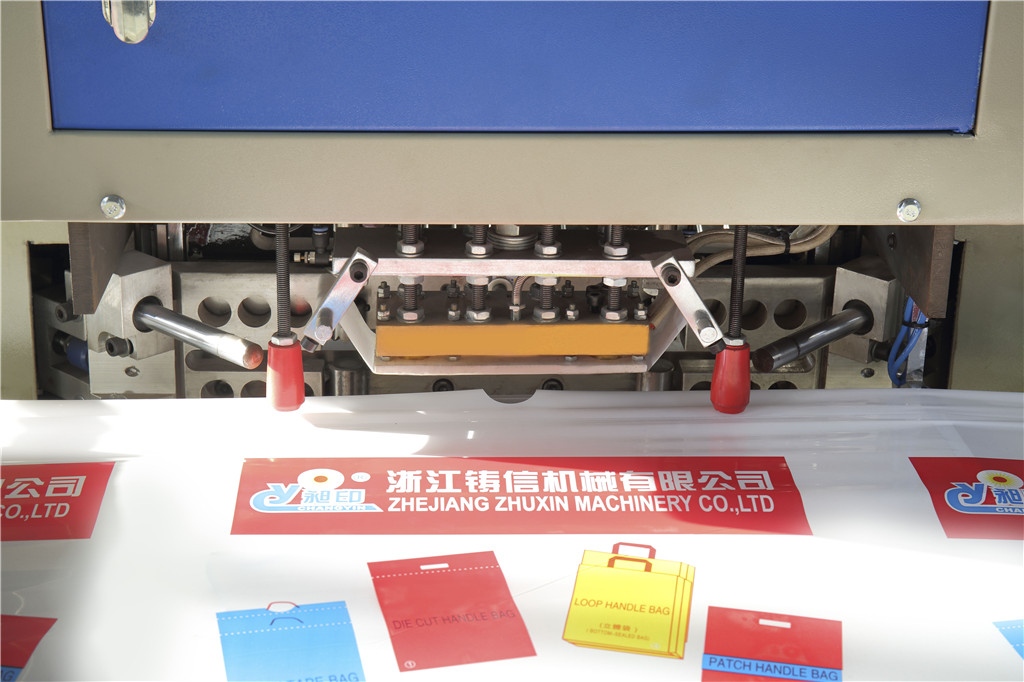

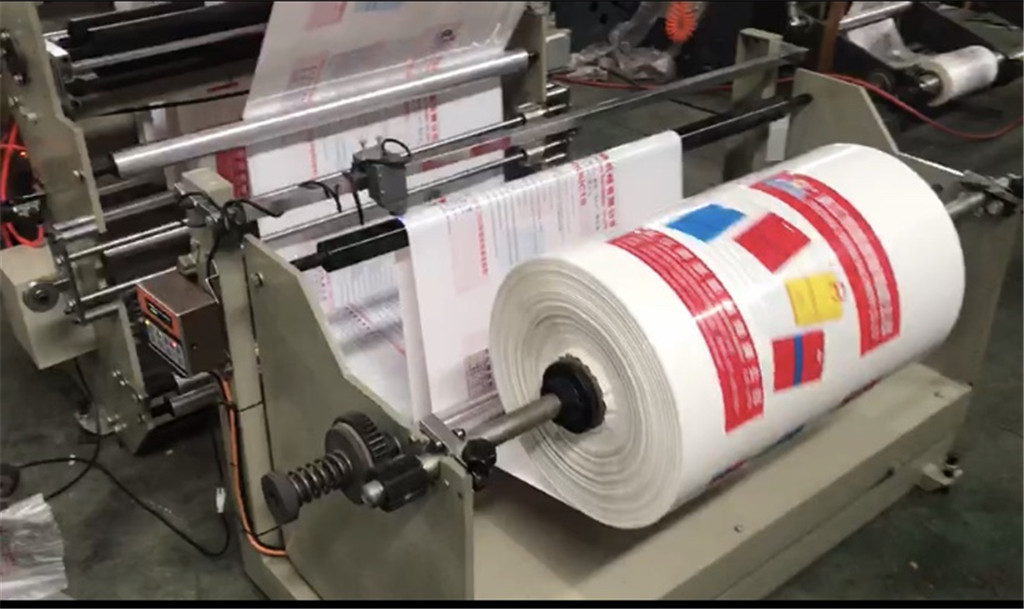

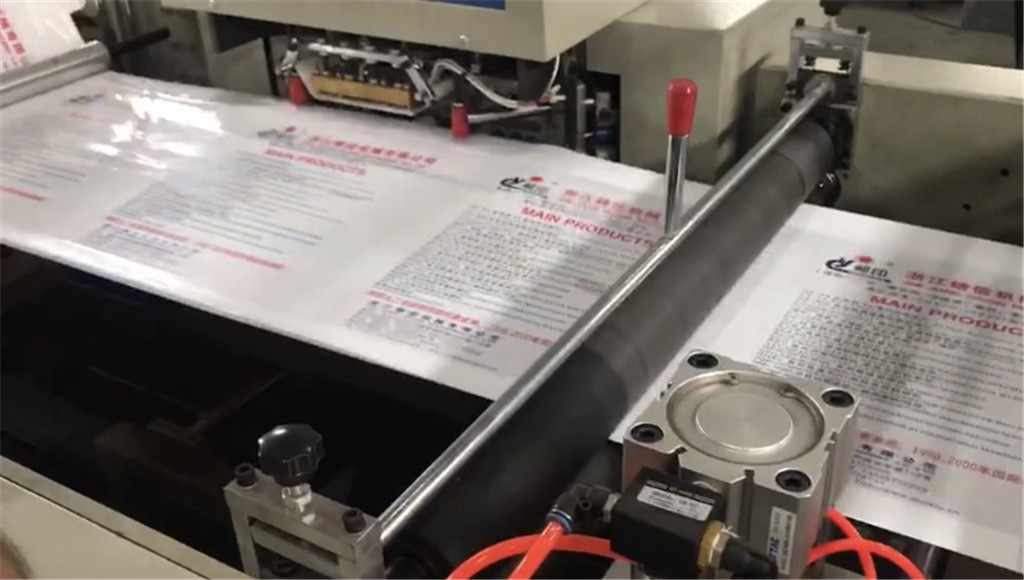

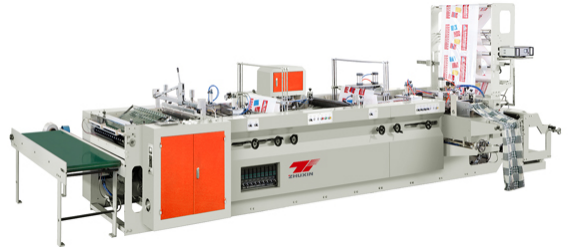

CY800ZD Soft Loop Handle Bag Making Machine

Soft loop handle length(material reel width):360mm
Diameter:600mm
Soft loop handle strip thickness:0.08-0.25mm
Poly draw handle strip width:20mm
Thickness of poly draw handle strip:0.08-0.25mm
Diameter: f400mm(double layers)
The width patch of the patch bag :160mm
Patch thickness:0.11-0.13mm(double layers)
Diameter: 500mm
Width of the bag :250-600mm
Width of the length:250-650mm

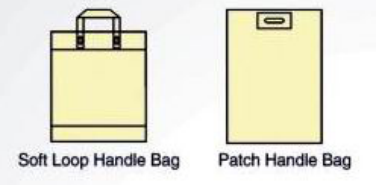

Speed of bag making:soft loop handle bag :55pcs/min
Patch bags:55pcs/min

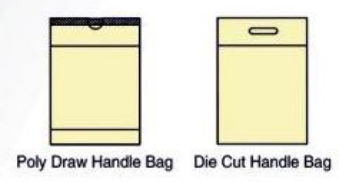

Poly draw bag:65pcs/min
Die cut bag:75pcs/min
Top guested bags width:60-75mm
Bottom guested bags width:50-70mm
The machine total power:8kw
Power:380V 50HZ
Weight:3500kg
Dimension:7600x3000x1850mm
