Explosion-proof socketsExplosion-proof Plug
L/CT/TWesstern Union
| Certification | Ex mark |
| IECEx | Ex de IIC T5/T6 Gb Ex tD A21 T 95°C/80°C Ta≤55°C/45°C (Wall type socket, plug,coupler type socket ) Ex de llC Gb Ex tD A21 ( Panel type socket ) |
| ATEX |
|
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+55°C | |
| Degree of protection | IP66 | |
| Frequency | 50/60Hz | |
| Capacity of switch | AC 3 up to 250V/16A | |
| Rated current | Max 16A | |
| Cable entry | Wall type socket (Standard configure) 1x M25 ?8~ 17mm See page C/10 for other forms Plug: Cable outside diameter ?5~18.5mm Coupler type socket: Cable outside diameter ?5~ 18.5mm | |
Descriptions:
The full plastic explosion-roof plug and sockets can be used in the explosive gas atmospheres where the locations of local power supply control and electrical installation and mobile machinery place often need to be moved and transformed.
The flexible shutter spring that has a lot of contact surface can guarantee the small contact resistance and low temperature rise meanwhile the force of inserting in and pulling out can be reduced minimally which ensure the normal functions and permanent self-cleaning effect of the plug and socket device is designed at the joint of insert sleeve in the socket of the plug and socket device due to the contact resistance between the plug and socket is changed greatly and the electrical transport properties can be effected directly when the plug and socket device is affected by the surrounding environment (such as temperature, dust, corrosion, etc.).The exclusive interlock device is equipped with the plug and socket device. The switch is not turned on if it is not rotated and the plug can not be pulled out when the switch is turned on after the plug is inserted into the socket, which the non-live action is realized.
The protective covers are equipped on both plug and socket, which ensure the reliability of the protectivedegree.
Therefore, the plug and socket device can be used under the extreme conditions.

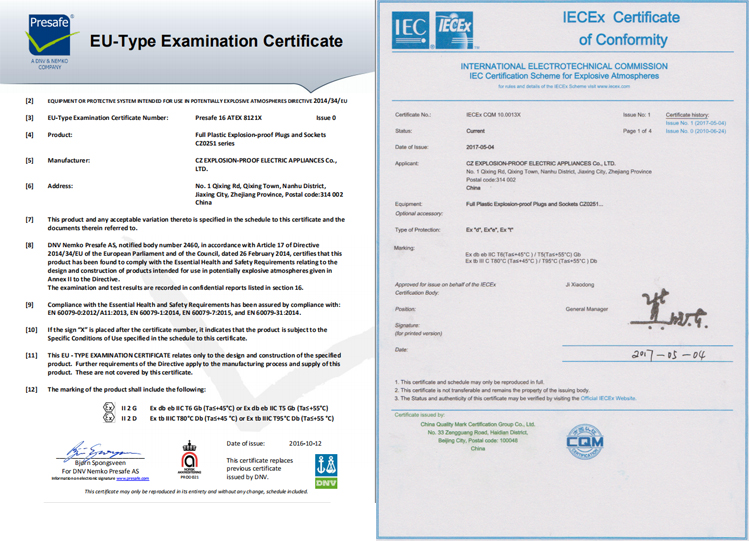

IECEx, ATEX International certification.
Selfcleaning inserting sleeve, low transmission resistance.
Protective covers ensure high degree of protection.
Small force of inserting and pulling.

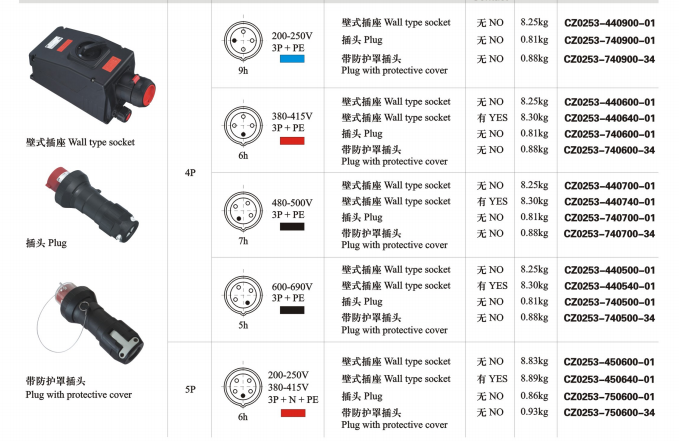

Order specifications:
Other series of CZ0253
