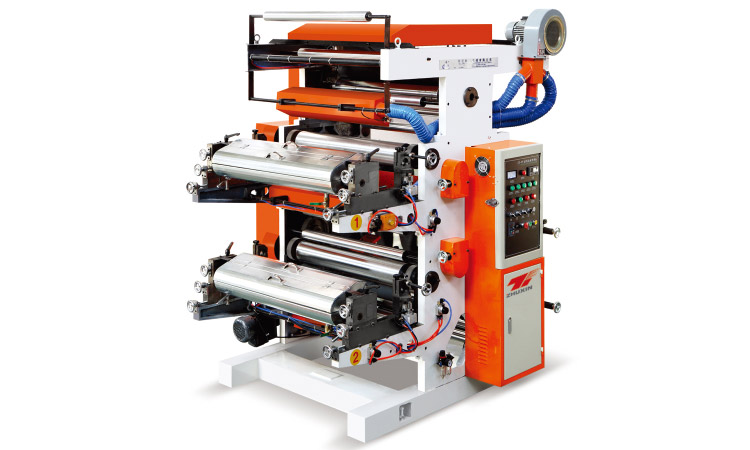

Felxo printing machine 2-6 colors high speed printing machine ReeL material printing machine

Performance and features:

1, simple operation, soft starting, accurate color.

2, meter meter can be set according to the requirements of the number of printing, to the number of automatic stop, automatic stop.

3, pneumatic up and down plate cylinder, after lifting ink automatic mixing.

4, the roller ink, ink uniform.

5, reliable drying system, with high-speed operation, stop automatically cut off.

6, 360 degrees continuously adjustable vertical flower matching device.

7, variable frequency speed regulation, adapt to different printing speed.

8, the version of the roller seat and the material collection rack are equipped with inching and stop buttons, easy to operate the machine when installing the version.

PARAMETERS

Model of Machine                                                        YT-2600

Max.Width of Printing Material                                     600mm

Max.Printing With                                                        560mm

Length Range of Printed Product                               200-1000mm

Max.Diameter of Roll Material                                  φ450mm

Printing Speed                                                        5～50m/min

Thickness of plate(Including Two-sides Glue Paper)      2.38mm

Total Power                                                                11kw

Weight of Machine                                                        2500kg

Overall Dimensions(mm)                                        4200*1600*2400
