Corrosion resistant plastic acid transfer pump.

Flow range:12.5m3/H-100m3/H(208L/min-1600L/min)

Head range:20M-50M

Tenperature range:-25℃-150℃

Voltage:220V-380V-440V

Brand Name:TEFLOW PUMP

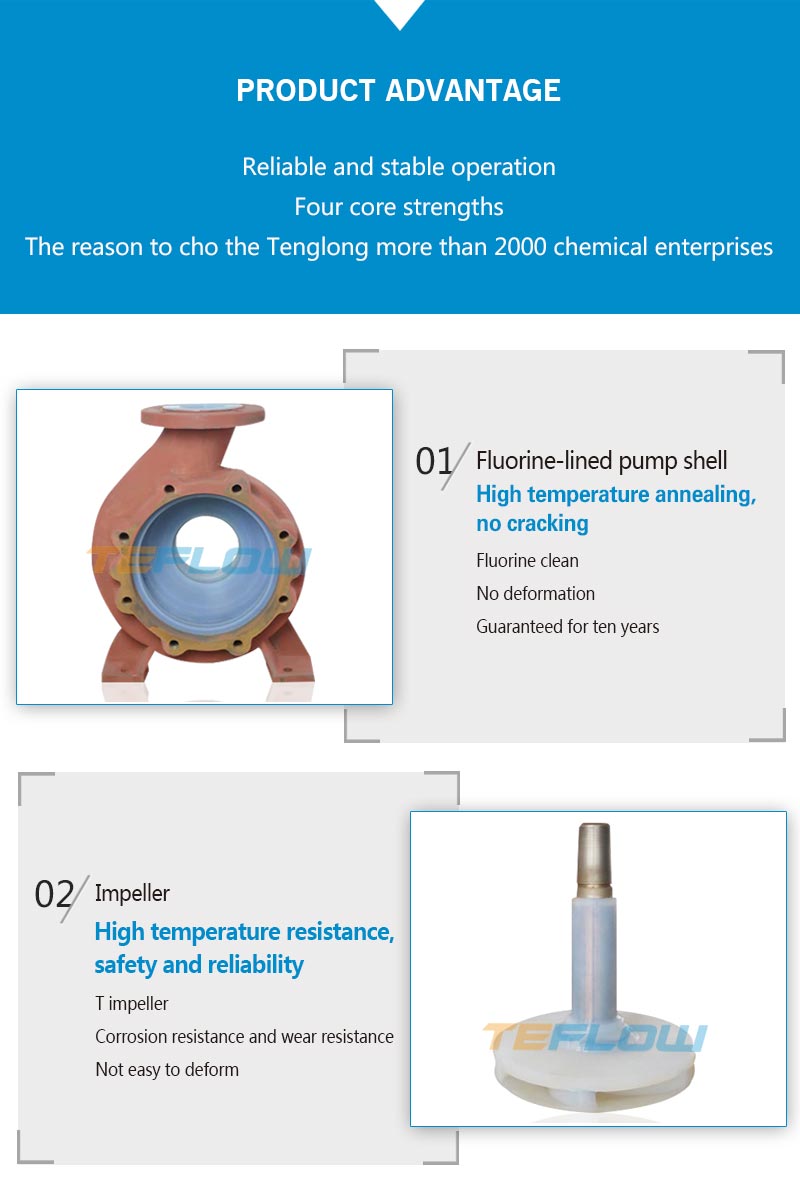

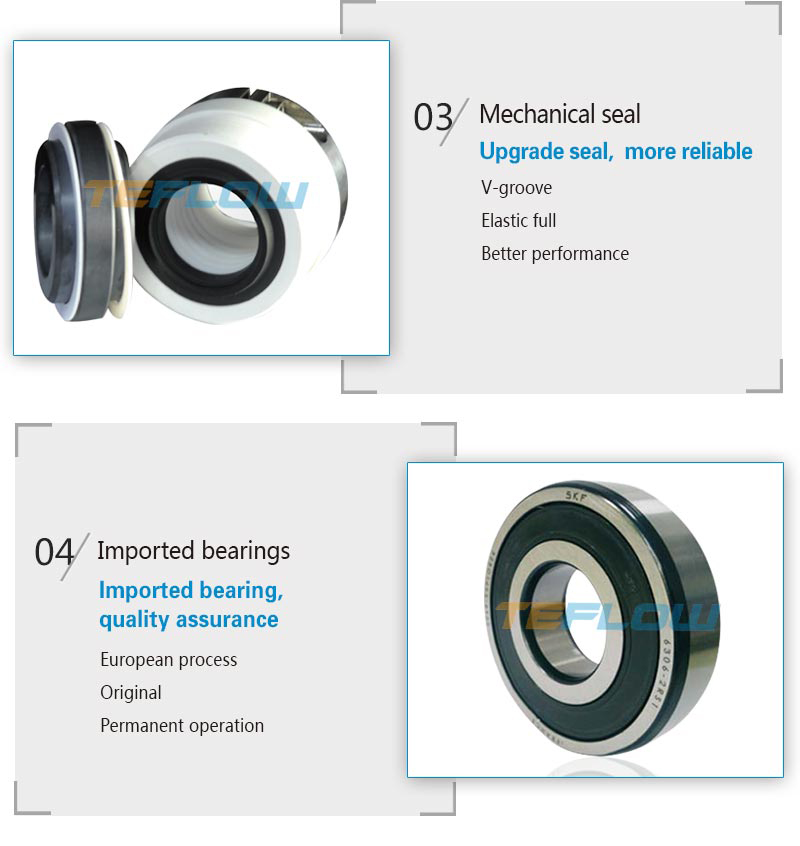

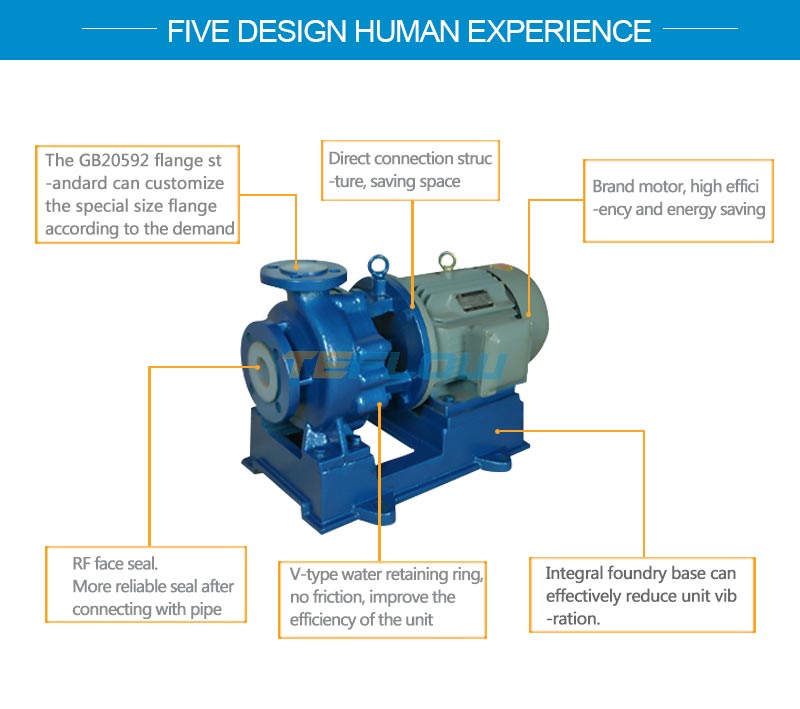

-Introduction:  IHF-D is designed according to international standards, the overcurrent parts are all tightly lined with fluoroplastic, and the load-bearing part of the pump is made of metal. Equipped with external bellows mechanical seal, easy to install. The pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, non-aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and maintenance, long service life and so on.

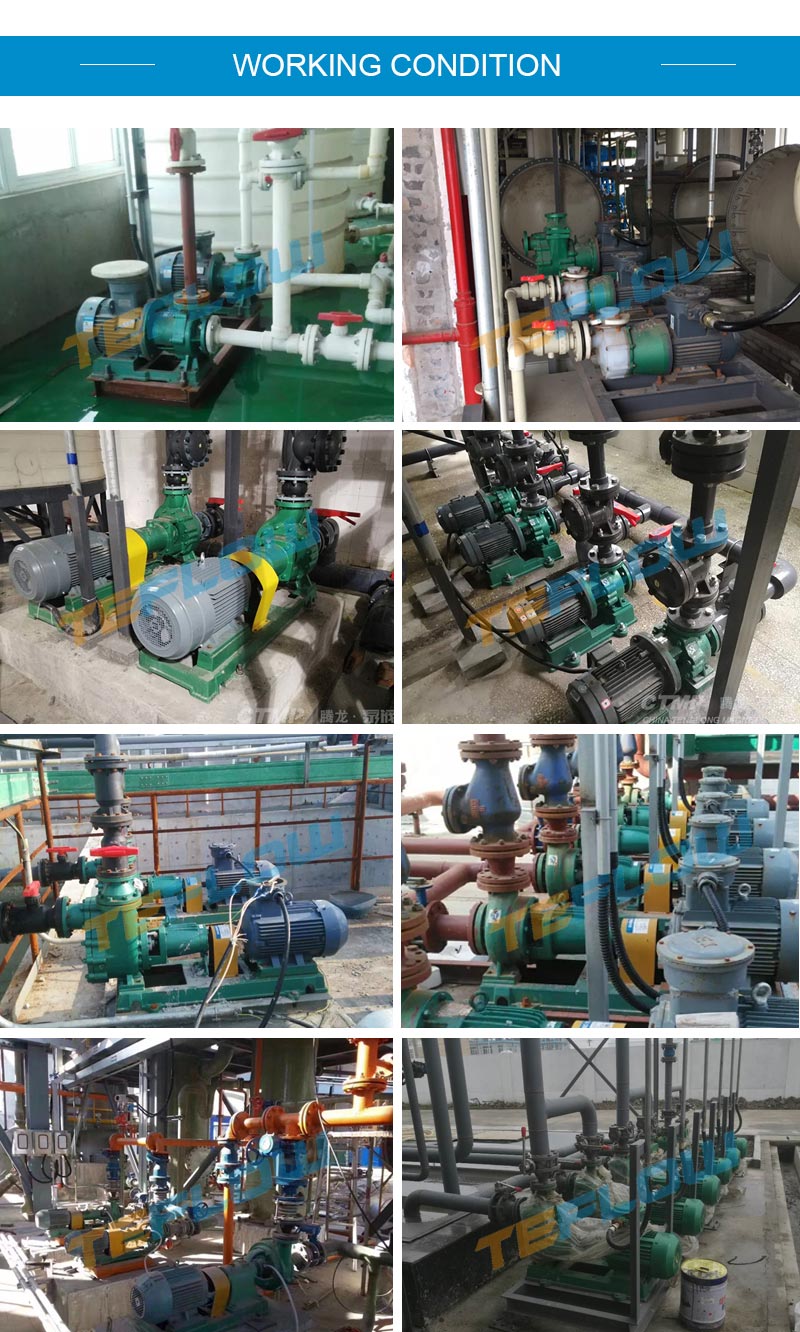

-Product uses:  Pickling process, acid and alkali production, spray painting process, electrolyte transportation in non-ferrous metal smelting, chlorine water transportation in ion membrane project, wastewater treatment, electroplating, pesticide industry.

-Medium:  sulfuric acid pump, hydrochloric acid pump, hydrofluoric acid pump, nitric acid pump, Wang pump, strong alkali, strong oxidant, organic solvent and other strong corrosive media without damage.

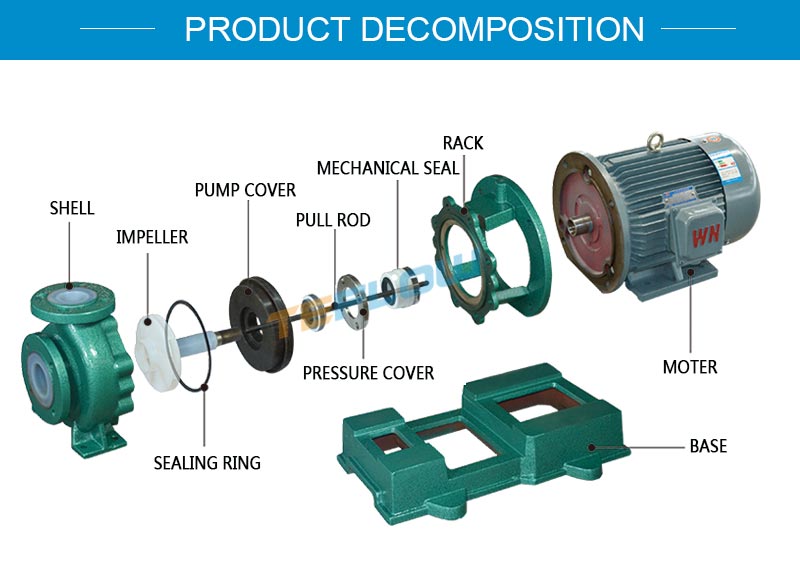

Structure diagram

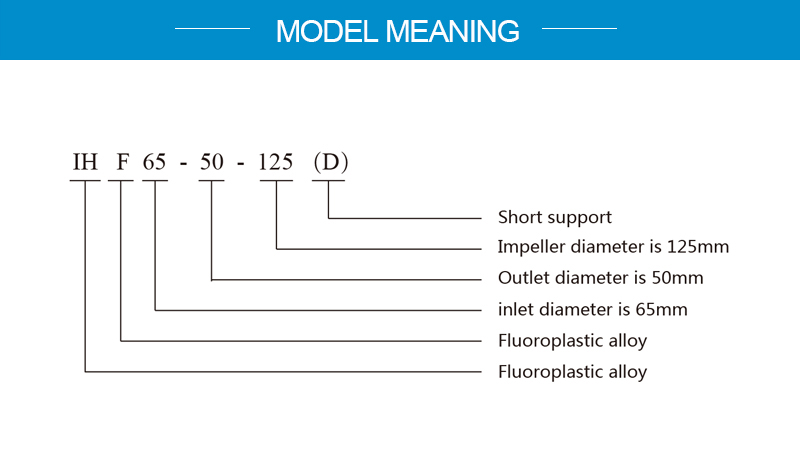

Model meaning

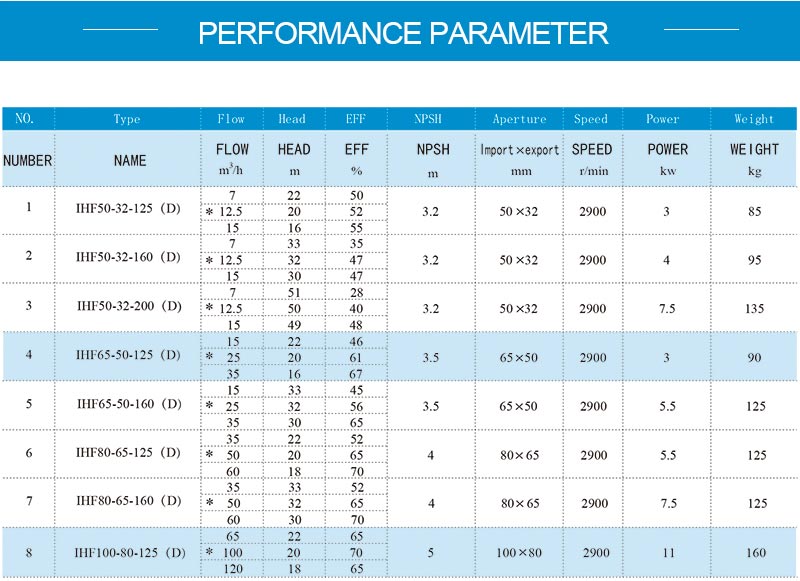

Performance parameter
