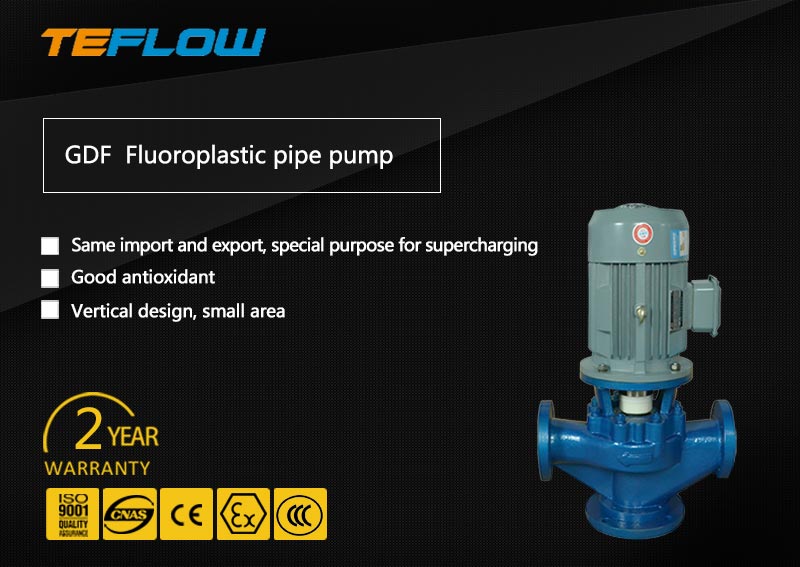

Small high pressure inline pump for chemical industry

Flow range:3.6m3/H-100m3/H(60L/min-1600L/min)

Head range:20M-32M

Tenperature range:-25℃-150℃

Voltage:220V-380V-440V

Brand Name:TEFLOW PUMP

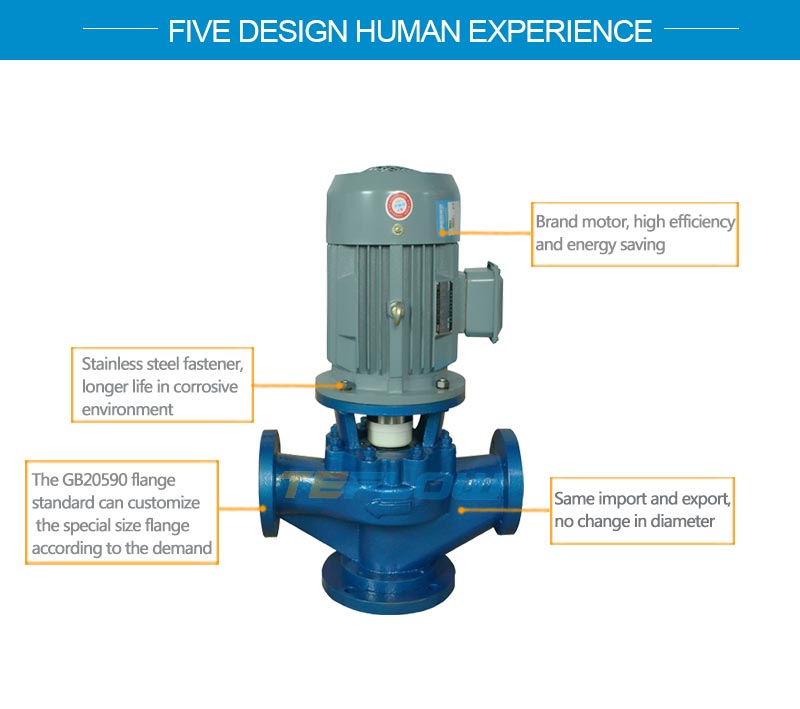

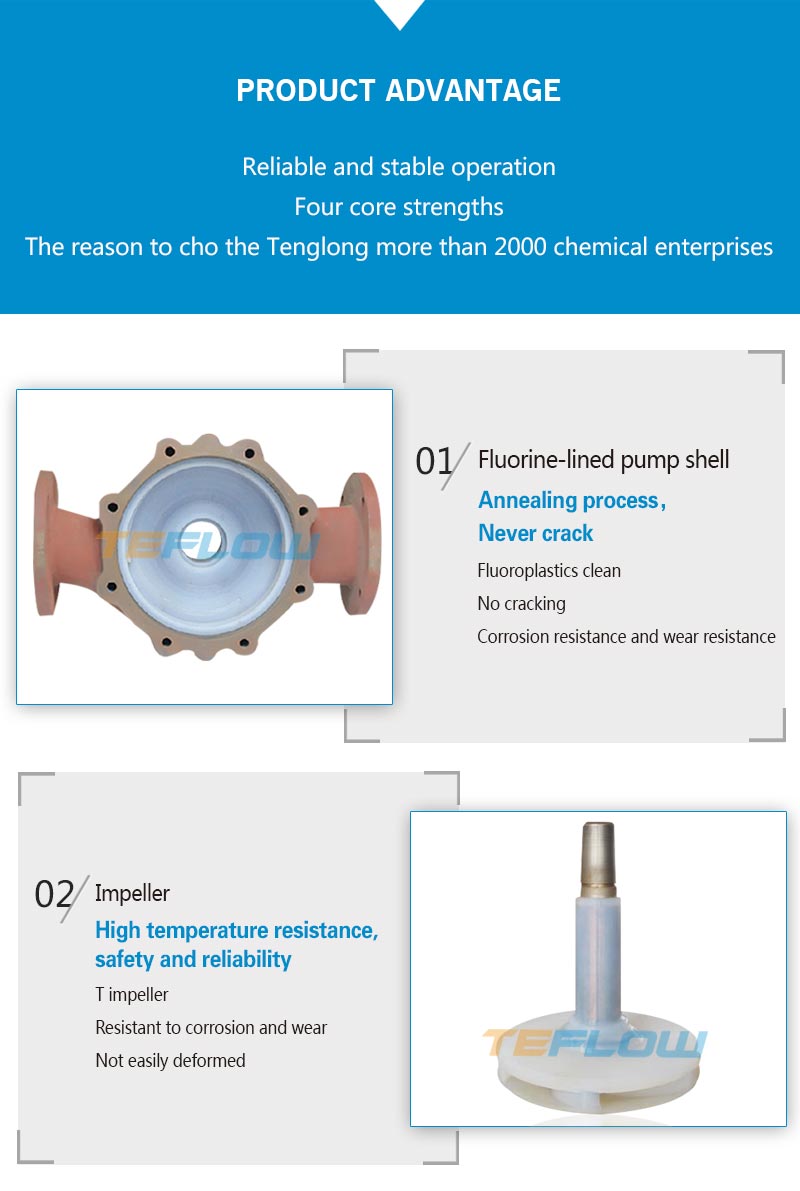

-Introduction:  The overflowing parts of GDF fluoroplastic pipe pump are all tightly lined with fluoroplastic, and the load-bearing part of the pump is made of metal material. The vertical design structure of fluoroplastic pipe pump occupies a small area, the inlet and outlet is the same, there is no need to change diameter, multiple sets can be connected in series, saving space, and can be used for pressurization of limited space or linear pipeline.

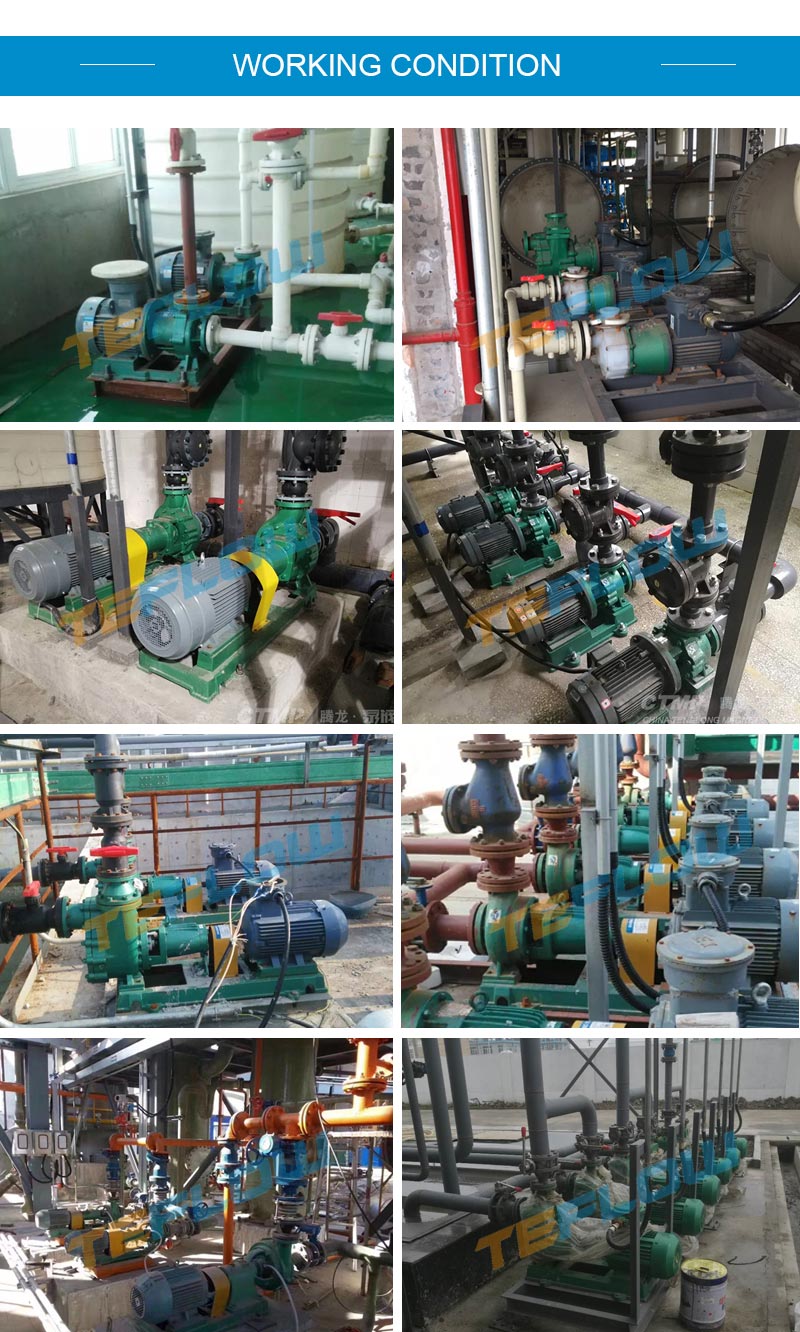

-Product uses:  Pickling process, acid and alkali production, spray painting process, electrolyte transportation in non-ferrous metal smelting, chlorine water transportation in ion membrane project, wastewater treatment, electroplating, pesticide industry.

-Medium:  Sulfuric acid pump, nitric acid pump, formic acid pump, Wang pump, sodium hypochlorite pump, dichloroethyl ether

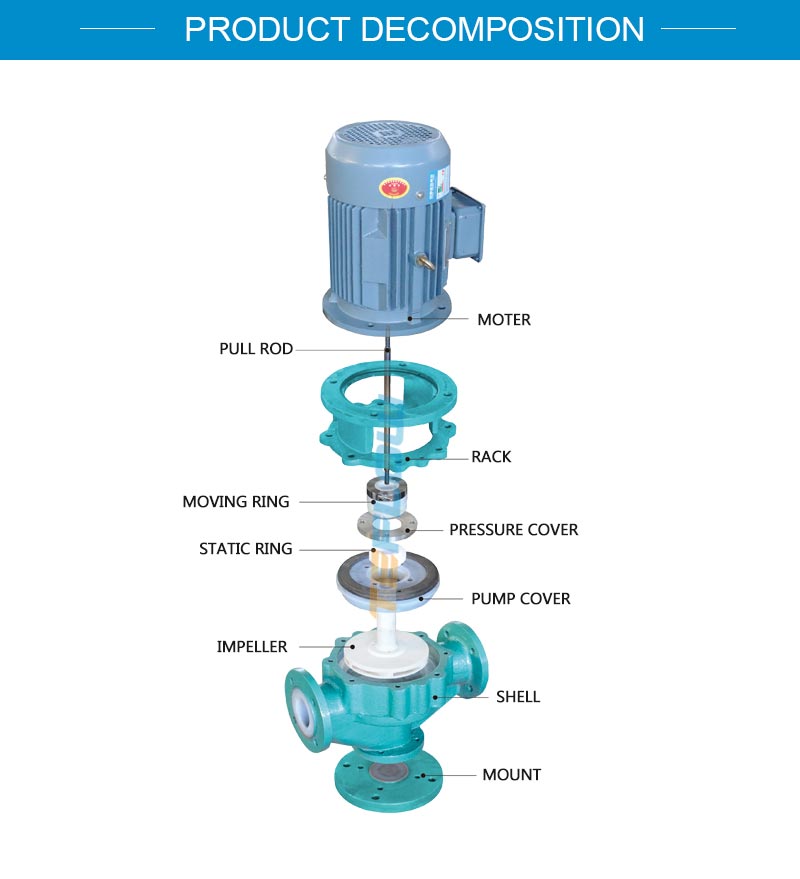

Structure diagram

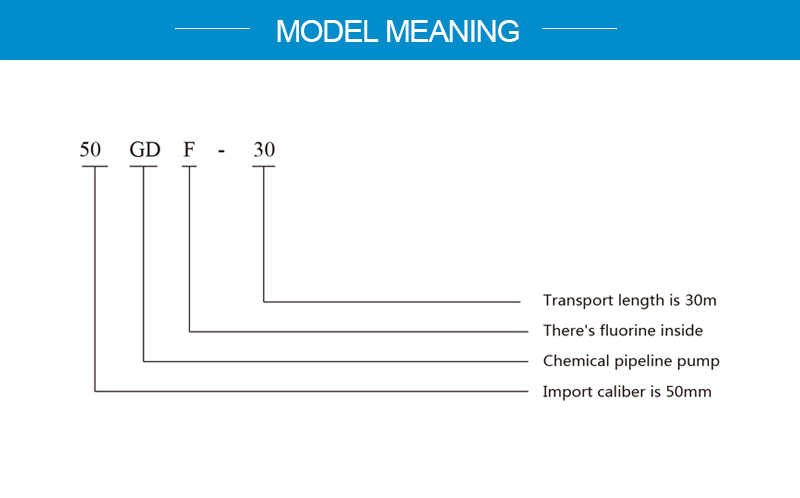

Model meaning

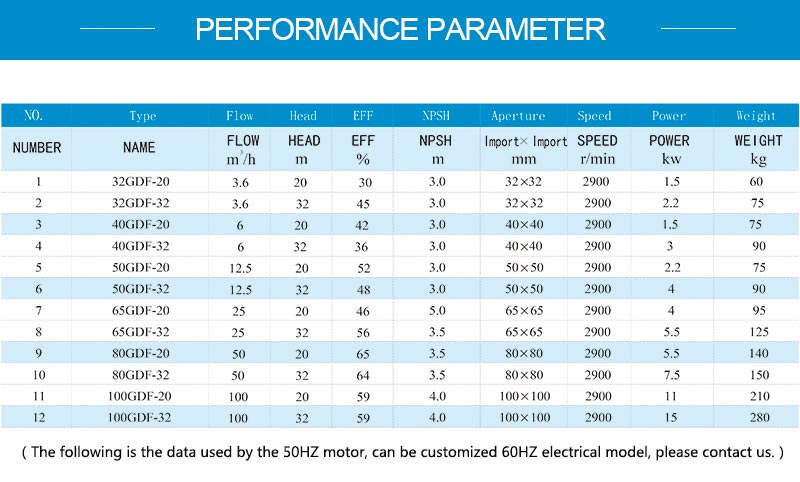

Performance parameter
