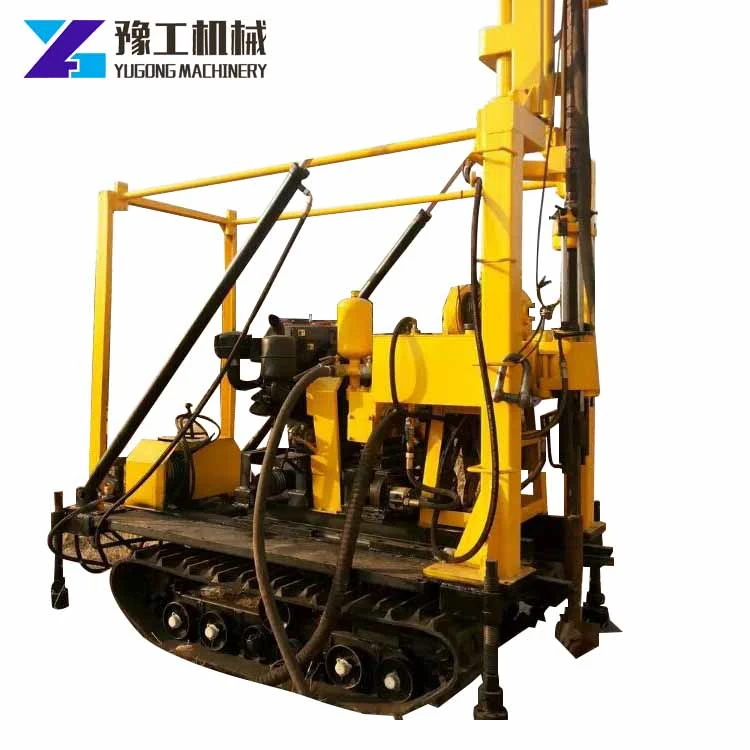

China borehole drilling rig truck mounted For sale
Applications
Mainly used for mining guns, drilling blasting holes and tunnel pipe support hole.
1. Adopting CG140 model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
2. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
3. The operation handles fixed in reasonable layout to make it more convenient for workers to operate the machine.
4. Equipped with normally closed hydraulic chuck, operation flexible and reliable.
5. Spindle and hoist can be operated separately.
6. Spindle has big inner diameter, able to use big hexagonal drilling rod
Parameters
Unity machine parameter | |
Core Drilling depth | 600m |
Max open hole caliber | 325mm |
End hole caliber | 75mm |
Drilling Rod diameter | 60mm |
Drilling angle | 90°~65° |
Dimension | 4500 x 200 x 2700mm |
Drill weight (without power) | 6200kg |
Spindle | |
Spindle speed | Forward 30-1057r/min |
Reverse 29 137r/min | |
Spindle stroke | 600mm |
Spindle inner diameter | 96mm |
Lifting capacity | 4500kg |
Hoist | |
Max.Single line lifting capacity | 4500kg |
Max.Single line lifting speed | 0.3-1.9m/s |
Wirerope caliber | 12.5mm |
Wirerope length | 65m |
Reel diameter | 300mm |
Hug folldgate belt width | 90mm |
Mud pump | |
Type | BW-250 |
Displacement | 250 L/min |
Work pressure | 80kg/cm |
Water inlet pipe diameter | 75 mm |
Water outlet pipe diameter | 50 mm |
Gear Oil pump | |
Duplex gear oil pump | CBF-F63/25 |
Front Displacement, pressure | 63 L/min 20Mpa |
Behind Displacement, pressure | 25 L/min 20Mpa |
Power | |
Duplex gear oil pump | CBF-F63/25 |
Front Displacement, pressure | 70 L/min 20Mpa |

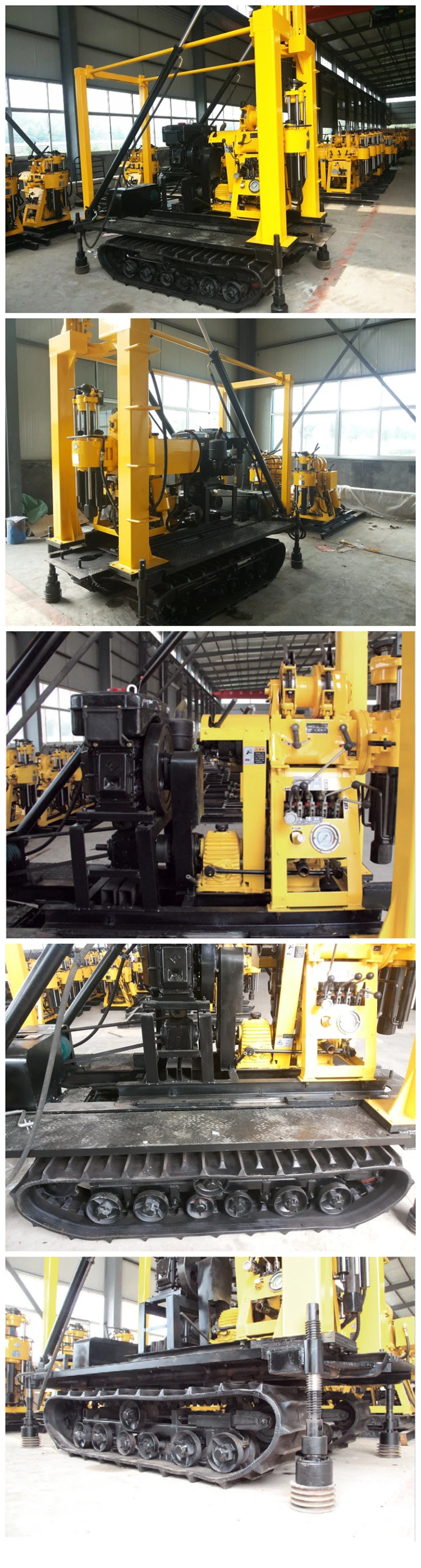

Product Display

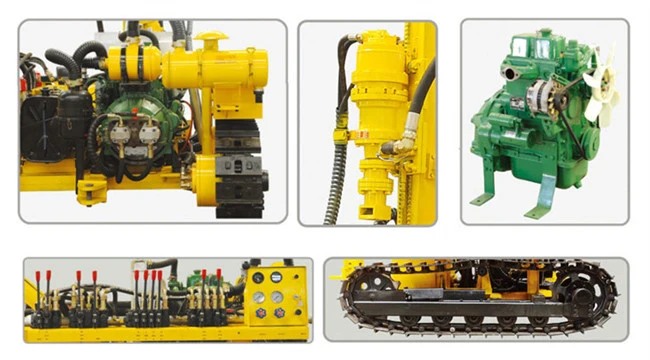

More Details
? Diesel protection device
? Strong power head
? Reliable supporting power
? Centralized control of the manipulation of the structure
? Reliable four wheels, one crawler
Packing and Shipping
