TUBING ENCAPSULATED CABLETEC
L/CT/T
TECHNICAL SPECIFICATIONS | |||

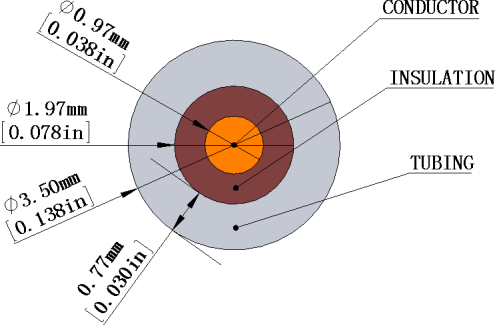

Type | TEC-316L-0.138in×0.030in-0.75mm2 | ||
Tubing | Material | 316L | |
Size | 3.5mm X 0.77mm (0.138in x 0.030in) | ||
Conductor | Material | Copper | |
Size | φ 0.97 mm (0.75 mm2) ×1 | ||
Insulation | Material | FEP | |
Size | φ 1.97 mm(0.078in) ×1 | ||
Mechanical Properties | |
Yield Force | 1.82 kN |
Unit Mass | 0.06kg/m |
Electrical Properties 0.75mm2 | |
Max Electrical Resistance, 20 ℃ | 24.5 Ω/km |
Min Insulation Resistance, 20 ℃ | 1100MΩ* km |
Voltage Test | AC 2 kV, @ 5 minutes, No Breakdown |
Other Properties | |
Temperature Range | -110℃-200℃ |
TECHNICAL SPECIFICATIONS | |||

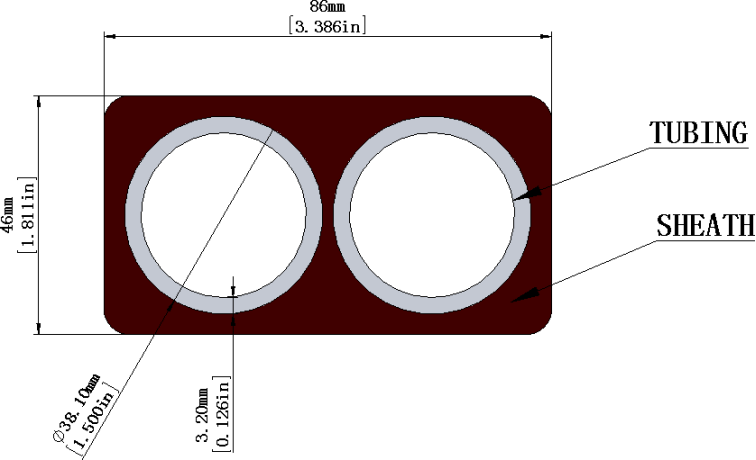

Type | TEC-HDPE-86mm×46mm-ST90-2x1.500in×0.126in | ||
Tubing | Material | ST90 | |
Size | 38.1mm X 3.2mm (1.500in x 0.126in) | ||
Encapsulation | Material | HDPE | |
Size | 86mm×46mm (3.386in×1.811in) | ||
Mechanical Properties | |
Yield strength | ≥90,000 psi (620 MPa) |
Tensile strength | ≥97,000 psi (669 MPa) |
Minimum Test Pressure | 12,600 psi (86.9 MPa) |
Yield Force | 435.06 kN |
Unit Mass | 7.07kg/m |
Other Properties | |
Temperature Range | -60℃-100℃ |

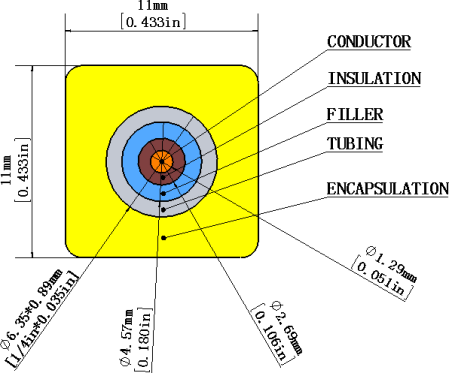

TEC-PP-11mm×11mm-316L-1/4in×0.035in-16AWG
TECHNICAL SPECIFICATIONS | |||
Type | TEC-PP-11mm×11mm-316L-1/4in×0.035in-16AWG | ||
Tubing | Material | 316L | |
Size | 6.35mm X 0.89mm (1/4in x 0.035in) | ||
Conductor | Material | Copper | |
Size | φ 1.29mm (0.051in) | ||
Insulation | Material | F40 | |
Size | φ 2.69mm(0.106in) | ||
Filler | Material | PP | |
Size | φ 4.57mm(0.180in) | ||
Encapsulation | Material | PP | |
Size | 11mm×11mm (0.433in×0.433in) | ||
Mechanical Properties | |
Yield Force | 1.82 kN |
Unit Mass | 0.24kg/m |
Electrical Properties 16AWG | |
Max Electrical Resistance, 20 ℃ | 13.8 Ω/km |
Min Insulation Resistance, 20 ℃ | 1100MΩ* km |
Voltage Test | AC 2 kV, @ 5 minutes, No Breakdown |
Other Properties | |
Temperature Range | -30℃-120℃ |
TECHNICAL SPECIFICATIONS | |||

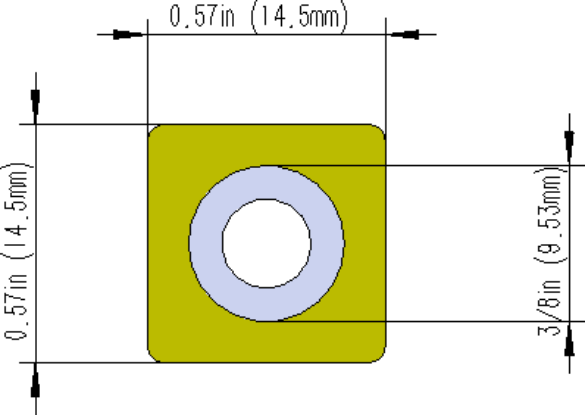

Type | TEC-PVDF-14.5mm×14.5mm-825-3/8in×0.049in | ||
Tubing | Material | 825 | |
Size | 9.53mm X 1.25mm (3/8in x 0.049in) | ||
Encapsulation | Material | PVDF | |
Size | 14.5mm×14.5mm (0.57in×0.57in) | ||
Mechanical Properties | |
Yield strength | ≥40,000 psi (276 MPa) |
Tensile strength | ≥70,000 psi (483 MPa) |
Minimum Test Pressure | 8,200 psi (56.6 MPa) |
Yield Force | 8.97 kN |
Unit Mass | 0.51kg/m |
Other Properties | |
Temperature Range | -30℃-150℃ |
TECHNICAL SPECIFICATIONS | |||

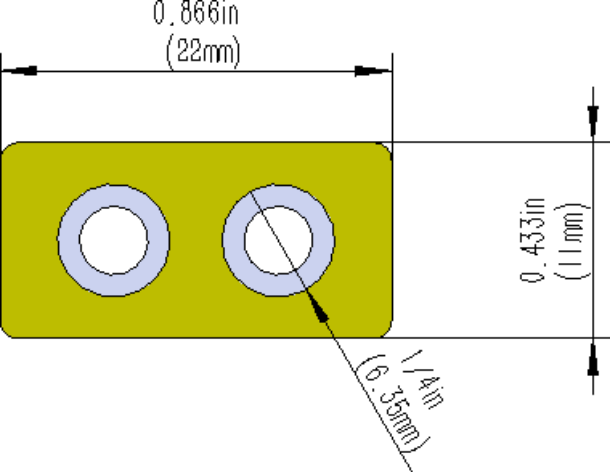

Type | TEC-PVDF-22mm×11mm-825-2×1/4in×0.049in | ||
Tubing | Material | 825 | |
Size | 2 X 6.35mm X 1.25mm (1/4in x 0.049in) | ||
Encapsulation | Material | PVDF | |
Size | 22mm×11mm (0.886in×0.433in) | ||
Mechanical Properties | |
Yield strength | ≥40,000 psi (276 MPa) |
Tensile strength | ≥70,000 psi (483 MPa) |
Minimum Test Pressure | 11,800 psi (81.4 MPa) |
Yield Force | 11.06 kN |
Unit Mass | 0.64kg/m |
Other Properties | |
Temperature Range | -30℃-150℃ |

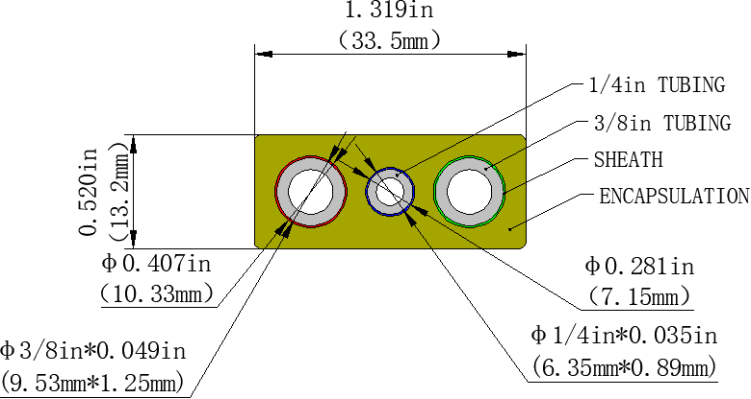

TEC-PVDF-33.5mm×13.2mm-316L-2×3/8in×0.049in-1/4inx0.035in
TECHNICAL SPECIFICATIONS | |||
Type | TEC-PVDF-33.5mm×13.2mm-316L-2×3/8in×0.049in-1/4inx0.035in | ||
Tubing | Material | 316L | |
Size | 2 X 9.53mm X 1.25mm (3/8in x 0.049in) | ||
Tubing | Material | 316L | |
Size | 6.35mm X 0.89mm (1/4in x 0.035in) | ||
Sheath | Material | PP | |
Size | 2 X 10.33mm X 0.40mm (0.407in x 0.016in) | ||
Sheath | Material | PP | |
Size | 7.15mm X 0.40mm (0.281in x 0.016in) | ||
Encapsulation | Material | PVDF | |
Size | 33.5mm×13.2mm (1.319in×0.520in) | ||
Mechanical Properties | |
Yield strength | ≥40,000 psi (276 MPa) |
Tensile strength | ≥70,000 psi (483 MPa) |
Minimum Test Pressure | 8,200 psi (56.6 MPa) |
Yield Force | 23.47 kN |
Unit Mass | 1.09kg/m |
Other Properties | |
Temperature Range | -30℃-120℃ |
TECHNICAL SPECIFICATIONS | |||

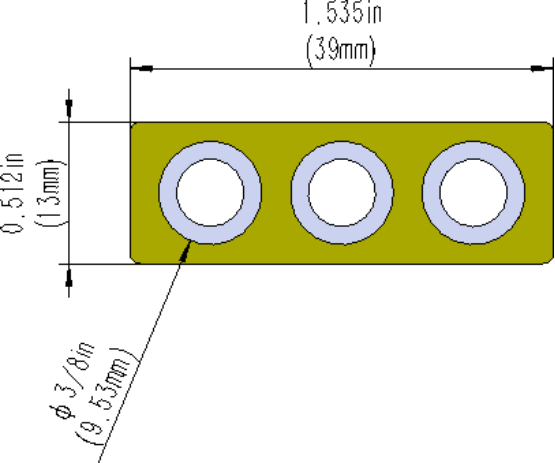

Type | TEC-TPV-39mm×13mm-2507-3×3/8in×0.049in | ||
Tubing | Material | 2507 | |
Size | 3 X 9.53mm X 1.25mm (3/8in x 0.049in) | ||
Encapsulation | Material | TPV | |
Size | 39mm×13mm (1.535in×0.512in) | ||
Mechanical Properties | |
Yield strength | ≥90,000 psi (620 MPa) |
Tensile strength | ≥116,000 psi (800 MPa) |
Minimum Test Pressure | 17,500 psi (120 MPa) |
Yield Force | 60.48 kN |
Unit Mass | 1.09kg/m |
Other Properties | |
Temperature Range | -30℃-150℃ |
